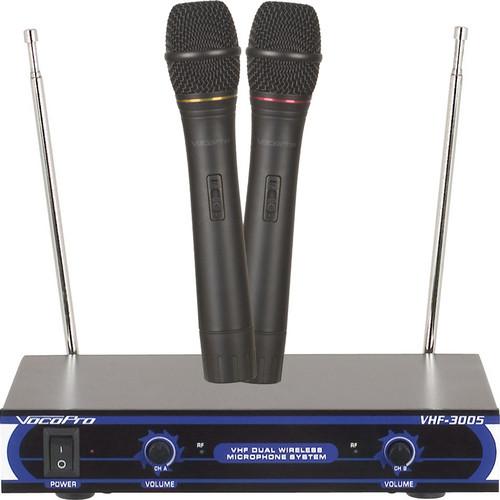

User Manual for VocoPro VHF-3005 Dual Channel VHF Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the VocoPro VHF-3005 Dual Channel VHF Wireless
- Product category: Wireless Systems VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Wireless Systems
 |
User manual for the VocoPro VHF-3005 Dual Channel VHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|

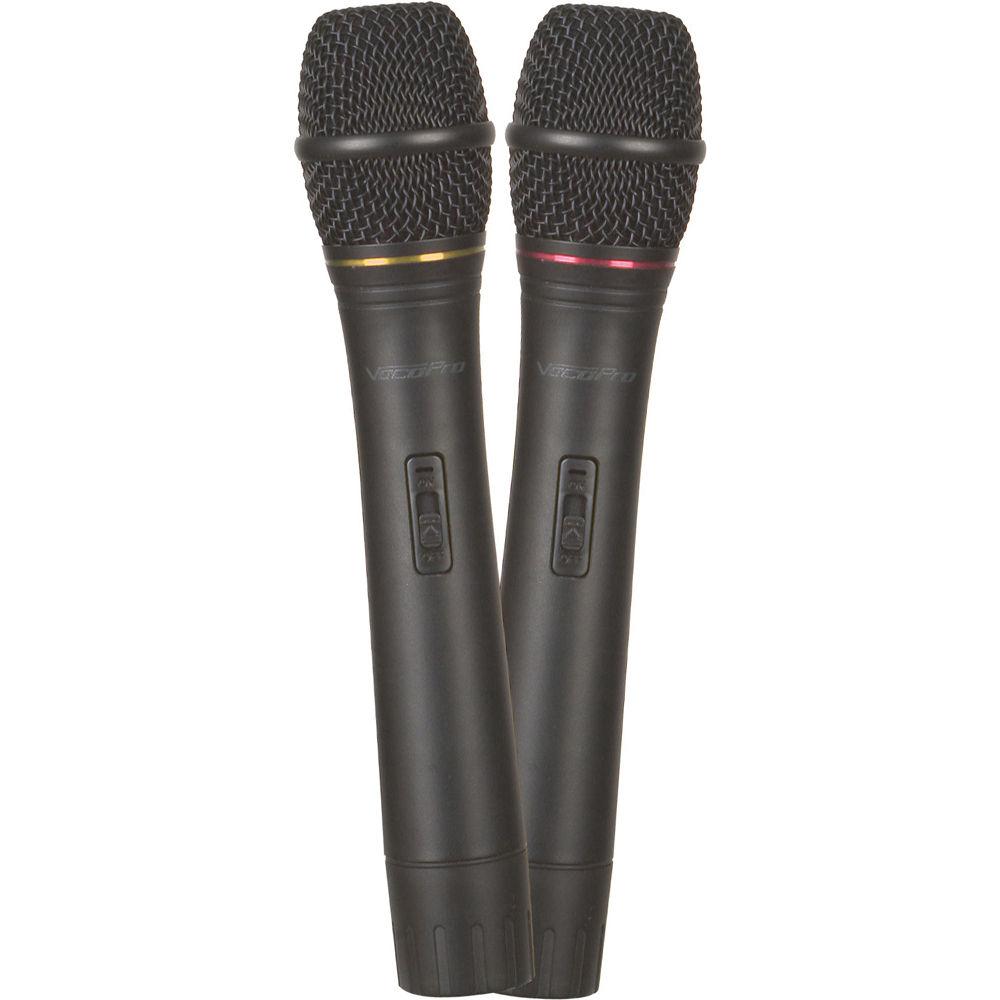

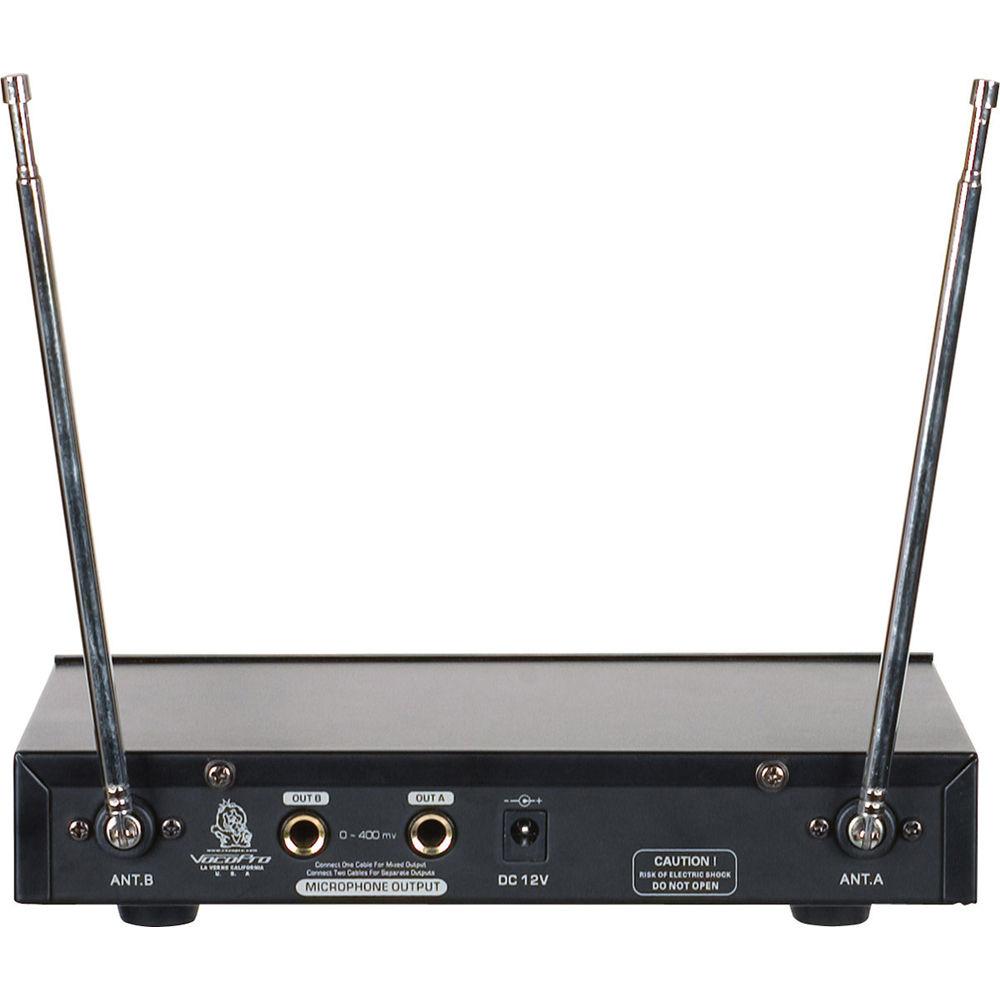

Product description The VocoPro VHF-3005 Dual Channel VHF Wireless Microphone System is an affordable yet reliable VHF wireless microphone system that supports simultaneous operation of the 2 included microphones, making it suitable for karaoke, DJs, small bands, small venues and much more. The system includes a VHF receiver and 2 handheld microphone transmitters that operate on 9V battery power for up to 8 hours. The receiver features individual level dials for each transmitter, separate output connections via 1/4" phone, RF and level LED indicators. The operating range is rated at up to 164' (50.29m). - 2 wireless handheld mics included
- Individual Volume controls for precise vocal balancing
- Antennas provide clear RF reception
- Rugged 1 RU metal receiver chassis
- VHF Band (180 MHz-250MHz) quartz lock for drift-free operation

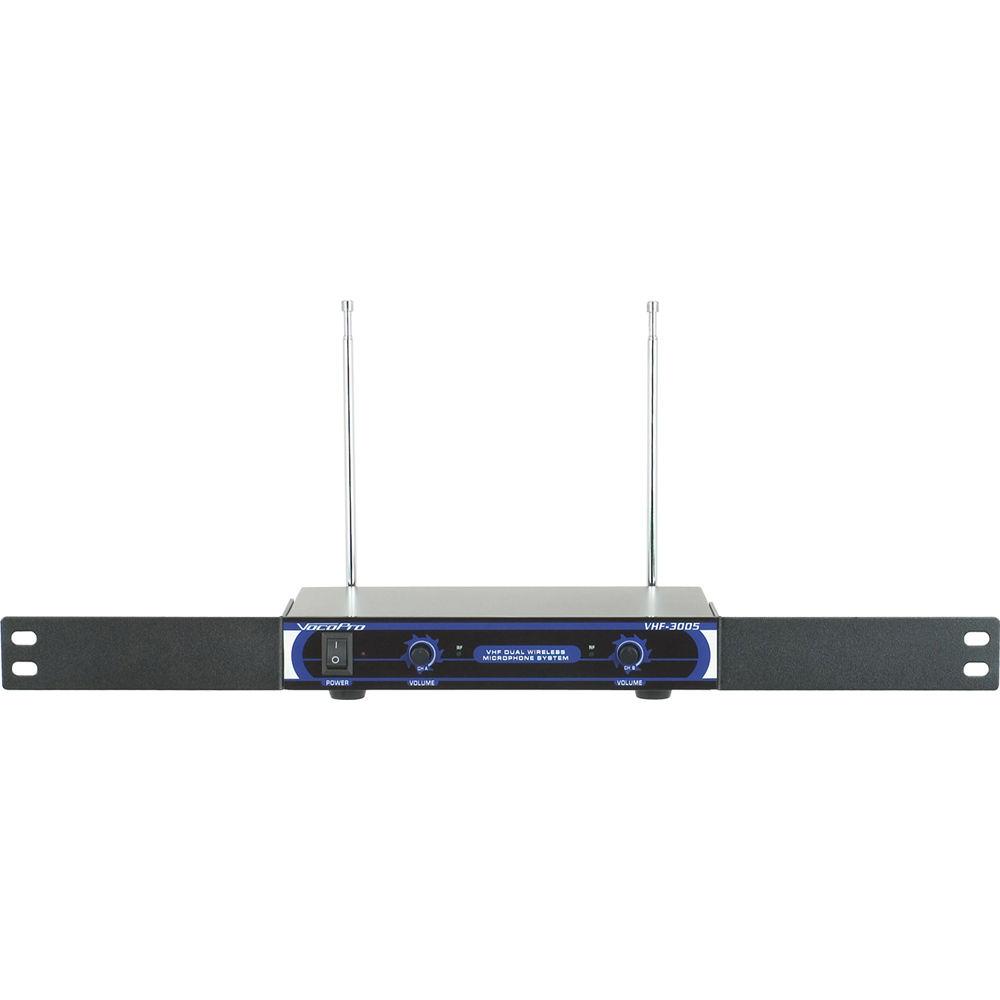

- Rack-mountable with included mounting brackets
UPC: 692868843051 In the Box VocoPro VHF-3005 Dual Channel VHF Wireless Microphone System VHF Base Receiver 2 x Wireless Handheld Microphone Transmitters 2 x AC/DC Power Adapter 2 x 9V Batteries 2 x 1/4" Phone Connector Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro VHF-3005 Dual Channel VHF Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro VHF-3005-4 Specs | | | Carrier Frequency | VHF 220 ~ 270MHz
Frequency Stabilization: < +/- 30PPM | | Dynamic Range | > 90dB | | THD | < 0.5 % | | Frequency Response | 40Hz ~ 18kHz | | Audio Output Level | 0 ~ +/- 400mV (mixed output), 0 ~ 200mV (separate output) | | Temperature Range | 50 ~ 122° F (10 ~ 50° C) | | Operating Range | 164' (50.29m) Radius | | | | Signal to Noise Ratio | > 90dB | | Spurious Rejection | > 80dB
Border upon channel rejection: > 80dB | | Sensitivity | > 12dBu (S/N=20dB) | | Power Supply | AC 110V / 50Hz
Consumption: 1W | | | | Microphone Power | 13dBm | | Modulation | FM, F3F | | Deviation | Maximum Deviation: +/- 30kHz | | Spurious Emission | > 60dB (with carrier) | | Nominal Battery Voltage | 9V Battery
Continual use: 8 hours | | Noise | Noise control: Auto-mute circuitry | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 16.4 x 12.6 x 3.8" |
