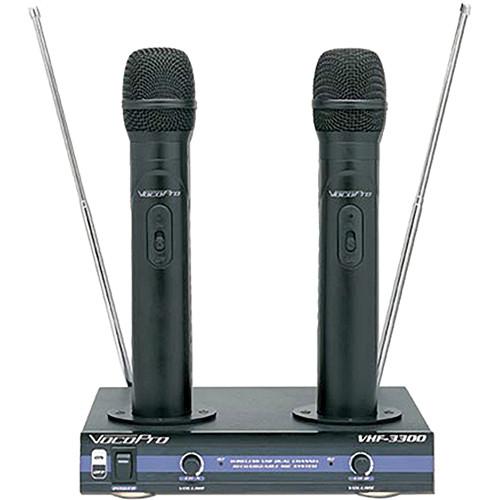

User Manual for VocoPro VHF-3300 - 2 Channel VHF Rechargeable Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the VocoPro VHF-3300 - 2 Channel VHF
- Product category: Wireless Systems VocoPro
- Brand: VocoPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VocoPro Wireless Systems
|
User manual for the VocoPro VHF-3300 - 2 Channel VHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VocoPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VocoPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VocoPro product will considerably shorten its lifespan!
|
Product description The VHF-3300 from VocoPro is a 2 channel VHF wireless microphone system with two rechargeable uni-directional handheld mics. When the receiver is plugged into a sound system, the two microphones will transmit audio to the receiver without the need for microphone cables, giving the presenter/performer a lot more freedom of movement. The microphones mount into the top of the receiver to recharge their batteries, and for storage. The VHF-3300 is a really handy system that's very easy to use. There are two outputs on the back of the receiver. If you connect just one of the outputs to a sound system, the audio from both microphones will be mixed together through that single output. If you connect both outputs on the VHF-3300 to a sound system, each microphone will be separated on the individual outputs. This way if you encounter a sound system with only one microphone input, both wireless microphones can still be used. The microphones provide 1 to 2 hours of use before they need to be recharged. The recharging process takes about 8 hours. If you need to run the microphones for more than 2 hours, you can replace the included rechargeable 9 Volt battery in the microphone with a standard 9 Volt battery. Volume knobs for each mic are on the front panel so you can balance out the perfect mix. - Receiver doubles as a mic charger and holder
- Dual microphone outputs, dual antenna VHF receiver
- VHF band quartz lock for drift-free operation
- Audio-mute circuitry provides noiseless on/off switching
- Individual front panel volume controls for precise vocal balancing
- Two 1/4" unbalanced outputs for separate and mixed signal output
- Squelch circuitry eliminates background and RF noise bursts
- Excellent operating range up to 150 feet
- Dual front panel RF LED indicators
- 19" rackmountable to occupy a single rack space with included mounting brackets
UPC: 692868833007 In the Box VocoPro VHF-3300 - 2 Channel VHF Rechargeable Wireless Microphone System 2 x Rechargeable 9 Volt Batteries Rack Mount Brackets AC Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro VHF-3300 - 2 Channel VHF Rechargeable Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro VHF-3300 Specs | Microphone | Pressure Gradient Transducers | | Polar Pattern | Uni-directional | | Outputs | 2 x 1/4" Jacks | | Frequency Response | 20 Hz - 20 kHz | | Sensitivity | -33 dB +/-2 dB (0 dB = 1V/PA @ 1 kHz) | | Output Impedance | 200 Ohms +/-30% (@1 kHz) | | Load Impedance | >1000 Ohms | | Noise | Self Noise: 16 dB A | | SPL | 135 dB (@ 1 kHz < 1% THD) | | S/N Ratio (Audio) | 78 dB | | Operating Voltage | DC 48V Phantom (+/-5V) | | Power | Receiver: DC 12V Microphones: Powered by included rechargeable 9 Volt batteries
Regular 9 Volt batteries can be used, but the microphones must NOT be placed in the charger when regular batteries are being used. | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 16.1 x 13.0 x 3.9" | Note: Do not place microphones back in the rechargers with regular batteries installed, even if the power is turned off! Charging a regular non-rechargeable battery may cause the battery to explode.
