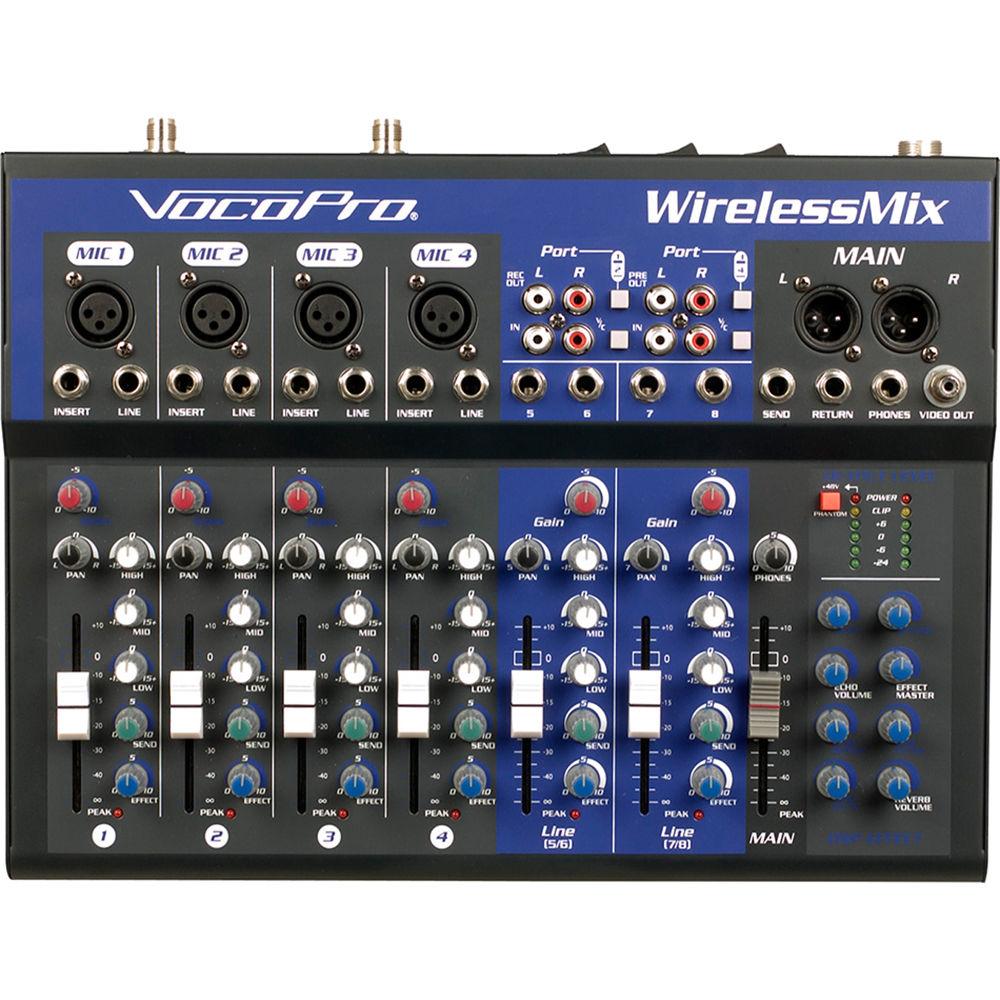

Product description The WirelessMix-2 from VocoPro is an all-in-one professional mixing solution with 6 channels, 8 inputs, up to 4 wireless microphones, and up to four stereo expansion slots. Channels 1-4 feature XLR microphone inputs with phantom power (+48V), 1/4" TS inputs, and 1/4" TRS channel inserts (send-tip, return-ring). Channels 5&6 and 7&8 offer both stereo RCA and stereo 1/4" inputs. All channels offer gain trim, pan, 3-band EQ, aux send, and digital effects sends.
The mixer offers balanced XLR main outputs, stereo RCA recording outputs, and stereo RCA pre outputs. Additional outputs include a 1/4" TRS headphone output and a video output, which functions with the optional DKP-3 digital player module installed. The WirelessMix-2 ships with two UHF wireless microphones, two UHM wireless receiver modules (installed), the SDR-4 digital SD recorder/player (installed), two antennas, and a power cord. -
- Eight input channels available; each with dedicated Tone, Pan and Effect controls
- Four XLR microphone inputs with +48 Phantom Power Toggle and Mic Inserts
- Four mono line inputs for either Microphones or Instruments
- Stereo Inputs Available: 2x L/R 1/4" Mono (TS), 2x RCA
- Stereo Outputs Available: 2x RCA-Record, 1x L/R XLR-Main
- On-Board DSP Microphone Effects: Echo, Repeat, Delay, Reverb & Hiss Filter
- Vocal Cancel Feature for Multiplexed Karaoke Tracks
- Package Includes: 2x UHF wireless handheld microphones with 2x receivers installed. (with an additional 2 Module Slots available for optional onboard Wireless Microphone Receiver Modules: UMH & UMH-5805)
- Package Includes: 1x SDR-4 digital SD recorder/player installed (with an additional 3 Stereo Expansion Slots Available for Added Input Capability with optional Stereo Expansion Modules: DKP-3, Air-Net 2, & BT-1)

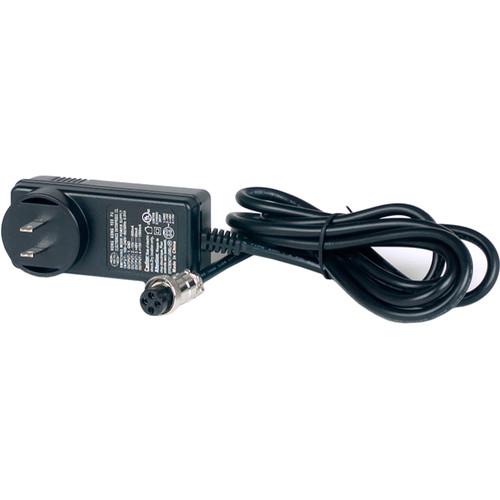

UPC: 692868253775 In the Box VocoPro WirelessMix-2 All-In-One Mixer w/ 2x Wireless Mics and SD Audio Recorder 2 x UHF Wireless Microphones 2 x UHM Wireless Receivers Installed SDR-4 Digital SD Recorder/ Player Installed 2 x Antennas Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VocoPro WirelessMix-2 All-In-One Mixer w 2x Wireless Mics and SD Audio Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVocoPro WIRELESSMIX2 Specs | Inputs | Mic (Channels 1-4): 4x XLR
Line (Channels 1-4): 4x 1/4" / 6.35 mm TS
Line (Channels 5-6, 7-8): 4x 1/4" / 6.35 mm TS
Line (Channels 5-6, 7-8) 2x Stereo RCA pairs (4 total)
Return: 1x 1/4" / 6.35 mm TS | | Outputs | Main: 2x XLR
Rec: 2x RCA
Pre: 2x RCA
Send: 1x 1/4" / 6.35 mm TS
Phones: 1x 1/4" / 6.35 mm TRS
Video: 1x RCA | | Channel Inserts | Channel Insert (1-4)

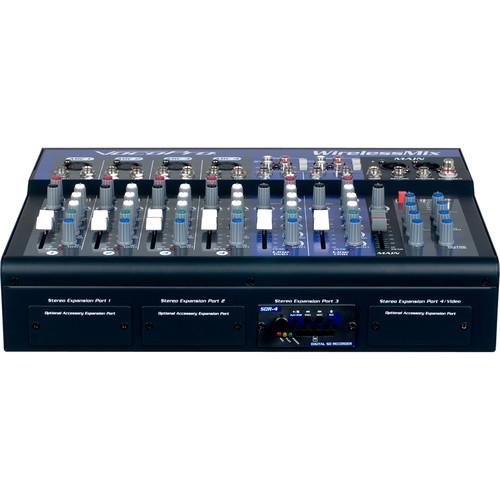

Send/Return: 4x 1/4" / 6.35 mm TRS (Send-Tip, Return-Ring) | | I/O Expansion Module | Stereo Expansion Modules: 4x Slots (1x SDR-4 Digital SD Recorder/Player installed)

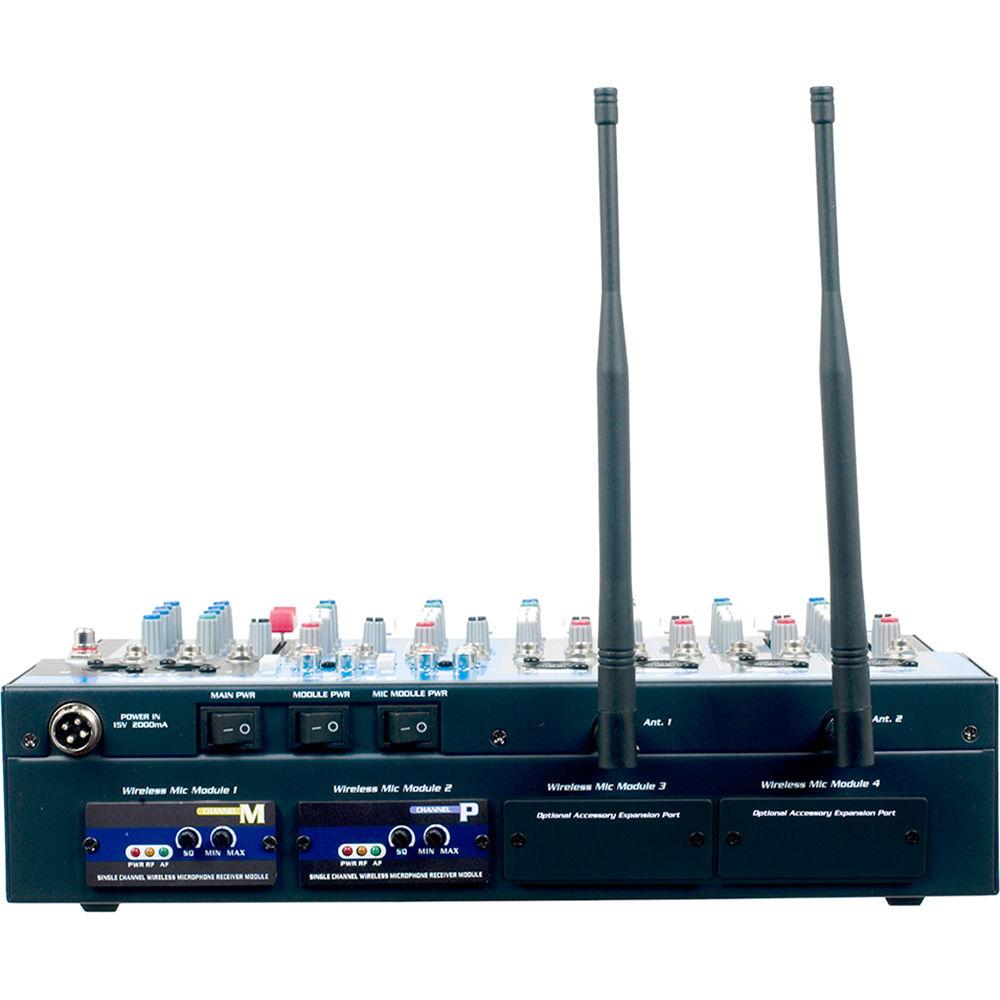

Compatible Stereo Modules: DKP-3, Air-Net 2, and BT-1 (not included) Wireless Microphone Receiver Modules: 4x Slots (2x UHF Receivers installed)
Compatible Wireless Microphone Modules: (UMH and UMH-5805) | | Power | 15 VAC, 2000 mA | | Dimensions (WxDxH) | 14.0 x 10.0 x 3.8" / 355.6 x 254.0 x 95.3 mm | | Weight | 10.0 lb / 4.5 kg | | | | Package Weight | 14.8 lb | | Box Dimensions (LxWxH) | 17.874 x 14.016 x 7.087" |
