User Manual for Voice Technologies VT401 Professional Miniature Omni Lavalier Microphone with 3-Pin LEMO Screw Locking Connectors Click to enlarge the picture
Contents of the user manual for the Voice Technologies VT401 Professional Miniature Omni
- Product category: Microphones for Wireless Voice Technologies
- Brand: Voice Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Voice Technologies Microphones for Wireless
 |
User manual for the Voice Technologies VT401 Professional Miniature Omni contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Voice Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Voice Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Voice Technologies product will considerably shorten its lifespan!
|

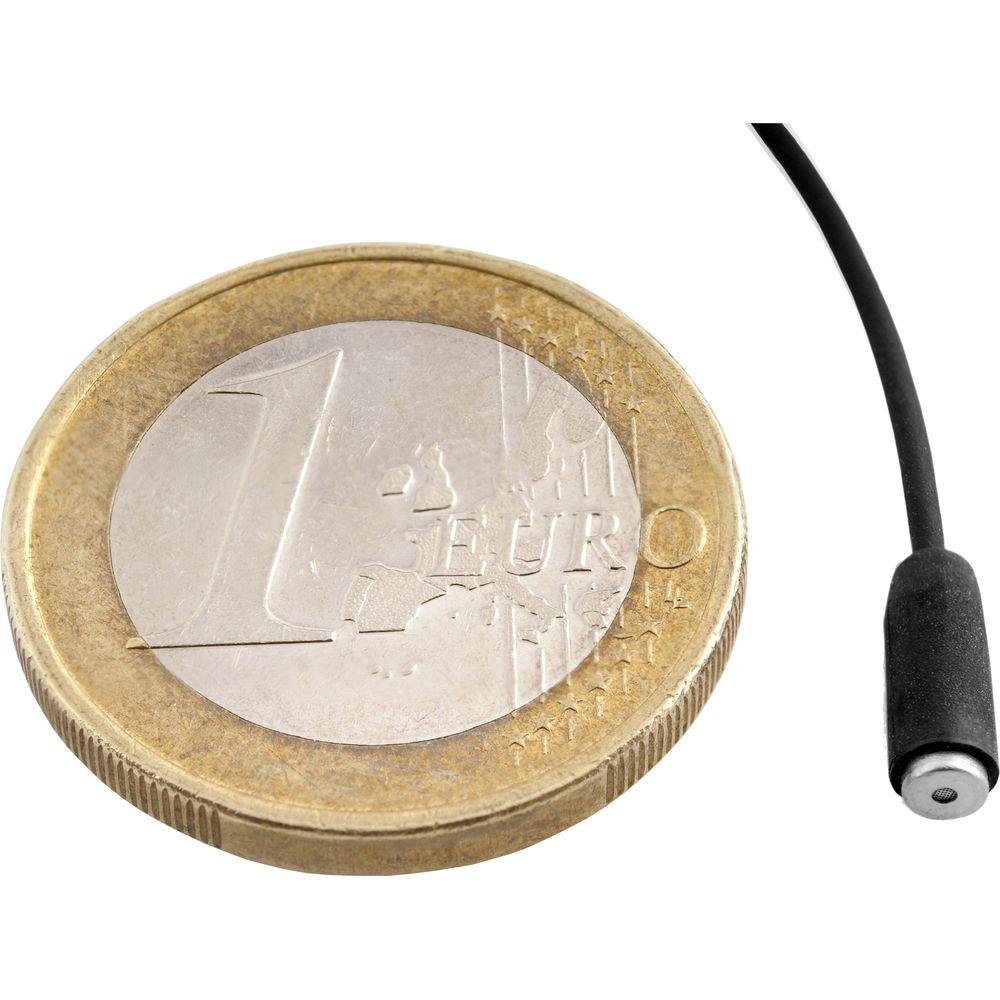

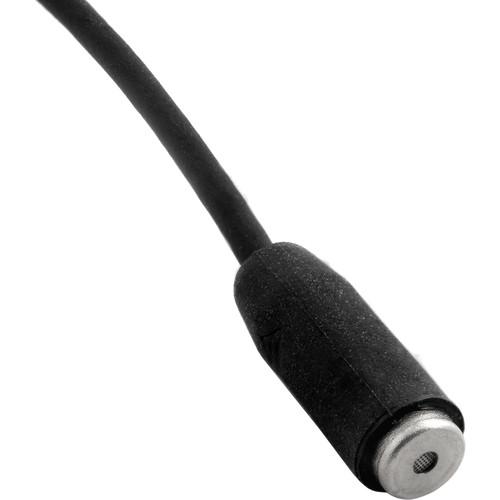

Product description The black VT401 Miniature Lavalier Microphone form Voice Technologies measures just 0.12" (3.2mm) in diameter for a miniature design well suited for stage and on-camera performances. The VT401 boasts a wide 20Hz to 20kHz frequency response and a low noise floor ensures pristine audio fidelity. The omni-directional polar pattern is ideal for vocal capturing and maximizes placement flexibility. This microphone is compatible with Select Sennheiser transmitters and ships in a waterproof case. It includes an alligator clip, windscreen with acoustic tube, miniature windscreen, miniature magnetic clip, dracula mount, and rubber body mount. - Omnidirectional Polar Pattern
- The omnidirectional polar pattern is ideal for vocal capturing and maximizes placement flexibility.
- 3-Pin LEMO Screw Locking Connection for Select Sennheiser Beltpack Transmitters
- The VT401 features a 3-pin LEMO screw locking connection for a compatible Select Sennheiser Lectro, and Audio Ltd. wireless beltpack transmitter.
In the Box Voice Technologies VT401 Professional Miniature Omni Lavalier Microphone with 3-Pin LEMO Screw Locking Connectors (Black) Waterproof Box Alligator Clip Windscreen with Acoustic Tube Miniature Windscreen Miniature Magnetic Clip Dracula Mount Rubber Body Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Voice Technologies VT401 Professional Miniature Omni Lavalier Microphone with 3-Pin LEMO Screw Locking Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVoice Technologies VT401 Specs | Compatibility | Select Sennheiser Lectro, and Audio Ltd. | | Transducer | Electret Condenser | | Polar Pattern | Omni-directional | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | 5MV/Pa | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Noise Level | +30dB "A" Weighted | | Maximum Input Sound Level | 125 dB | | Power Requirements | Phantom Power Supplied by Beltpack | | Output Impedance | 4.5 kOhm (3-6 kOhm) | | Bias Voltage(s) | 0.8 V to 5 V (max) | | Output Connector | 3-pin LEMO screw locking | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions (LxDiameter) | 0.31 x 0.12" (8 x 3.2mm) | | Cable Length | 4.9' (1.5 m) Ø 1 mm | | Weight | 0.18 oz (5 g) | | | | Package Weight | 0.335 lb | | Box Dimensions (LxWxH) | 5.1 x 3.6 x 1.55" |
