User Manual for Voice Technologies VT403 Vocal Omnidirectional Lavalier Microphone with TA4F Jack Click to enlarge the picture
Contents of the user manual for the Voice Technologies VT403 Vocal Omnidirectional Lavalier
- Product category: Microphones for Wireless Voice Technologies
- Brand: Voice Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Voice Technologies Microphones for Wireless
|
User manual for the Voice Technologies VT403 Vocal Omnidirectional Lavalier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Voice Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Voice Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Voice Technologies product will considerably shorten its lifespan!
|
Product description The Voice Technologies VT403 Vocal Omnidirectional Lavalier Microphone is miniature and unobtrusive, and handles very high SPL without noise and distortion. The microphone also accentuates high frequencies for an open and clear vocal reproduction on stage, during presentations, ceremonies and more. The VT403 is impervious to noise caused by RFI and features very low inherent noise. Its water resistant design makes it ideal for applications such as aerobics and fitness instruction, vigorous performances and more. - TA4F Connector
- The VT403 is available in a variety of connections, this model features a TA4F connector for Shure & Sabine wireless transmitters.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern is ideal for vocal capturing and maximizes placement flexibility.

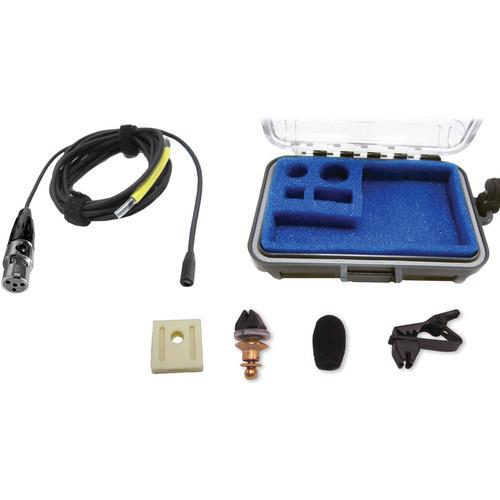

In the Box Voice Technologies VT403 Vocal Omnidirectional Lavalier Microphone with TA4F Jack (Black) Waterproof Otter Box with Foam Insert Alligator Clip Dracula Mount Windscreen Tie-Tac Clip Rubber Body Mount 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Voice Technologies VT403 Vocal Omnidirectional Lavalier Microphone with TA4F Jack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVoice Technologies VT403 Specs | Transducer | Back Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 100Hz to 20kHz | | Sensitivity | -48dB re 1 V/Pa @ 1kHz | | Noise | +33dB A-Weighted | | Maximum Input Sound Level | 136dB | | Power Requirements | Bias/+VDC: 3V (1.5 to 9V max.) | | Output Impedance | 2k ohm | | Wiring | Red: Mic+
Green: Mic-Shield (Ground) Copper: Mic-Output | | Output Connectors | TA4F connector for Shure & Sabine transmitters | | Dimensions (LxDiameter) | 0.39 x 0.12" (10 x 3.2mm)
Cable Length: 4.92' (1.5m) Cable Diameter: 0.05" (1.5mm) | | Weight | 0.21 oz (6g) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 7.0" |
