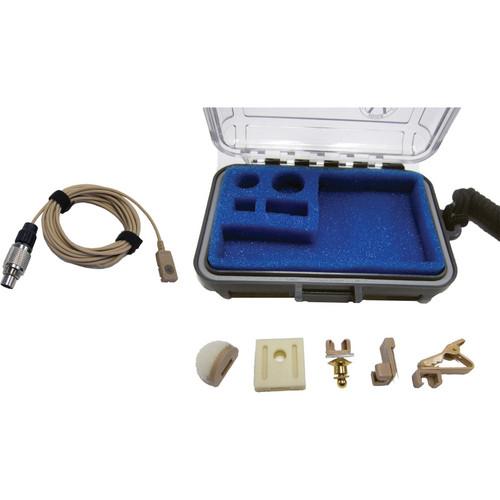

User Manual for Voice Technologies VT500 Omni Lavalier Microphone with Binder 5-Pin Connector Click to enlarge the picture
Contents of the user manual for the Voice Technologies VT500 Omni Lavalier Microphone
- Product category: Microphones for Wireless Voice Technologies
- Brand: Voice Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Voice Technologies Microphones for Wireless
|
User manual for the Voice Technologies VT500 Omni Lavalier Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Voice Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Voice Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Voice Technologies product will considerably shorten its lifespan!
|
Product description The beige VT500 Omni Lavalier Microphone with Binder 5-Pin Connector from Voice Technologies is suited for performing talent in broadcast, theatre, and film. This high-quality, all-purpose electret condenser microphone system features a Binder 5-pin connector and is compatible with Audio Ltd. TXPH (En2) wireless transmitters.
The special injection-molded design makes this microphone rugged and shockproof. In addition, a flexible cable offers enhanced isolation from rubbing noise. Speech clarity is optimized by a slight frequency emphasis, thereby giving excellent voice reproduction, while eliminating placement constraints. In the Box Voice Technologies VT500 Omni Lavalier Microphone with Binder 5-Pin Connector (Beige) VTO Otter Box esrduxafvuwdffwyyzzsvsyuzv Alligator Microphone Clip (Beige) Pro Foam Windscreen for Voice Technologies VT500 and VT506 (Beige) Tie Tac Microphone Clip (Beige) Dracula Microphone Clip (Beige) Rubber Body Microphone Mount Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Voice Technologies VT500 Omni Lavalier Microphone with Binder 5-Pin Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVoice Technologies VT500 Specs | Element Type | Electret condenser | | Polar Pattern | Omni-Directional | | Frequency Range | 40 Hz to 20 kHz | | Sensitivity | -59 dB (re 1 V/microbar) | | Noise Level | 26 dB A-weighted | | Maximum Input | SPL: 118 dB | | Impedance | 3 kΩ | | Voltage | Bias / +VDC: 1.3 V (0.9 to 20 V) | | Connector | Binder 5-Pin | | Current Drain | 25 μA | | Color | Beige | | Wiring | 3-Wire Configuration:
Red: Mic+
Copper: Mic-output
Green: Mic-shield (ground) | | Cable | L: 4.9' (1.5 m)
Ø: 0.05" (1.5 mm) | | Dimensions | Microphone: 0.51 x 0.27 x 0.13" (13.0 x 7.0 x 3.5 mm) | | Weight | 0.24 oz (7.00 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 7.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
