User Manual for Voice Technologies VT500WA Water Adventure Miniature Lavalier Microphone with 3-Wire Pigtail Click to enlarge the picture
Contents of the user manual for the Voice Technologies VT500WA Water Adventure Miniature
- Product category: Microphones for Wireless Voice Technologies
- Brand: Voice Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Voice Technologies Microphones for Wireless
|
User manual for the Voice Technologies VT500WA Water Adventure Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Voice Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Voice Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Voice Technologies product will considerably shorten its lifespan!
|

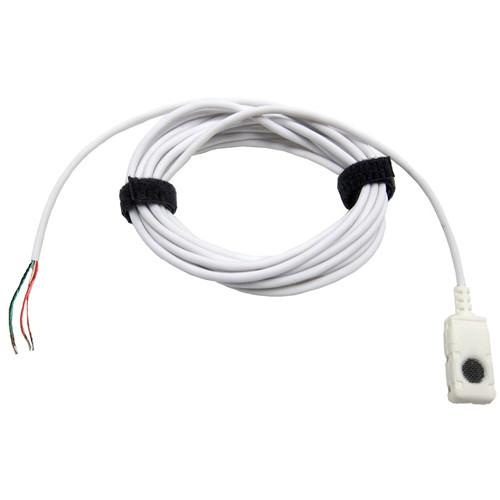

Product description The white VT500WA Water Adventure Lavalier Miniature Microphone with 3-Wire Pigtail from Voice Technologies is used for vocal and speech reproduction in a variety of applications and environments including outdoor sporting events, TV and broadcast, film, and rugged outdoor shoots. It's versatility also makes it a good lav for rental houses. It features a frequency response of 40 Hz to 20 kHz and has an omnidirectional pickup pattern. It has a reinforced cable that protects against sweat, cuts, and tearing. As an IPX-7 certified microphone, the VT500WA can endure temporary water submersion (up to 3.3'). This microphone comes in a carrying pouch without any accessories and can be used as a replacement piece too. In the Box Voice Technologies VT500WA Water Adventure Miniature Lavalier Microphone with 3-Wire Pigtail (White) Carrying Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Voice Technologies VT500WA Water Adventure Miniature Lavalier Microphone with 3-Wire Pigtail in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVoice Technologies VT500WA Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 40 Hz to 20 kHz | | Signal to Noise Ratio | 26 dB A-Weighted | | Maximum SPL | 118 dB SPL | | Impedance | 3 kOhms | | Sensitivity | -59 dB ±3dB re 1 V/microbar (10 mV/Pa) | | | | Output Connector | Pigtail/Unterminated | | Cable Length | 4.92' / 1.5 m | | Operating Voltage | 0.9 to 20 V | | Operating Current Consumption | 25 µA | | Length | 0.51" / 13 mm Microphone Dimensions: 0.51 x 0.28 x 0.14" (13 x 7 x 3.5 mm) | | Weight | 0.25 oz / 7 g |
