User Manual for Voice Technologies VT500WATER Waterproof Omnidirectional Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Voice Technologies VT500WATER Waterproof Omnidirectional Lavalier
- Product category: Microphones for Wireless Voice Technologies
- Brand: Voice Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Voice Technologies Microphones for Wireless
|
User manual for the Voice Technologies VT500WATER Waterproof Omnidirectional Lavalier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Voice Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Voice Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Voice Technologies product will considerably shorten its lifespan!
|
Product description The Voice Technologies VT500WATER Waterproof Omnidirectional Lavalier Microphone is IPX-7 certified waterproof for temporary submergence of up to 3.3' (1m) of water without damage. Its omnidirectional capsule yields a flat, wide frequency response that is designed for crucial reproduction of vocals.Simply a waterproof version of the coveted VT500, the VT500WATER yields outstanding performance in broadcast, theatrical, and sound-reinforcement applications. The capsule's frequency response delivers exceptionally transparent audio reproduction with minimal noise. Noise caused by radio frequency interference is also minimized with an internal RF filter. The 5' (1.5 meter) cable is rugged and also waterproof with excellent isolation from handling noise. - LEMO 3-pin Connector
- The VT500WATER is available in a variety of connections, this model features a LEMO 3-pin connector for use with Sennheiser SK Series, 2000 Series, Lectrosonics SSM, Audio Ltd. miniTX (En2), Audio Ltd. miniTX (2040), and Audio Ltd. 1010 Digital body-pack wireless transmitters
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern is ideal for vocal capturing and maximizes placement flexibility.

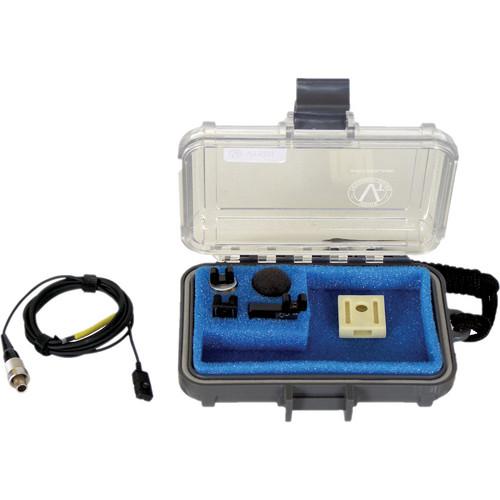

In the Box Voice Technologies VT500WATER Waterproof Omnidirectional Lavalier Microphone (LEMO 3-Pin Connector, Black) Waterproof Otter Box with Foam Insert Alligator Clip Dracula Mount Pro Windscreen Tie-Tac Clip Rubber Body Mount 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Voice Technologies VT500WATER Waterproof Omnidirectional Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVoice Technologies VT500WATER Specs | Transducer | Back Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 40 Hz to 20 kHz | | Sensitivity | -59 dB (re 1 Volt/microbar) | | Noise | 26 dB A-weighted | | Maximum Input Sound Level | 118 dB | | Output Impedance | 3 kOhms | | Power Requirements | Bias/+VDC: 1.3 V (0.9 - 20 V)
Current drain: 25 µA | | Wiring | Red: Mic+
Green: Mic-Shield (Ground) Copper: Mic-Output | | Output Connectors | LEMO 3-pin for Sennheiser SK & 2000 wireless transmitters | | Dimensions (WxHxD) | 0.51 x 0.27 x 0.13" / 13 x 7 x 3.5 mm
Cable Length: 5' / 1.5 m Cable Diameter: 0.05" / 1.5 mm | | Weight | 0.24 oz / 7 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 7.0" |
