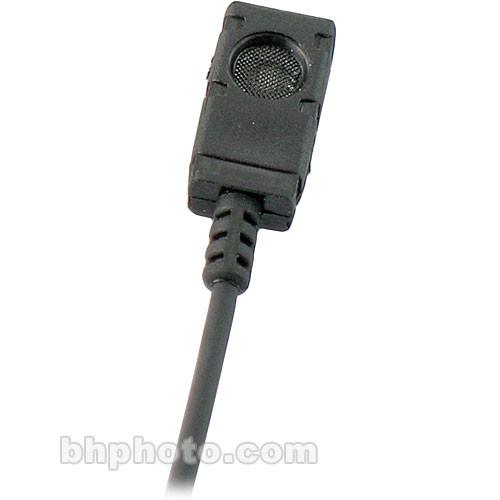

User Manual for Voice Technologies VT506 - Lavalier Microphone with 6dB High Frequency Rise - Hardwired with VT4026 Battery Phantom Power Supply Click to enlarge the picture
Contents of the user manual for the Voice Technologies VT506 - Lavalier Microphone
- Product category: Lavalier Microphones Voice Technologies
- Brand: Voice Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Voice Technologies Lavalier Microphones
|
User manual for the Voice Technologies VT506 - Lavalier Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Voice Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Voice Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Voice Technologies product will considerably shorten its lifespan!
|
Product description Essential Guide on How to Mic Talent for Video Read More zrbsyzabyrfsyvsuyebqtqescucceftrac From Voice Technologies the VT506 is a professional omni-directional lavalier microphone with a wide frequency response that provides enhanced intelligibility of vocals. Designed for outstanding performance in broadcast, theatrical and sound-reinforcement applications, the VT506's frequency response delivers exceptional presence with a 6dB rise in the high frequency range. Speech clarity is enhanced while the omni-directional polar pattern suppresses handling and clothing noise. Noise caused by radio frequency interference is also minimized with an internal RF filter. The 5-foot (1.5 meter) cable is rugged and moisture proof and also features excellent isolation from handling noise. - 6dB High Frequency Rise
- A boost in the upper frequency range results in greater intelligibility in speech and vocals, resulting in improved clarity.
- Hardwired with VT4026 Power Supply
- The VT506 is available in a variety of connectors, this version is designed for hardwired use and includes the VT4026 battery/phantom power supply with standard 3-pin XLR connector.
- Wide Frequency Response
- The lavalier features a wide, frequency response for transparent signal reproduction throughout.
- Omni-directional Polar Pattern
- The omni-directional pattern provides generous pick up at the off-axis sections of the capsule. The pattern also suppresses handling noise caused by clothing and skin contact.
- RF Suppression Filter
- Radio Frequency noise is also suppressed via an internal RF filter.
In the Box Voice Technologies VT506 - Lavalier Microphone with 6dB High Frequency Rise - Hardwired with VT4026 Battery/Phantom Power Supply (Black) VT4026 Battery/Phantom Power Supply VTO Box Alligator Clip Dracula Mount Professional Windscreen Tie Tac Clip 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Voice Technologies VT506 - Lavalier Microphone with 6dB High Frequency Rise - Hardwired with VT4026 Battery Phantom Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVoice Technologies VT506 Specs | Transducer | Electret Condenser | | Polar Pattern | Omni-Directional | | Frequency Response | 20Hz to 20kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | 26dB "A" weighted | | Maximum Input Sound Level | not specified by manufacturer | | Power Requirements | +48V Phantom supplied via VT4026 supplied via external source or internal battery | | Output Impedance | 3,000 ohms | | Output Connectors | Standard 3-pin XLR from VT4026 Phantom Power supply | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | .51 x .27 x .13" (13 x 7 x 3.5mm) | | Weight | 7 grams (.25 oz) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 8.0 x 5.5 x 2.0" |
