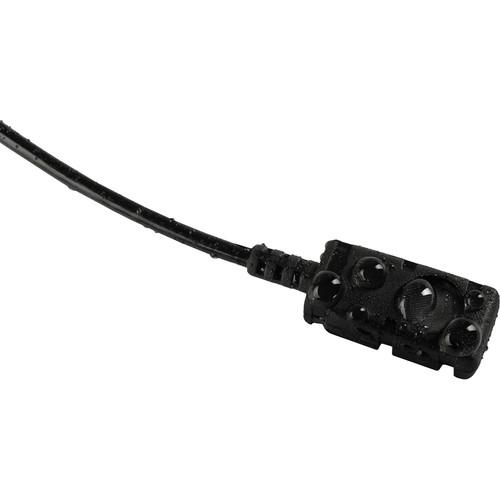

User Manual for Voice Technologies VT506WA Water Adventure Miniature Lavalier Microphone with TA5F for Lectrosonics Wireless Transmitters Click to enlarge the picture
Contents of the user manual for the Voice Technologies VT506WA Water Adventure Miniature
- Product category: Microphones for Wireless Voice Technologies
- Brand: Voice Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Voice Technologies Microphones for Wireless
|
User manual for the Voice Technologies VT506WA Water Adventure Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Voice Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Voice Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Voice Technologies product will considerably shorten its lifespan!
|
Product description The black Voice Technologies VT506WA Water Adventure Miniature Lavalier Microphone with TA5F for Lectrosonics Wireless Transmitters is used for vocal and speech reproduction in environments and applications including sports, broadcast and TV, film, theater, rugged outdoor shoots, and more. It features a frequency response of 40 Hz to 20 kHz and has an omnidirectional pickup pattern.The VT506WA is an IPX-7 certified waterproof version of the VT506 lavalier microphone and can endure temporary water submersion of up to 3.3' (1m). It has a reinforced cable that protects against sweat, cuts, and tearing. Included with this microphone is a waterproof Otter box case with foam insert, alligator microphone clip, Dracula microphone clip, foam windscreen, tie-tac clip, and a rubber body microphone mount. - Great for miking up athletes and referees who will sweat profusely.
- The VT506WA is particularly suitable for demanding applications such as punishing day-to-day production, sports, rental houses, or for environmentally-ruthless outdoor shoots.
- The cable is reinforced to protect it from sweat, cuts, and tearing.
- An integral filter provides efficient RF suppression.
- This IPX-7 certified microphone can endure temporary water submersion up to 1 meter.
In the Box Voice Technologies VT506WA Water Adventure Miniature Lavalier Microphone with TA5F for Lectrosonics Wireless Transmitters (Black) VTO Otter Box Alligator Microphone Clip (Black) Dracula Microphone Clip (Black) Tie Tac Microphone Clip (Black) Pro Foam Windscreen for Voice Technologies VT500 and VT506 (Black) Rubber Body Microphone Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Voice Technologies VT506WA Water Adventure Miniature Lavalier Microphone with TA5F for Lectrosonics Wireless Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVoice Technologies VT506WA Specs | Element | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 40 Hz to 20 kHz | | Sensitivity | -60 dB ±3 dB re 1 V/microbar (10 mV/Pa) | | Noise Level | A-Weighted: 26 dB | | Maximum Sound Pressure Level (SPL) | 118 dB | | Impedance | 3 kOhms | | Bias Voltage(s) | +VDC: 1.3 V (0.9 to 20 V) | | Current Drain | 25 μA | | Connector | TA5F for Lectrosonics wireless transmitters - SMa, SMV, SMQV, UMa, LMa, LMb, LT, SMWB, and SMDWB | | Dimensions | Microphone: 0.51 x 0.27 x 0.13" / 13 x 7 x 3.5 mm | | Cable | Length: 4.92' / 1.5 m Diameter: 0.06" / 1.5 mm | | Weight | 0.24 oz / 7 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 7.0" |
