User Manual for Voice Technologies VT700 Omnidirectional Headworn Microphone with Lemo 3-Pin Jack Click to enlarge the picture
Contents of the user manual for the Voice Technologies VT700 Omnidirectional Headworn Microphone
- Product category: Microphones for Wireless Voice Technologies
- Brand: Voice Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Voice Technologies Microphones for Wireless
|
User manual for the Voice Technologies VT700 Omnidirectional Headworn Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Voice Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Voice Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Voice Technologies product will considerably shorten its lifespan!
|

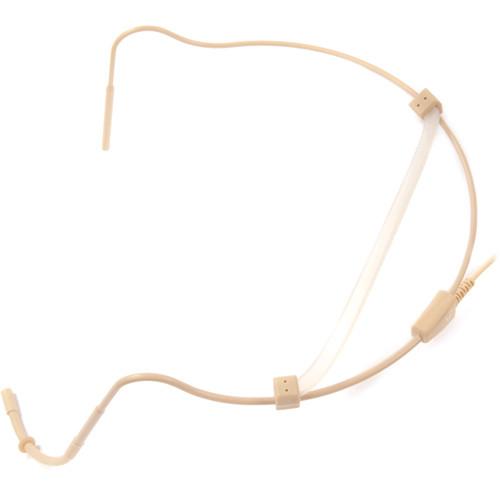

Product description The Voice Technologies VT700 is a lightweight, form-fitting head-worn microphone with an omnidirectional capsule. The microphone is ideal for musicians and actors in performance applications, or speech capturing for lectures, presentations, etc. The flexible gooseneck enables users to position the microphone for optimum microphone positioning. The omnidirectional polar pattern provides a uniform frequency response at the direct and off-axis sections of the capsule. The capsule is moisture resistant and the cable runs neatly behind the neck for maximum concealment. The cable features a Lemo 3-pin connection for use with compatible Sennheiser wireless transmitters. - Lightweight Headset Design
- The lightweight headset is designed for long term comfortable use, the cable runs behind the ear and remains inconspicuous.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern provides a uniform frequency response at the off-axis and direct sections of the capsule while rejecting feedback.
- Flexible Gooseneck
- A flexible gooseneck enables flexible microphone positioning and optimum performance.
In the Box Voice Technologies VT700 Omnidirectional Headworn Microphone with Lemo 3-Pin Jack (Beige) Adjustment Head Sizing Strap Transport Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Voice Technologies VT700 Omnidirectional Headworn Microphone with Lemo 3-Pin Jack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVoice Technologies VT700 Specs | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 50Hz to 18kHz | | Sensitivity | @ 1kHz
-33dB re 1V/Pascal (22mV/Pa) | | Maximum Input Sound Level | 115dB | | Noise Level | +27dB "A" Weighted | | Signal-to-Noise Ratio | 67dB @ 94dB SPL | | Dynamic Range (Typical) | 88dB | | Power Requirements | Bias: 1.5V to 9.0 V (max.) | | Output Impedance | 2.8 to 6.8k Ohms, nominal 4.4k Ohms | | Output Connectors | Lemo 3-pin for Sennheiser wireless transmitters | | Wiring | 3-Wire:
red: "+" white: signal
shield: ground 2-wire
white: signal and "+" copper: ground | | Dimensions | Cable Length: 4.92' (1.5m) | | Weight | 17g (without cable/connector) | | | | Package Weight | 0.667 lb | | Box Dimensions (LxWxH) | 13.0 x 9.0 x 5.0" |
