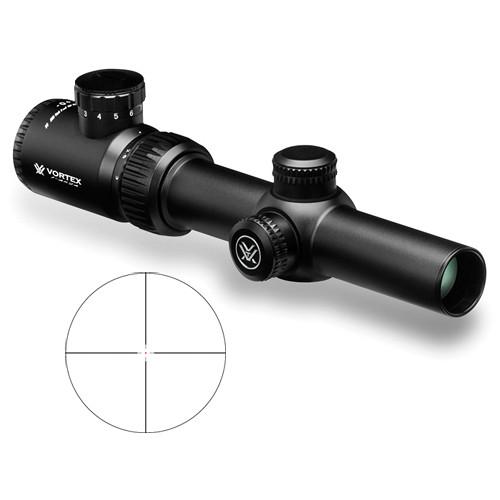

User Manual for Vortex 1-4x24 Crossfire II Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 1-4x24 Crossfire II Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
|
User manual for the Vortex 1-4x24 Crossfire II Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The 1-4x24 Crossfire II Riflescope from Vortex Optics is a low-magnification zoom riflescope featuring fully multicoated optics, and a V-Brite crosshair reticle with illuminated center red dot on the Second Focal Plane (SFP). This zoom range gets you closer than with an unmagnified optic, while maintaining a wide field of view for faster target spotting, acquisition, and tracking. The V-Brite reticle looks like a standard crosshair, but in the center there is a battery-powered red dot for increased accuracy in low-light conditions. The scope has 1/2 MOA per click shot correction to get you on-target, and windage and elevation adjustment ranges of 100 MOA. The adjustment dials are designed to allow you to re-index the zero indicators after sighting-in the scope to more easily return to your zero position after making temporary corrections. The 30mm main-tube and aluminum body has a scratch-resistant matte-black anodized finish and is nitrogen-filled and o-ring sealed to be water and fogproof. - Performance
-
- 1-4x magnification
- 24mm objective lens
- Fully multicoated optics
- Focusable V-Brite crosshair reticle with illuminated center red dot
- Second Focal Plane (SFP) reticle placement
- 96 - 24' field of view at 100 yd
- Use and Handling
-
- 30mm main-tube
- 1/2 MOA per click impact-point correction
- 100 MOA windage and elevation adjustments, 30 MOA travel per rotation
- Re-indexable windage/elevation dials to reset to zero after sighting
- Fast-focus eyepiece with 4" eye relief
- Construction
-
- Aluminum alloy body
- Scratch-resistant matte-black anodized finish
- Nitrogen-filled and o-ring sealed to be water and fogproof
- Capped windage/elevation turrets
UPC: 875874005556 In the Box Vortex 1-4x24 Crossfire II Riflescope (V-Brite Reticle) 2 x Lens Covers Dust Cloth CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 1-4x24 Crossfire II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex CF2-31037 Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 96' @ 100 yd / 32 m @ 100 m
4x: 24' @ 100 yd / 8 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm
4x: 6 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | V-Brite Crosshair-Dot Reticle | | Illumination | Illuminated | | Illuminated Color | Red | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Material | Aluminum | | Dimensions | Length: 9.8" / 24.9 cm | | Weight | 16 oz / 453.6 g | | | | Package Weight | 1.475 lb | | Box Dimensions (LxWxH) | 11.05 x 3.6 x 3.2" |
