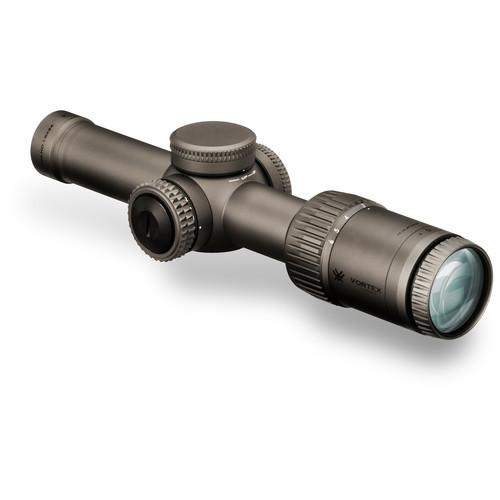

User Manual for Vortex 1-6x24 Razor HD GEN II-E Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 1-6x24 Razor HD GEN II-E
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 1-6x24 Razor HD GEN II-E contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

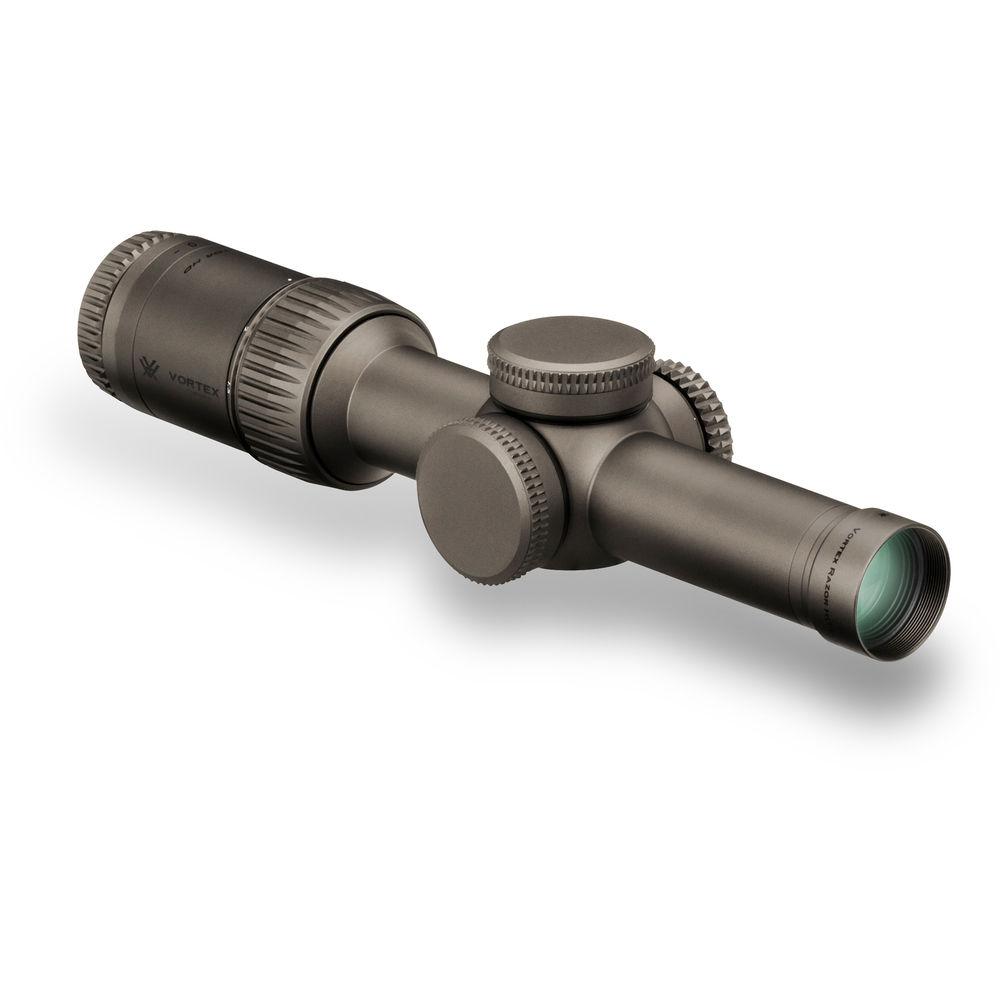

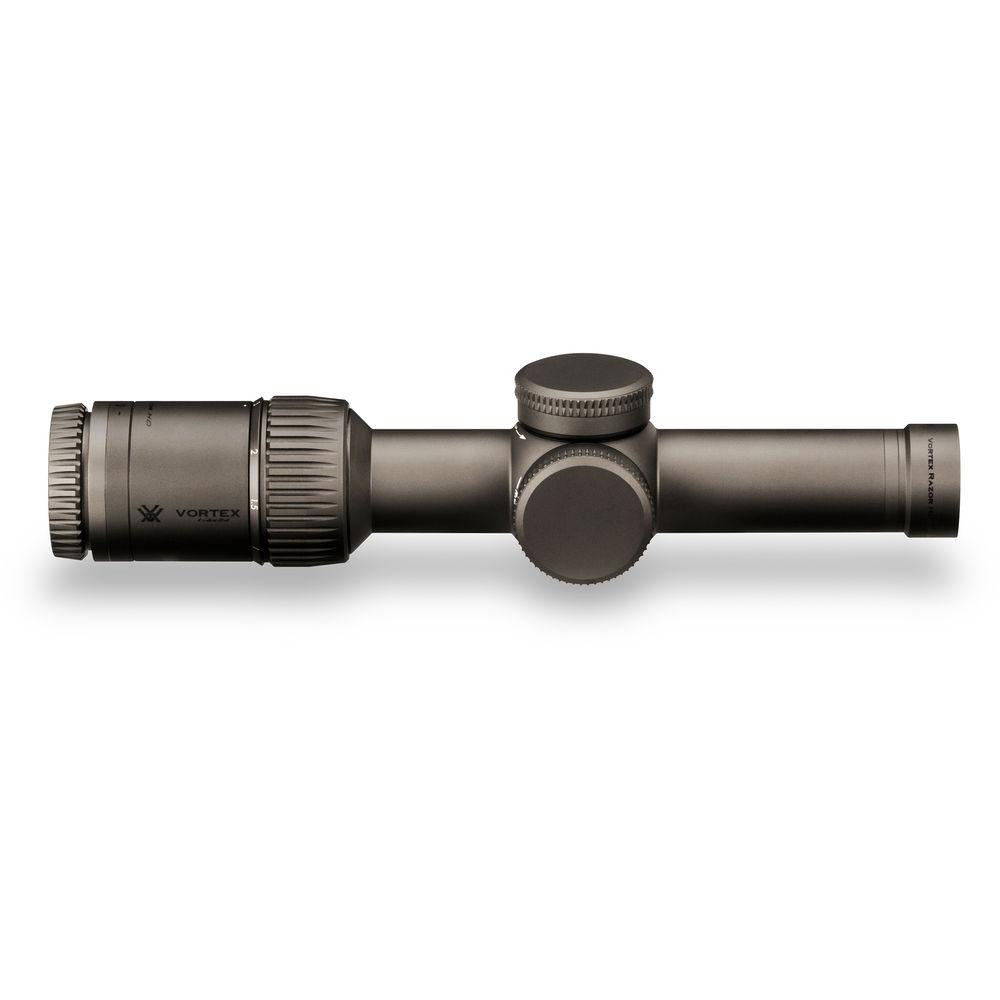

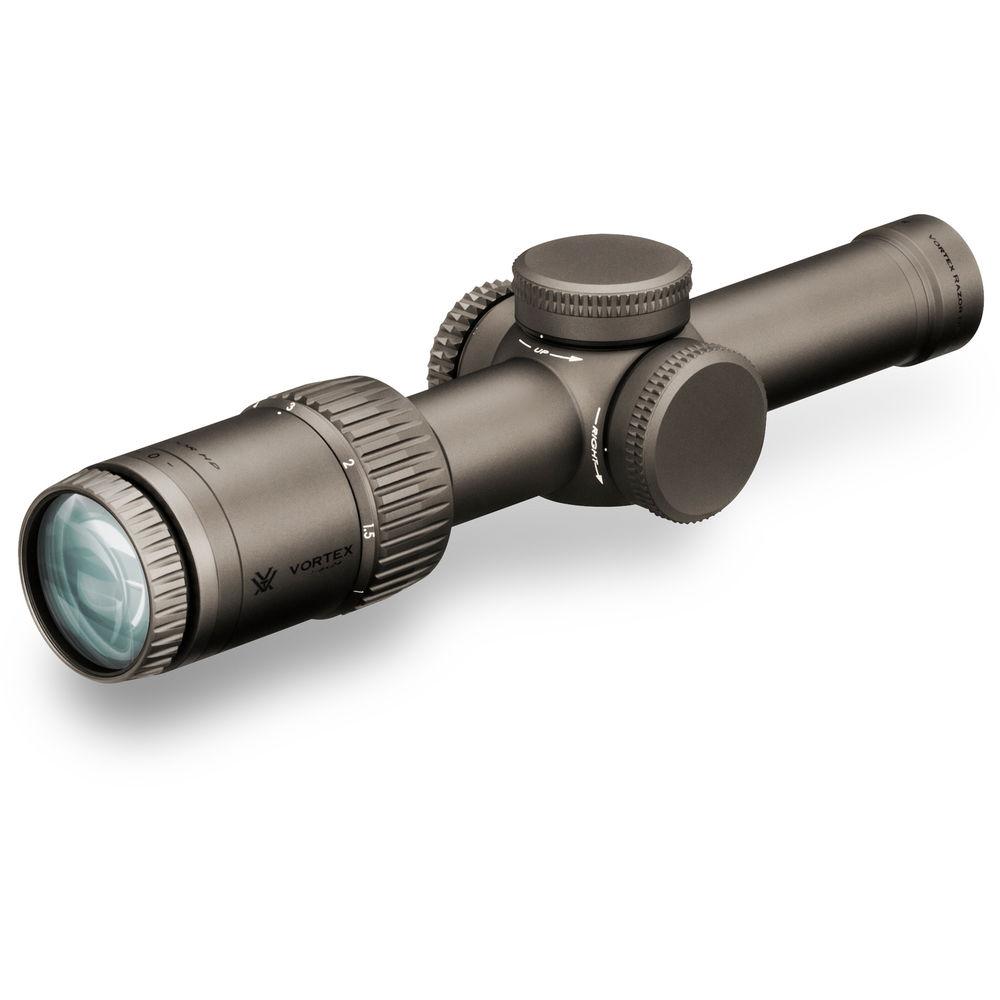

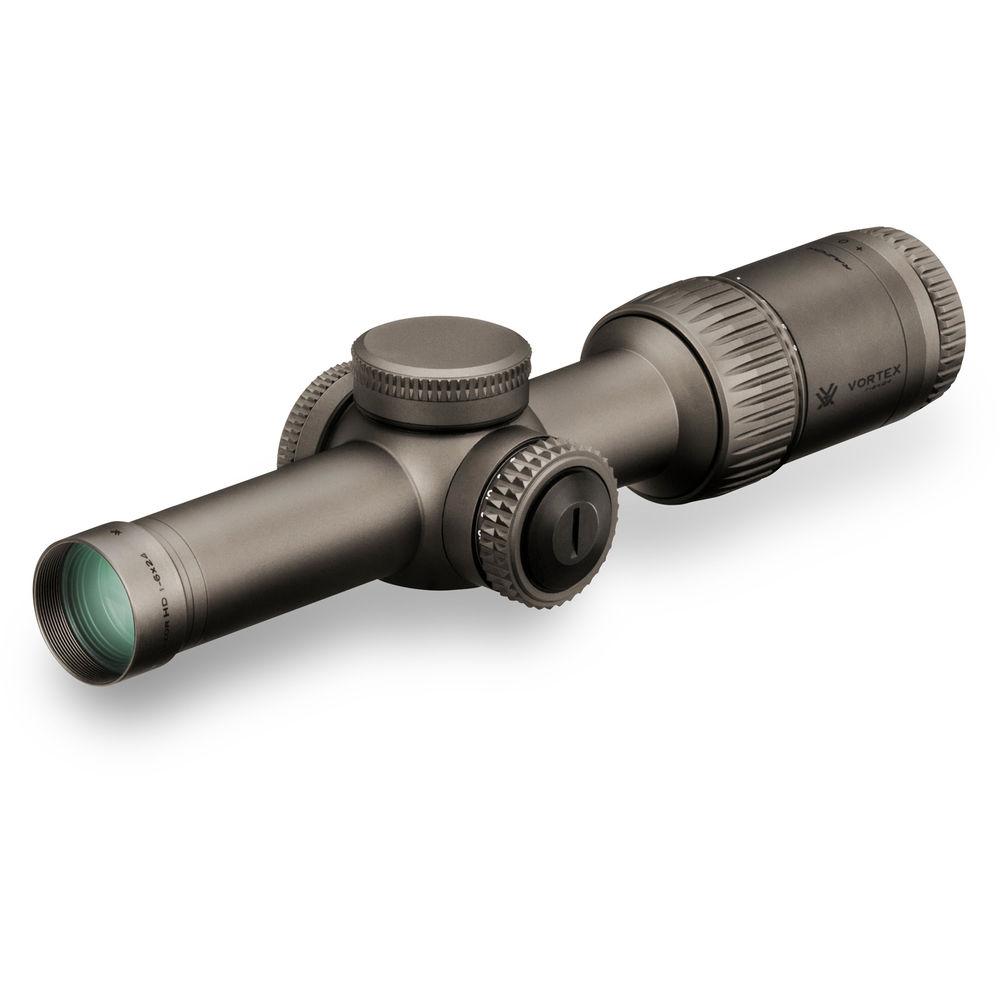

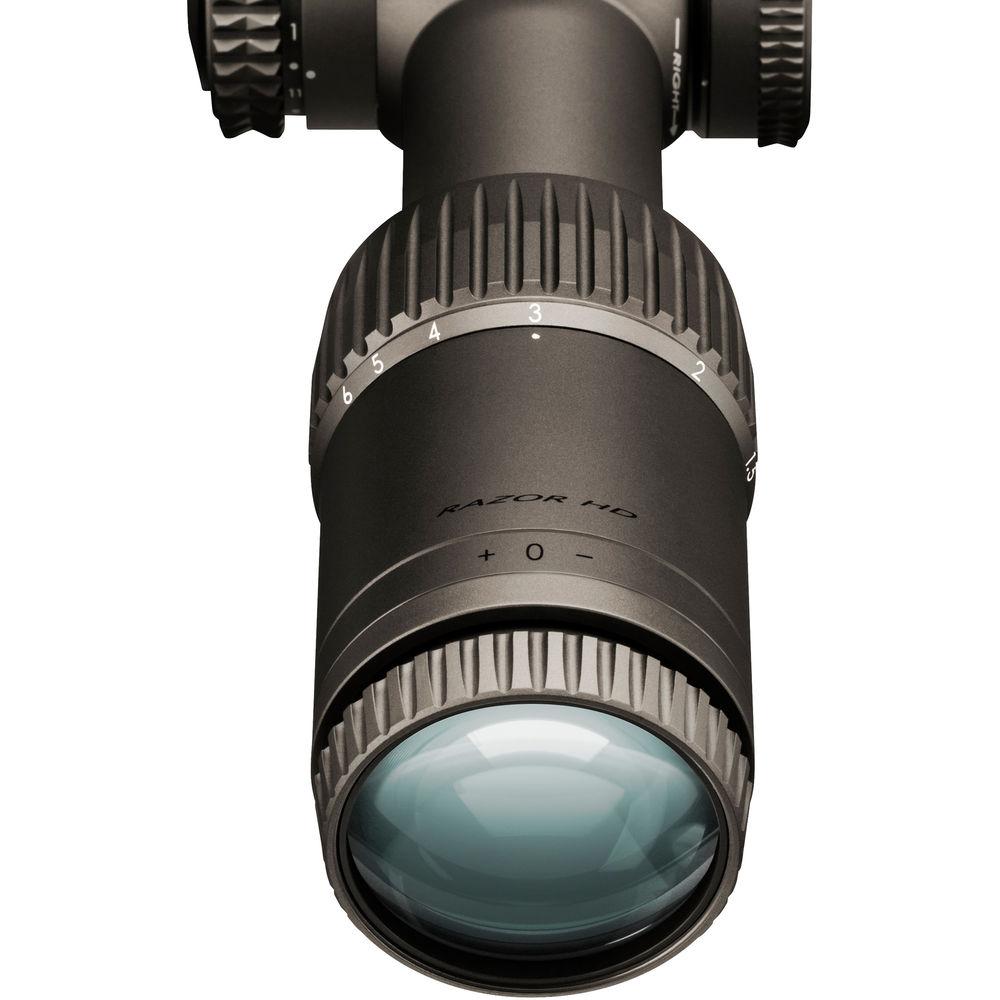

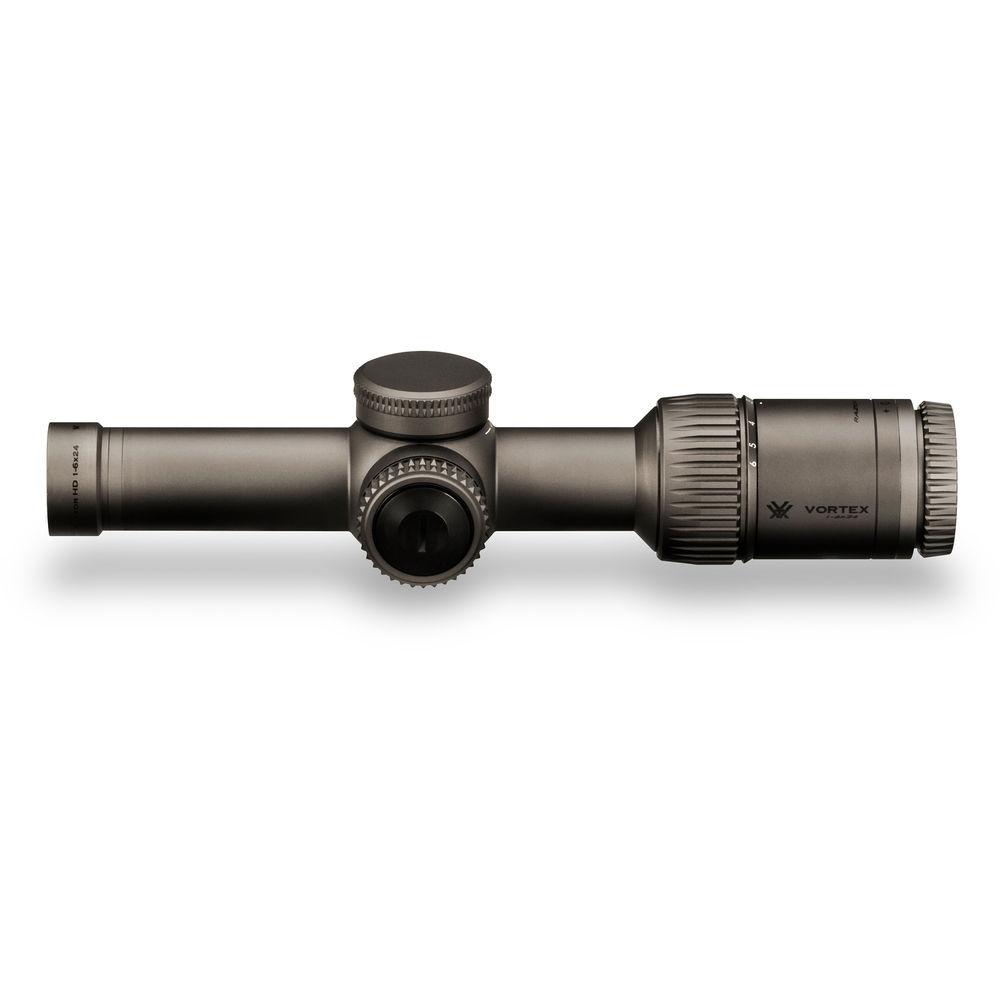

Product description The 1-6x24 Razor HD GEN II-E Riflescope from Vortex combines a high-transmission lens system and weather-sealed 30mm maintube to create a versatile optic for close to midrange targeting. Vortex uses an apochromatic objective lens and optically indexed extra-low dispersion (HD) glass elements to maximize the light gathering ability of the optics while minimizing chromatic aberration and preserving clarity. The resulting images are bright and sharp throughout the zoom range.This Razor HD scope is configured with a VMR-2 MOA duplex reticle on the second focal plane (SFP). The reticle illumination is controlled using a dedicated turret. The illuminator has eleven brightness settings, and an Off position between each setting allows the shooter to quickly return to their previously used level of illumination without unnecessary cycling through other settings.The scope's housing is machined from aluminum, and features a scratch- and corrosion-resistant anodized finished, and is argon filled to ensure fogproof and waterproof performance. Exposed lens surfaces are finished with ArmorTek, Vortex's proprietary scratch-resistant coating that also repels moisture and dirt. This scope is backed by Vortex's lifetime warranty. - Optical Performance
-
- Magnification: 1-6x
- Objective lens: 24mm
- Maintube diameter: 30mm
- Index-matched optical system
- APO apochromatic objective lens
- HD extra-low dispersion elements
- XR anti-reflective lens coating
- Etched-glass reticle on the second focal plane

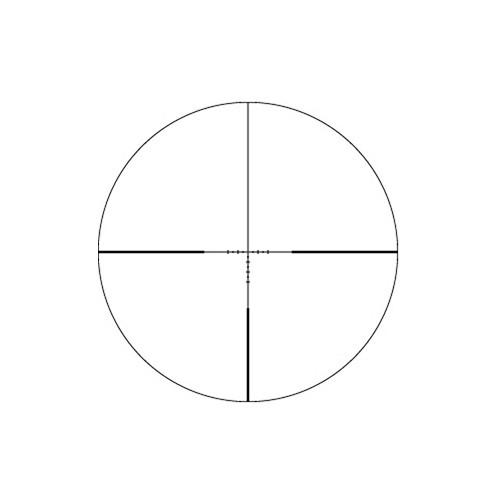

- VMR-2 MOA duplex reticle with illuminated aiming point
- Use and Handling
-
- Reticle illumination system with 11 brightness settings and intermediate Off positions

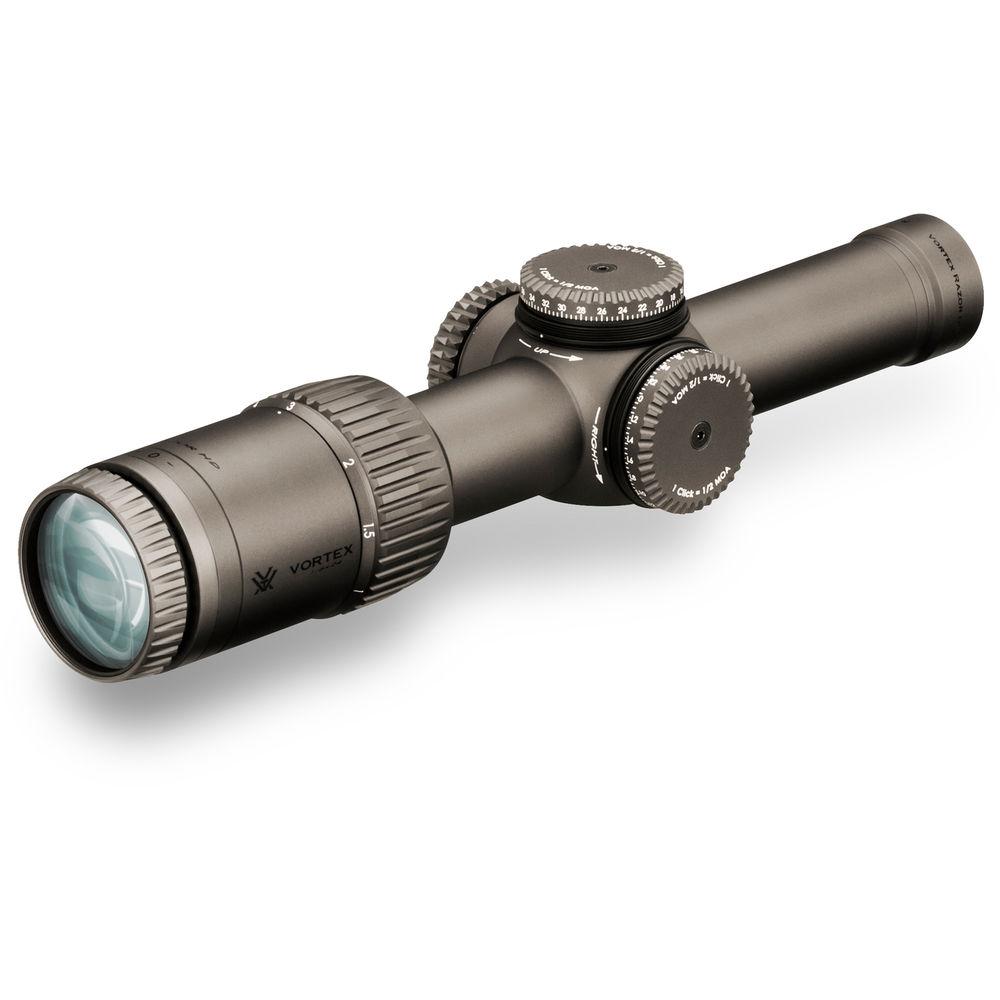

- Capped low-profile windage and elevation turrets with knurled grips
- 1/2 MOA impact point adjustment clicks, 50 MOA travel per rotation
- Fast focus eyepiece with 4" eye relief
- Construction Details
-
- Argon filled housing for fogproof and waterproof performance
- One-piece aluminum maintube
- Anodized hard coat with copper-like finish
- Single spring elevation adjustment turret
- Friction Reduction System: protects turret erector from wear and deformation
- ArmorTek: scratch-resistant lens coating
UPC: 875874009547 In the Box Vortex 1-6x24 Razor HD GEN II-E Riflescope (VMR-2 MOA Reticle) 2mm Hex Wrench CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 1-6x24 Razor HD GEN II-E Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex RZR-16010 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 115' @ 100 yd / 32 m @ 100 m
6x: 20.5' @ 100 yd / 5.7 m @ 100 m | | Eye Relief | 4" / 102 mm | | | | Reticle Type | VMR-2 MOA Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 150 MOA | | Elevation Adjustment | 150 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 10.1" / 26 cm | | Weight | 21.5 oz / 609 g | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 13.1 x 4.95 x 3.9" |
