User Manual for Vortex 1-6x24 Strike Eagle Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 1-6x24 Strike Eagle Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 1-6x24 Strike Eagle Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

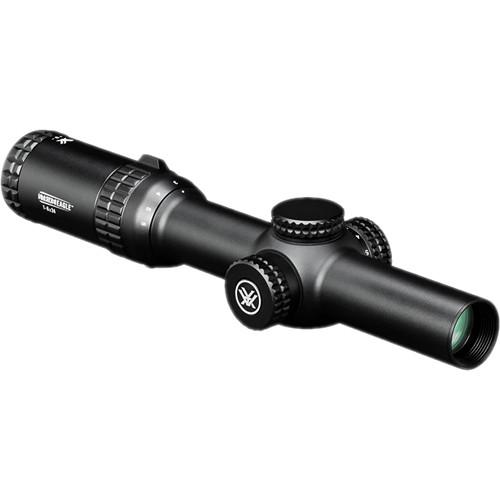

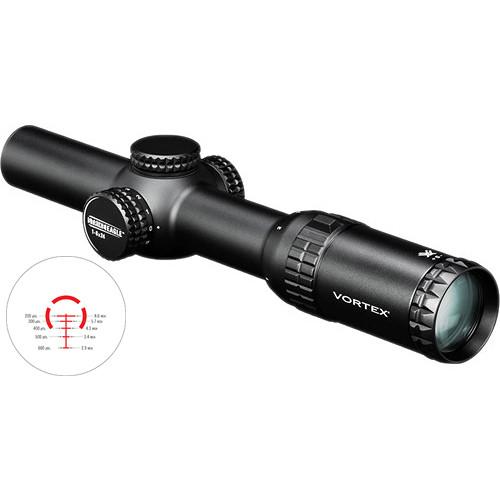

Product description Whether for home defense, range time, competition, or hunting feral hogs or coyotes, the Vortex 1-6x24 Strike Eagle Riflescope offers speed and versatility when engaging close- to medium-range targets. This scope is equipped with an illuminated AR-BDC reticle that subtends with popular .223/5.56mm cartridges, and features a 3.5" eye relief and a shock-resistant 30mm single-piece maintube. Fully multi-coated optics deliver optimal light transmission, while reducing glare and ghost images. The 1-6x24 Strike Eagle offers a 140 MOA windage and elevation range with a 1/2 MOA impact point correction. Located in the second focal plane, the etched-on-glass illuminated AR-BDC reticle will maintain the same size when you zoom. Subtensions for elevation, windage and range are accurate at peak magnification. The waterproof and fogproof housing features a single-piece aluminum maintube with a hard-anodized matte black finish. The eyepiece has a quick zoom ring that allows for fast target acquisition. The coarsely knurled zoom ring with a low-profile rib lever provides a fast one-finger adjustment, while windage and elevation turrets have caps and produce audible clicks. - Optical Performance
-
- 24mm objective diameter
- 1-6x magnification
- Linear field of view: 116.5 - 19.2' at 100 yards
- Fully multi-coated optics deliver optimal transmission of light
- AR-BDC Reticle
-
- 2nd focal plane
- For .223/5.56mm and .308/7.62mm loads
- Use Vortex's online Long Range Ballistics Calculator to match up with other firearms and loads

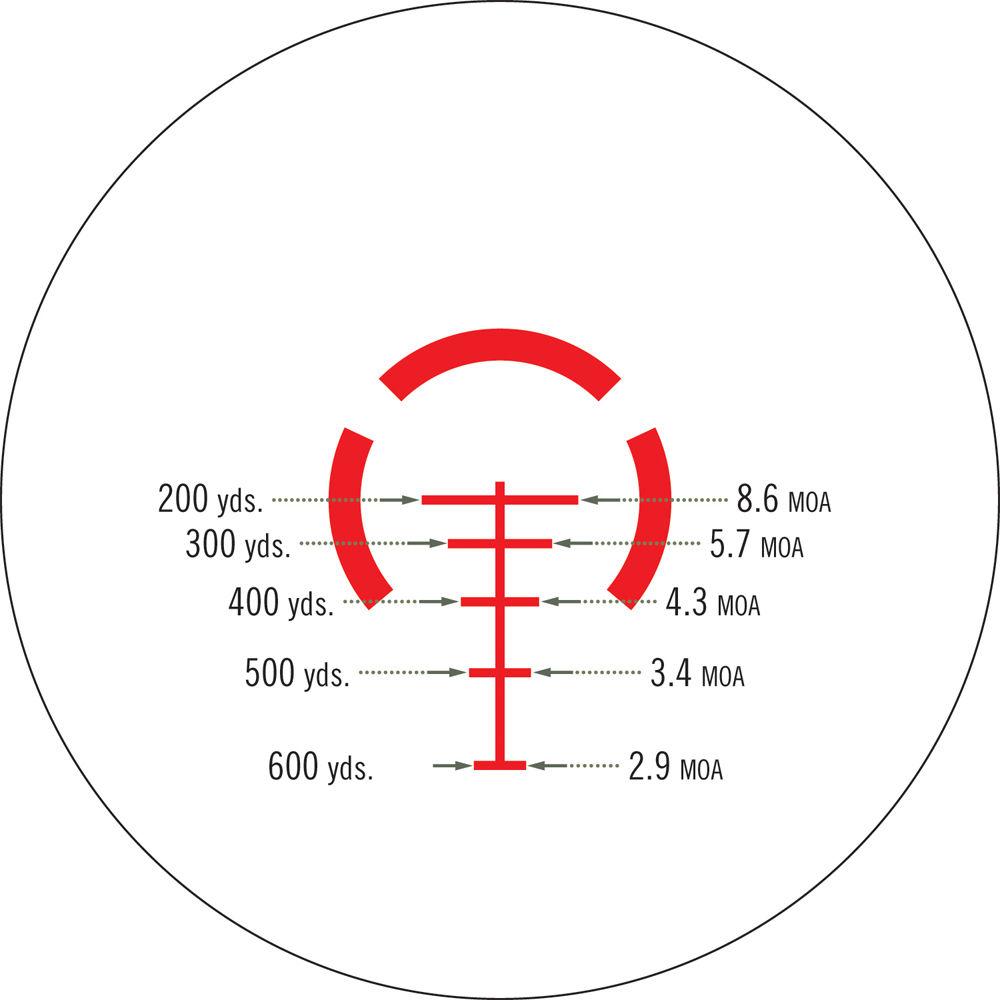

- Illuminated broken horseshoe
- Illuminated inverted cascade of horizontal MOA holdover lines out to 600 yards
- Eleven reticle brightness settings
- Etched on the glass
- Use and Handling
-
- Parallax-free at 100 yards
- 1/2 MOA per click impact point correction
- 140 MOA windage and elevation adjustment range
- Eye relief: 3.5"
- Exit pupil: 24-4mm
- Construction Details
-
- 30mm maintube diameter
- Single-piece aluminum tube
- Hard-anodized matte black finish
- Knurled zoom ring has a low-profile rib for easy adjustments

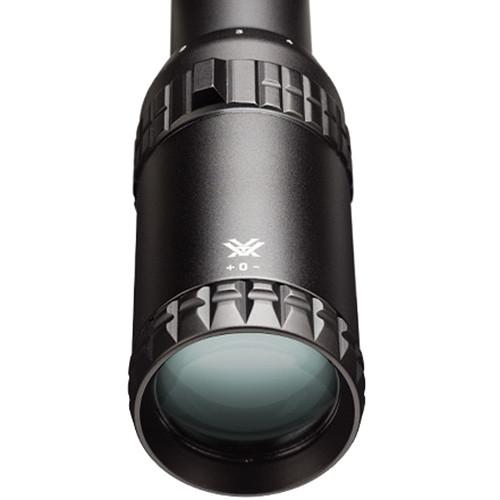

- Fast focus eyepiece allows rapid zooming and focusing on your targets

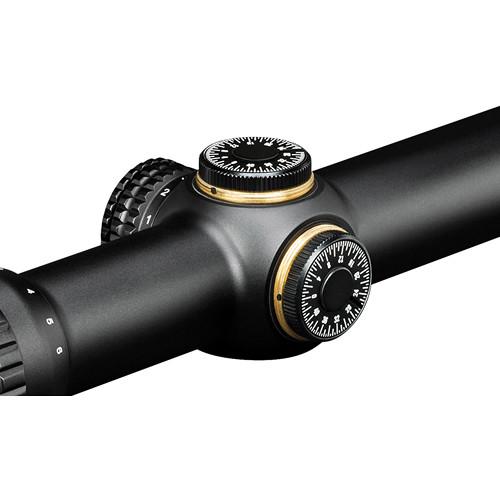

- Capped windage and elevation adjustment knobs
- Nitrogen-purged fogproof
- Recoil resistant
- Waterproof
UPC: 875874005914 In the Box Vortex 1-6x24 Strike Eagle Riflescope (AR-BDC Reticle, Matte Black) Lens Cloth 2 x Lens Covers CR-2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 1-6x24 Strike Eagle Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex SE-1624-1 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 116.5' @ 100 yd / 38.8 m @ 100 m
6x: 19.2' @ 100 yd / 6.4 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm
6x: 4 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | AR-BDC Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 140 MOA | | Elevation Adjustment | 140 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.5" / 26.7 cm | | Weight | 17.6 oz / 499 g | | | | Package Weight | 1.915 lb | | Box Dimensions (LxWxH) | 14.1 x 4.5 x 4.35" |
