Product description

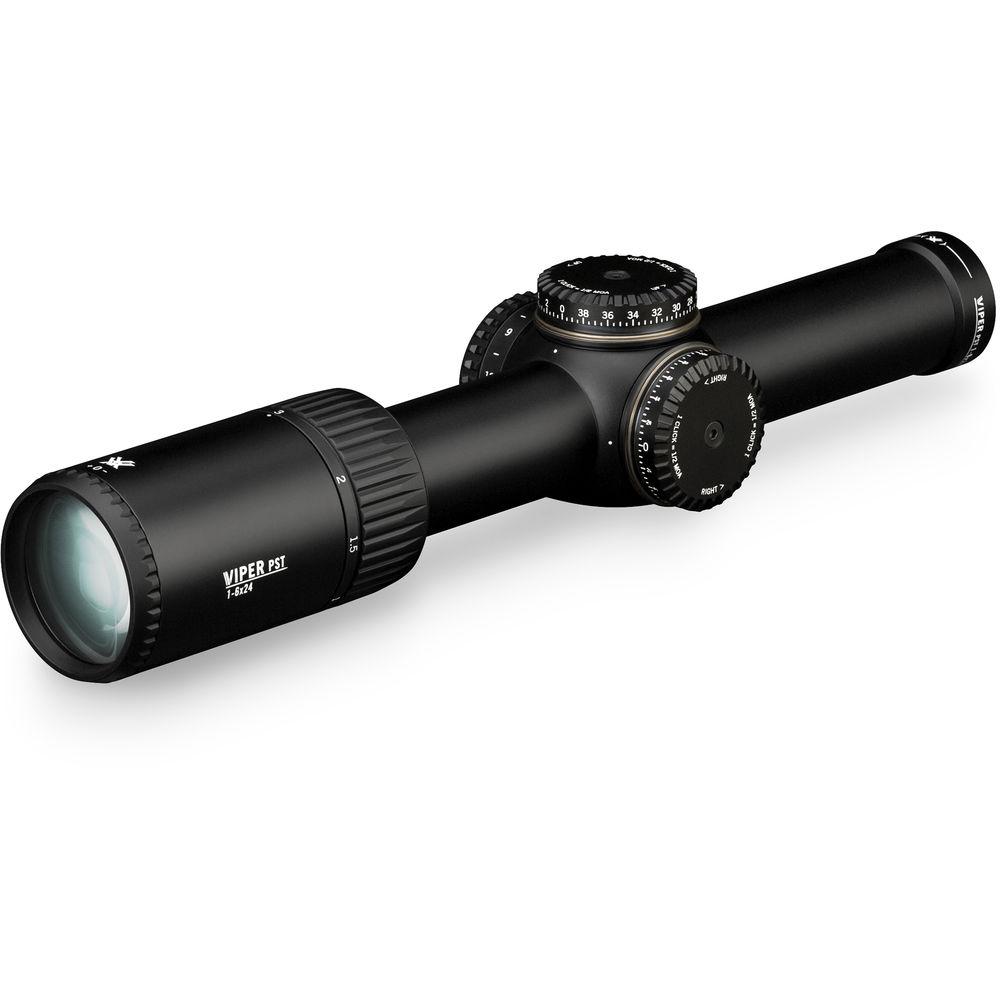

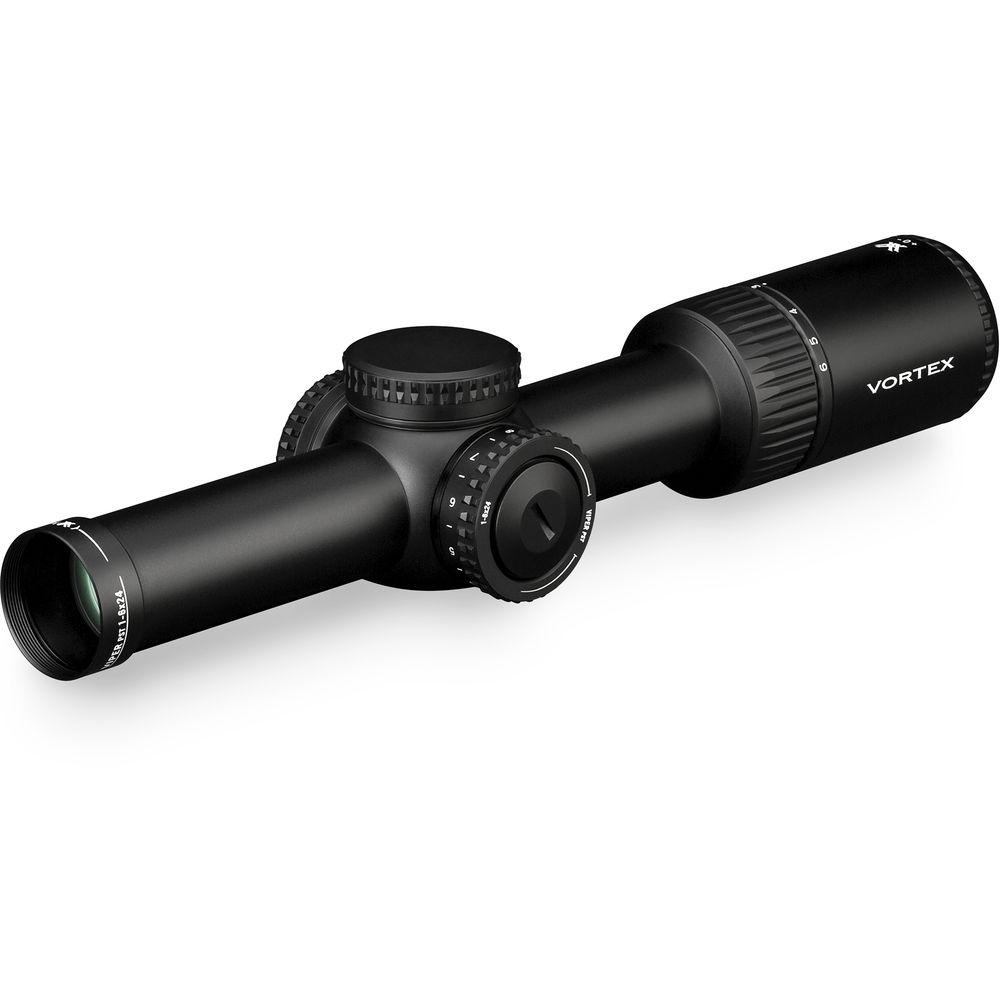

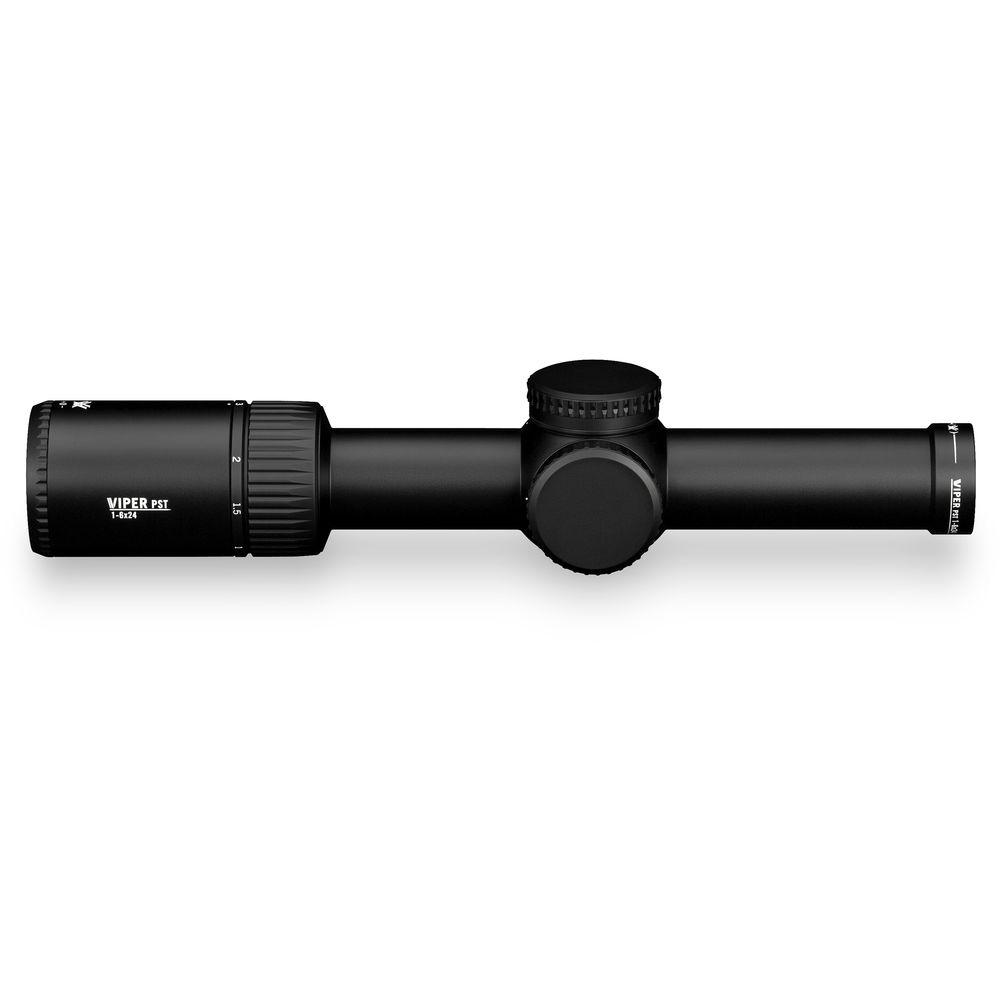

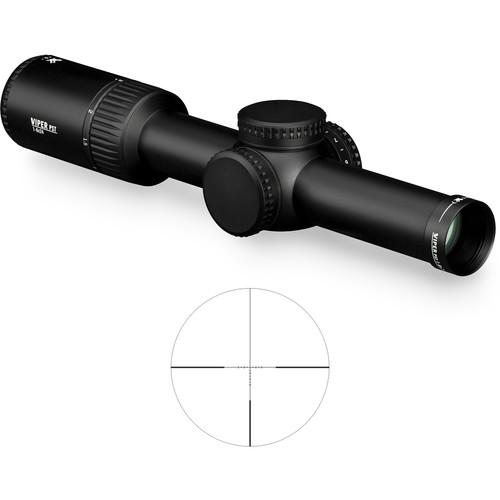

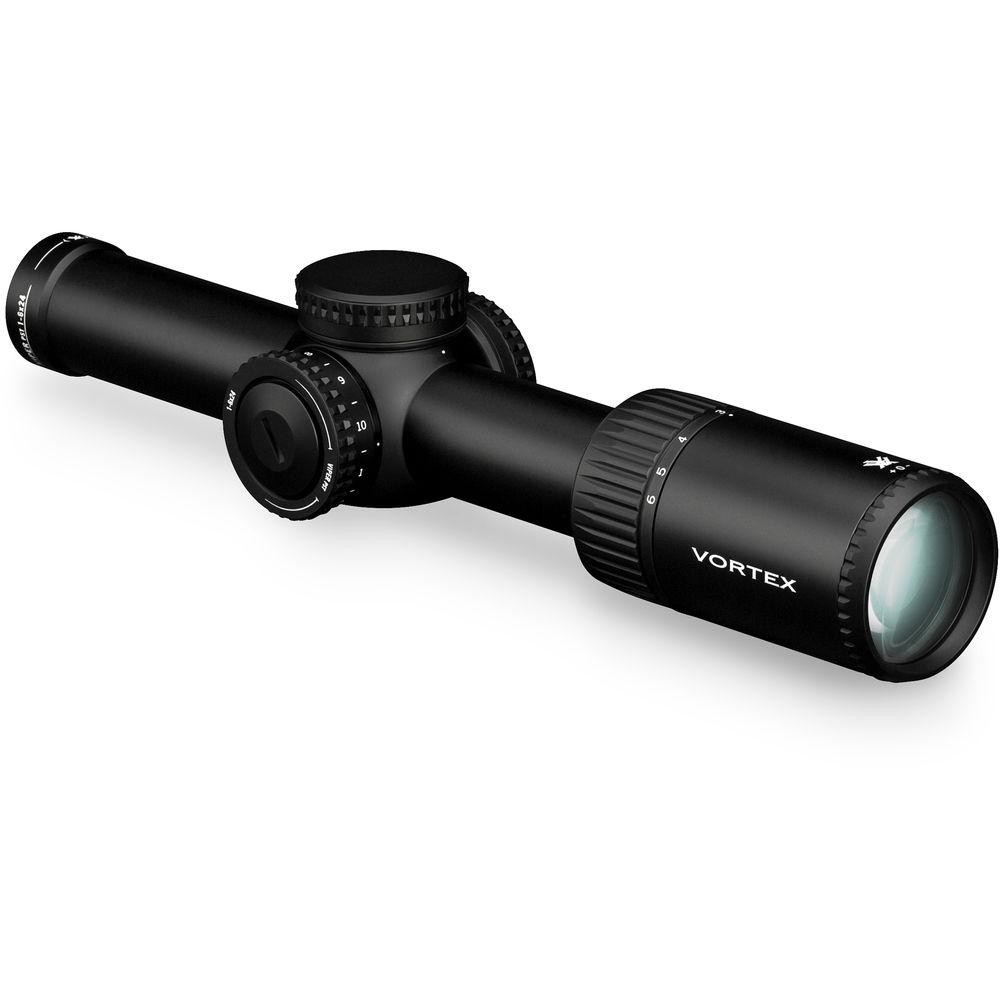

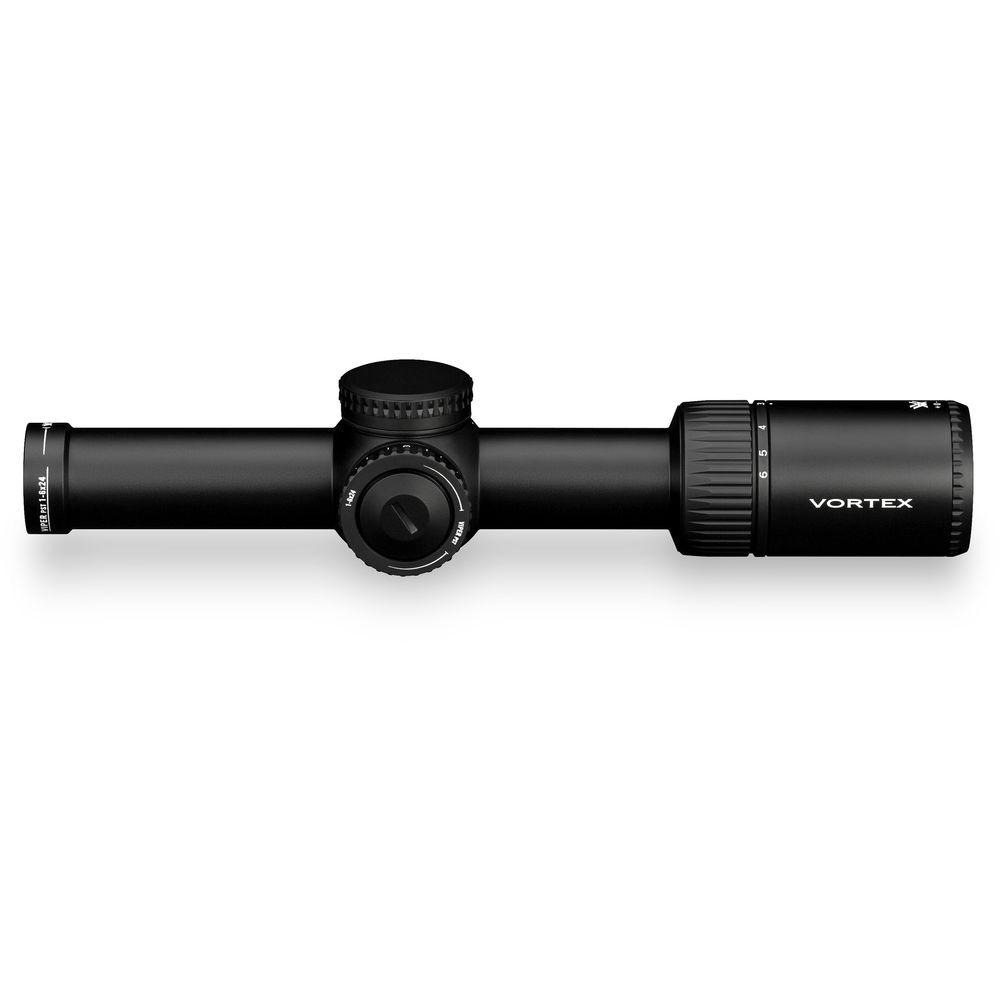

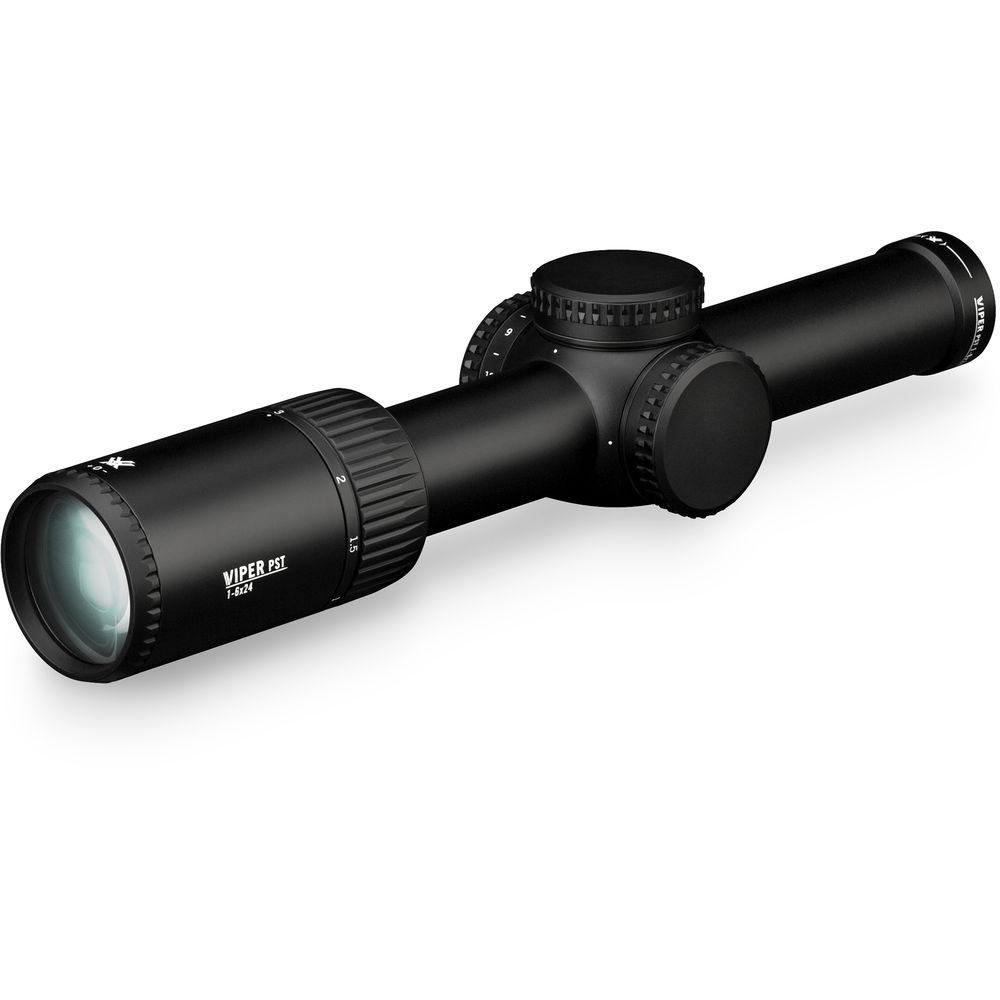

Vortex Optics' 1-6x24 Viper PST Gen II Riflescope is a rock-solid scope, ideally suited to provide you an upper hand in close quarters combat. Its superior quality optical system matches the precision and strength of the mechanics to deliver the accuracy and reliability required in demanding situations. With the Extra-Low Dispersion (XD) optical elements, treated with the high-transmission XR full multi-coatings and ArmorTek protective coatings, you will obtain bright, clear, glare-free, and true color images along with protection of exterior lens surfaces from scratches, dirt, and oil stains. To enable with the laser-sharp shot placements, the scope features the illumined 2nd focal plane VMR-2 MOA reticle. The reticle features a modified German #4 style with three medium posts and an illuminated crosshair containing a system of MOA ranging and compensation markings. The illumination rheostat is located on the windage and elevation box and offers a graduated control knob with 10 brightness levels. The parallax-free performance is set 100 yards.

The high-quality aluminum housing is built around a durable single-piece 30mm maintube. One of the highlights of the mechanics is the Precision-Glide Erector System that ensures zooming action remains smooth under the most challenging conditions. For consistent repeatability and ease of adjustment, Vortex outfitted this optic with a Precision-Force Spring System. The scope's windage and elevation provide exposed graduated turrets with red fiber optic position markers on the knobs. The entire construction is robust, argon-filled fogproof, and O-ring sealed waterproof to ensure reliable performance for years of service.

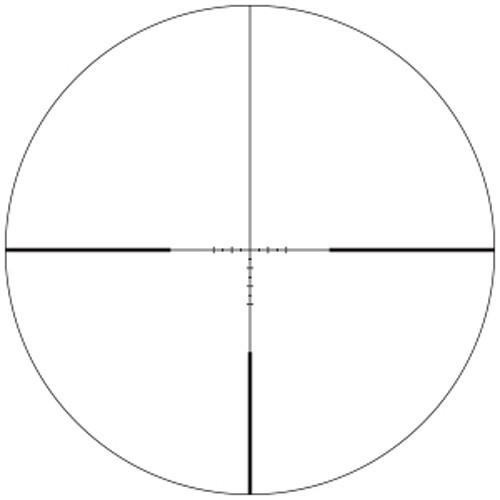

    VMR-2 MOA Illuminated Reticle
    • 2nd focal plane
    • Modified German #4 style
    • Three medium posts
    • Crosshair with major and minor compensation bars
    • Reticle measurements are provided at max magnification
    • Crosshair line subtends 0.5 MOA
    • Posts subtend 1.75 MOA
    • Major bars are 3 MOA long
    • Minor bars are 1.5 MOA long
    • Bars are spaced at 4 MOA intervals
    • Gate between horizontal posts is 70 MOA
    • Crosshair line extends down from center 45 MOA
    • Parallax-free at 100 yd
    • 10 illumination brightness levels
      Optical Performance
      • 1-6x magnification
      • 24 mm objective lens
      • XD: Extra-Low Dispersion glass elements reduce color distortions and improve true color
      • XR: Anti-reflective fully multi-coated to increase brightness and resolution
      • ArmorTek scratch-resistant coating protects external lenses from damage, oil, and dirt
        Use and Handling
        • 0.5 MOA per click impact-point correction
        • Windage and Elevation Adjustment: 160 MOA
          Construction Details
          • High-quality aluminum housing
          • Single-piece 30mm maintube
          • Fast focus eyepiece
          • Capped windage and elevation turrets
          • Proprietary RZR precision zero stop mechanism
          • Dedicated illumination control knob on the windage/elevation box
          • Corrosion-resistant low-glare hard anodized finish
          • Argon-filled and O-ring sealed for water and fogproof performance
          • Precision-glide Erector System enables smooth zoom in all weather conditions
          • Precision-Force Spring System within the erector systems ensures repeatability and easy of adjustment
          • Impact-resistant
          UPC: 875874008229 In the Box Vortex 1-6x24 Viper PST Gen II Riflescope (VMR-2 MOA Illuminated Reticle, Matte Black)
        • CR-2032 Battery
        • Lens Cloth
        • Limited Lifetime Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Vortex 1-6x24 Viper PST Gen II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Vortex PST-1605 Specs

Magnification 1 to 6x
Objective Lens Diameter 24 mm
Field of View 1x: 112.5' @ 100 yd / 37.5 m @ 100 m
6x: 18.8' @ 100 yd / 6.3 m @ 100 m
Eye Relief 3.8" / 96.5 mm
Reticle Type VMR-2 MOA Reticle (Second Focal Plane)
Impact Point Correction 0.5 MOA per Click
Windage Adjustment 160 MOA
Elevation Adjustment 160 MOA
Parallax Correction Yes, 100 yd / 91.4 m
Water Resistance Waterproof
Fogproof Yes, Argon Filled
Maintube Diameter 30 mm
Battery 1 x CR2032
Dimensions Length: 10.9" / 27.7 cm
Weight 22.7 oz / 643.5 g
Package Weight 2.125 lb
Box Dimensions (LxWxH) 14.05 x 4.65 x 3.45"
