User Manual for Vortex 1-6x24 Viper PST Gen II Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 1-6x24 Viper PST Gen II
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 1-6x24 Viper PST Gen II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

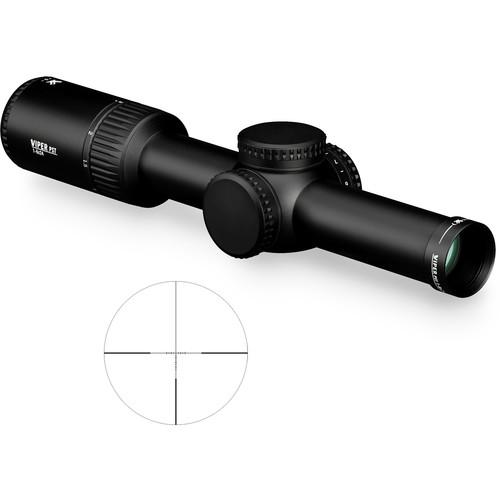

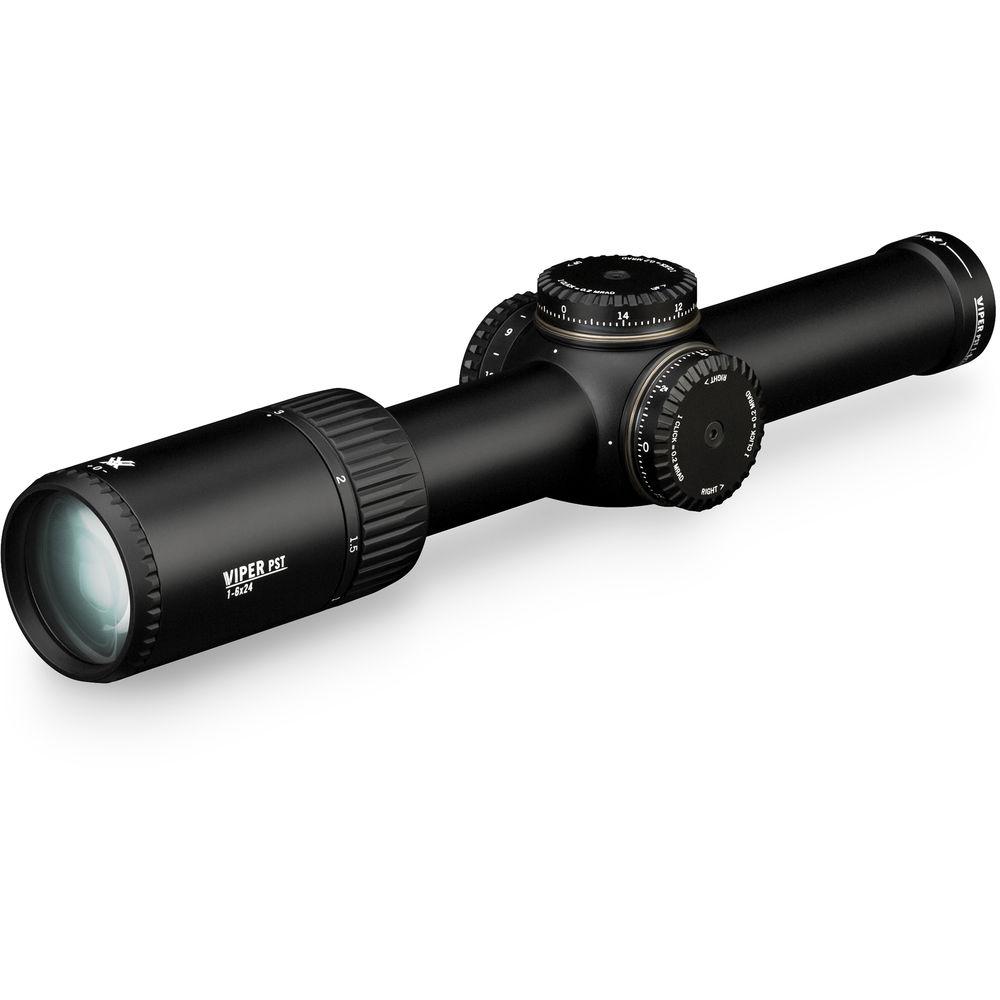

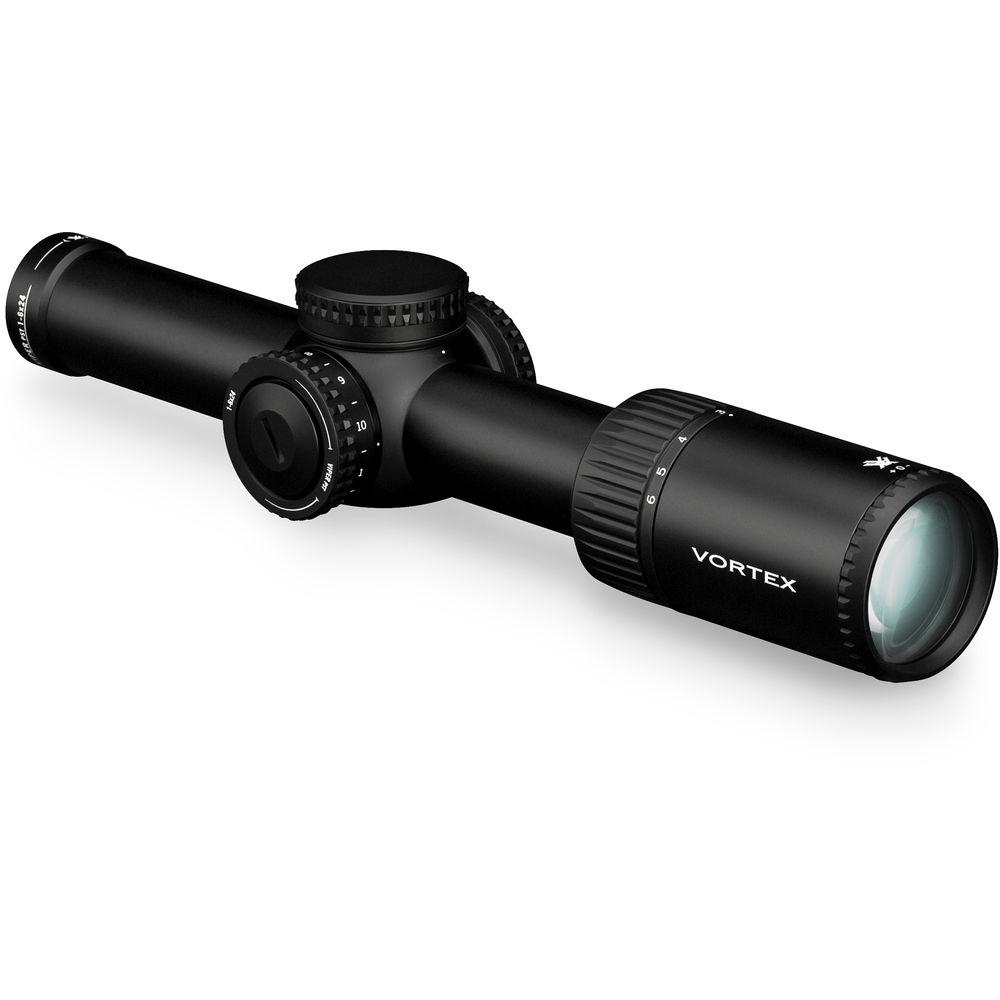

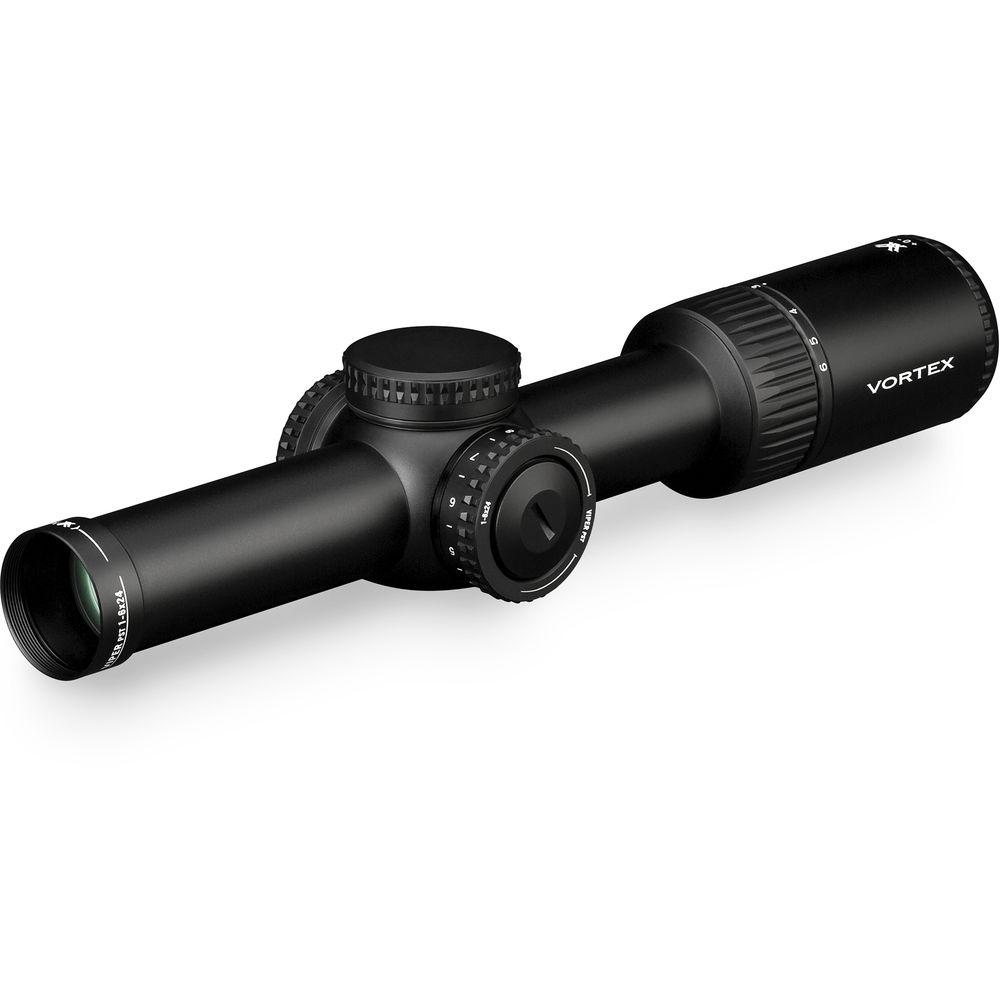

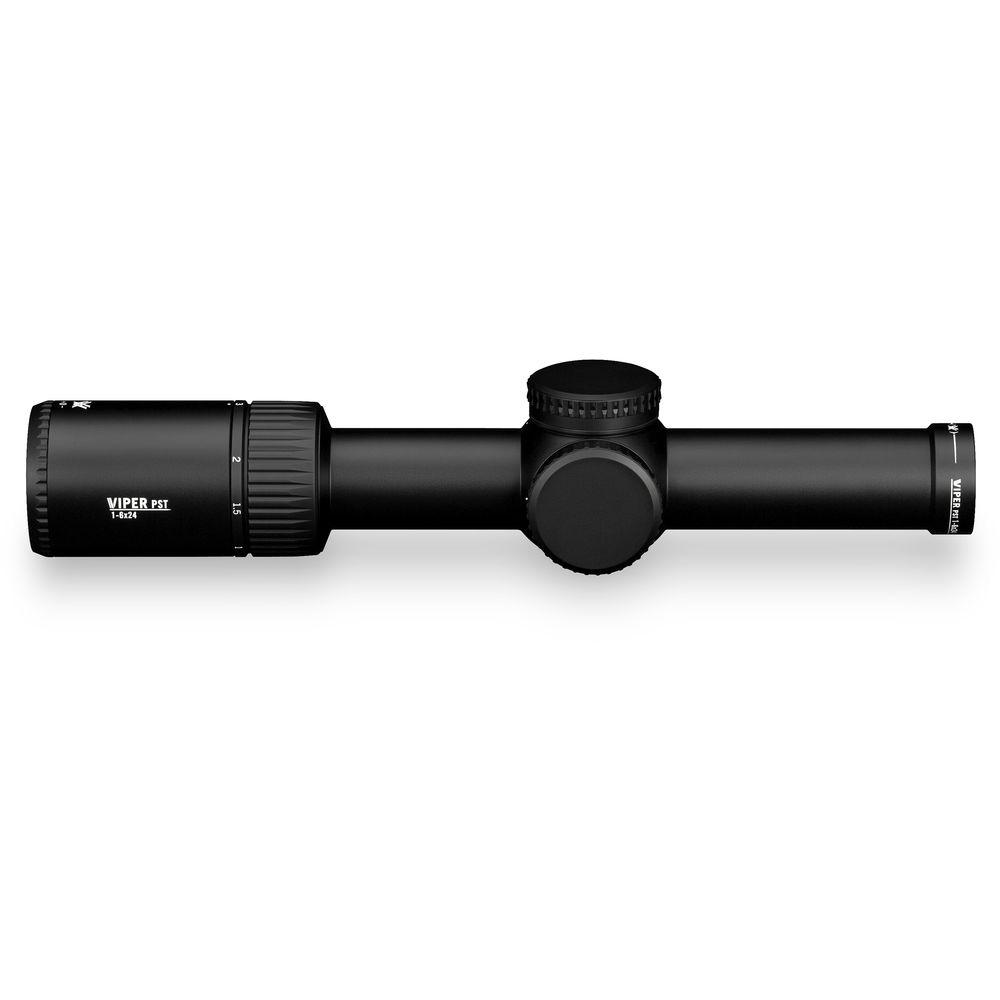

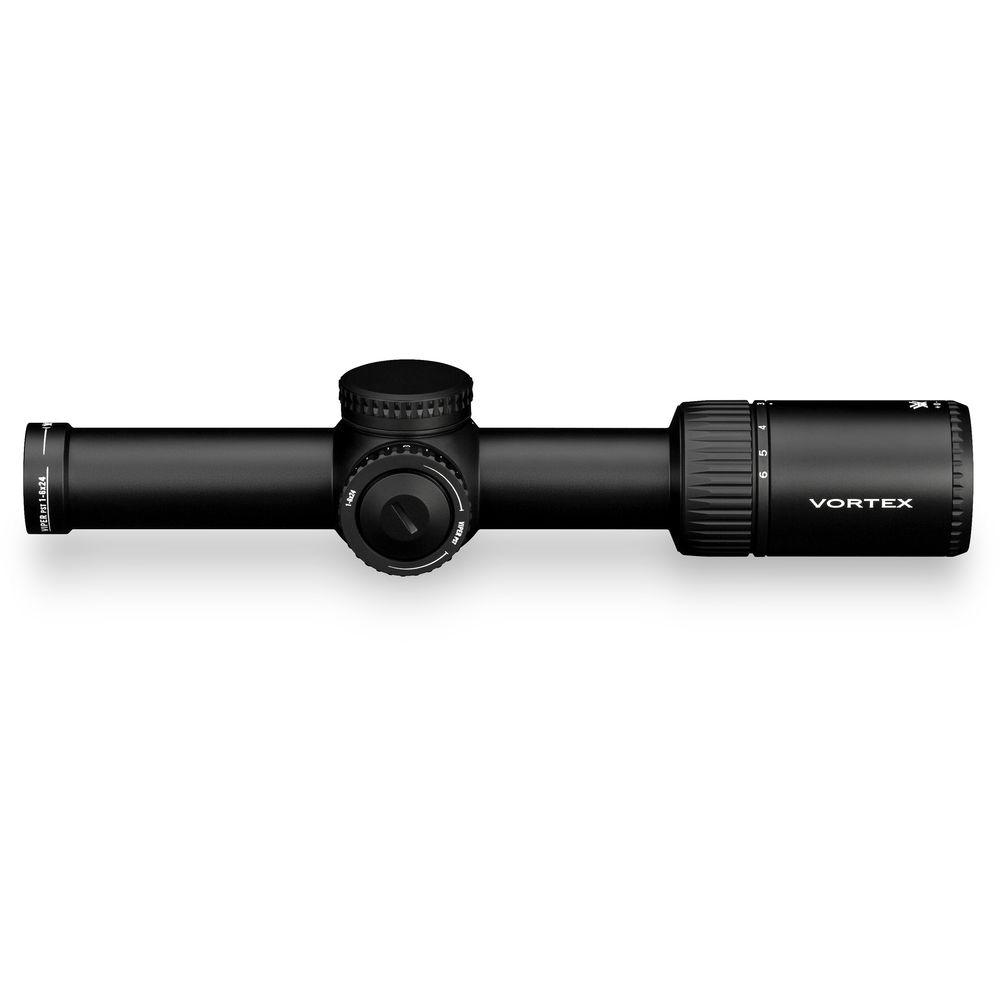

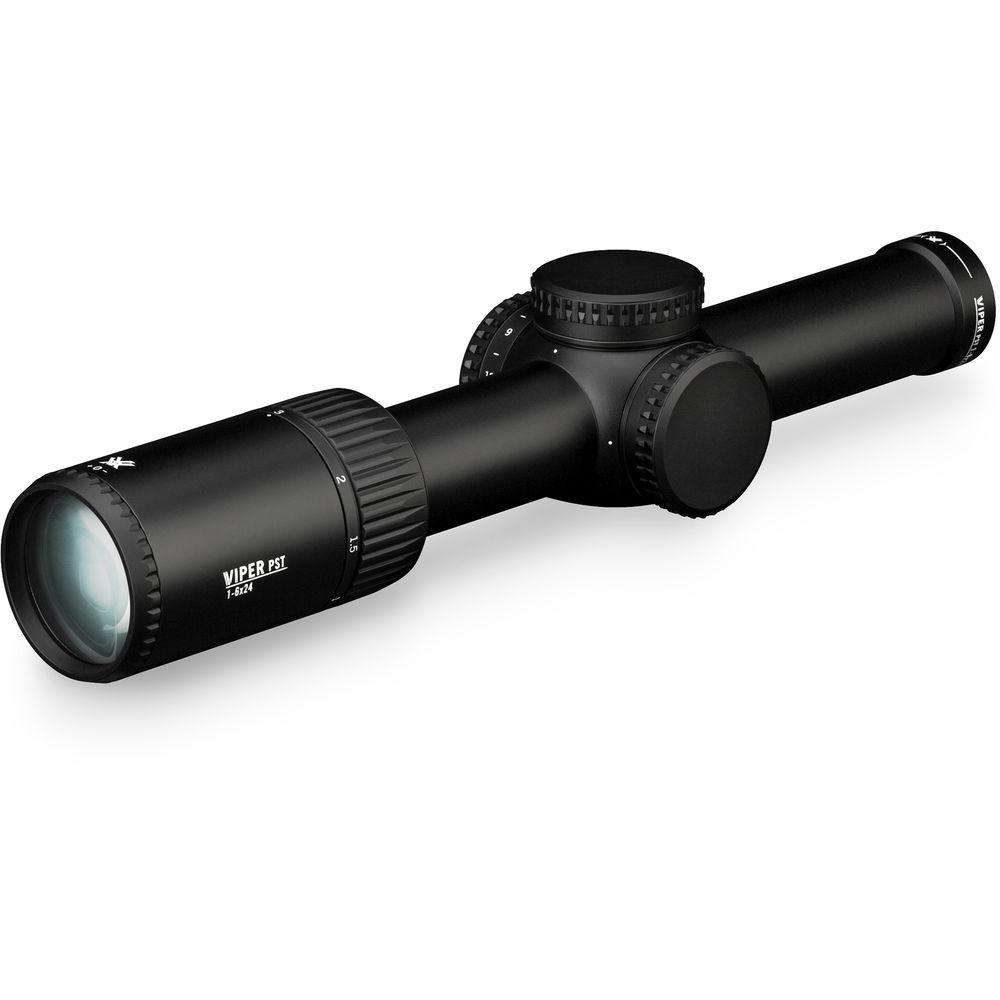

Product description Vortex Optics' 1-6x24 Viper PST Gen II Riflescope is a rock-solid scope, ideally suited to provide you an upper hand in close quarters combat. Its superior quality optical system matches the precision and strength of the mechanics to deliver the accuracy and reliability required in demanding situations. With the Extra-Low Dispersion (XD) optical elements, treated with the high-transmission XR full multi-coatings and ArmorTek protective coatings, you will obtain bright, clear, glare-free, and true color images along with protection of exterior lens surfaces from scratches, dirt, and oil stains. To enable with the laser-sharp shot placements, the scope features the illumined 2nd focal plane VMR-2 MRAD reticle. The reticle features a modified German #4 style with three medium posts and an illuminated crosshair containing a system of MRAD ranging and compensation markings. The illumination rheostat is located on the windage and elevation box and offers a graduated control knob with 10 brightness levels. The parallax-free performance is set 100 yards.

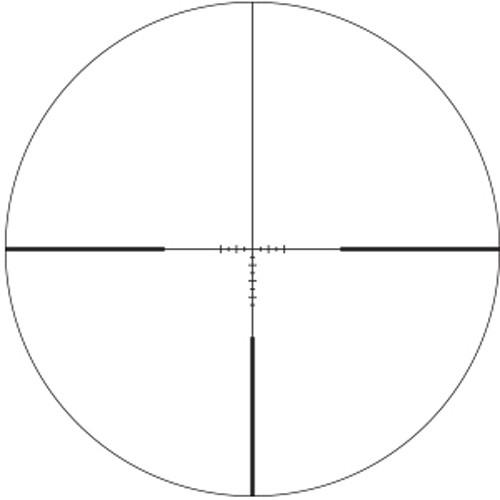

The high-quality aluminum housing is built around a durable single-piece 30mm maintube. One of the highlights of the mechanics is the Precision-Glide Erector System that ensures zooming action remains smooth under the most challenging conditions. For consistent repeatability and ease of adjustment, Vortex outfitted this optic with a Precision-Force Spring System. The scope's windage and elevation provide exposed graduated turrets with red fiber optic position markers on the knobs. The entire construction is robust, argon-filled fogproof, and O-ring sealed waterproof to ensure reliable performance for years of service. - VMR-2 MRAD Illuminated Reticle
-
- 2nd focal plane
- Modified German #4 style
- Three medium posts
- Crosshair with major and minor compensation bars
- Reticle measurements are provided at max magnification
- Crosshair line subtends 0.15 MRAD
- Posts subtend 0.5 MRAD
- Major bars are 1 MRAD long
- Minor bars are 0.65 MRAD long
- Bars are spaced at 1 MRAD intervals
- Gate between horizontal posts is 22 MRAD
- Crosshair line extends down from center 11 MRAD
- Parallax-free at 100 yd
- 10 illumination brightness levels
- Optical Performance
-
- 1-6x magnification
- 24 mm objective lens
- XD: Extra-Low Dispersion glass elements reduce color distortions and improve true color
- XR: Anti-reflective fully multi-coated to increase brightness and resolution
- ArmorTek scratch-resistant coating protects external lenses from damage, oil, and dirt
- Use and Handling
-
- 1/5 MRAD per click impact-point correction
- Windage and Elevation Adjustment: 46 MRAD
- Construction Details
-
- High-quality aluminum housing
- Single-piece 30mm maintube
- Fast focus eyepiece
- Capped windage and elevation turrets
- Proprietary RZR precision zero stop mechanism
- Dedicated illumination control knob on the windage/elevation box
- Corrosion-resistant low-glare hard anodized finish
- Argon-filled and O-ring sealed for water and fogproof performance
- Precision-glide Erector System enables smooth zoom in all weather conditions
- Precision-Force Spring System within the erector systems ensures repeatability and easy of adjustment
- Impact-resistant
UPC: 875874006140 In the Box Vortex 1-6x24 Viper PST Gen II Riflescope (VMR-2 MRAD Illuminated Reticle, Matte Black) - CR-2032 Battery
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 1-6x24 Viper PST Gen II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex PST-1607 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 112.5' @ 100 yd / 37.5 m @ 100 m
6x: 18.8' @ 100 yd / 6.3 m @ 100 m | | Eye Relief | 3.8" / 96.5 mm | | | | Reticle Type | VMR-2 MRAD Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/5 MRAD per Click | | Windage Adjustment | 46 MRAD | | Elevation Adjustment | 46 MRAD | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.9" / 27.7 cm | | Weight | 22.7 oz / 643.5 g | | | | Package Weight | 2.155 lb | | Box Dimensions (LxWxH) | 14.0 x 4.4 x 3.45" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
