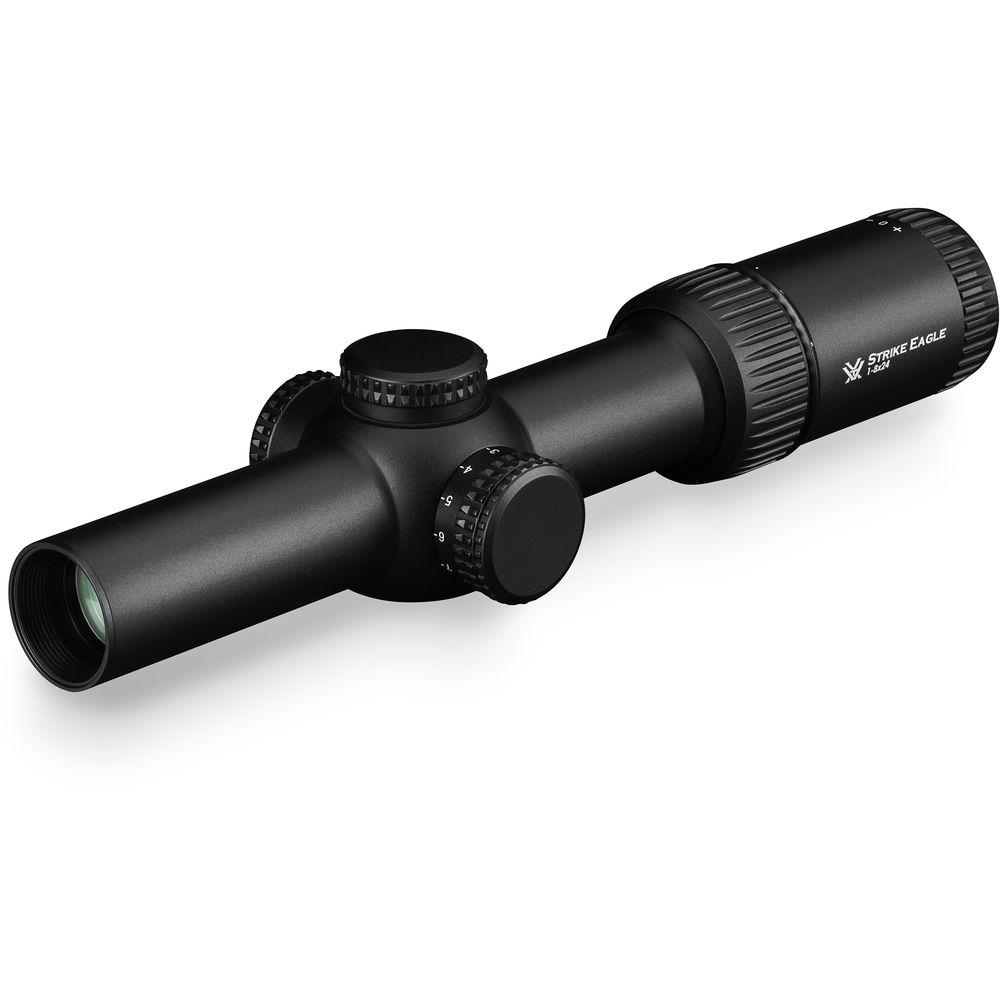

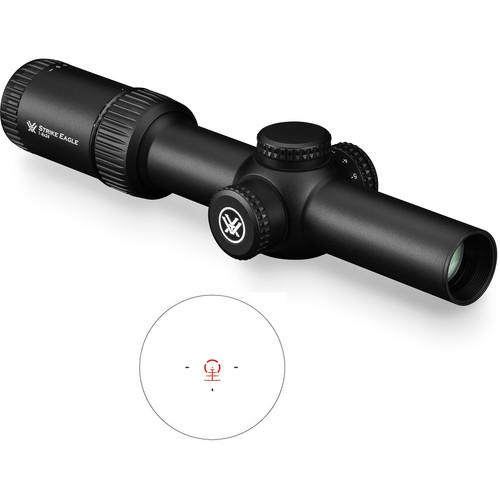

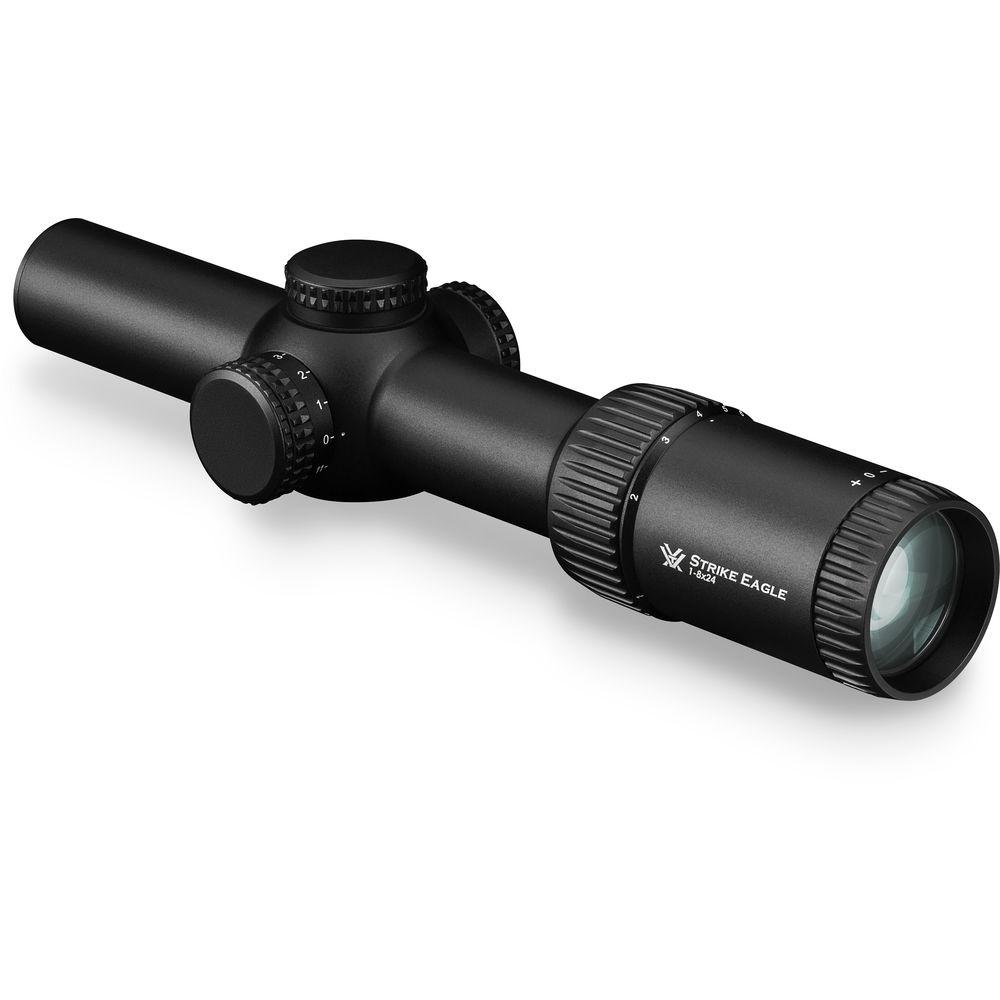

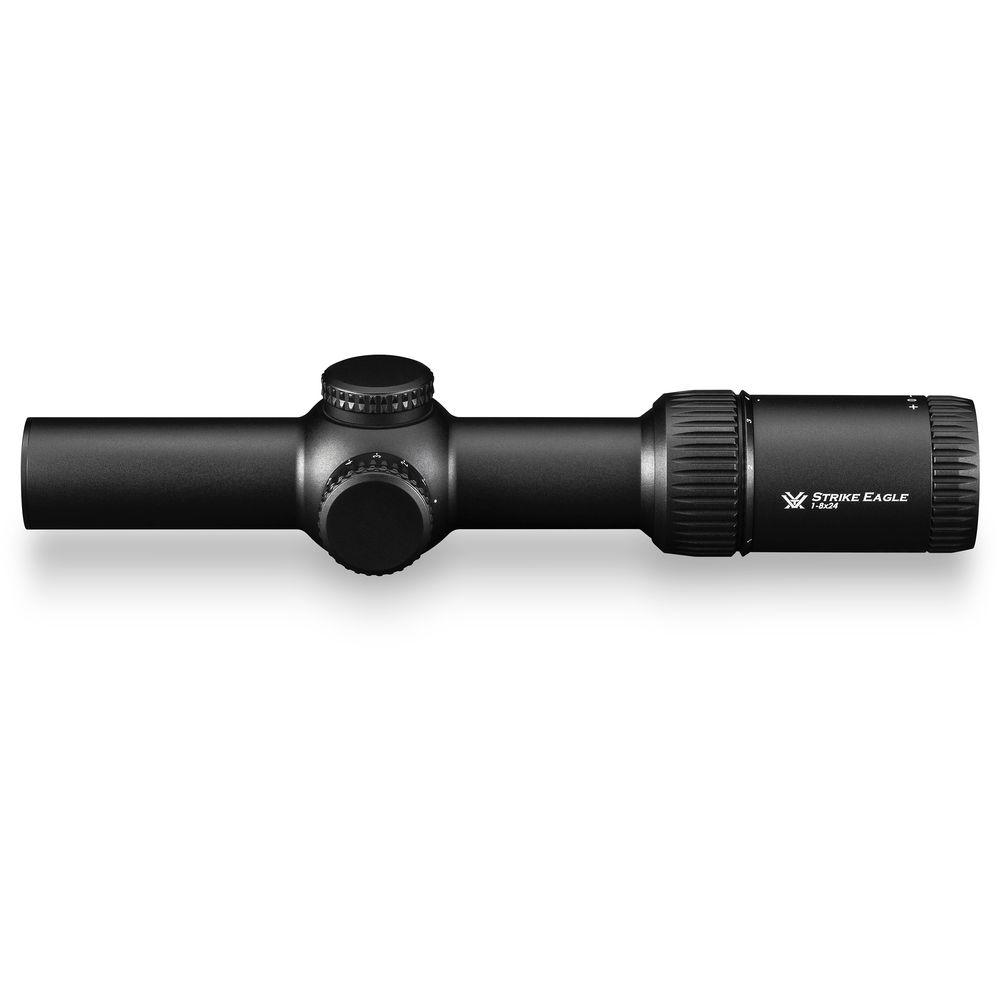

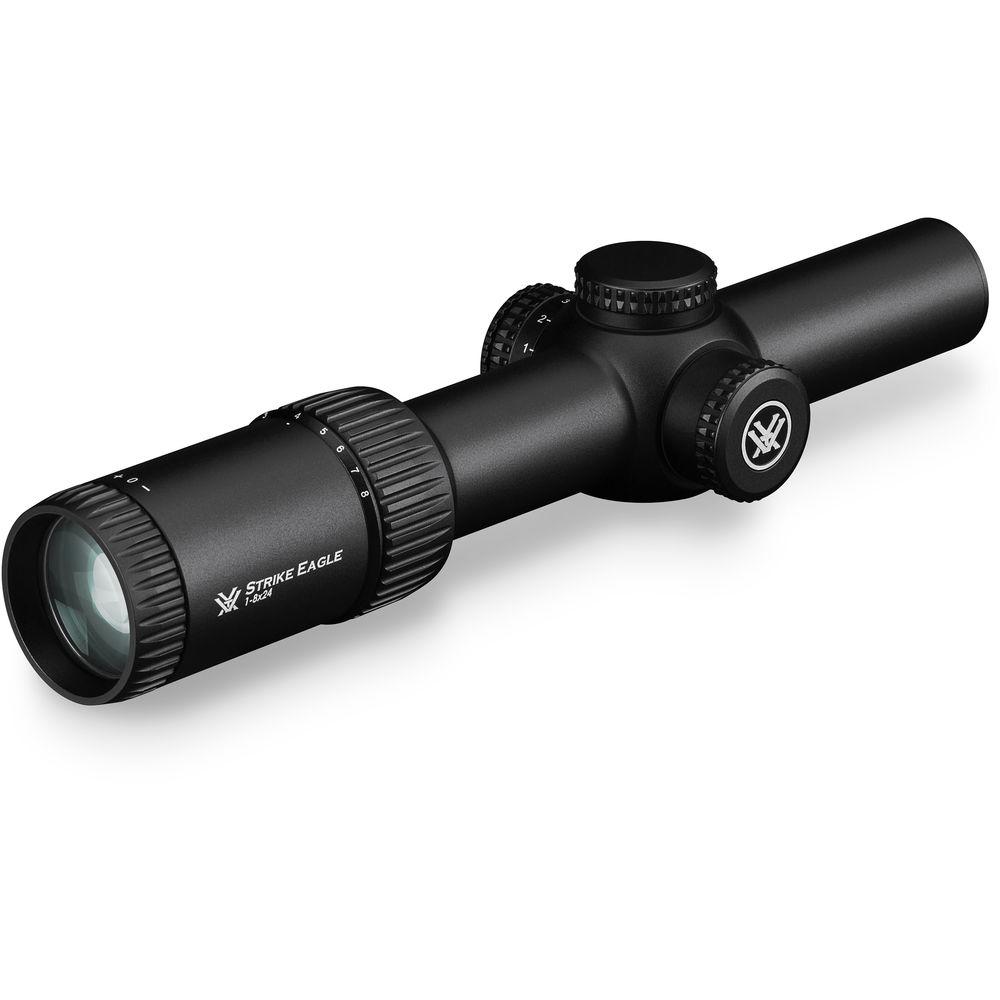

Product description Engage targets from point-blank to medium range with the Vortex 1-8x24 Strike Eagle Riflescope, featuring an illuminated AR-BDC2 reticle that subtends with popular .223/5.56 cartridges, 3.5" eye relief, and a shock-resistant 30mm single-piece maintube. Fully multi-coated optics offer the highest light transmission, while reducing glare and ghost images when you're aiming at targets. The 1-8x24 Strike Eagle offers a 100 MOA windage and elevation range with a 1/2 MOA impact point correction.Located in the second focal plane, the etched-on-glass, illuminated AR-BDC2 reticle will maintain the same size when you zoom. Subtensions for elevation, windage, and range are accurate at peak magnification. The waterproof and fogproof housing features a single-piece aluminum maintube with a hard anodized matte black finish. The eyepiece has a quick zoom ring that allows for fast target acquisition. The coarsely knurled zoom ring with a low-profile rib lever provides a fast one-finger adjustment, while windage and elevation turrets have caps and produce audible clicks. - Optical Performance
-
- 24mm objective diameter
- 1-8x magnification
- Linear field of view: 116.6 - 14.4' at 100 yards
- Fully multi-coated for optimal light transmission
- AR-BDC2 Reticle
-
- Second focal plane
- For .223/5.56mm and .308/7.62mm loads

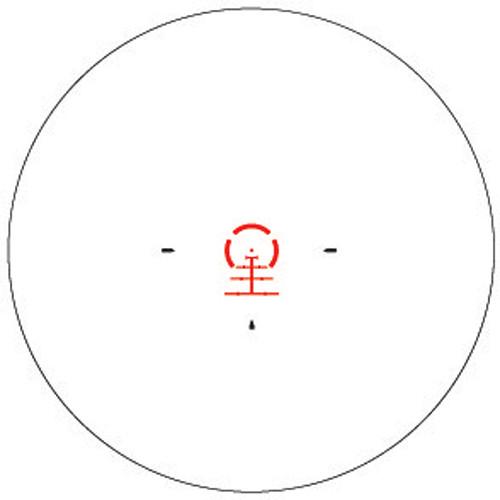

- Illuminated broken horseshoe, surrounded by three tapered suspended pins
- Illuminated target dot and cascading horizontal MOA holdover lines out to 600 yards
- Eleven reticle brightness settings
- Etched on the glass
- Use and Handling
-
- Parallax setting: 100 yards
- 1/2 MOA per click impact point correction
- 100 MOA windage and elevation adjustment range
- Eye relief: 3.5"
- Exit pupil: 24 - 3mm
- Construction Details
-
- 30mm maintube diameter
- Single-piece aluminum tube
- Hard anodized matte black finish
- Knurled zoom ring has a low-profile rib for easy adjustments
- Fast focus eyepiece allows rapid zooming and focusing on your targets
- Capped windage and elevation adjustment knobs
- Nitrogen-purged fogproof
- Recoil-resistant
- Waterproof
UPC: 875874008496 In the Box Vortex 1-8x24 Strike Eagle Riflescope (AR-BDC2 Reticle, Matte Black) Lens Cloth 2 x Lens Covers CR-2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 1-8x24 Strike Eagle Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex SE-1824-1 Specs | | | Magnification | 1 to 8x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 116.5' @ 100 yd / 38.9 m @ 100 m
8x: 14.4' @ 100 yd / 4.8 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm
8x: 3 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | AR-BDC2 Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10" / 25.4 cm | | Weight | 16.5 oz / 468 g | | | | Package Weight | 1.81 lb | | Box Dimensions (LxWxH) | 14.05 x 4.35 x 4.3" |
