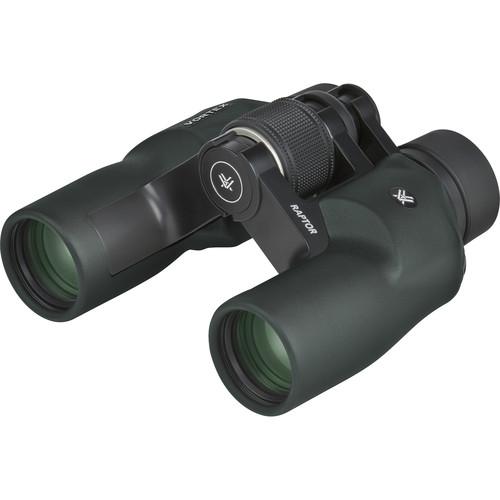

User Manual for Vortex 10x32 Raptor Binocular Click to enlarge the picture
Contents of the user manual for the Vortex 10x32 Raptor Binocular
- Product category: Binoculars Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Binoculars
|
User manual for the Vortex 10x32 Raptor Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Vortex Optics' 10x32 Raptor Binocular combines a powerful 10x magnification with a wide 63° apparent angle of view to help reduce visible hand shake and the associated viewing difficulties often associated with high-power optics. Because of its Porro prism design, it presents an immersive three-dimensional observational experience with an improved depth of field versus similarly sized roof prism designs. This optic's narrow 50mm minimum interpupillary distance makes it ideal for children and adolescents, who often have difficulty achieving a singular image from full-sized binoculars. A great choice for viewing stadium sports action, the Raptor comes with tethered objective lens covers, and its lightweight design reduces the chance of strain when worn around your neck for prolonged periods. - Optical Performance
-
- 10x magnification
- 32mm objective lenses
- Porro prism optical design
- Fully multi-coated optics increase light transmission and improve color and contrast
- 339' field of view at 1000 yards
- Wide 63° apparent angle of view
- Use and Handling
-
- Closed-bridge configuration
- Large textured center focus wheel
- Right-eye dioptric adjustment
- Twist-up eyepieces for comfortable use with or without eyewear
- 50-70mm interpupillary adjustment range
- Comfortable 13mm eye relief
- 3.2mm exit pupil
- Construction Details
-
- Waterproof and nitrogen filled for fogproof performance especially with extreme temperature changes
- Rubber armoring provides a secure slip-resistant grip and external protection
- Tethered flip-down objective lens covers
- One-piece ocular rainguard
- Weight: 17.6 ounces
UPC: 875874006508 In the Box Vortex 10x32 Raptor Binocular Carrying Case Neck Strap Eyepiece Rainguard Tethered Push-On Objective Caps Lifetime Vortex "VIP" No-Fault Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 221kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 10x32 Raptor Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex R310 Specs | Prism Type | Porro | | Magnification | 10 x | | Objective Lens Diameter | 32 mm | | Angle of View | 6.3° (Actual) | | Field of View | 330.7' @ 1000 yd / 110.2 m @ 1000 m | | Minimum Focus Distance | 15' / 4.6 m | | Exit Pupil Diameter | 3.2 mm | | Eye Relief | 13.0 mm | | Interpupillary Adjustment | 50 to 70 mm / 2 to 2.8" | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 5.7 x 4.5" / 14.5 x 11.4 cm | | Weight | 17.6 oz / 499.0 g | | | | Package Weight | 1.935 lb | | Box Dimensions (LxWxH) | 7.95 x 7.15 x 3.15" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
