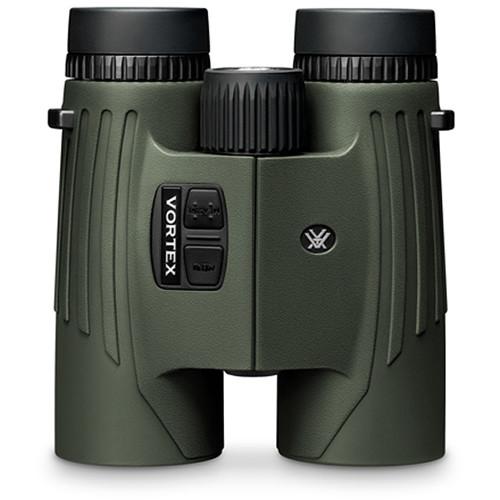

User Manual for Vortex 10x42 Fury 5000 HD Gen II Laser Rangefinder Binocular Click to enlarge the picture
Contents of the user manual for the Vortex 10x42 Fury 5000 HD Gen
- Product category: Laser Rangefinders Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Laser Rangefinders
|
User manual for the Vortex 10x42 Fury 5000 HD Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description Engineered to be an indispensable addition to your hunting gear, the Vortex 10x42 Fury 5000 HD Gen II Laser Rangefinder Binocular is a premium general-purpose optic and a laser ranging device that can accurately measure the distance to a deer up to 1600 yards away or a reflective surface 5000 yards distant. Its Horizontal Component Distance feature shows the true shot range out to 800 yards for mild slopes, 400 yards on moderate slopes, and all archery shooting (you have the option of line-of-sight ranging for longer shots, using ballistic cards or apps, etc.) Optically, the Fury 5000 HD boasts a high magnification and coated lenses and prisms for bright, clear, high-contrast images with accurate color rendition, even in low light. It has a generous field of view and can be mounted on a tripod for shake-free glassing.
The rangefinder is activated using an intuitive two-button interface located on the right optical barrel. Its in-view display has five brightness settings, displays distance in yards or meters, and can be focused for clarity. Built to survive in punishing conditions, the Fury's chassis is wrapped in a protective rubber armoring that is textured to provide a secure slip-resistant grip. The optical tubes are nitrogen filled and O-ring sealed to provide water and fogproof performance in even the most extreme conditions. All exposed lens surfaces are treated with Vortex's ArmorTek coatings to protect against scratches, oil, and dirt. Tethered objective lens covers and an ocular rain guard are easy to remove when quick reactions are required, and go on quickly to keep rain and snow out. - Optical Performance
-
- 10x magnification
- 42mm objective lenses
- Compact roof prisms
- High-density glass for overall image sharpness and clarity
- XR anti-reflective fully multi-coated optics increase light transmission and improve color rendition, contrast, and image brightness
- Phase-corrected prisms enhance resolution and contrast
- 321.6' field of view at 1000 yards
- Wide 61° apparent angle of view
- 16mm eye relief
- Comfortable 4.2mm exit pupil
- Laser Rangefinder
-
- Measure distance in yards or meters
- Metering range from 5 to 5000 yards to reflective surface, 5 to 1600 yards to deer
- Horizontal Component Distance (HCD) reticle/display shows adjusted range to target based on distance and angle for improved accuracy
- Line of Sight (LOS) mode for longer shots or when using ballistic cards or apps
- Spot mode ranges to a single stationary target
- Scan mode continually updates the distance readings when panning across a landscape or tracking a moving animal
- Illuminated display with five intensity settings
- In-view battery status indicator
- Intuitive two-button interface
- Runs on one CR2 battery
- Use and Handling
-
- Closed-bridge configuration
- Large knurled center focusing wheel
- Left-eye dioptric correction
- Right-eye reticle/display focus
- 54-72 mm interpupillary adjustment range
- Twist-up eyecups for easy use with or without eyewear
- Tripod mountable with optional adapter
- Construction Details
-
- ArmorTek coatings protect exterior lens surfaces from scratches, oil, and dirt
- Rubber armoring protects chassis and provides a slip-resistant grip
- Nitrogen filled for water and fogproof performance in all weather conditions
- Tethered objective lens caps prevents loss and keeps them close
- One-piece ocular rainguard prevents water buildup in eyecups
- Weight: 32.3 ounces
UPC: 816382029481 In the Box Vortex 10x42 Fury 5000 HD Gen II Laser Rangefinder Binocular Glasspak Binocular Harness Padded Neck Strap One-Piece Ocular Rainguard 2 x Objective Lens Covers CR2 Battery Vortex VIP Unlimited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 10x42 Fury 5000 HD Gen II Laser Rangefinder Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex Fury HD Specs | | | Laser Type | Class 1 Eye Safe | | Metering Range | Reflective: 5 to 5000 yd / 4.57 to 4572 m
Deer: 5 to 1600 yd / 4.57 to 1463.04 m | | Accuracy | 0.1 yd / 0.09 m | | | | Prism Type | Roof | | Magnification | 10x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.1° (Actual) | | Field of View | 321.6' @ 1000 yd / 106.77 m @ 1000 m | | Minimum Focus Distance | 18.5' / 5.6 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 16 mm | | | | Form Factor | Binocular | | Power Source | 1 x CR2 | | Interpupillary Adjustment | 54 to 72 mm / 2.1 to 2.8" | | Inclinometer | Maximum Angle: 30
