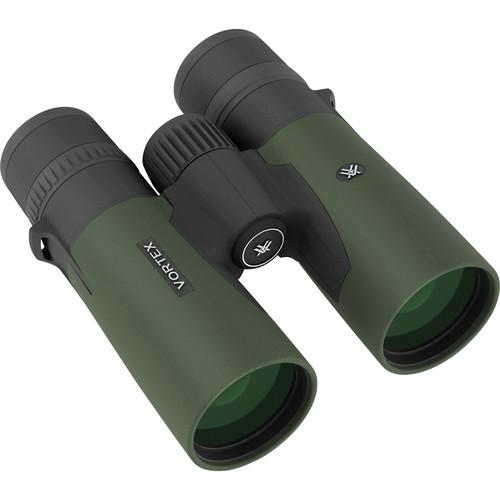

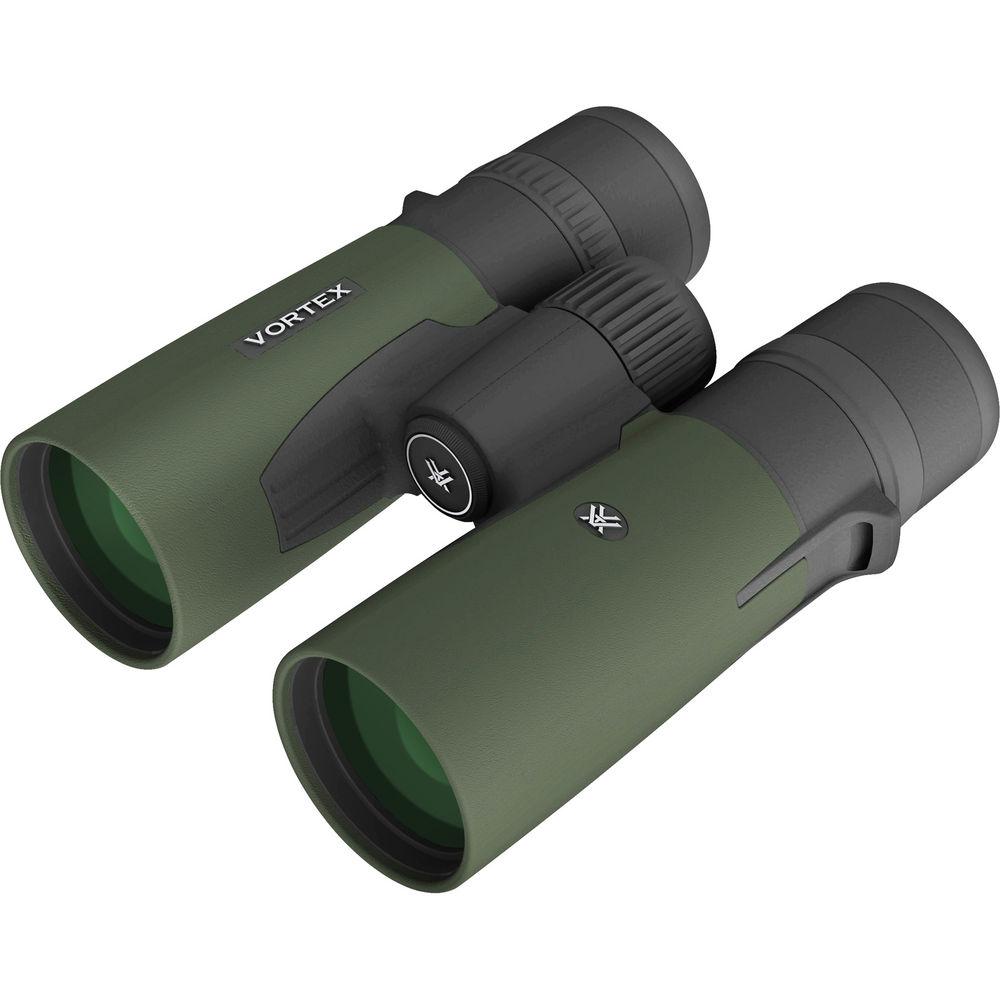

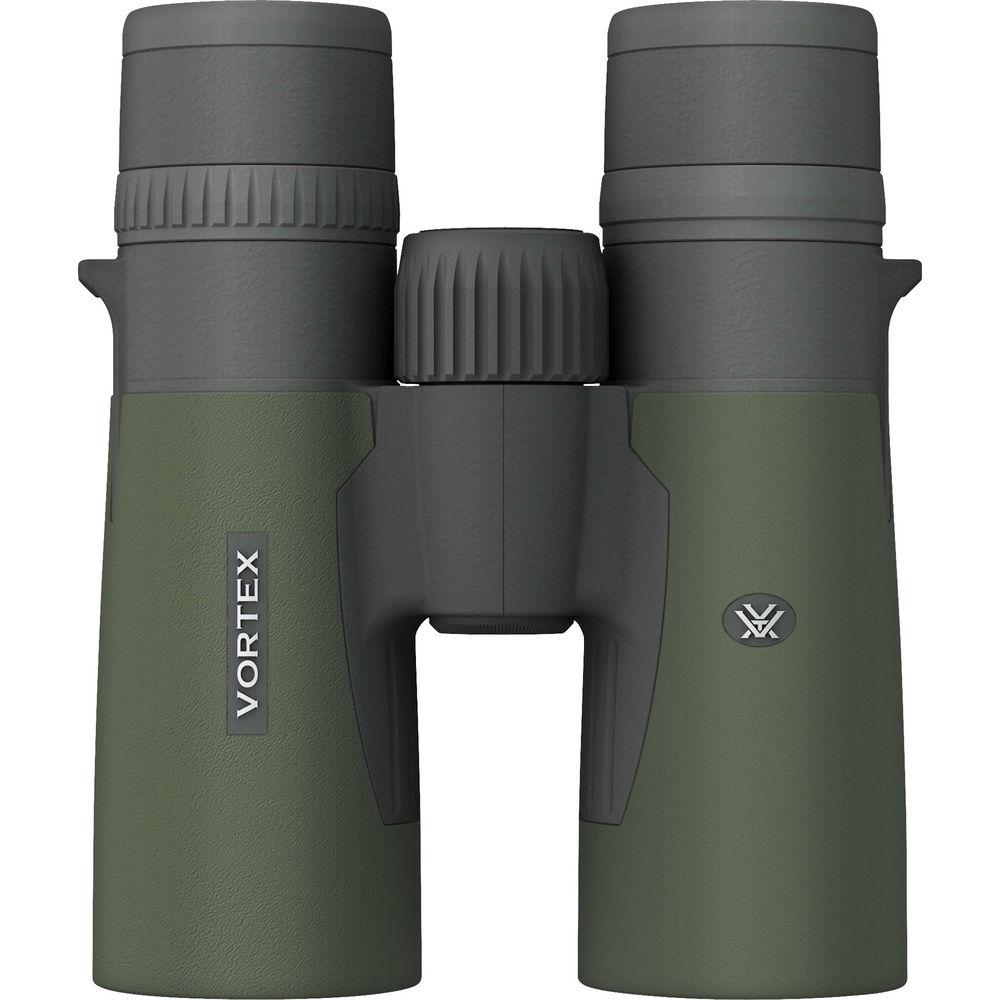

User Manual for Vortex 10x42 Razor HD Binocular Click to enlarge the picture
Contents of the user manual for the Vortex 10x42 Razor HD Binocular
- Product category: Binoculars Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Binoculars
 |
User manual for the Vortex 10x42 Razor HD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The 10x42 Razor HD Binocular from Vortex is smaller, lighter, brighter, and stronger than ever before. It is a versatile optic that is ideal for multiple applications from close to long-distance observation. Its lightweight construction and high optical performance make it an extremely desirable viewing instrument.The binocular renders views in high contrast with accurate color through the use of high-density (HD) extra-low dispersion (ED) glass, an apochromatic lens configuration, XR Plus lens coatings, and dielectric and phase-correcting prism coatings, which raise the level of optical excellence for this roof prism binocular. The benefits include excellence in color sharpness, coating durability, overall performance, increased resolution, color fidelity, clarity, brightness, and greater light transmission. Additional lens protection from scratches, oil, and dust is provided by the ArmorTek exterior lens coating.The Razor HD is argon filled and sealed with O-rings to ensure reliable and durable protection against dust, debris, fog, and water. It is rubber armored for non-slip and durable protection, and is equipped with a large focusing knob that is easy to use even while wearing gloves. Naturally contoured to perfectly fit your hands, promoting comfort and eliminating user fatigue, with the Razor HD Vortex has once again created a winning combination of features. - Optical Performance
-
- 10x magnification
- 42mm objective lenses
- Compact roof prisms
- High-density (HD) extra low-dispersion (ED) glass corrects chromatic and spherical aberrations to eliminate off-axis comas and improve color and contrast
- Phase-correcting prism coatings improve resolution, clarity, and contrast
- Highly reflective dielectric prism coatings virtually eliminate internal light loss
- XR Plus fully multi-coated optics improve light transmission, color rendition, and contrast
- Short 6-foot close-focus distance
- Wide 69° apparent angle of view
- 362-foot field of view at 1000 yards
- Use and Handling
-
- Closed-bridge configuration
- Large textured and slip-resistant center focusing wheel
- Right-eye dioptric correction
- Twist-up click-stop rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- 16.5mm eye relief
- Comfortable 4.2mm exit pupil
- Construction Details
-
- Lightweight and strong magnesium-alloy chassis
- Protective rubber armor provides a slip-resistant grip
- O-ring sealed and argon filled to be waterproof and resistant to internal fogging when moving through extreme temperature and environmental conditions
- Scratch-resistant ArmorTek exterior lens coatings repel oils and corrosive materials from lenses
- Weighs under 25 ounces
UPC: 875874004771 In the Box Vortex 10x42 Razor HD Binocular Rainguard 2 x Tethered Objective Lens Covers Comfort Neck Strap Deluxe Padded Carry Case VIP Unconditional Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Brochure PDF 166.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 10x42 Razor HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex RZB-2102 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.9° (Actual) | | Field of View | 362.2' @ 1000 yd / 120.7 m @ 1000 m | | Minimum Focus Distance | 6' / 1.8 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 16.5 mm | | Interpupillary Adjustment | 55 to 75 mm / 2.2 to 3" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.9 x 5.1" / 15.0 x 13.0 cm | | Weight | 24.8 oz / 703.1 g | | | | Package Weight | 3.085 lb | | Box Dimensions (LxWxH) | 9.0 x 7.7 x 4.35" |
