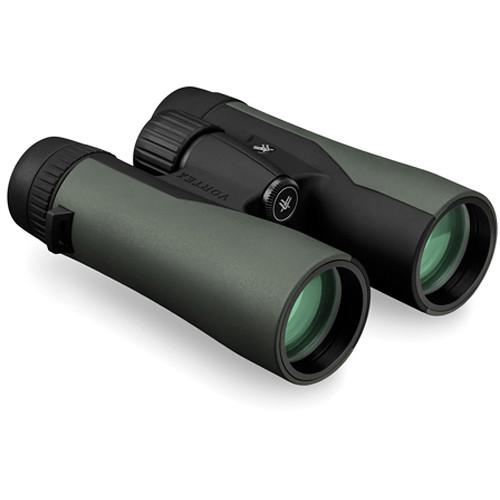

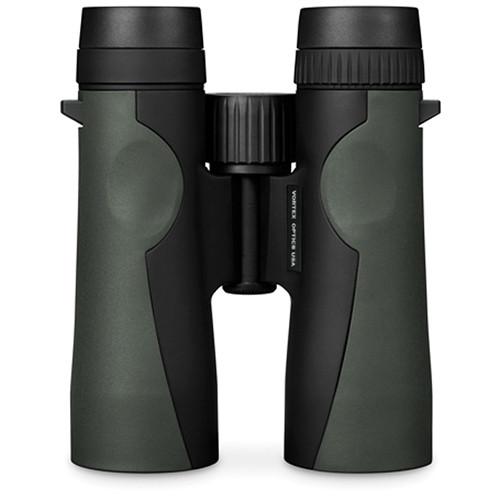

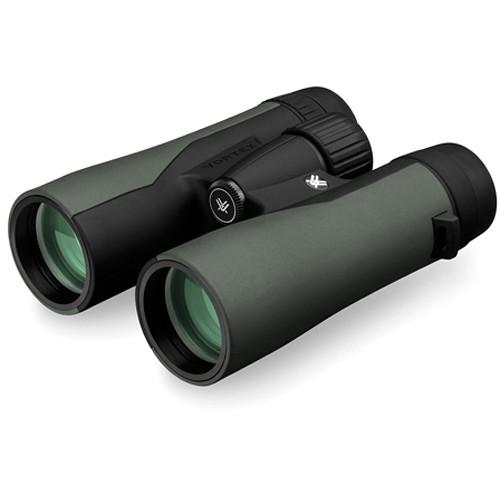

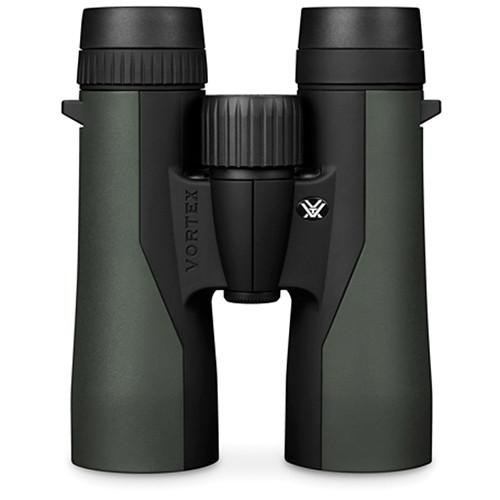

User Manual for Vortex 10x50 Crossfire Roof Prism Binocular Click to enlarge the picture
Contents of the user manual for the Vortex 10x50 Crossfire Roof Prism Binocular
- Product category: Binoculars Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Binoculars
 |
User manual for the Vortex 10x50 Crossfire Roof Prism Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More tuxatudtxxyfbrvcuv The green and black 10x50 Crossfire Roof Prism Binocular from Vortex combines fully multi-coated optics, which deliver bright and clear images, with a durable and comfortable-to-hold body. With a 10x magnification and 50mm objectives, you obtain higher-than-average magnification and a light-gathering capacity that allows you to make low-light observations as well as enjoy stargazing. You can easily spot your targets or capture scenery with a wide 6.1° angular field of view and an enhanced depth of field and quickly bring them into focus with a center focusing wheel. In addition to observing distant scenes, birds, and game, the minimum focus of 9.8' allows you to study in detail close targets like animal footprints, marks, or landscape features without moving away from your subject. The binocular also features a 5mm exit pupil, a 17 mm eye relief, and a 60-76 mm interpupillary adjustment range.
To offer durability and comfort, the 10x50 Crossfire also features a smooth green and black rubber armor covering that provides external protection and a secure non-slip grip. The housing is O-ring sealed waterproof and nitrogen-purged fogproof, which shield the binocular from a variety of weather conditions and effects of a rapidly changing temperature. To ensure a non-slip grip during focusing even while wearing gloves or in bad weather, the center focus knob is wide and knurled. The binocular is mountable on a tripod with an optional adapter and has rubber twist-up eyecups. Also included are a rainguard, tethered lens covers, a neck strap, and a soft carry case. - Optical Performance
-
- Magnification: 10x
- Fully multi-coated optics
- Roof prisms allow for a straight tube design
- Wide angular field of view: 6.1°
- Objective diameter of 50mm allows low-light and night sky observations
- Interpupillary adjustment
- Diopter adjustment
- Construction Details
-
- Rubber armor covering provides durability, comfort, and a secure grip
- Oversized center focus knob allows for a sure grip with gloves or in adverse conditions
- Fogproof by nitrogen purging
- Waterproof, sealed with O-rings
- Twist-up rubber eyecups
- Tripod mountable with an optional adapter
UPC: 875874005792 In the Box Vortex 10x50 Crossfire Roof Prism Binocular Rainguard 2 x Tethered Lens Covers Neck Strap Soft Carry Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 tuxatudtxxyfbrvcuv A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 10x50 Crossfire Roof Prism Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex CF-4303 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 50 mm | | Angle of View | 6.1° (Actual) | | Field of View | 320.2' @ 1000 yd / 106.7 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 5 mm | | Eye Relief | 17 mm | | Interpupillary Adjustment | 61 to 76.2 mm / 2.4 to 3" | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 6.7 x 5.4" / 17.0 x 13.7 cm | | Weight | 30.3 oz / 859.0 g | | | | Package Weight | 2.665 lb | | Box Dimensions (LxWxH) | 8.75 x 6.85 x 3.45" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
