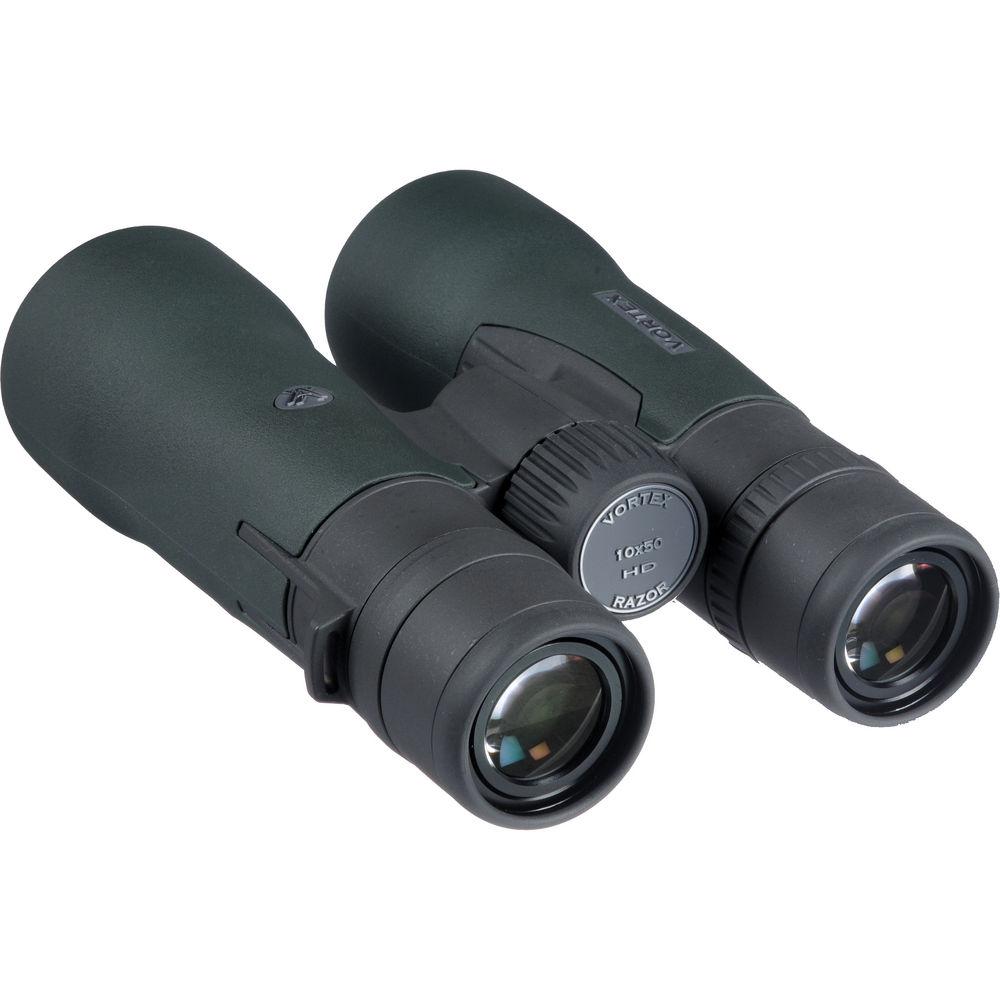

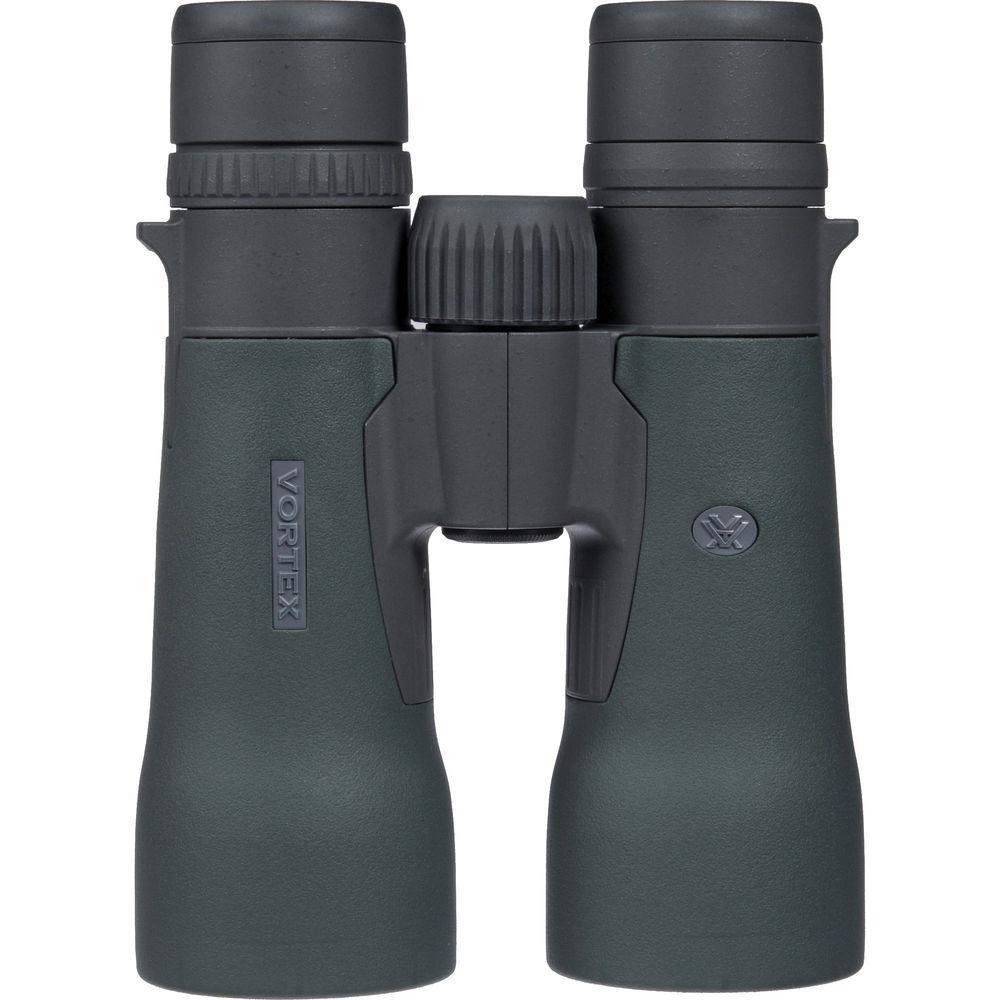

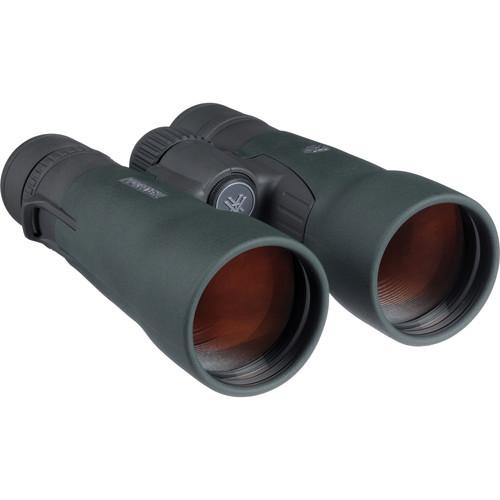

User Manual for Vortex 10x50 Razor HD Binocular Click to enlarge the picture
Contents of the user manual for the Vortex 10x50 Razor HD Binocular
- Product category: Binoculars Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Binoculars
 |
User manual for the Vortex 10x50 Razor HD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More xvfbqwqvwwyzurezybxbrfexdasccyvy The 10x50 Razor HD Binocular from Vortex fuses several proprietary optical technologies with a rubber-armored weather-sealed housing and ergonomic design, making this set of glasses ideal for birders and hunters alike. A 16.5mm eye relief and twist-up eyecups with multiple click-stop positions will provide a comfortable viewing distance for almost any observer.Vortex outfitted the Razor HD series optics with a fully multi-coated extra-low dispersion (ED) high-density (HD) lens system that maximizes light transmission and color fidelity. A 60° apparent viewing angle and 10 ft close-focus distance make the 10x50 model of the Razor HD great for close to mid-range observations. Phase-corrected prisms with dielectric multi-coating allow the optical path to render enhanced detail and contrast while preserving image brightness.Complementing the high-transmission optics is a magnesium-alloy housing that is waterproof and argon filled for fogproof performance. Protecting the exposed lens surfaces from dirt and moisture is Vortex's proprietary scratch-resistant ArmorTek coating. Enhancing the usability of the Razor HD housing is an open-bridge design that sheds excess weight, as well as contoured thumb rests that improve ergonomics and balance. The 10x50 Razor HD binocular is backed by Vortex's lifetime warranty, and it comes with flip-down objective covers, rainguard, and carrying case. - Optical Performance
-
- 10x magnification
- 50mm objectives
- Extra-low dispersion (ED) HD glass elements
- Fully multi-coated lens system, XR anti-reflective coating
- Roof prisms with phase correction and dielectric multi-coating
- 60° apparent viewing angle
- 10 ft minimum focus distance
- 16.5mm eye relief
- Use and Handling
-
- Twist-up eyecups with click-stop settings
- Tethered objective lens covers
- Tripod mounting adapter socket
- Locking diopter adjustment ring
- Construction Details
-
- Argon filled for fogproof performance; waterproof
- Magnesium-alloy housing with slip-resistant rubber armor
- Open-bridge design reduces weight and improves handling
- ArmorTek scratch-resistant coating on exposed lens surfaces
- 28.1 oz weight
UPC: 875874005051 In the Box Vortex 10x50 Razor HD Binocular Carrying Case Rainguard Flip-Down Objective Covers Neck Strap Lifetime Vortex VIP Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 xvfbqwqvwwyzurezybxbrfexdasccyvy A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 10x50 Razor HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex RZB-2103 Specs | Prism Type | Roof | | Magnification | 10.0 x | | Objective Lens Diameter | 50 mm | | Angle of View | 6.3° (Actual) | | Field of View | 330.7' @ 1000 yd / 110.2 m @ 1000 m | | Minimum Focus Distance | 10' / 3 m | | Exit Pupil Diameter | 5 mm | | Eye Relief | 16.5 mm | | Interpupillary Adjustment | 57 to 74 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 6.8 x 5.1" / 172.7 x 129.5 x 50.0 mm | | Weight | 28.1 oz / 796.6 g | | | | Package Weight | 3.37 lb | | Box Dimensions (LxWxH) | 10.55 x 8.75 x 3.6" |
