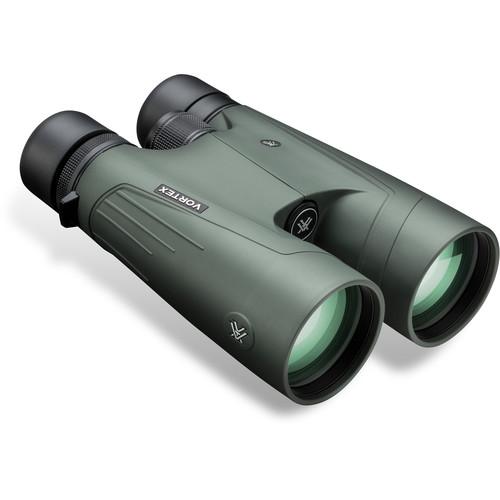

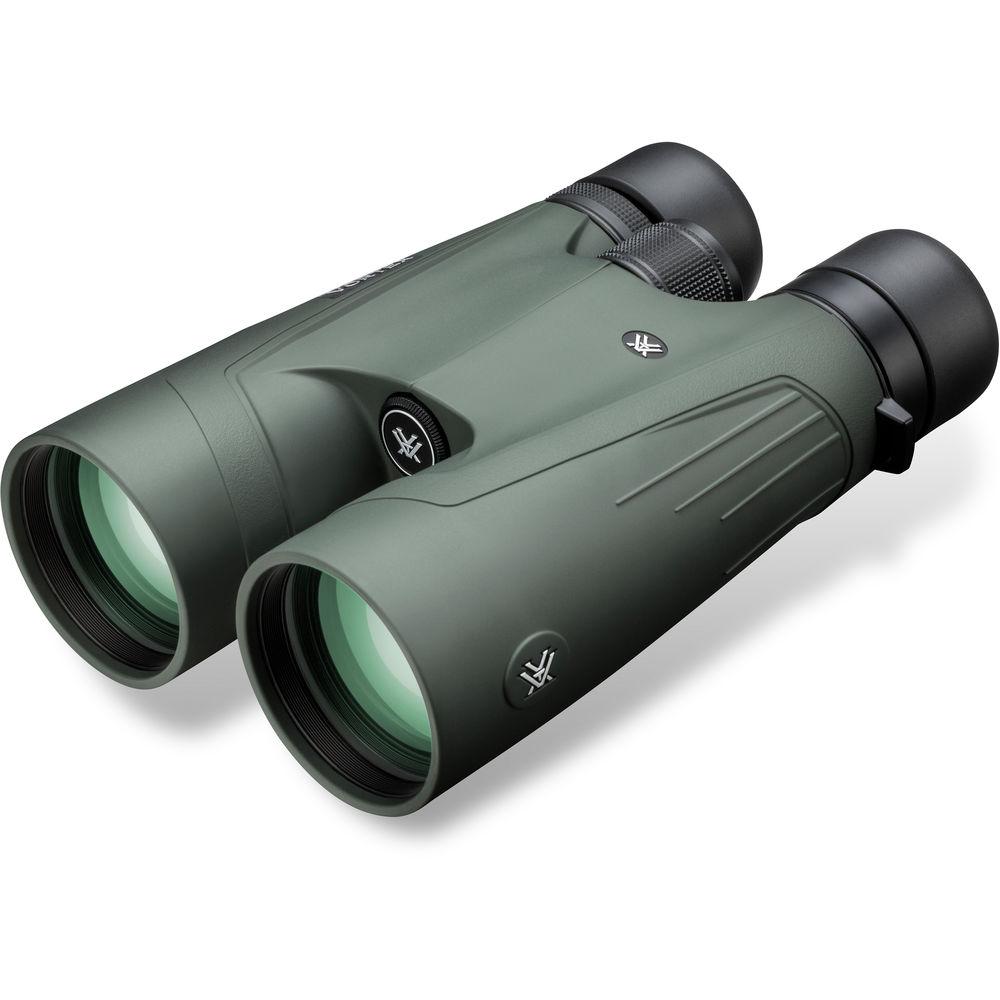

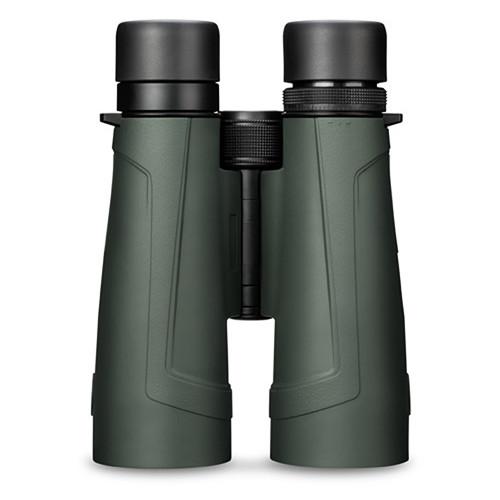

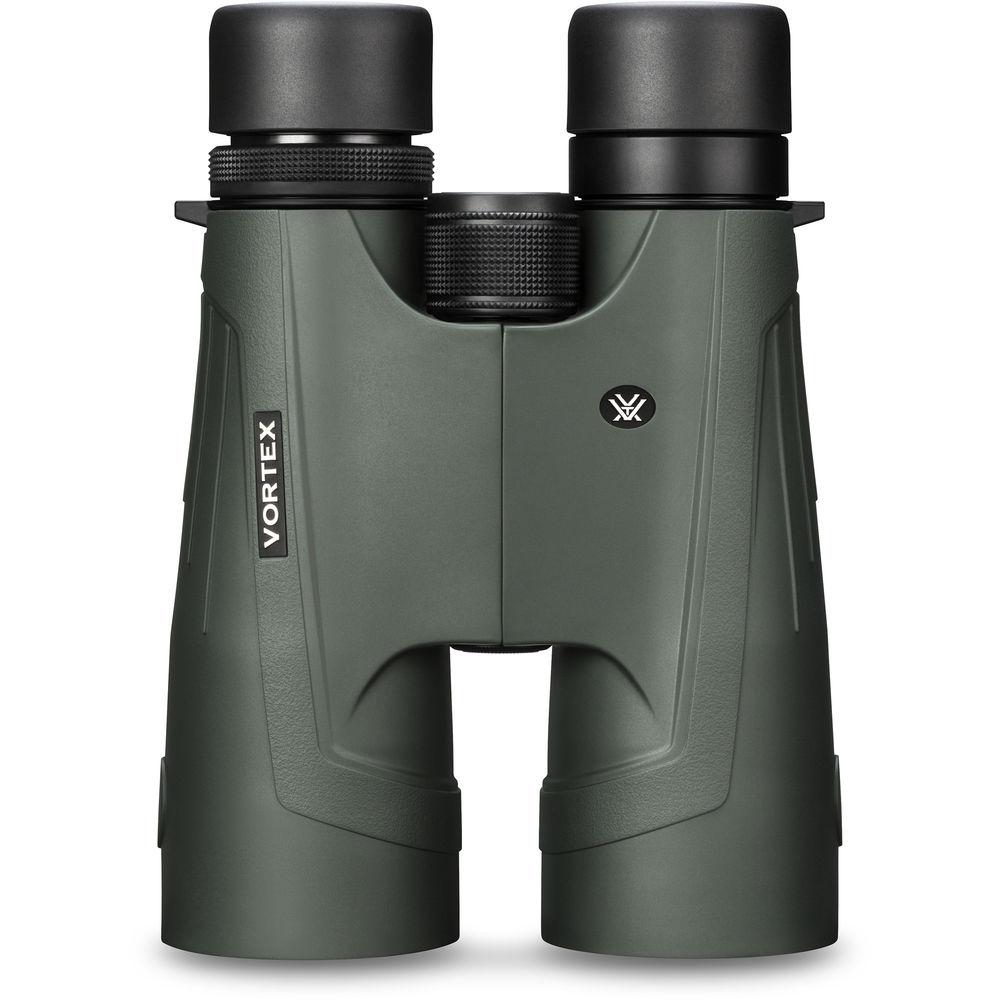

User Manual for Vortex 18x56 Kaibab HD Binocular Click to enlarge the picture
Contents of the user manual for the Vortex 18x56 Kaibab HD Binocular
- Product category: Binoculars Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Binoculars
 |
User manual for the Vortex 18x56 Kaibab HD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Conceived, designed, and constructed for outstanding performance at long range and in low light when many animals are most active, the Vortex Optics 18x56 Kaibab HD Binocular combines multiple technologies and features to ensure clear and crisp views from the pre-dawn to late dusk hours and to maintain bright views despite its high power.Its performance starts with the over-sized 56mm objectives that draw in the copious amounts of light required for seeing in low light. The powerful 18x magnification enables users to reach out to great distances and make detailed observations—especially useful when big-game hunting across the open prairies out West where game remains at long range. Optically, it benefits from high-density (HD) extra-low dispersion (ED) glass set in an apochromatic configuration that virtually eliminates edge distortion and color fringing. Next, anti-reflection fully multi-coated optics further maximize light transmission through the light path and improve contrast and color rendition across the entire visual spectrum, ensuring colors remain true. The compact roof prisms are finished with highly reflective dielectric and phase-correcting coatings that limit internal interference, light loss, and diffraction. These features work together to produce bright and clear high-contrast views with accurate color fidelity and improved clarity and resolution. To further improve the observational experience, the Kaibab is designed with a wide 67° apparent angle of view to minimize distracting hand shake and present a spacious field of viewComplementing the optical performance are construction details that allow this binocular to withstand the rigors of the outdoors. The chassis is made of a lightweight and impact-resistant polymer material wrapped in a slip-resistant rubber armor that offers improved grip security, especially in cold and wet weather. Its optical tubes are O-ring sealed and argon filled to be waterproof and resistant to internal fogging when moving through extreme temperature changes and environmental conditions. Because of the high power and large objectives, Vortex includes their quick release Uni-Daptor tripod adapter to make it easy to put the binocular on a support system and eliminate vibrations and arm fatigue.From dawn to dusk to picking apart the distant landscape for game, the Kaibab binocular has been engineered to provide outstanding performance in the most challenging light and environmental conditions possible. - Optical Performance
-
- Powerful 18x magnification brings distant subjects such as large game up close for detailed observations
- Large 56mm objective lenses are optimized for low-light use and to ensure bright views when looking at distant subjects
- Roof prism optical path ensures peak performance while maintaining a compact form factor
- Dielectric prism coatings boost surface reflectivity to greater than 99% for maximum light transmission through the prism, with minimal loss and diffraction
- High-density (HD), extra-low dispersion (ED) apochromatic lenses correct spherical and chromatic aberrations to transmit accurate colors without edge distortion
- Proprietary XR Plus anti-reflection fully multi-coated optics maximize light transmission for accurate color fidelity and improved contrast and clarity
- Wide 67° apparent angle of view helps to minimize the distracting hand shake that is common when holding heavy and/or high-power optics
- 194' field of view at 1000 yards
- Use and Handling
-
- Closed bridge configuration provides a solid platform for the internal focusing system
- Large slip-resistant center focusing wheel is easy to manipulate in cold and wet weather, even while wearing gloves
- Locking right-eye dioptric correction allows user to compensate for optical prescription to produce sharper views
- 60-76mm interpupillary distance adjustment range
- Twist-up click-stop eyecups for easy use with or without eyewear
- Tripod mountable with included adapter for hands-free use to eliminate vibrations and arm fatigue
- 16.4mm eye relief makes viewing more comfortable, with reduced eyestrain
- 3.1mm exit pupil
- Construction Details
-
- ArmorTek coatings protect external lens surfaces, enabling water to bead off and preventing dirt and oils from sticking and leaving behind residues, to provide clearer views in all weather conditions
- Lightweight and highly impact-resistant polymer chassis
- Chassis material is resistant to the expansion and contraction often experienced with metal chassis, which can cause components to move out of alignment over time and prevent the ability to achieve sharp focus
- Protective rubber armor with raised ridged palm pads provides a slip-resistant grip
- O-ring sealed and argon filled to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Tethered objective lens caps and one-piece ocular rainguard protect the lens surface without the fear of losing them when not in use
UPC: 875874009271 In the Box Vortex 18x56 Kaibab HD Binocular Uni-Daptor Binocular Tripod Adapter tdewtwctvz Carrying Case Neck Strap Lens Cloth One-Piece Ocular Rainguard 2 x Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 tdewtwctvz A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 18x56 Kaibab HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex KAI-5618 Specs | Prism Type | Roof | | Magnification | 18 x | | Objective Lens Diameter | 56 mm | | Angle of View | 3.7° (Actual) | | Field of View | 194.0' @ 1000 yd / 64.4 m @ 1000 m | | Minimum Focus Distance | 10' / 3 m | | Exit Pupil Diameter | 3.1 mm | | Eye Relief | 16.4 mm | | Interpupillary Adjustment | 60 to 76 mm / 2.4 to 3" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Included) | | Dimensions | 7.7 x 5.7" / 19.6 x 14.5 cm | | Weight | 43.5 oz / 1233.2 g | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 9.15 x 8.05 x 4.9" |
