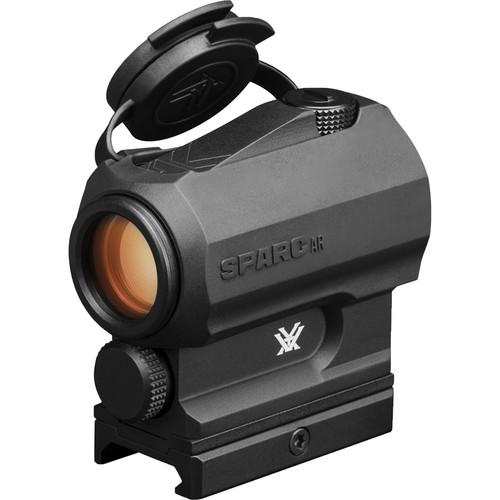

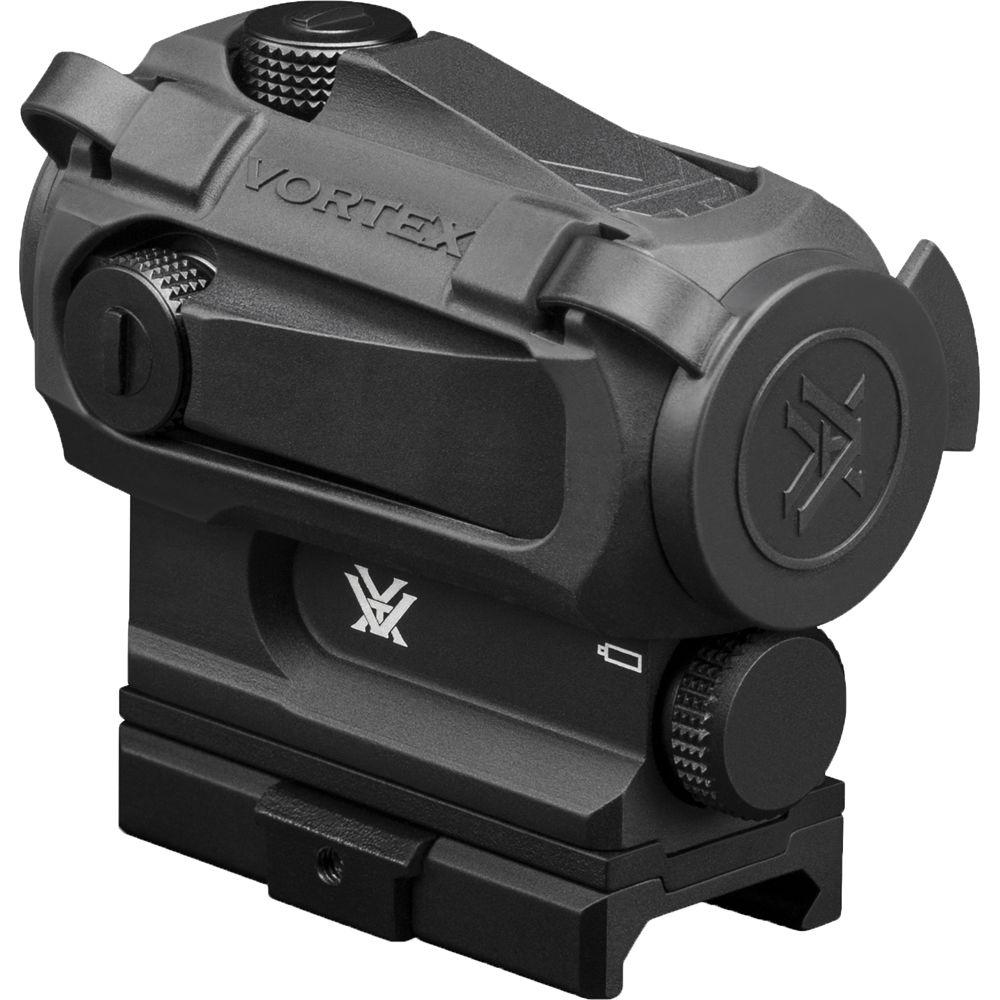

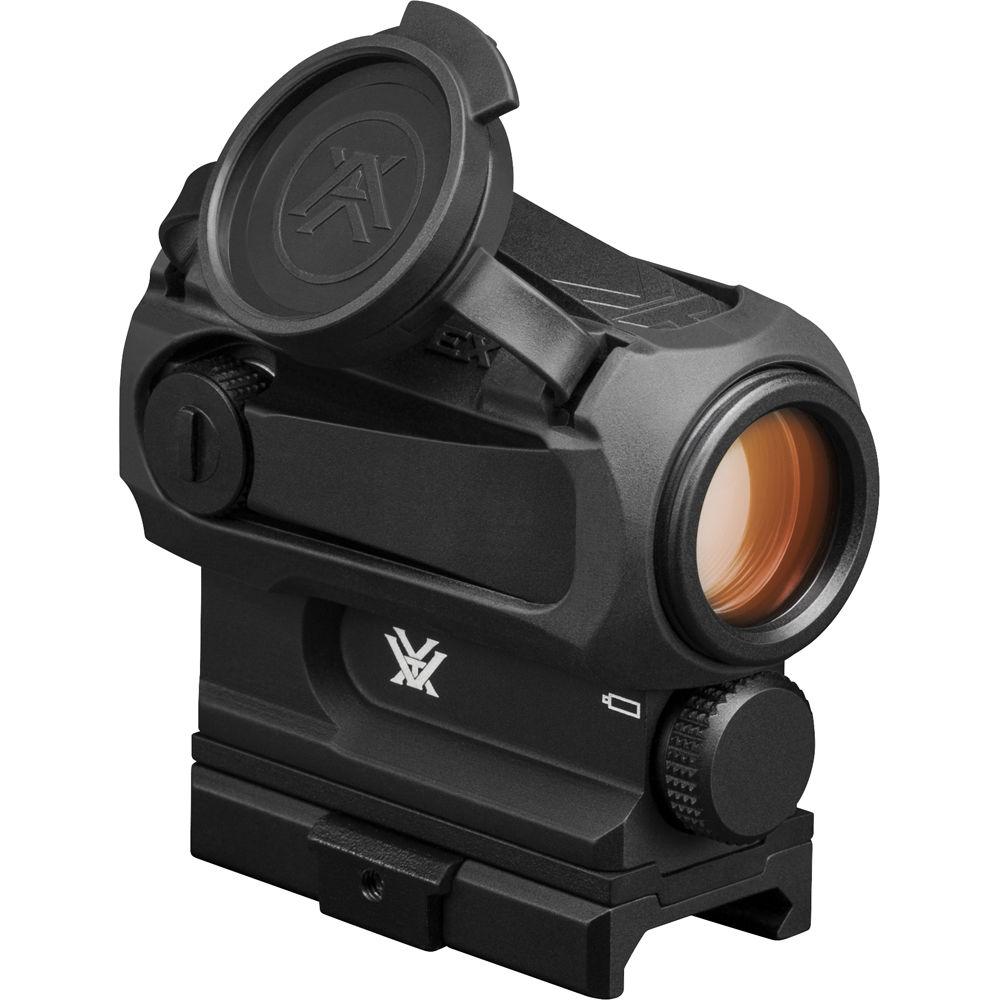

User Manual for Vortex 1x22 Sparc AR Red Dot Sight Click to enlarge the picture
Contents of the user manual for the Vortex 1x22 Sparc AR Red Dot
- Product category: Red Dot/Holographic Sights Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Red Dot/Holographic Sights
 |
User manual for the Vortex 1x22 Sparc AR Red Dot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description Get on target quickly with the Sparc AR Red Dot Sight from Vortex Optics. Utilizing a 2 MOA bright red dot, this nitrogen-filled, waterproof, and fogproof sight offers 10 brightness settings. It's compatible with Picatinny and Weaver rails, and features two height settings to make sure your red dot aligns properly with your back-up iron sights. All air-to-glass surfaces have multiple anti-reflective coatings for optimal light transmission. Rear-facing digital controls make it easy to control the brightness; the unit automatically returns to the last-used setting the next time it is powered up. It shuts down automatically after 12 hours to preserve the life of the AAA battery. The Sparc AR employs 1 MOA-per-click adjustments and can be adjusted up to 90 MOA for windage and elevation. - Optical Performance
-
- 1x magnification, 22mm objective lens
- Fully multi-coated optics
- Unlimited eye relief
- 2 MOA illuminated red dot
- Bright red dot highly visible in daylight
- Use and Handling
-
- Ten brightness settings (lowest two are night-vision compatible)
- Multi-height adjustment system provides lower 1/3 co-witness (40mm) and absolute co-witness (37mm)
- 1 MOA adjustment
- 90 MOA maximum windage & elevation adjustments
- Construction Details
-
- Nitrogen-filled and O-ring-sealed to be waterproof and fogproof
- Hard-anodized low-glare matte finish
UPC: 875874006294 In the Box Vortex 1x22 Sparc AR Red Dot Sight Multi-Height Mount System T-10 Torx Wrench 7/64" Hex Wrench AAA Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 1x22 Sparc AR Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Vortex 1x22 Sparc AR Red Dot Sight can be downloaded in PDF format at the link stated below.
Technical parametersVortex SPARC AR Specs | | | Power Source | 1 x AAA | | Runtime | 300 to 5000 Hours | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Objective Lens Diameter | 22 mm | | | | Impact Point Correction | 1 MOA | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | Dimensions | L: 2.9" / L: 7.4 cm | | Weight | 7.5 oz / 212.6 g | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 5.65 x 4.6 x 2.55" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
