User Manual for Vortex 1x30 StrikeFire II Bright Red Dot Sight with Cantilever Mount Click to enlarge the picture
Contents of the user manual for the Vortex 1x30 StrikeFire II Bright Red
- Product category: Red Dot/Holographic Sights Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Red Dot/Holographic Sights
 |
User manual for the Vortex 1x30 StrikeFire II Bright Red contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

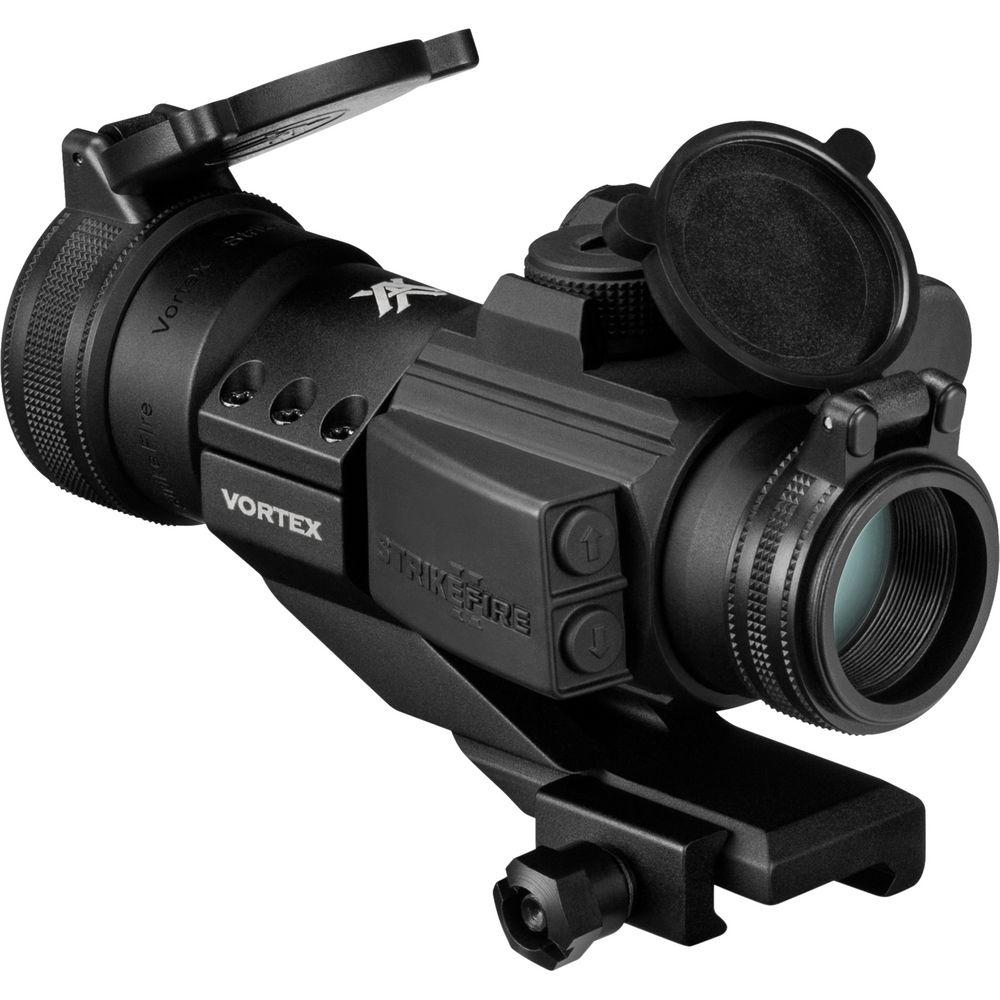

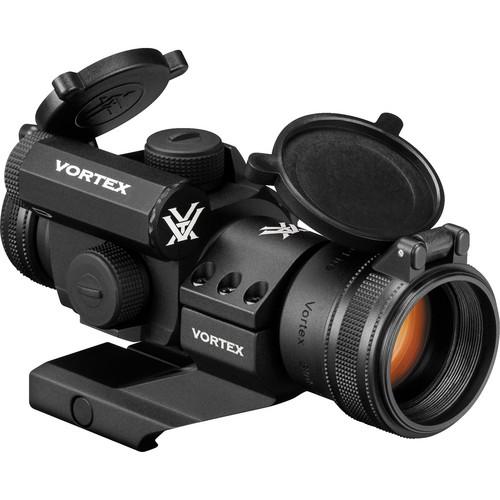

Product description The Vortex 1x30 StrikeFire II Bright Red Dot Sight with Cantilever Mount is an unmagnified optic designed for quick target acquisition and tracking from dawn to dusk. The sight has a 4 MOA bright red dot with ten brightness levels, two of which work with night vision, for easy aiming on your target. All of the optics are also parallax free and are multi-coated for increasing light transmission. This sight also has unlimited eye relief for rapid target acquisition.

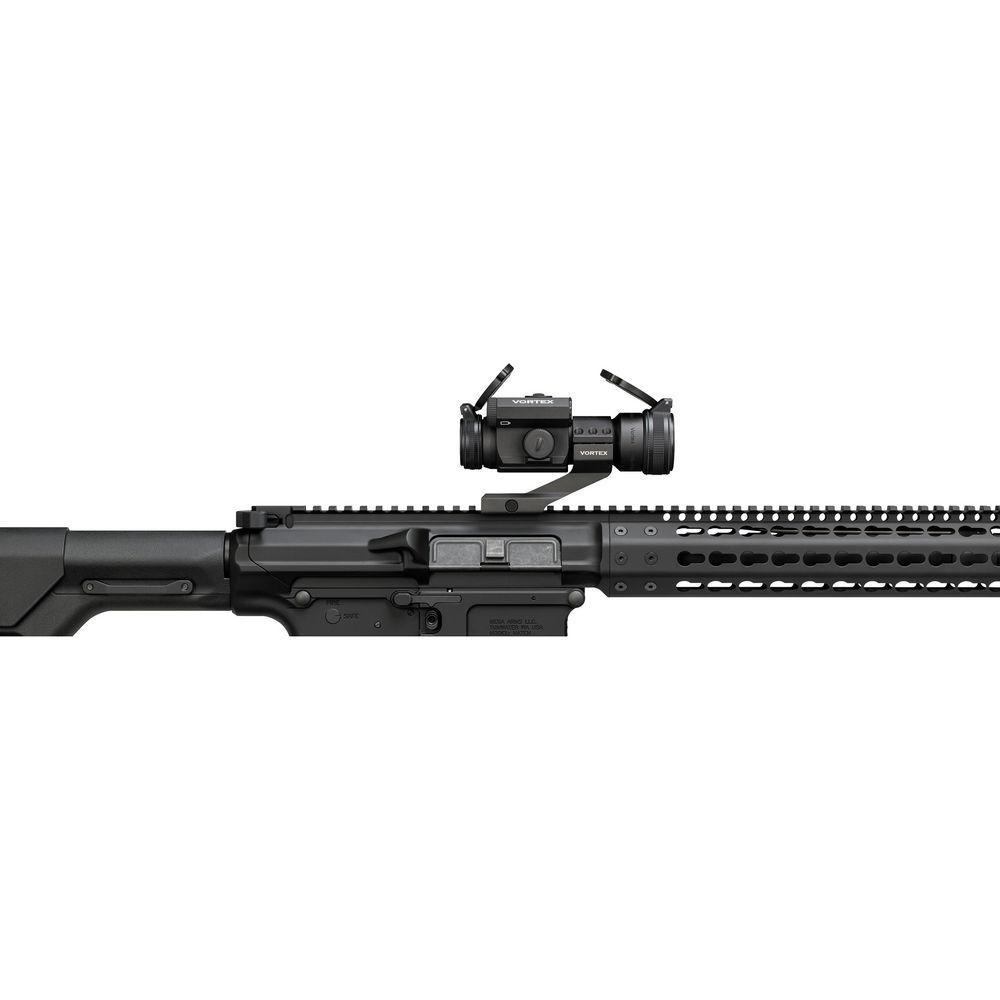

The sight features 1/2 MOA shot correction to put you on-target, with a 100 MOA windage and elevation adjustment range that lets you compensate for most terrain and conditions. Its housing is nitrogen-filled and O-ring sealed for water and fogproof performance in all weather. Built-in front and rear flip-up lens covers protect the optics when not in use, and can be quickly deployed when targets present themselves. This model also includes a cantilever ring mount that positions the optic center 40mm above the base surface and attaches to a firearm via a Picatinny/Weaver mount. - Optical Performance
-
- 1.0x magnification
- 30mm objective diameter
- Fully multicoated optics for increased brightness and reduced light reflection
- Unlimited eye relief
- Use and Handling
-

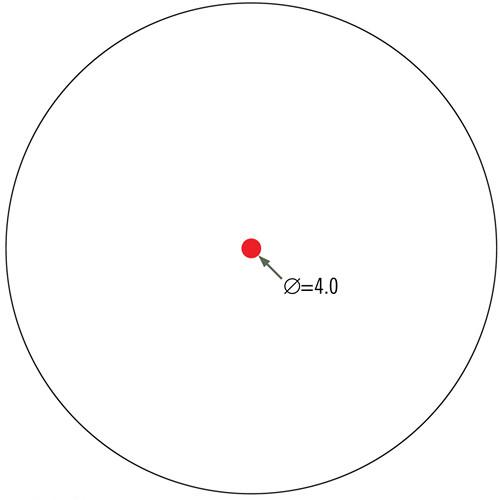

- 4 MOA illuminated bright red dot reticle
- Ten brightness levels with dedicated adjustment dial
- 1/2 MOA shot correction, 100 MOA windage/elevation adjustments
- Parallax-free design
- Construction Details
-
- Aluminum, shockproof build
- Picatinny/Weaver rail mount
- Nitrogen-filled, water and fogproof
- Flip-up front and rear lens covers
- Matte-black hard anodized finish
UPC: 875874005525 In the Box Vortex 1x30 StrikeFire II Bright Red Dot Sight with Cantilever Mount Cantilever Mount CR2 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 1x30 StrikeFire II Bright Red Dot Sight with Cantilever Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex STRIKEFIRE II Specs | | | Power Source | 1 x CR2 | | Runtime | 300 to 6000 Hours | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Objective Lens Diameter | 30 mm | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | | | Operating Temperature | -22 to 140°F / -30 to 60°C | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | Material | Aluminum | | Dimensions | L: 5.6 x W: 1.5" / L: 14.2 x W: 3.8 cm | | Weight | 7.2 oz / 204.1 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.638 x 6.457 x 3.307" |
