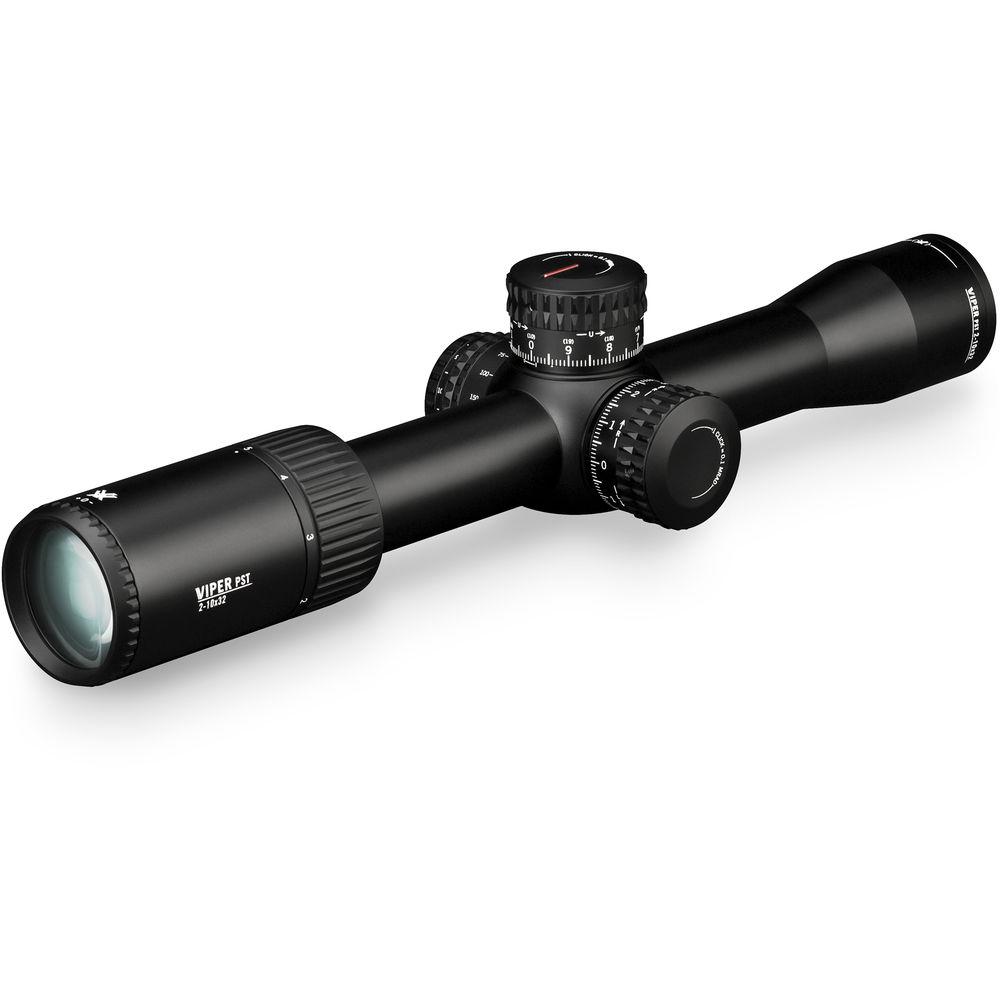

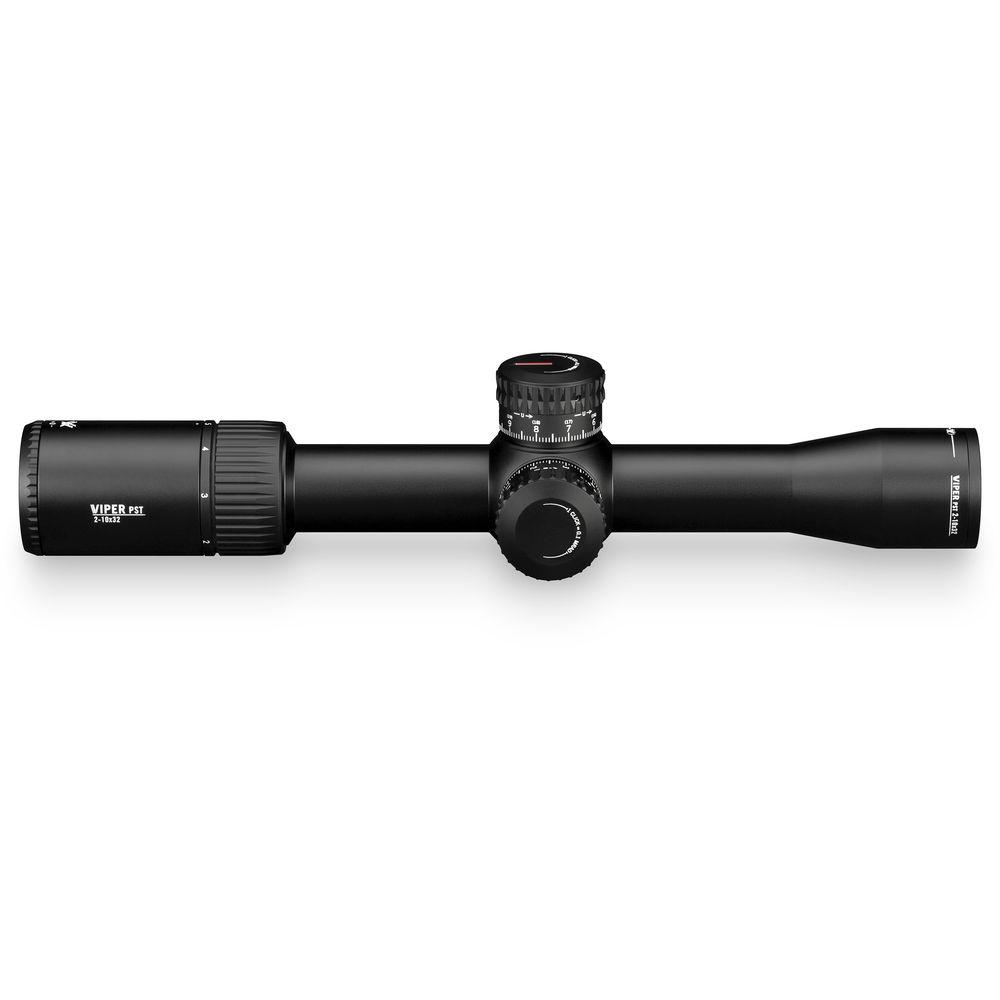

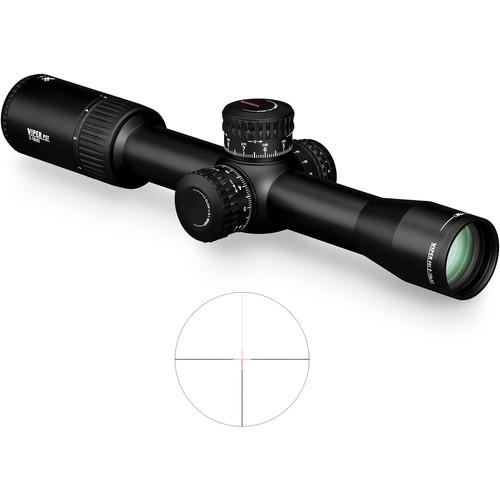

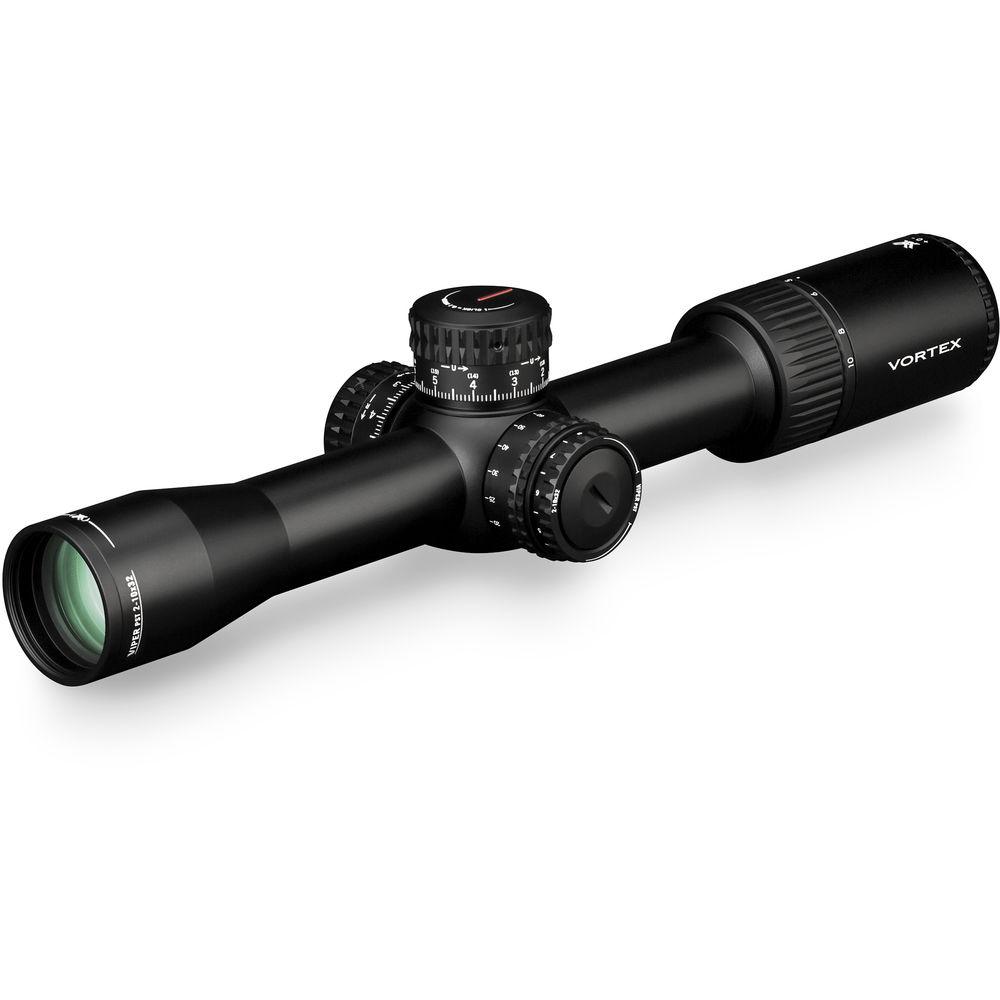

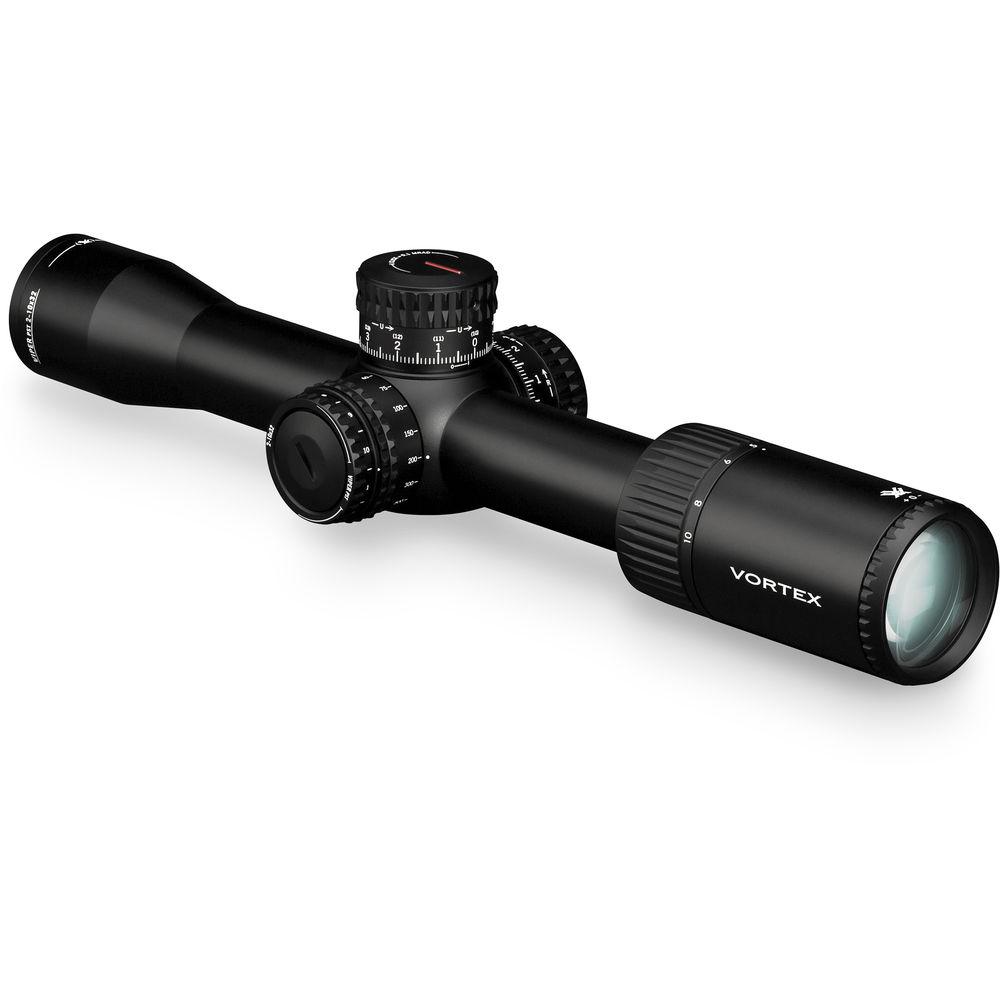

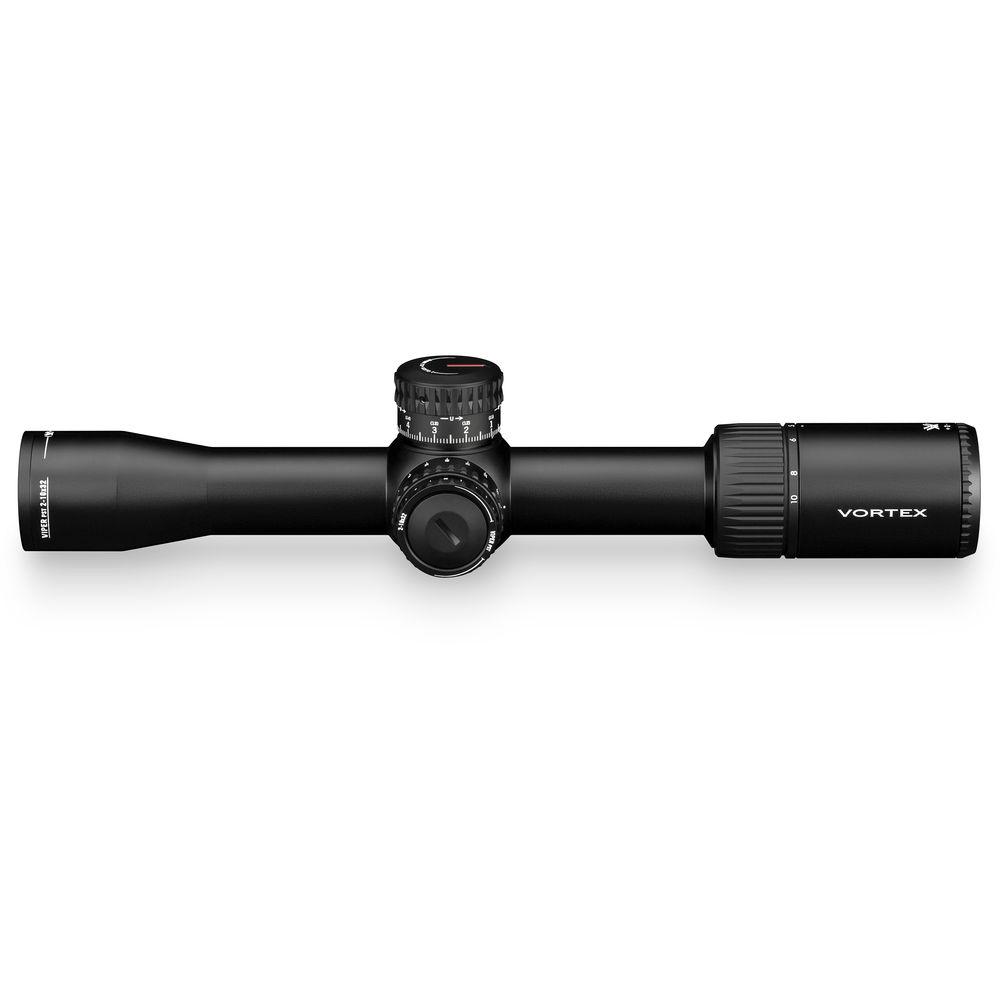

Product description Vortex Optics' 2-10x32 Viper PST Gen II Riflescope is a rock-solid scope that is ideally suited to provide you with an upper hand in close quarters combat. Its quality optical system matches the precision and strength of the mechanics to deliver accuracy and reliability required in demanding situations. Extra-Low Dispersion (XD) optical elements are treated with the high-transmission XR full multi-coatings and ArmorTek protective coatings — producing bright, clear, glare-free, and true color images Additionally, the fully multi-coated anti-reflection coatings protect exterior lens surfaces from scratches, dirt, and oil stains. The scope features a 1st focal plane EBR-4 MRAD reticle with three medium posts and an illuminated crosshair containing a system of MRAD ranging and compensation markings. The illumination rheostat is located on the windage and elevation turret and offers a graduated control knob with 10 brightness levels. The parallax-free performance can be adjusted from 20 yards to infinity.
The high-quality aluminum housing is built around a durable single-piece 30mm maintube. One of the highlights of the mechanics is the Precision-Glide Erector System that ensures zooming action remains smooth under the most challenging conditions. For consistency, repeatability, and ease of adjustment, Vortex outfitted this optic with a Precision-Force Spring System. The scope's windage and elevation provide exposed, graduated turrets with red fiber optic position markers on the knobs. The entire construction is robust, argon-filled fogproof, and O-ring sealed waterproof to ensure reliable performance for years of service. - Optical Performance
-
- 2-10x magnification
- 32mm objective lens
- Extra-Low Dispersion (XD) glass elements reduce color distortions and improve true color
- XR fully multi-coated anti-reflective coatings increase brightness and resolution
- ArmorTek scratch-resistant coating protects external lenses from damage, oil, and dirt

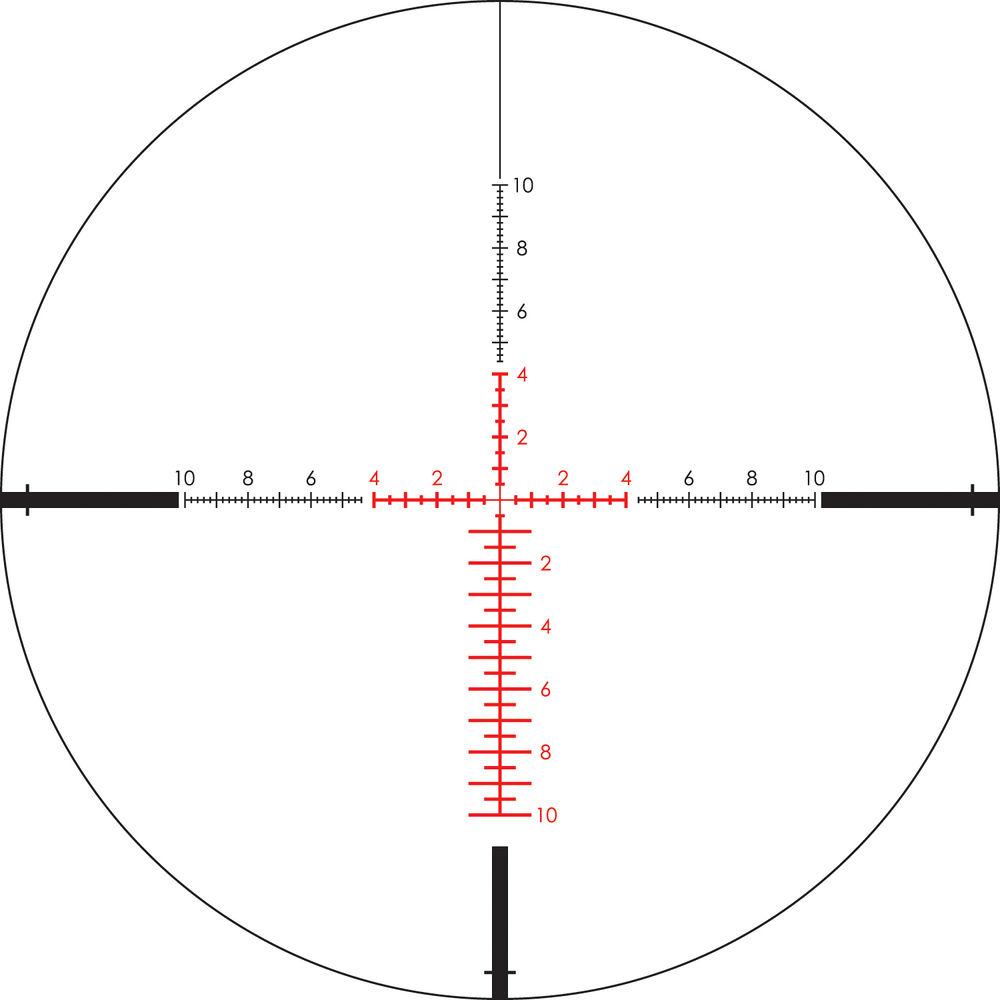

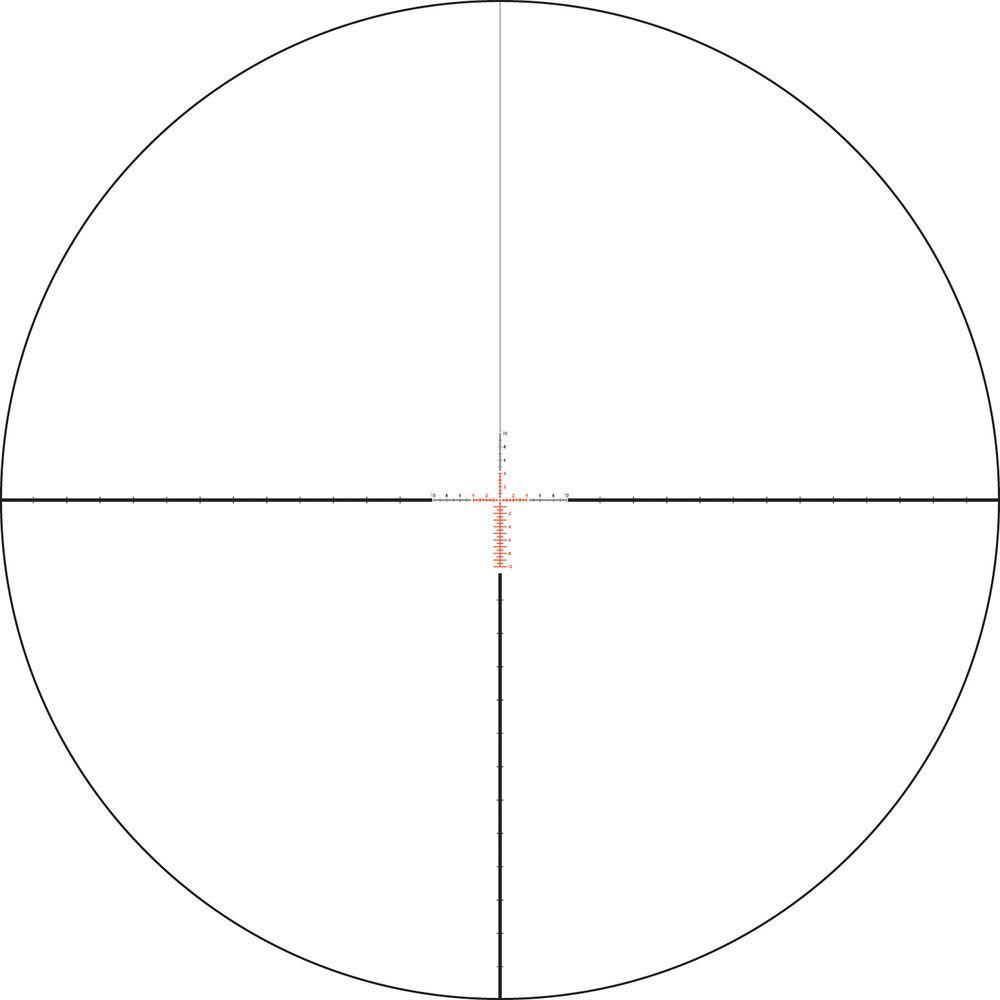

- EBR-4 MRAD Illuminated Reticle
-
- 1st focal plane
- Modified German 4 style
- Three medium posts
- Illuminated crosshair
- Crosshair contains an extensive system of major and minor MRAD compensation bars

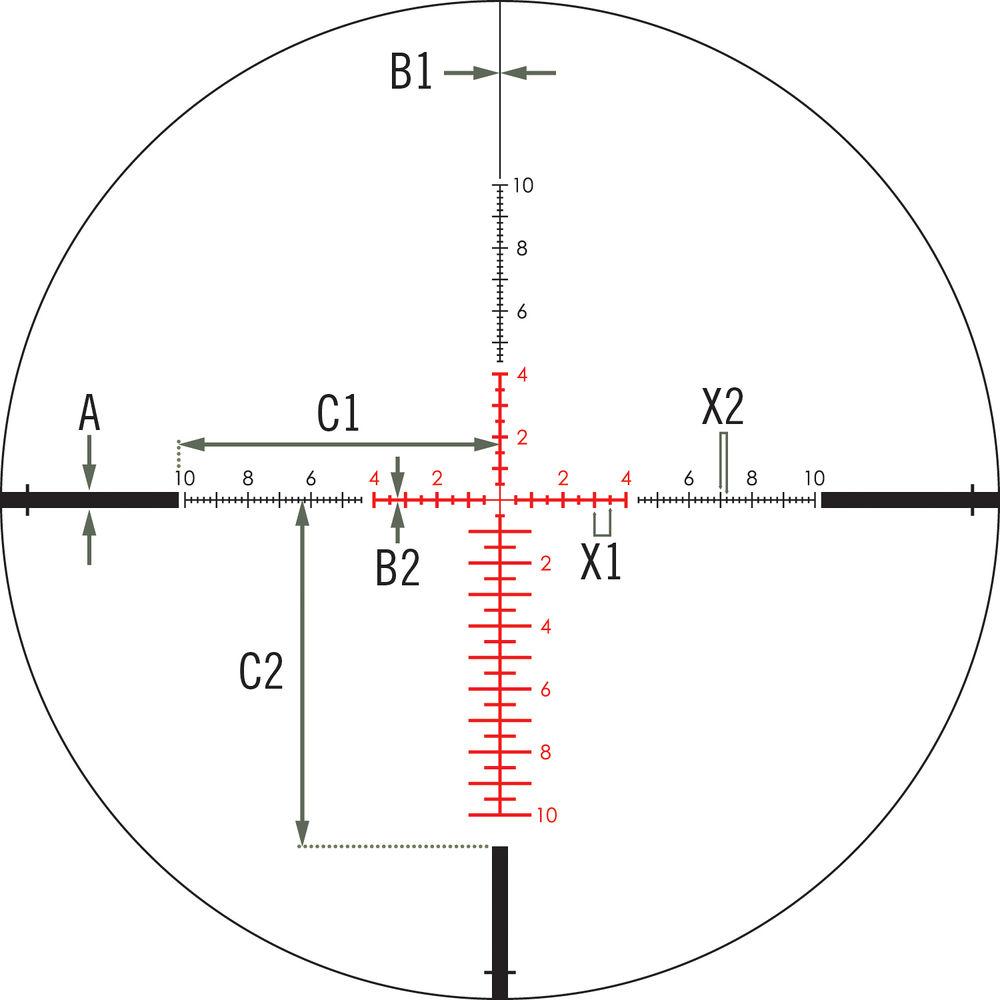

- Reticle measurements are provided at max magnification
- Parallax-free from 20 yd to infinity
- 10 illumination brightness levels
- Use and Handling
-
- 0.1 MRAD impact-point correction
- 26 MRAD windage and elevation ranges with 10 MRAD travel per rotation
- Exit pupil: 16 - 3.2 mm
- Eye relief: 3.2"
- Proprietary RZR precision zero stop mechanism
- Construction Details
-
- High-quality aluminum housing
- Single-piece 30mm maintube
- Fast focus eyepiece
- Capped windage and elevation turrets
- Dedicated illumination control knob on the windage/elevation box
- Corrosion-resistant low-glare hard anodized finish
- Argon-filled and O-ring sealed for a water and fogproof performance
- Precision-Glide Erector System enables smooth zoom in all weather conditions
- Precision-Force Spring System within the erector systems ensures repeatability and easy of adjustment
- Impact-resistant
UPC: 875874007468 In the Box Vortex 2-10x32 Viper PST Gen II Riflescope (EBR-4 MRAD Illuminated Reticle, Matte Black) - CR-2032 Battery
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 2-10x32 Viper PST Gen II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex PST-2105 Specs | | | Magnification | 2 to 10x | | Objective Lens Diameter | 32 mm | | Field of View | 2x: 58.3' @ 100 yd / 19.4 m @ 100 m
10x: 11.7' @ 100 yd / 3.9 m @ 100 m | | Exit Pupil Diameter | 2x: 16 mm
10x: 3.2 mm | | Eye Relief | 3.2" / 81.3 mm | | | | Reticle Type | EBR-4 MRAD Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment | 26 MRAD | | Elevation Adjustment | 26 MRAD | | Parallax Correction | Yes, 20 yd / 18.3 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.8" / 319 mm | | Weight | 26.3 oz / 745.6 g | | | | Package Weight | 2.61 lb | | Box Dimensions (LxWxH) | 15.9 x 4.5 x 4.05" |
