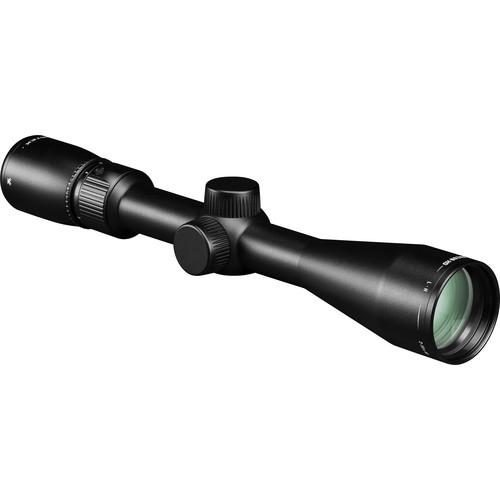

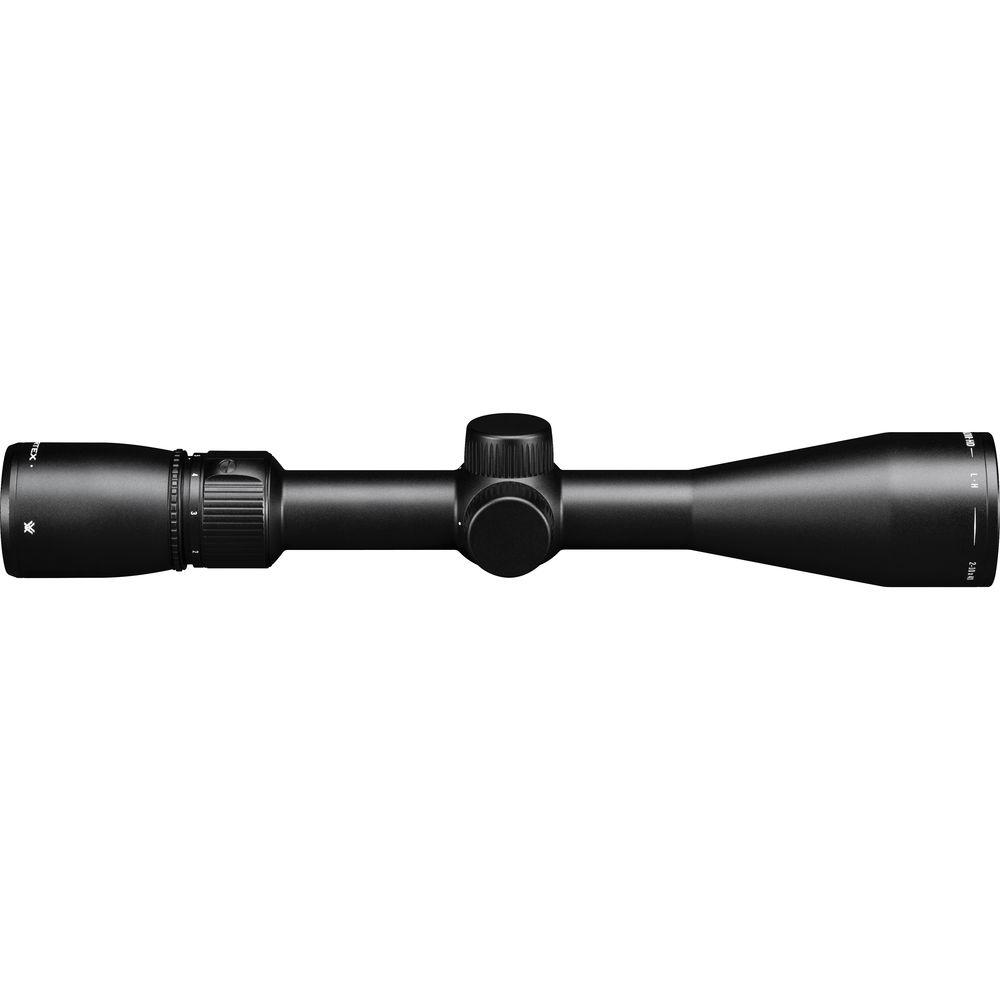

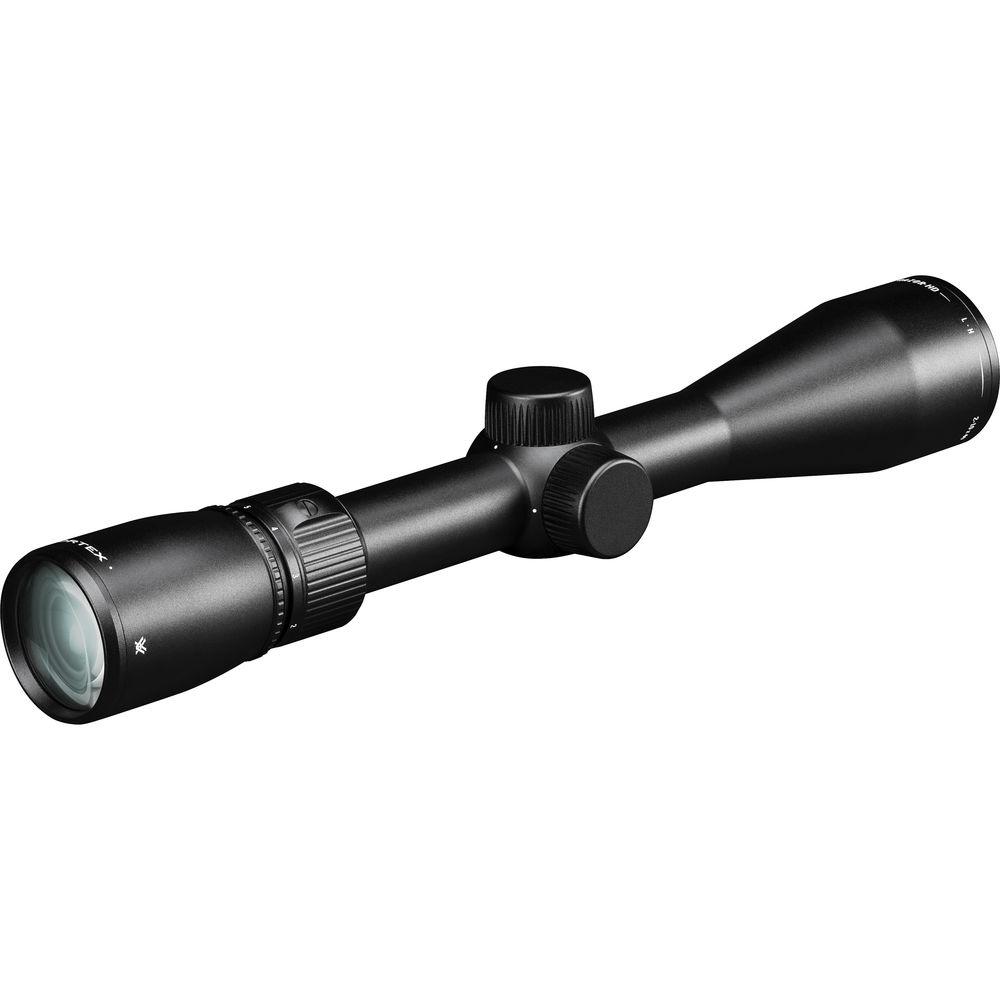

Product description Outfitted with superior High Density and Extra-Low dispersion optics, Vortex's 2-10x40 Razor HD LH Riflescope does not compromise on ruggedness or precision opto-mechanics. To offer a balanced spectrum of color, a low dispersion of passing light, and to deliver high definition true-color images, the lenses are crafted from high definition, High Density (HD), and Extra-Low dispersion optical glass. The lenses are also fully multi-coated with proprietary XRPlus anti-reflection coatings for maximum transmission and minimum glare and have an additional ArmorTek scratch-resistant coating to protect them from scratches, debris, dirt, oil, and fingerprint stains. The 40mm objective aperture gathers enough light to provide bright images in most lighting conditions.
Located in the second focal plane is the HSR-4 Reticle. It is based on MOA subtensions at 10x with 2 MOA hash mark intervals. With two medium-weight horizontal tapered outer posts, two thin inner posts, and a thin crosshair, the reticle offers ultra-clean and unobstructed views of your targets. Enabling you to tap into the full potential of this reticle, such as edge-to-edge precision, the optical system was assembled using a computer-controlled alignment process. This high-precision process also delivers optimum image brightness and sharpness.
To match exceptional optical performance, this riflescope also offers an extremely durable construction and precision adjustments. Its 1" maintube is machined from a single-piece of high quality aluminum and coated with an abrasive-resistant and low-glare matte anodized finish. The scope is filled with argon gas and sealed with O-rings for a complete fogproof and waterproof performance. To provide a smooth and precise zooming action, the opto-mechanical gear is carefully designed and enhanced with Precision-Glide Erector System. The elevation turret also prevents dialing below zero. For visual reference, the fast-focus eyepiece and windage and elevation turrets are outfitted with scales. - Optical Performance
-
- 2-10x magnification
- 40mm objective
- High density (HD) Extra-Low dispersion glass delivers true color and high contrast
- XRPlus fully multi-coated optics improve image brightness, clarity, and detail
- Optically-Indexed Lenses: Computer-controlled lens alignment process results in superior edge-to-edge reticle precision
- ArmorTek ultra-hard scratch-resistant coatings protect from scratches, debris, dirt, and oil
- Linear field of view: 56.2-10.8' at 100 yd
- Parallax correction: 100 yd to infinity
- HSR-4 Reticle
-
- 2nd focal plane
- Clean and unobstructed view
- Based on MOA subtensions at maximum zoom
- Two tapered horizontal posts are 2 MOA thick
- Gap between the trunks of horizontal post is 20 MOA
- Crosshair's line has thickness of 1/4 MOA
- Markings are spaced at 2 MOA
- Center cross has 3 MOA width and height
- Minor holdover lines are 2 MOA wide
- Major holdover lines are 4 MOA wide
- Use and Handling
-
- 1/4 MOA impact point correction
- 90 MOA total windage elevation range
- 15 MOA travel per full rotation
- Eye relief: 3.8"
- Exit pupil: 20 - 4mm
- Construction Details
-
- 1" single-piece maintube
- Aluminum construction
- Low-glare matte hard-coat anodized finish
- Capped re-settable turrets
- Precision-Glide Erector System: provides smooth, precision zooming
- Fast-focus eyepiece provides quick visual reference
- Recoil and impact-resistant
- Fogproof, argon-filled
- Waterproof, sealed with O-rings
UPC: 875874007284 In the Box Vortex 2-10x40 Razor HD LH Riflescope (HSR-4 Reticle) - 3" Sunshade
- 2 x Lens Covers
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 2-10x40 Razor HD LH Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex RZR-1558 Specs | | | Magnification | 2 to 10x | | Objective Lens Diameter | 40 mm | | Field of View | 2x: 56.2' @ 100 yd / 18.7 m @ 100 m
10x: 10.8' @ 100 yd / 3.6 m @ 100 m | | Exit Pupil Diameter | 2x: 20 mm
10x: 4 mm | | Eye Relief | 3.8" / 96.5 mm | | | | Reticle Type | MOA Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 12.5" / 31.9 cm | | Weight | 15.4 oz / 436.6 g | | | | Package Weight | 1.605 lb | | Box Dimensions (LxWxH) | 16.7 x 4.3 x 3.9" |
