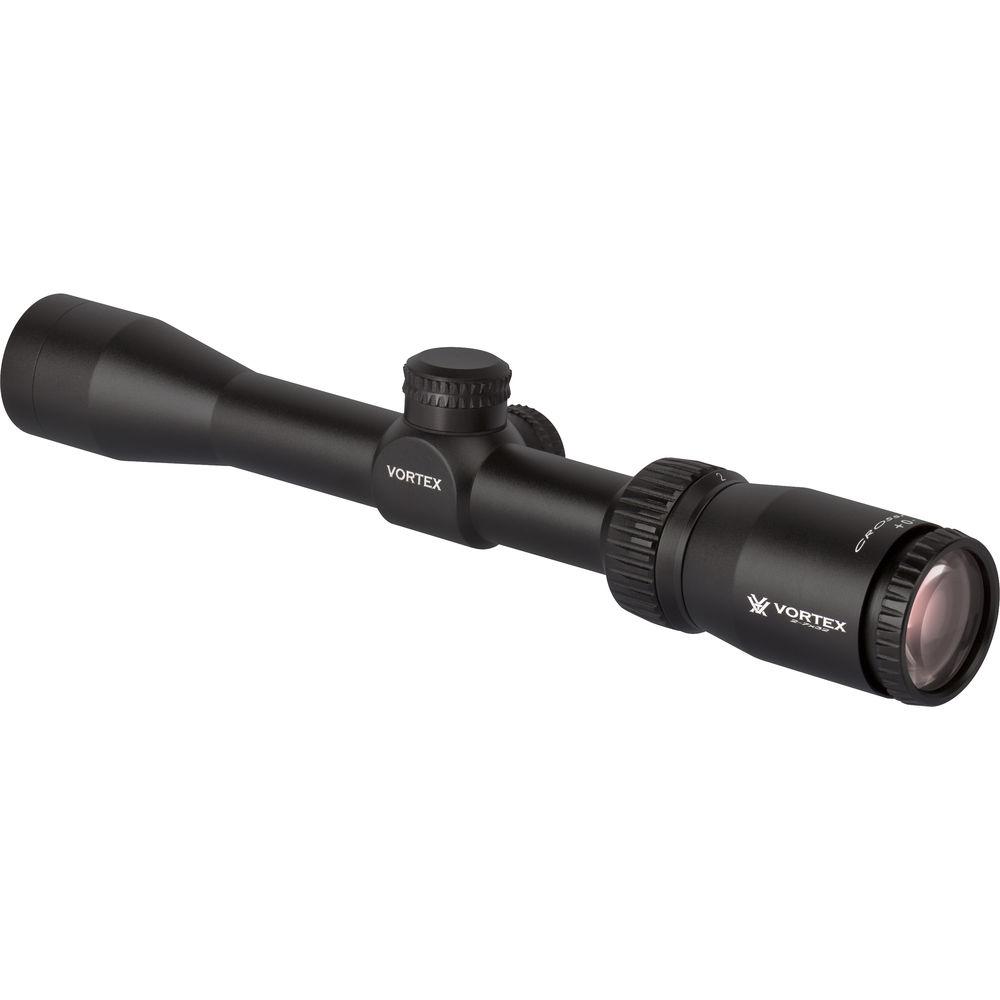

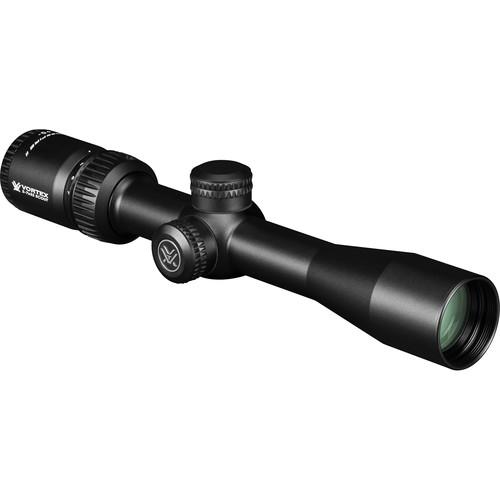

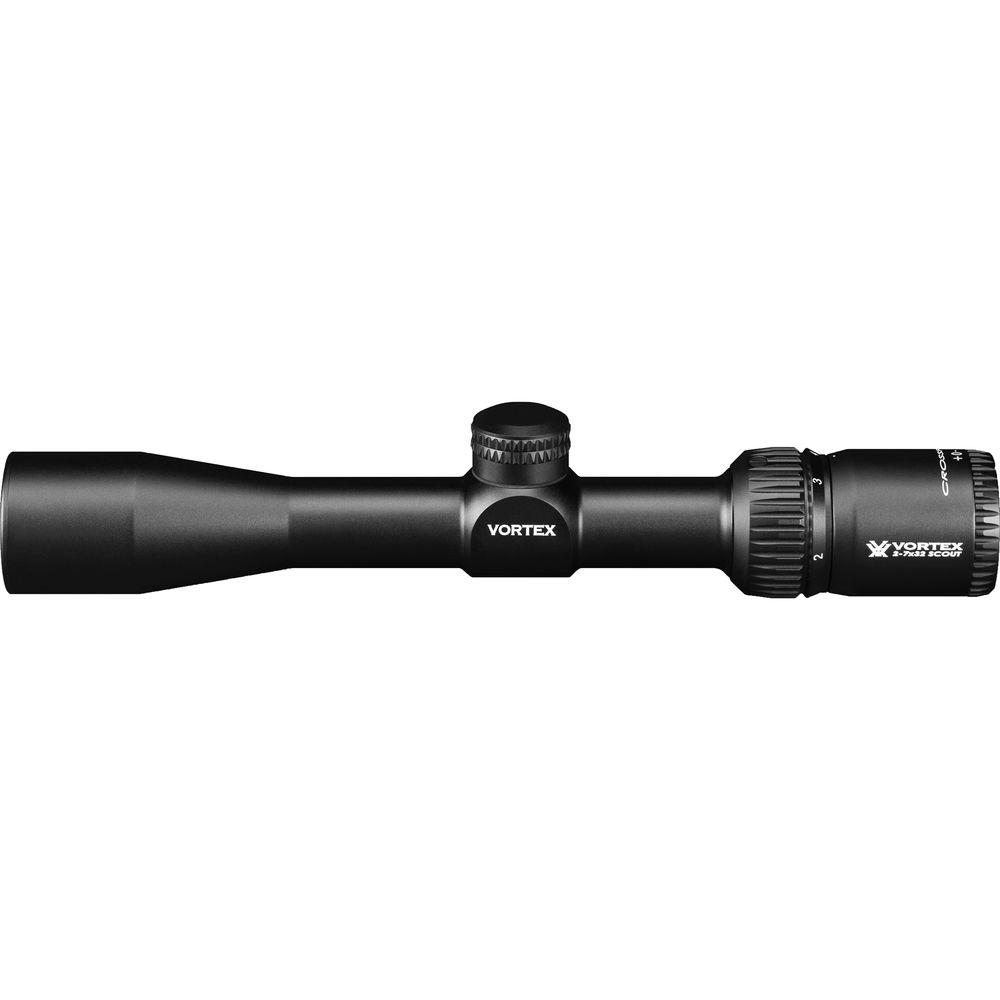

Product description Designed as a scouting scope, the Vortex Optics 2-7x32 Crossfire II Scout Riflescope features an extra-long, 9.45" eye relief. The optics offer 2-7x zooming range and fully multi-coated optics that maximize transmission and image clarity and minimize glare. Located in the second focal plane is the V-Plex Reticle. Its simple pattern provides a clear and unobtrusive view of your targets that is useful in a wide variety of applications. The parallax-free performance is set at 100 yards.

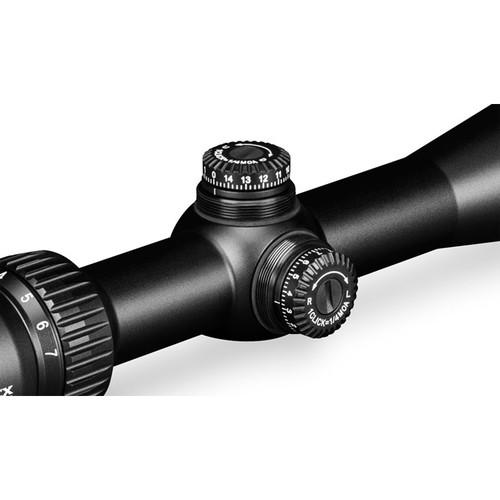

To ensure its dependability, Vortex outfitted the scope with a durable and lightweight housing that is also impact-resistant. Its 1" maintube is machined from a single-piece of high quality aluminum and coated with a matte anodized finish. The scope is filled with nitrogen gas and sealed with O-rings for a complete fogproof and waterproof performance. The elevation turret also prevents dialing below zero. The fast-focus eyepiece and windage and elevation turrets are outfitted with knurled rings for a non-slip grip. - Optical Performance
-
- 2-7x magnification
- 32mm objective lens diameter
- Fully multi-coated optics improve image brightness, clarity, and reduce glare
- Linear field of view: 18.3 - 5.2' at 100 yd
- Parallax correction: 100 yd

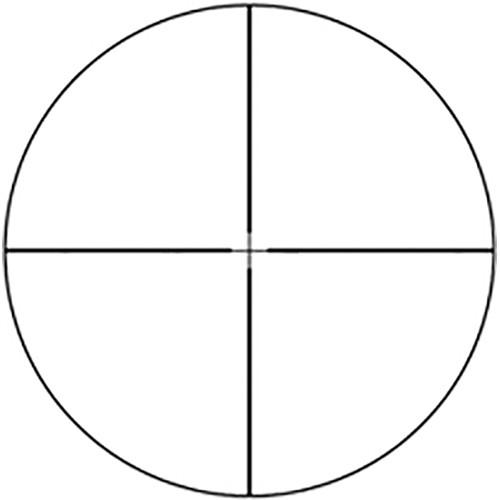

- V-Plex Reticle
-
- 2nd focal plane
- Four long 0.57 MOA thick posts
- Thin, 0.17 MOA, narrow center crosshair
- Offers a clear and unobtrusive view of targets
- Multi-purpose use
- Use and Handling
-
- 9.45" extremely long scouting eye relief
- 1/4 MOA impact point correction
- 60 MOA total windage elevation
- 15 MOA travel per rotation
- Exit pupil: 16-4.6mm
- Construction Details
-
- 1" single-piece maintube
- Aluminum construction
- Matte black anodized finish
- Fast-focus eyepiece
- Impact-resistant
- Fogproof, nitrogen-filled
- Waterproof, sealed with O-rings
UPC: 875874007369 In the Box Vortex 2-7x32 Crossfire II Scout Riflescope (V-Plex Reticle, Matte Black) 2 x Lens Covers Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 2-7x32 Crossfire II Scout Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex CF2-31002 Specs | | | Magnification | 2 to 7x | | Objective Lens Diameter | 32 mm | | Field of View | 2x: 18.3' @ 100 yd / 6.1 m @ 100 m
7x: 5.2' @ 100 yd / 1.7 m @ 100 m | | Exit Pupil Diameter | 2x: 16 mm
7x: 4.6 mm | | Eye Relief | 9.4" / 240 mm | | | | Reticle Type | V-Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 10.5" / 266.7 mm | | Weight | 12 oz / 340.2 g | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 14.3 x 3.5 x 3.2" |
