User Manual for Vortex 20-60x60 Diamondback Spotting Scope Click to enlarge the picture
Contents of the user manual for the Vortex 20-60x60 Diamondback Spotting Scope
- Product category: Spotting Scopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Spotting Scopes
 |
User manual for the Vortex 20-60x60 Diamondback Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

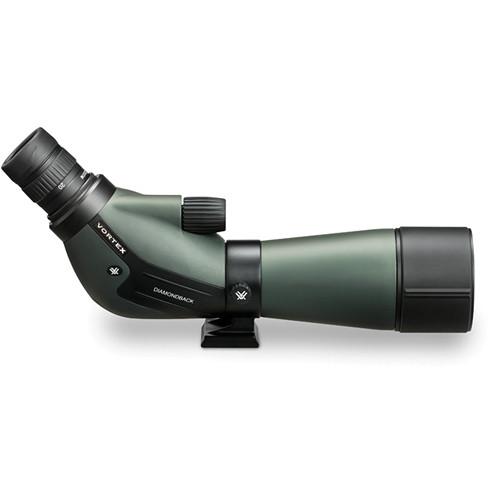

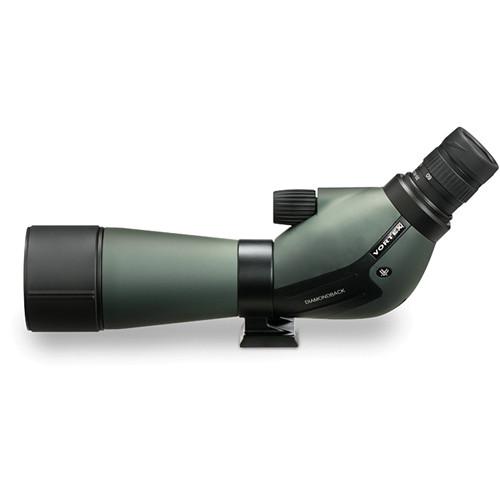

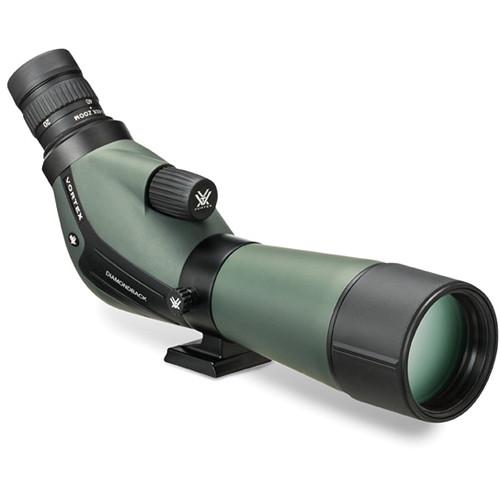

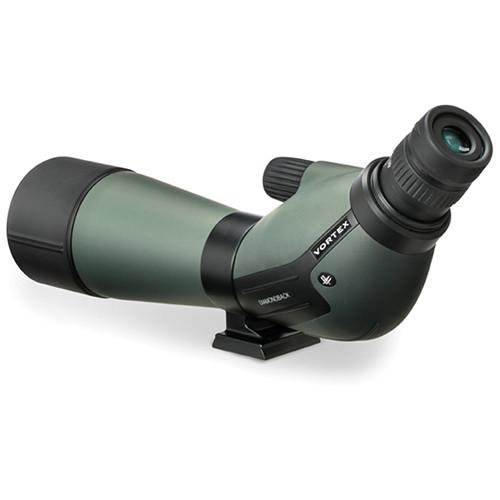

Product description A Guide to Birding with Spotting Scopes Read More The angled viewing 20-60x60 Diamondback Spotting Scope from Vortex features specialized optical coatings to provide bright and clear images, while utilizing a relatively small objective lens. All air-to-glass surfaces have Vortex's XR anti-reflective coatings to minimize light loss. Additionally, they are ArmorTek coated for scratch resistance. To ensure accurate color across the entire visible spectrum, the Porro prisms are dielectric coated. These coatings are highly reflective and lose less than 1% of the light that passes through them. The use of Porro prisms creates an improved depth of view over roof prisms. This combination of coatings and optics creates a spotting scope that produces bright, clear, highly contrasted images with accurate color transmission.The high-impact-resistant fiberglass-reinforced polymer body is O-ring sealed and nitrogen filled to be water and fogproof. A dual focus system features a coarse fast-focus and a fine-focus wheel. The scope has a tripod mounting shoe with a 1/4"-20 threaded mount. For comfort and convenience, the tripod collar rotates to permit the eyepiece to be put in the best viewing position. A retractable lens shade keeps the Sun or rain off the objective lens. - Optical Performance
-
- 20-60x zoom eyepiece
- 60mm objective lens
- Porro prism design for better depth of view
- Dielectric multi-coatings on the prisms
- Vortex XR lens coatings
- ArmorTek scratch-resistant exterior lens coatings
- Use and Handling
-
- Angled view eyepiece is inclined 45° from the objective lens for more comfortable viewing
- Dual focusing dials offer rapid rough and fine focus
- Twist-up eyecup
- Rotating tripod ring
- 1/4"-20 threaded mount for tripods
- Construction Details
-
- Fiberglass-reinforced high-impact body
- O-ring sealed to be waterproof
- Nitrogen-filled to be fogproof
- Built-in retractable sunshield
UPC: 875874004917 In the Box Vortex 20-60x60 Diamondback Spotting Scope (Angled Viewing) Eyepiece Cap Objective Lens Cap View-Through Carry Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 20-60x60 Diamondback Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex DBK-60A1 Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 60 mm | | Field of View | 20x: 114.0' @ 1000 yd / 34.7 m @ 1000 m
60x: 51.0' @ 1000 yd / 15.5 m @ 1000 m | | Minimum Focus Distance | 20.0' / 6.1 m | | Exit Pupil Diameter | 20x: 3 mm
60x: 1 mm | | Eye Relief | 14.0 to 17.0 mm | | | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions |
