User Manual for Vortex 3-12x56 Crossfire II AO Hog Hunter Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 3-12x56 Crossfire II AO Hog
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 3-12x56 Crossfire II AO Hog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

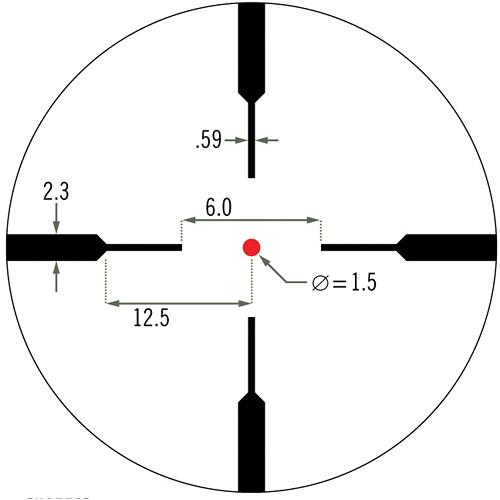

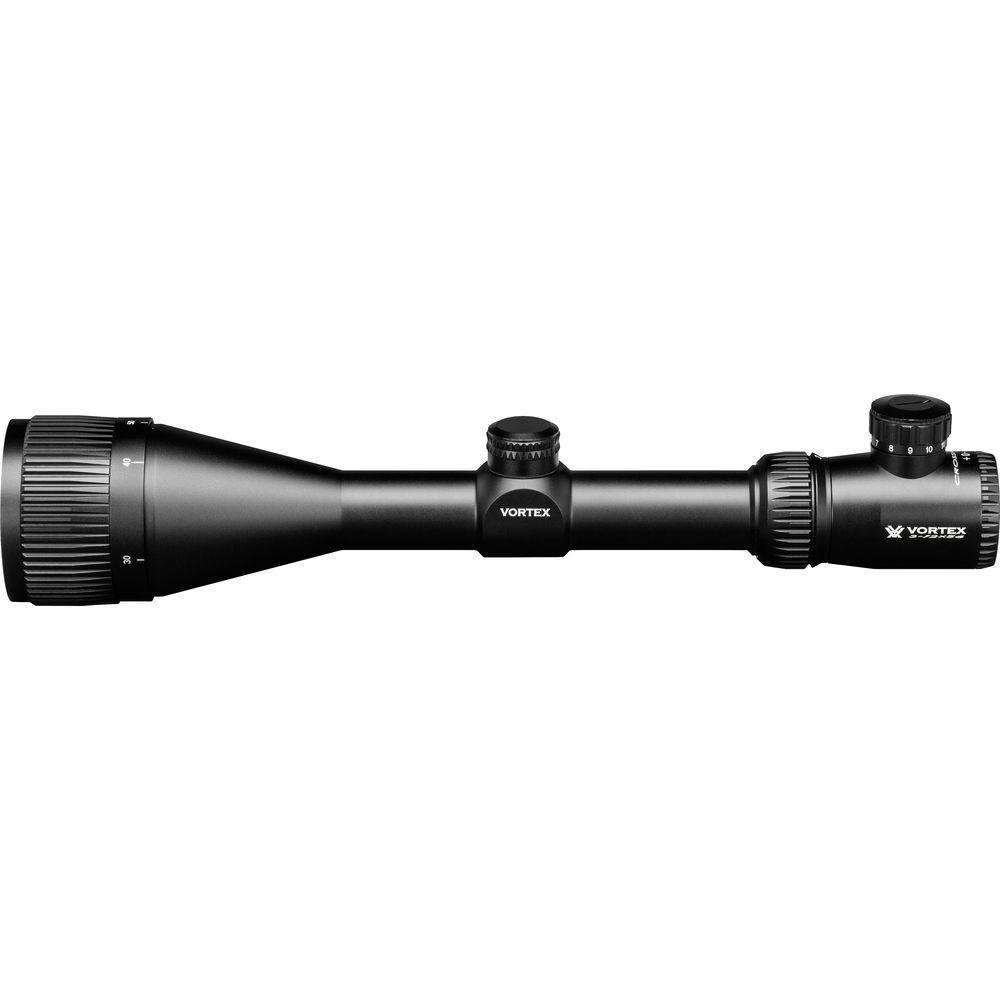

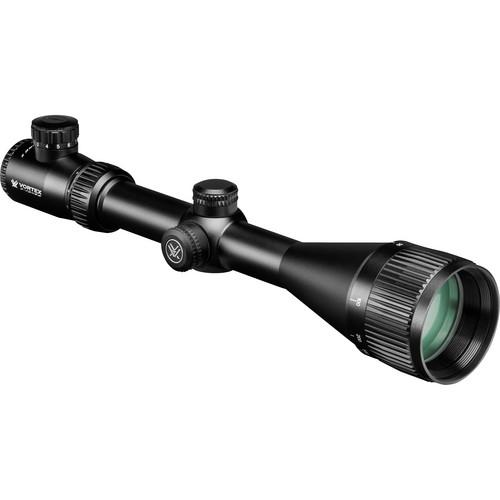

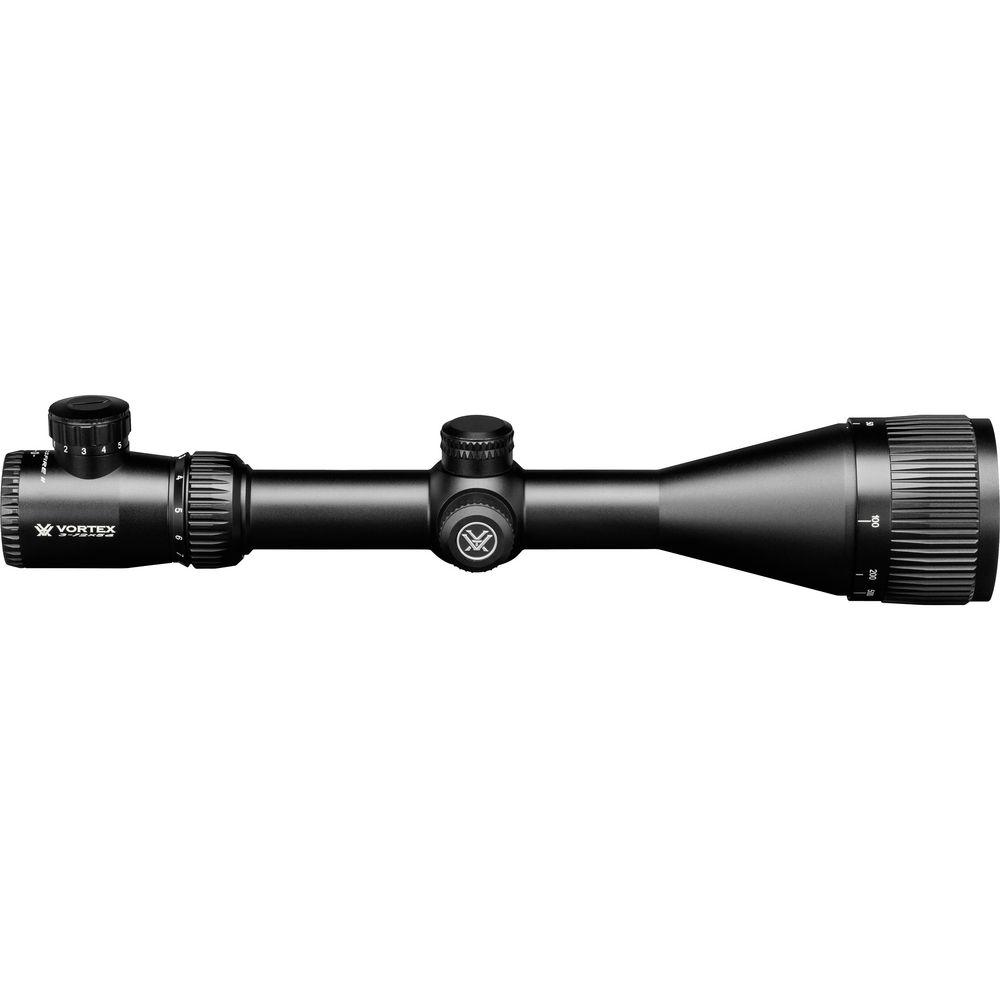

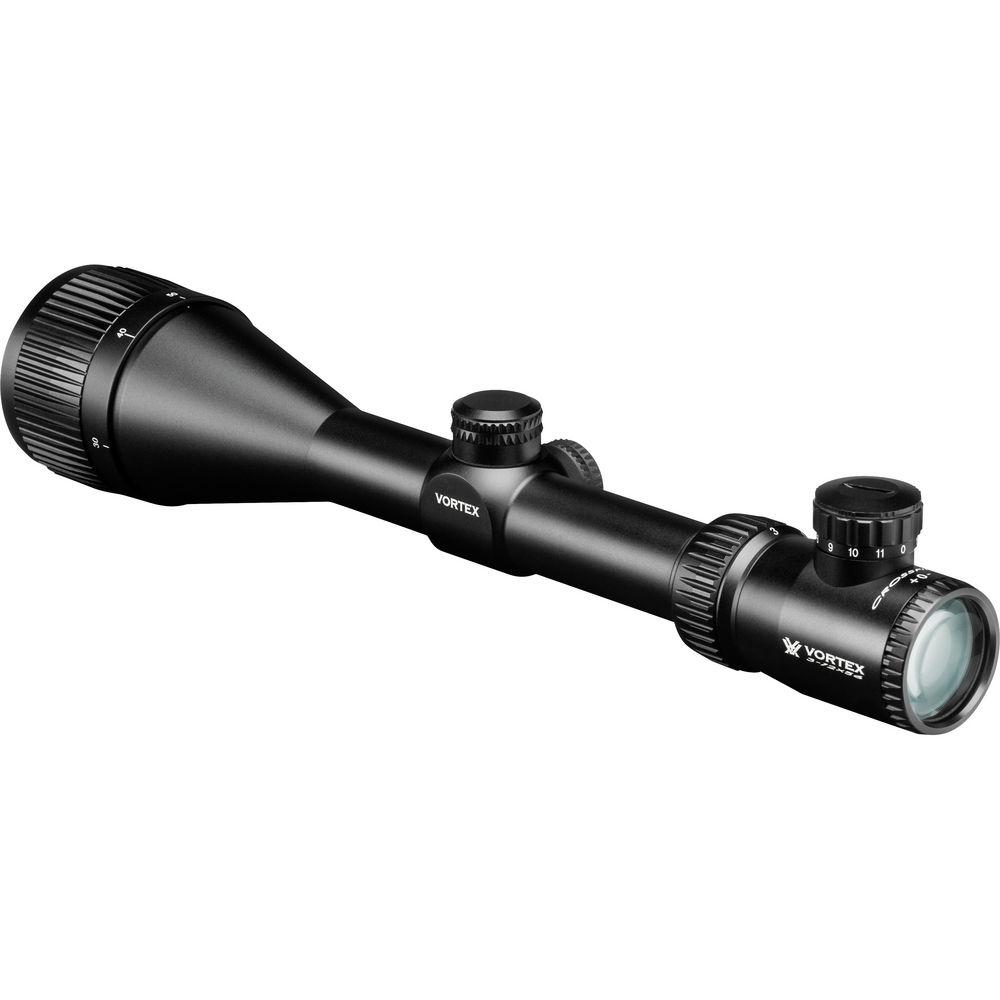

Product description The 3-12x56 Crossfire II AO Hog Hunter Riflescope from Vortex Optics is a purpose-built scope designed for hog hunting. The large objective lens and anti-reflective fully multicoated optics are designed for use in low-light conditions such as at dawn and dusk, or in heavily wooded areas with a dense canopy, when hogs are most active. Capped low-profile turrets provide 1/4 MOA per click shot correction, with 15 MOA of travel per revolution and 60 MOA of total windage and elevation adjustment.The Crossfire II employs the versatile V-Brite modified duplex crosshair reticle. This reticle features 2.3 MOA thick outer posts that taper to thinner hairs which draw the eye to an illuminated center red-dot. The dot has eleven brightness settings to adjust it to your preference and lighting conditions. The scope's 30mm main-tube is made of a single-piece of aluminum with a matte-black hard anodized finish. It's nitrogen-filled for water and fogproof performance in extreme conditions. - Optical Performance
-
- 3-12x zoom
- 56mm objective lens
- Anti-reflective fully multicoated optics increase light transmission, contrast, and color fidelity
- Etched-glass reticle placed on the Second Focal Plane (SFP)
- Use and Handling
-
- V-Brite duplex crosshair reticle with illuminated red center dot, with 11 brightness level
- Capped low-profile windage and elevation turrets
- 1/4 MOA per click impact point correction
- 60 MOA windage/elevation adjustment range, with 15 MOA travel per rotation
- Turrets are re-settable to zero after initial sighting-in of scope
- Side-focus parallax knob: corrects parallax error from 10 yd to infinity
- Fast Focus eyepiece and 3.5" long eye relief
- Construction Details
-
- Nitrogen-filled, water and fogproof
- 30mm aluminum single-piece main-tube
- Scratch and corrosion-resistant black anodized finish
- ArmorTek ultra-hard scratch-resistant lens coating protects against scratches, oil and dirt
UPC: 875874005686 In the Box Vortex 3-12x56 Crossfire II AO Hog Hunter Riflescope (V-Brite Reticle) Lens Cloth 2 x Lens Covers 4" Removable Sunshade Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 3-12x56 Crossfire II AO Hog Hunter Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex CF2-31049 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 36.7' @ 100 yd / 11.2 m @ 100 m
12x: 9.2' @ 100 yd / 2.8 m @ 100 m | | Exit Pupil Diameter | 3x: 18.6 mm
12x: 4.6 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | V-Brite Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.3" / 36.3 cm | | Weight | 21.1 oz / 598 g | | | | Package Weight | 2.715 lb | | Box Dimensions (LxWxH) | 18.05 x 4.9 x 3.5" |
