User Manual for Vortex 3-15x42 Razor HD LH Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 3-15x42 Razor HD LH Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 3-15x42 Razor HD LH Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

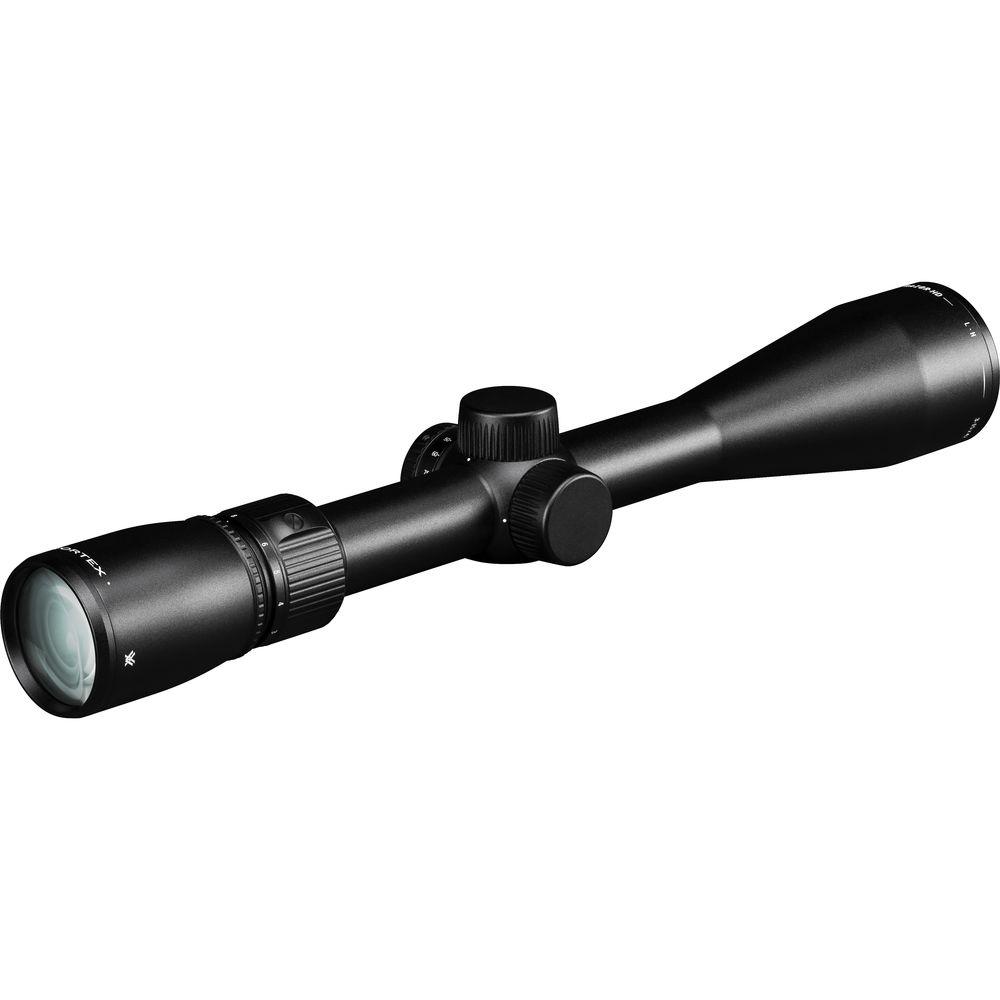

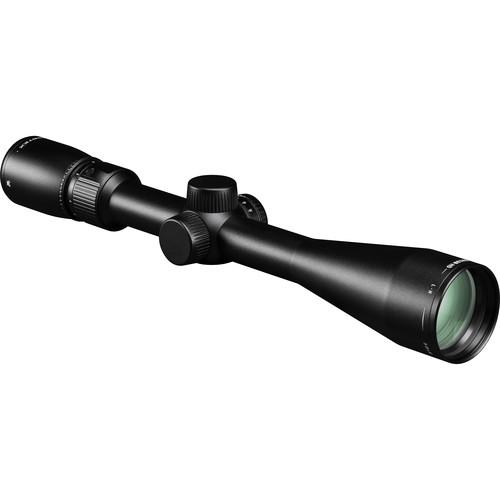

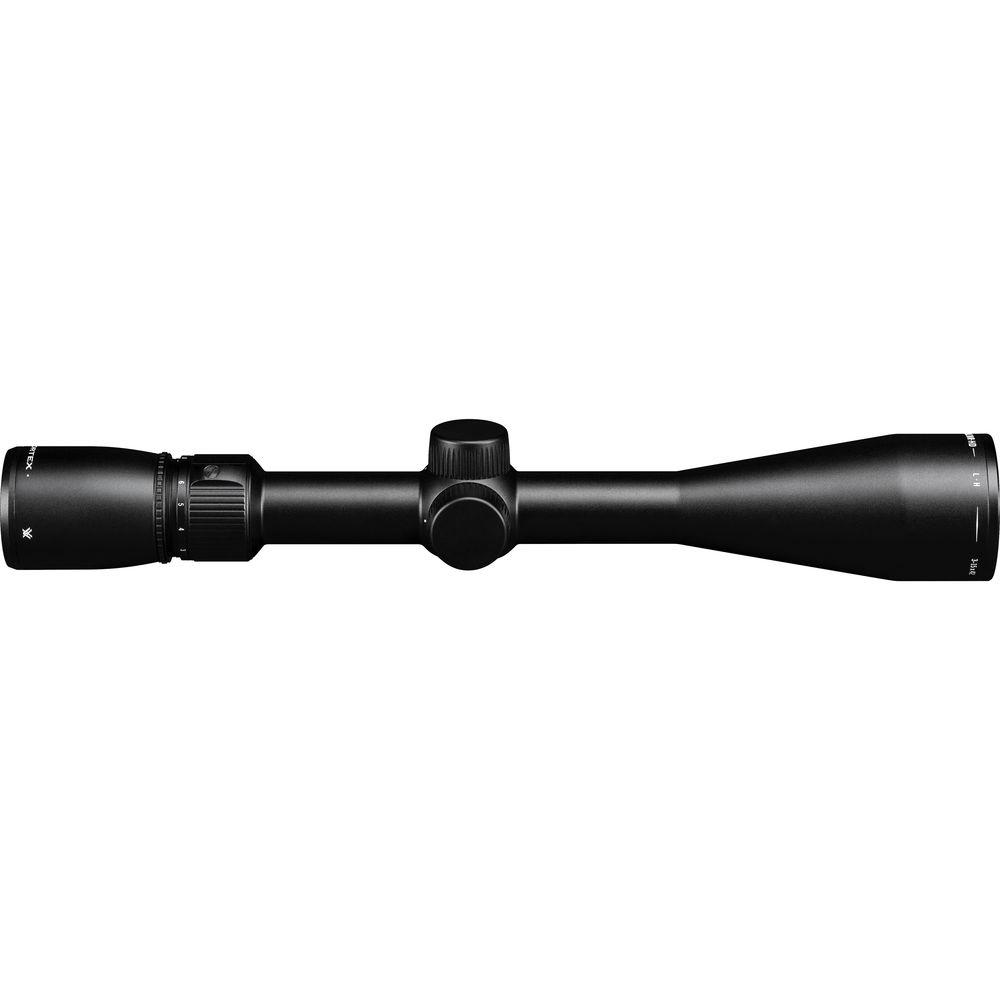

Product description Outfitted with superior High Density and Extra-Low dispersion optics, the Vortex's 3-15x42 Razor HD LH Riflescope does not compromise on ruggedness or precision opto-mechanics. To offer exceptional image quality and transmission of balanced color spectrum, low dispersion of passing light, and to deliver high definition true-color images, the lenses are crafted from high definition High Density (HD) Extra-L ow dispersion optical glass and a 42mm objective aperture that gathers enough light to provide bright images in most lighting conditions. The lenses are fully multi-coated with proprietary XRPlus anti-reflection coatings for maximum transmission and minimum glare. With the additional ArmorTek scratch-resistant coating, the objective lens is protected from scratches, debris, dirt, oil, and fingerprint stains.
Located in the second focal plane is the HSR-4 Reticle. It is based on MOA subtensions at maximum zoom with 2 MOA hash mark intervals. With two medium-weight horizontal tapered outer posts, two thin inner posts, and a thin crosshair, the reticle offers ultra-clean and unobstructed views of your targets. Enabling you to tap into the full potential of this reticle, such as edge-to-edge precision, the optical system was assembled using a computer-controlled alignment process. This high-precision process also delivers optimum image brightness and sharpness.
To match exceptional optical performance, this riflescope also offers an extremely durable construction and precision adjustments. Its 1" maintube is machined from a single-piece of high quality aluminum and coated with an abrasive-resistant and low-glare matte anodized finish. The scope is filled with argon gas and sealed with O-rings for a complete fogproof and waterproof performance. To provide a smooth and precise zooming action, the opto-mechanical gear is carefully designed and enhanced with Precision-Glide Erector System. The elevation turret also prevents dialing below zero. For visual reference, the fast-focus eyepiece and windage and elevation turrets are outfitted with scales. - Optical Performance
-
- 3-15x magnification
- 42mm objective
- High density (HD) Extra-low Dispersion glass delivers true color and high contrast
- XRPlus fully multi-coated optics improve image brightness, clarity, and detail
- Optically Indexed Lenses: computer-controlled lens alignment process results in superior edge-to-edge reticle precision
- ArmorTek ultra-hard scratch-resistant coatings protect from scratches, debris, dirt, and oil
- Linear field of view: 35.8-7.1' at 100 yd
- Parallax correction: 100 yd to infinity
- HSR-4 Reticle
-
- 2nd focal plane
- Clean and unobstructed view
- Based on MOA subtensions at maximum zoom
- Two tapered horizontal posts are 1.5 MOA thick
- Horizontal crosshair spans 16 MOA edge-to-edge
- Gap between the trunks of horizontal post is 20 MOA
- Crosshair's line has thickness of 0.2 MOA
- Markings are spaced at 2 MOA
- Center cross has 3 MOA width and height
- Minor holdover lines are 2 MOA wide
- Major holdover lines are 4 MOA wide
- Use and Handling
-
- 1/4 MOA impact point correction
- 55 MOA total windage elevation range
- Eye relief: 3.8"
- Exit pupil: 14-2.8mm
- 15 MOA travel per rotation
- Construction Details
-
- 1" single-piece maintube
- Aluminum construction
- Low-glare matte hard-coat anodized finish
- Capped re-settable turrets
- Precision-Glide Erector System: provides smooth, precision zooming
- Fast-focus eyepiece provides quick visual reference
- Recoil and impact-resistant
- Fogproof, argon-filled
- Waterproof, sealed with O-rings
UPC: 875874007291 In the Box Vortex 3-15x42 Razor HD LH Riflescope (HSR-4 Reticle) - 3" Sunshade
- 2 x Lens Covers
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 3-15x42 Razor HD LH Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex RZR-1572 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 42 mm | | Field of View | 3x: 35.8' @ 100 yd / 7.1 m @ 100 m
9x: 11.3' @ 100 yd / 2.4 m @ 100 m | | Exit Pupil Diameter | 3x: 14 mm
15x: 2.8 mm | | Eye Relief | 3.8" / 96.5 mm | | | | Reticle Type | HSR-4 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 55 MOA | | Elevation Adjustment | 55 MOA | | Parallax Correction | Yes, 20 yd / 18.3 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 342.9 mm | | Weight | 16.5 oz / 467.8 g | | | | Package Weight | 1.67 lb | | Box Dimensions (LxWxH) | 16.7 x 4.35 x 3.95" |
