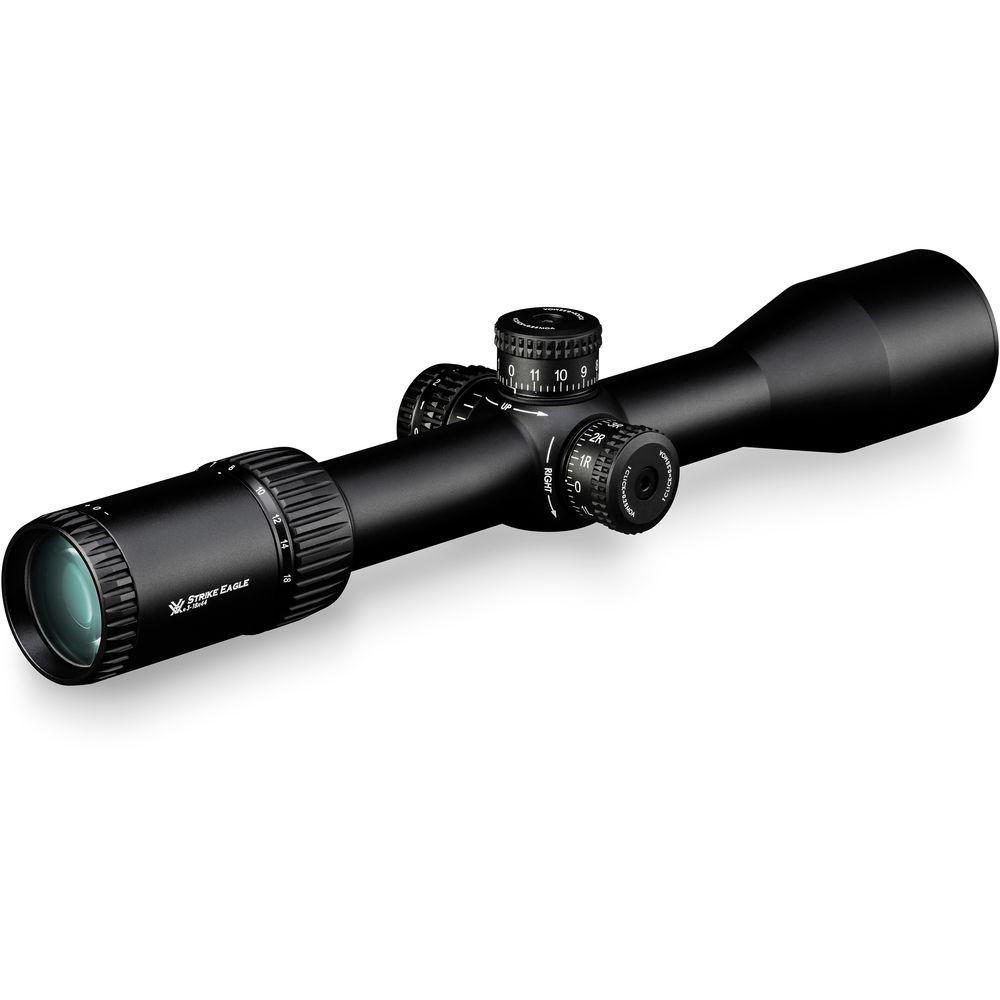

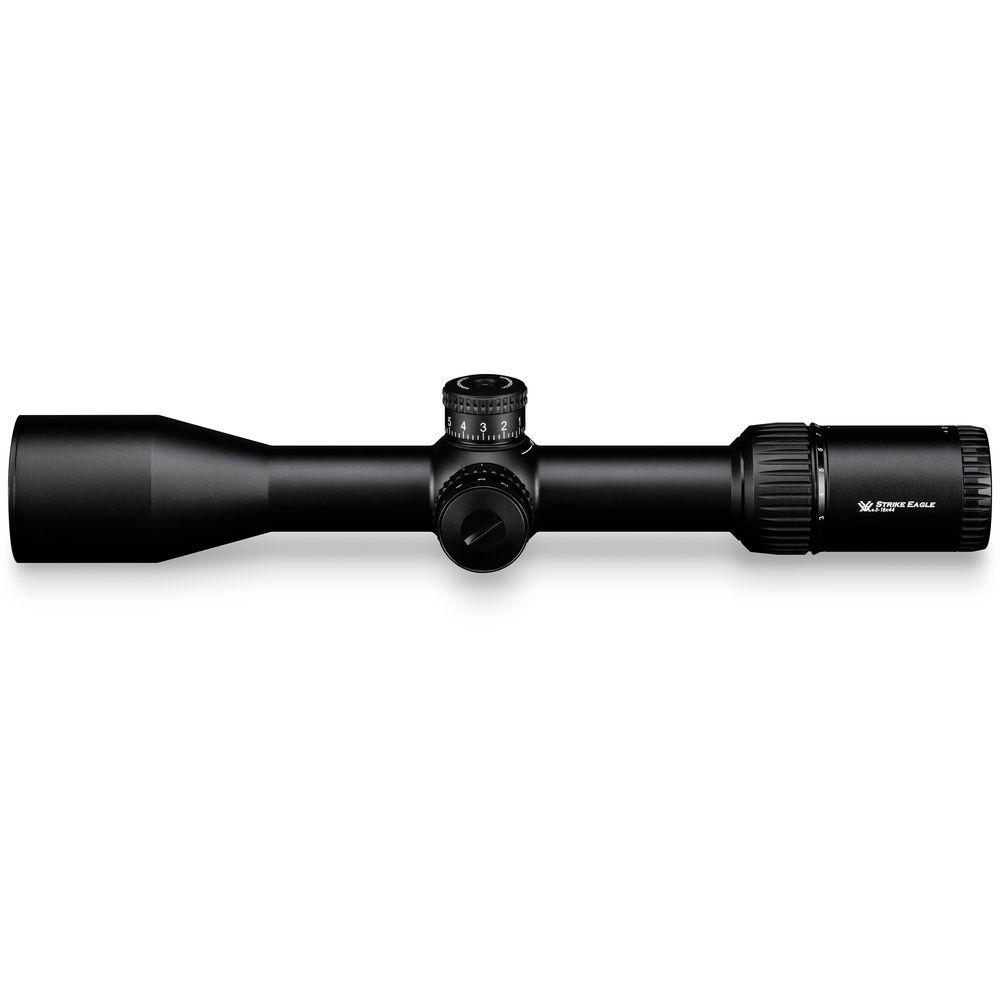

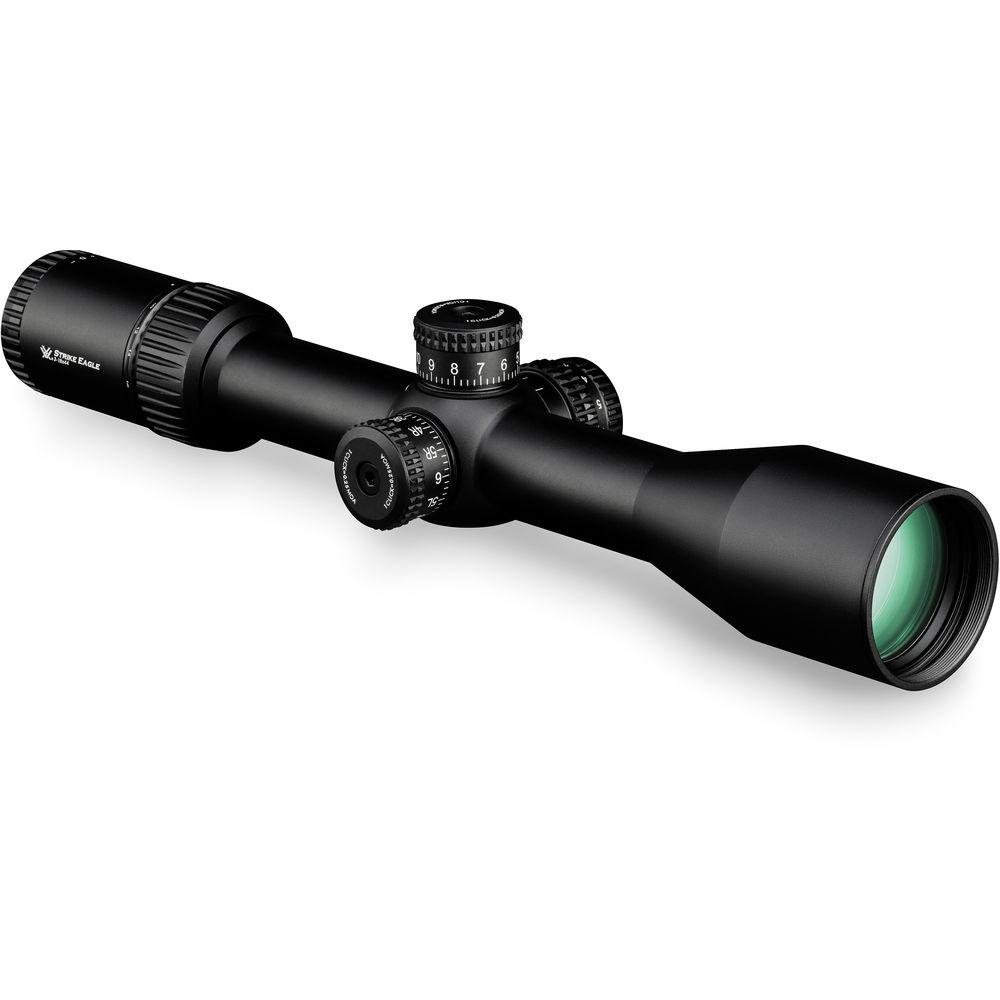

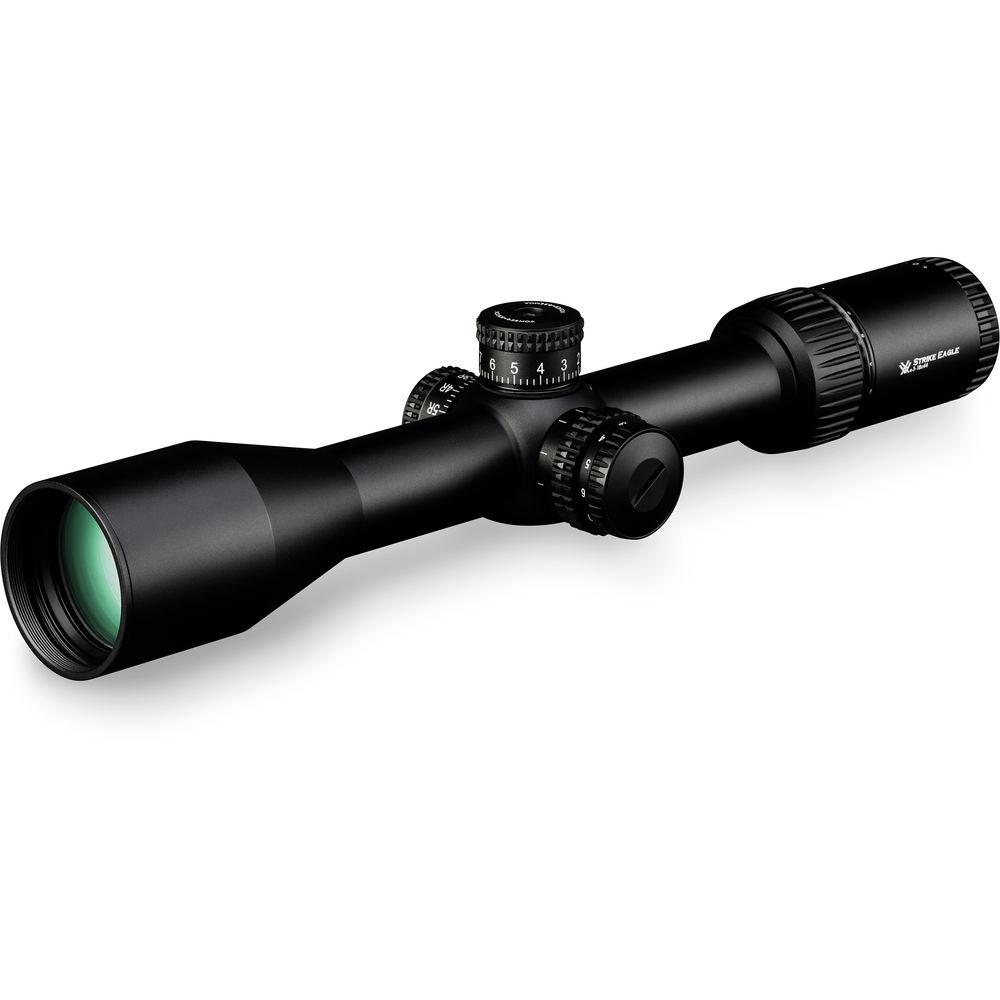

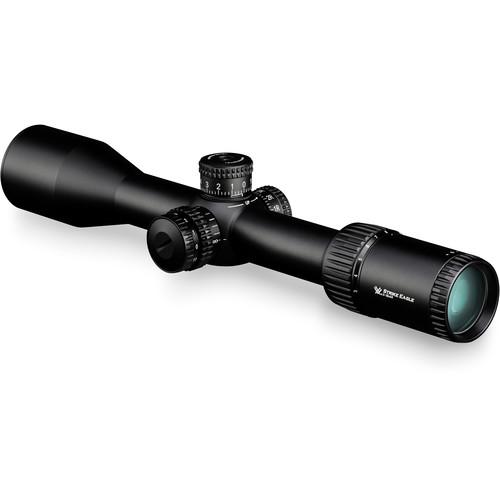

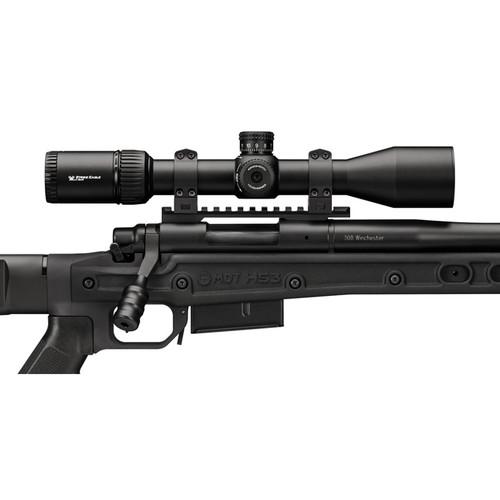

Product description Take that long, technical shot with confidence with the Vortex 3-18x44 Strike Eagle Riflescope. Featuring an illuminated EBR-4 reticle designed to maximize long-distance shooting and ranging abilities, this scope offers fully multi-coated optics for optimal light transmission, a quick zoom eyepiece, and a shock-resistant 30mm single-piece maintube. Its windage and elevation turrets provide 120 MOA of adjustment at a fine 1/4 MOA per click, allowing for precise compensation for bullet drop and wind when aiming far downrange. Located in the second (rear) focal plane, the 3-18x44 Strike Eagle's etched-on-glass reticle maintains the same size when you change magnification. The waterproof and fogproof housing is a single-piece aluminum maintube with a hard-anodized matte black finish. The eyepiece has a quick zoom ring that allows for fast target acquisition. The coarsely knurled zoom ring with a low-profile rib lever provides a fast one-finger adjustment, while the exposed tactical-style windage and elevation turrets produce audible clicks. - Optical Performance
-
- 44mm objective diameter
- 3-18x magnification
- Linear field of view: 34.5-5.7' at 100 yards
- Fully multi-coated optics deliver optimal transmission of light
- EBR-4 Reticle
-
- Second focal plane
- Illuminated crosshairs
- Glass-etched for precise tolerances
- Extensive system of major and minor MOA compensation bars
- Reticle measurements are provided at max magnification
- Gate between horizontal posts is 68 MOA
- Crosshair line extends down from center 36 MOA
- Use and Handling
-
- Parallax setting: 20 yards to infinity
- 1/4 MOA per click impact point correction
- 120 MOA windage and elevation adjustment range
- Eye relief: 4.1-3.5"
- Exit pupil: 14.6-2.4mm
- Construction Details
-
- 30mm maintube diameter
- Single-piece aluminum tube
- Hard-anodized matte black finish
- Knurled zoom ring has a low-profile rib for easy adjustments
- Fast focus eyepiece allows rapid zooming and focusing on your targets
- Tactical-style windage and elevation adjustment dials
- Parallax adjustment dial
- Nitrogen-purged fogproof
- Recoil resistant
- Waterproof
UPC: 875874002647 In the Box Vortex 3-18x44 Strike Eagle Riflescope (EBR-4 Reticle, Matte Black) Sunshade Lens Cloth 2 x Lens Covers CR-2032 Battery 2mm Hex Wrench Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 3-18x44 Strike Eagle Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex SE-1626 Specs | | | Magnification | 3 to 18x | | Objective Lens Diameter | 44 mm | | Field of View | 3x: 34.5' @ 100 yd / 11.5 m @ 100 m
18x: 5.7' @ 100 yd / 1.9 m @ 100 m | | Exit Pupil Diameter | 3x: 14.6 mm
18x: 2.4 mm | | Eye Relief | 3.5 to 4.1" / 88.9 to 104.1 mm | | | | Reticle Type | EBR-4 Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 120 MOA | | Elevation Adjustment | 120 MOA | | Parallax Correction | Yes, 20 yd / 18.3 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 34.3 cm | | Weight | 23.9 oz / 678 g | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 17.0 x 5.0 x 3.0" |
