User Manual for Vortex 3-9x40 Diamondback Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 3-9x40 Diamondback Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 3-9x40 Diamondback Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

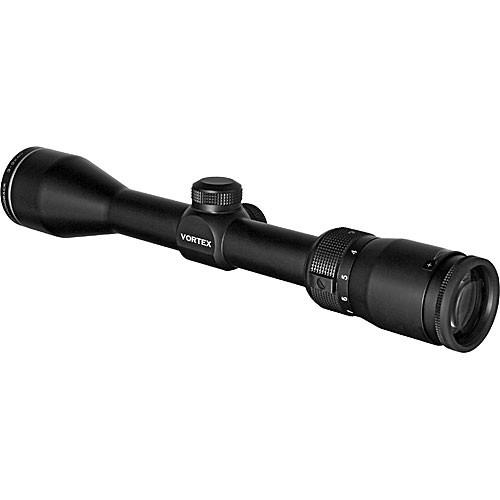

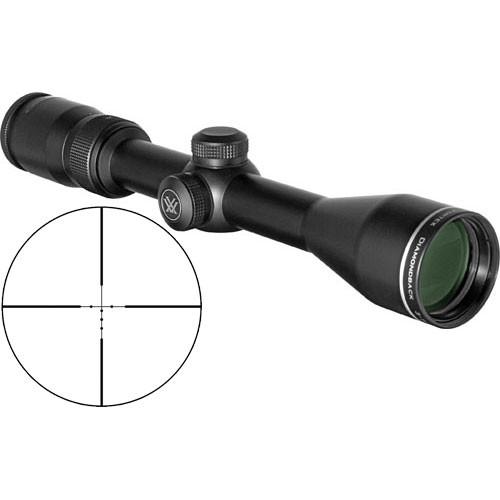

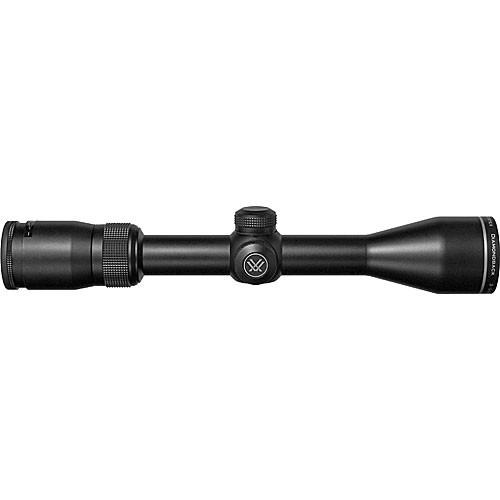

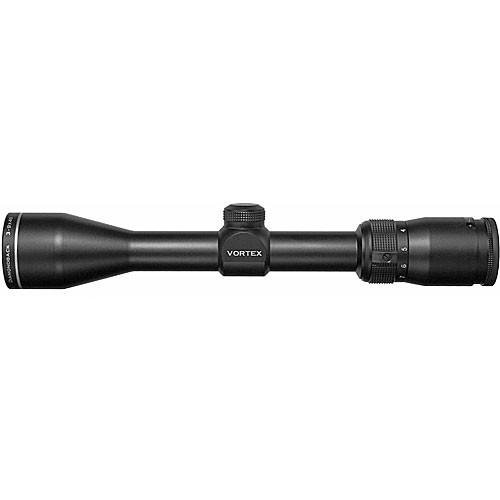

Product description Vortex is dedicated to the development and production of unique optics with features that allow you to see the world more clearly. Their commitment to supporting efforts in the important areas of land conservation, wildlife and field habitat keep them in tune with the environment and outdoor enthusiasts worldwide. The Vortex 3-9x40 Diamondback Riflescope is built to endure, perform, and excel. Its one-piece center-tube design is carefully constructed from 6061-T6 aluminum, and fitted with a precision adjustment system that allows for a generous amount of correction. The optical system is fully multicoated for a fine line of sight, and the entire assembly is then purged with argon gas for flawless all-weather performance. The variable mid-range magnification of a 3-9x40 scope is extremely flexible; the balance of power against the efficient 40mm objective offers hunters excellent twilight performance with a comfortable sight picture in open fields and dense woods. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. By affixing the scope mounted rings to the rifle mounted base you create a reliable, accurate, and secure sighting system. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Parallax correction is factory preset at 100 yd
- Fast focus eyepiece for rapid target acquisition
- XR multilayer coatings deliver edge-to-edge clarity
- 1.0" One-piece 6061-T6 aluminum main tube construction
- Low-profile turrets with 1/4 MOA audible & tactile clicks
Windage/90 MOA - Elevation/84 MOA - Waterproof Performance
- Unity-pressure argon purging protects against the elements at any elevation
- Precision-Glide Erector System:
- Fluoropolymer Teflon resin bushings provide exceptional resistance to stress cracking, temperature change, corrosion, and friction-induced wear.
- Dead-Hold BDC Reticle in the Second Focal Plane

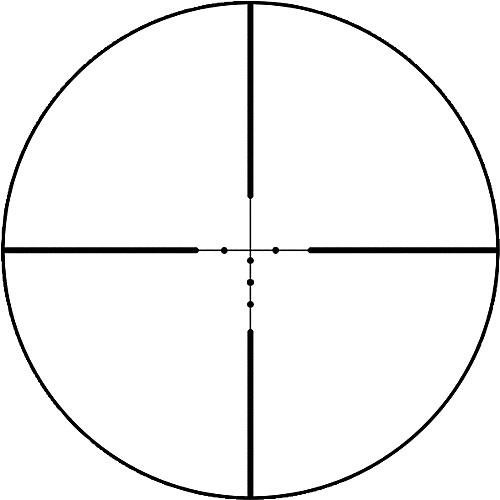

- The Dead-Hold BDC reticle features four thin posts and cross hairs. The larger gate is designed to accommodate hold over points upon the 6 o'clock stadia.
Second focal plane (non-magnifying) placement of the reticle maintains its size throughout the magnification range. UPC: 875874001138 In the Box Vortex 3-9x40 Diamondback Riflescope Bikini Style Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 3-9x40 Diamondback Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex DBK-01-BDC Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 44.6' @ 100 yd / 14.8 m @ 100 m
9x: 14.8' @ 100 yd / 4.9 m @ 100 m | | Exit Pupil Diameter | 3x: 13.3 mm
9x: 4.4 mm | | Eye Relief | 3.3 to 3.5" / 84 to 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 84 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 11.7" / 297 mm | | Weight | 14.4 oz / 408 g | | | | Package Weight | 1.32 lb | | Box Dimensions (LxWxH) | 13.45 x 3.4 x 2.55" |
