User Manual for Vortex 4-12x40 AO Crossfire II Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 4-12x40 AO Crossfire II Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 4-12x40 AO Crossfire II Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

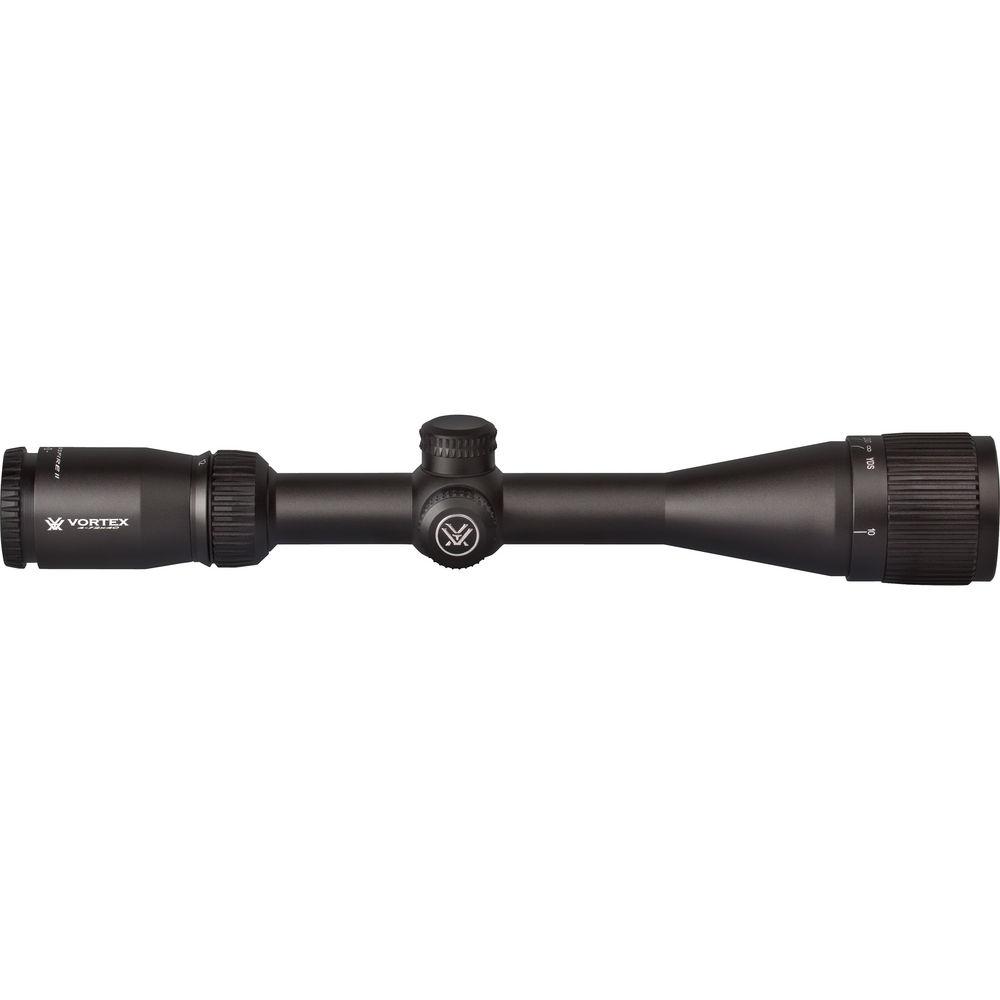

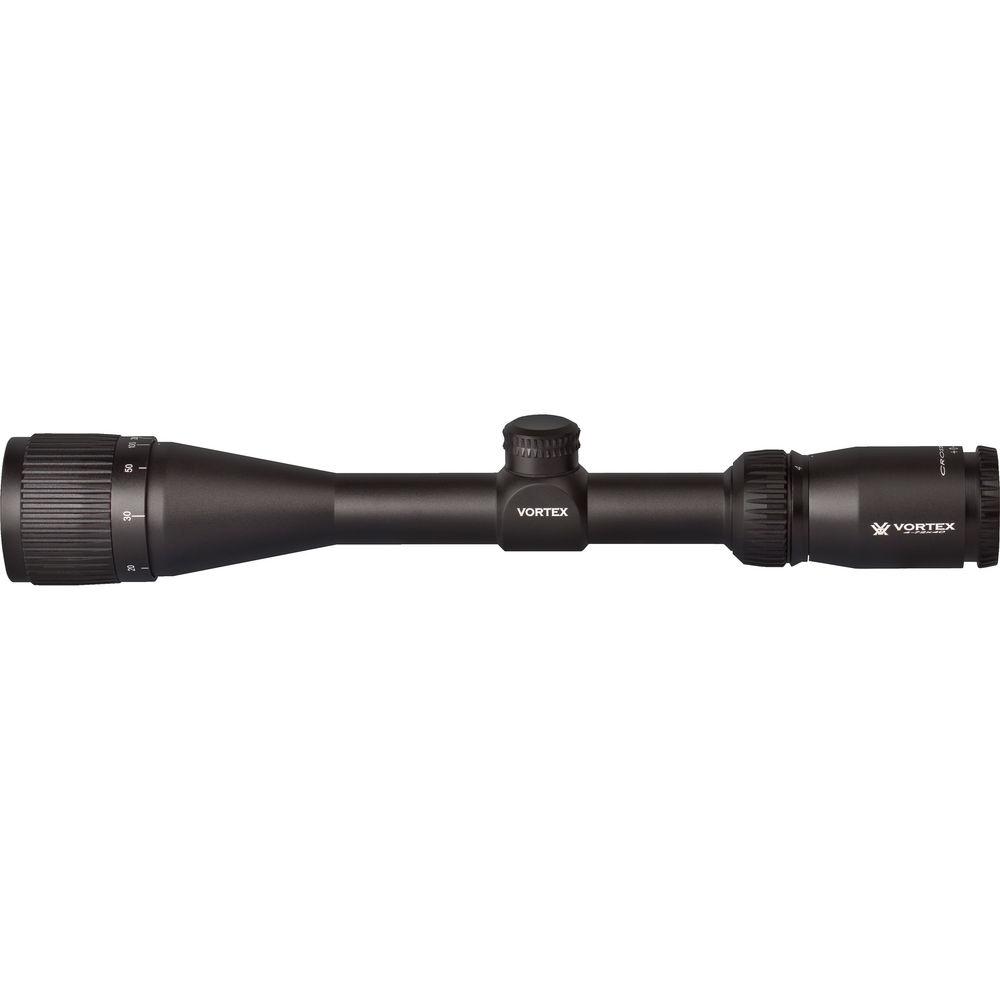

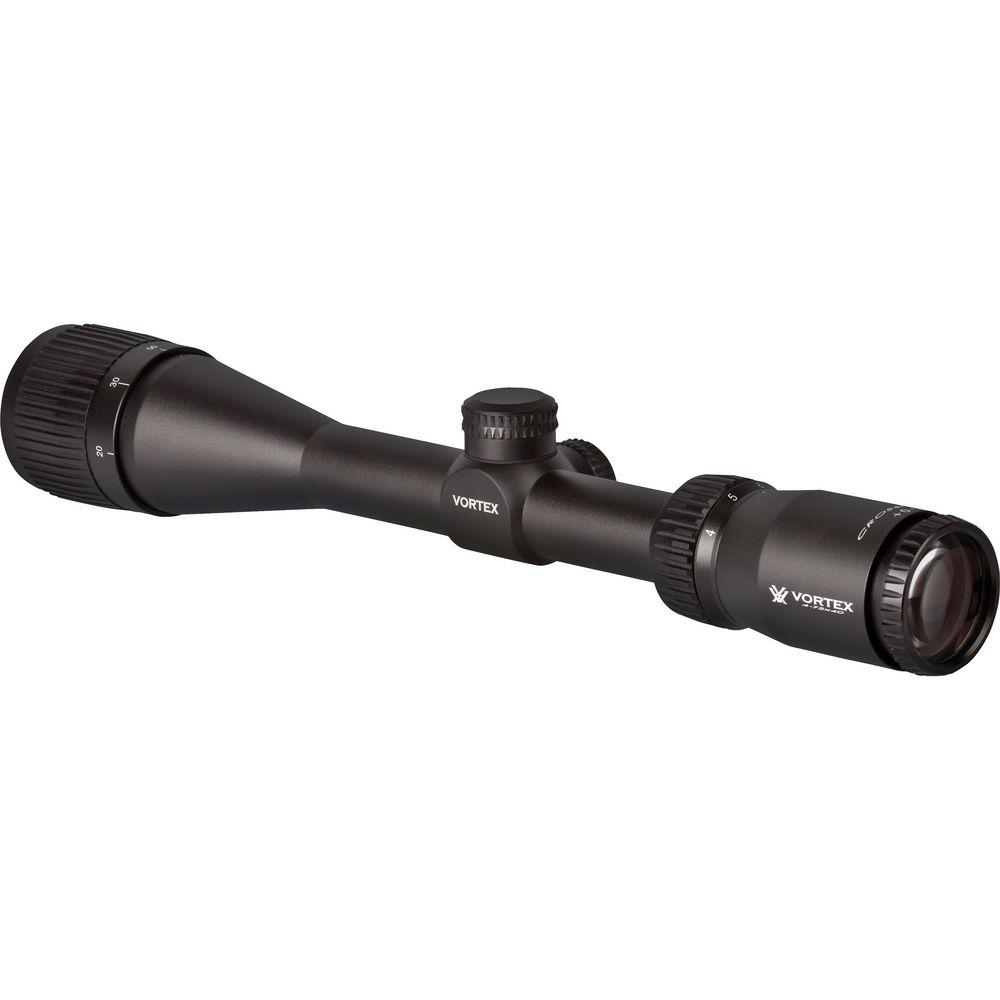

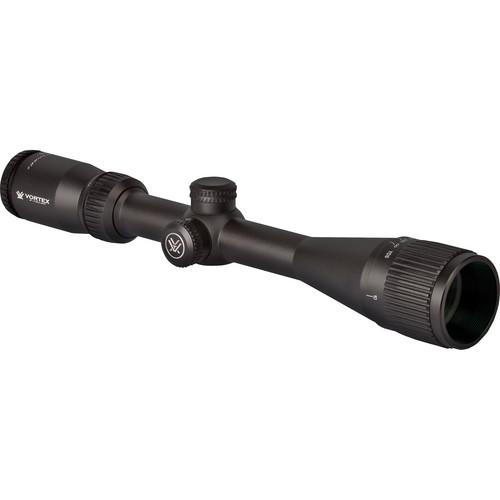

Product description The 4-12x40 AO Crossfire II Riflescope (Dead-Hold BDC) from Vortex Optics is a cost-effective yet durable variable power riflescope. The 4-12x magnification is ideal for close to mid-range hunting and target practice. A nitrogen purged and o-ring sealed aluminum housing is built to perform in driving rain and extreme humidity. This model of the Crossfire II is configured with a Dead-Hold BDC reticle and low-profile capped windage/elevation turrets. The wide 40mm objective lens features enhanced light gathering ability that is well-suited for performance in low light conditions. An included sunshade prevents stray light that can degrade image quality from entering the field of view. A fast focus eyepiece, parallax error correction, and generous eye relief make the Crossfire II a full-featured scope for sportsmen. - Dead-Hold BDC Reticle
- Customized compensating reticle subtensions minimize guesswork on holdover and wind drift corrections, ideal for shooting at ranges where calculating accurate bullet drop is essential.
- Anti-Reflective Lens Coating
- Fully multicoated optics and an additional anti-reflective coating on the objective and the ocular lenses ensure transmission of bright detail-rich images throughout the entire magnification range.
- Rugged Construction
- The one-piece aerospace aluminum housing is anodized for a durable non-reflective finish. Each optical element is held in place by machined locking rings that ensure perfect lens alignment even after intense recoil and rapid fire. Additionally, the interior is nitrogen purged and o-ring sealed, preventing driving rain and extreme humidity from fogging the optics.
- Adjustable Objective
- The focus ring on the objective bell enables parallax error correction and helps ensure accuracy at the far end of the magnification range.
- VIP Unconditional Warranty
- This unlimited, unconditional, fully transferable, hassle free warranty is almost unheard of in the optics industry. Whether damaged by the owner or a manufacturing defect, Vortex Optics will repair or replace the scope at no charge.
UPC: 875874004191 In the Box Vortex 4-12x40 AO Crossfire II Riflescope (Dead-Hold BDC) Sunshade Lens Covers Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 4-12x40 AO Crossfire II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex CF2-31019 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 24.7' @ 100 yd / 7.5 m @ 100 m
12x: 8.4' @ 100 yd / 2.6 m @ 100 m | | Eye Relief | 3.9 to 4.4" / 10 to 110 mm | | | | Reticle Type | Dead-Hold BDC Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 13.6" / 34.5 cm
Objective Diameter: 2" / 5 cm
Eyepiece Diameter: 1.7" / 4.3 cm | | Weight | 19.2 oz / 544 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 18.3 x 5.0 x 3.2" |
