User Manual for Vortex 4-12x40 Diamondback Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 4-12x40 Diamondback Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 4-12x40 Diamondback Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

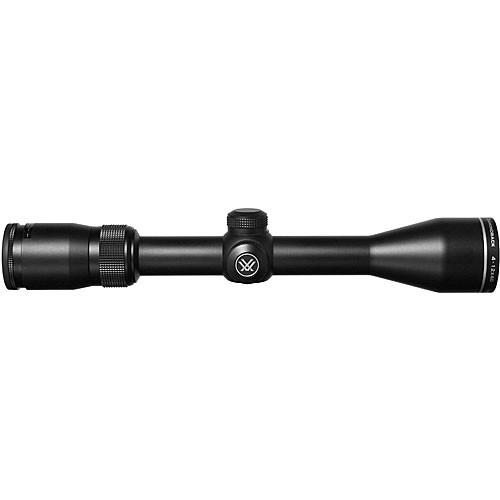

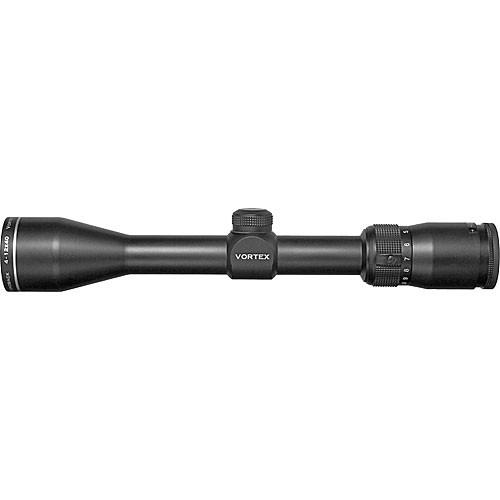

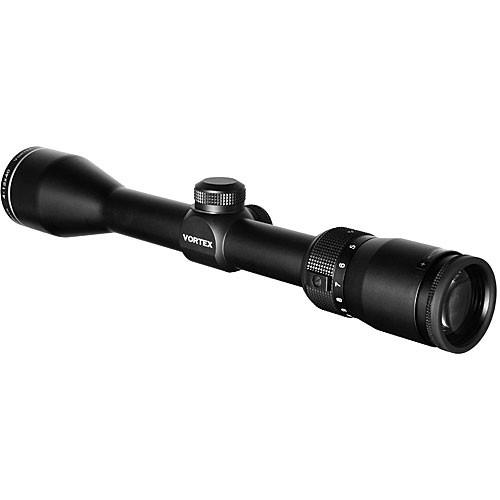

Product description Vortex is dedicated to the development and production of unique optics with features that allow you to see the world more clearly. The Vortex 4-12x40 Diamondback is built to endure, perform, and excel. Its one-piece center-tube design is carefully constructed from 6061-T6 aluminum, and fitted with a precision adjustment system that allows for a generous amount of correction. The optical system is fully multicoated, and the entire assembly is then purged with argon gas for flawless all-weather performance. Long-range target acquisition can be difficult, and having 4-12x magnification on tap will help get the job done in most cases. Twilight hunters will appreciate the highly efficient 40mm objective when the sun gets close to the horizon. This Diamondback scope is configured with a 1.0" tube, an adjustable objective, 1/4 MOA adjustments with 66 MOA of travel, low-profile turrets, a Dead-Hold BDC reticle, and a matte black finish. A mounting base and rings are used to attach a riflescope to a firearm. A comfortable sight picture is contingent upon the height of the rings. A comfortable cheek-weld is the result of properly positioning the scope over the receiver. Mounting the scope close to the receiver is preferable, yet scopes with larger objectives need higher rings so the front bell can clear the barrel. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - 1.0" One-piece aluminum main tube construction
- Parallax correction is factory preset at 100 yd
- 1/4 MOA W&E correction with 66 MOA of adjustment
- Fast focus eyepiece for rapid target acquisition
- Multi-layer XR coatings deliver edge-to-edge clarity
- Unity-pressure argon purging protects against the elements at any elevation
- Precision-Glide erector system provides exceptional resistance to stress cracking, temperature change, corrosion, and friction-induced wear.
- Dead-Hold BDC Reticle in the Second Focal Plane

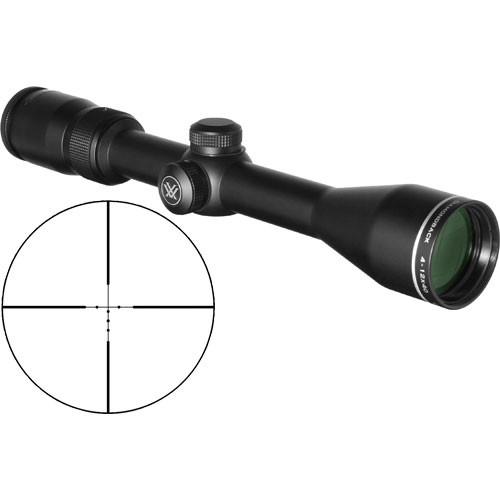

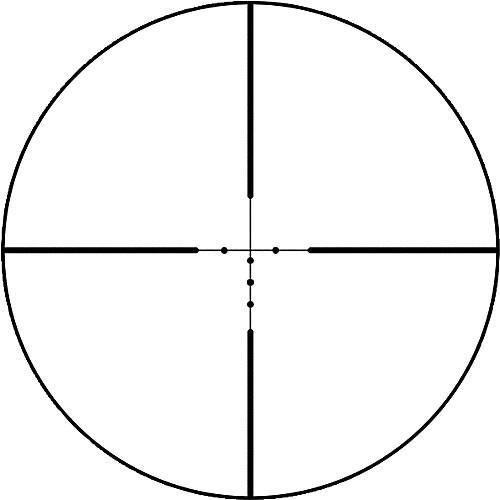

- The Dead-Hold BDC reticle features four thin posts and cross hairs. The larger gate is designed to accommodate hold over points upon the 6 o'clock stadia.
Second focal plane (non-magnifying) placement of the reticle maintains its size throughout the magnification range. UPC: 875874001152 In the Box Vortex 4-12x40 Diamondback Riflescope (Matte Black) Bikini Style Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 4-12x40 Diamondback Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex DBK-04-BDC Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 32.4' @ 100 yd / 10.8 m @ 100 m
12x: 11.3' @ 100 yd / 38 m @ 100 m | | Exit Pupil Diameter | 4x: 10 mm
12x: 3.3 mm | | Eye Relief | 3.1 to 3.4" / 84 to 91 mm | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 66 MOA | | Elevation Adjustment | 66 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12" / 31 cm | | Weight | 14.6 oz / 414 g | | | | Package Weight | 1.32 lb | | Box Dimensions (LxWxH) | 13.45 x 3.3 x 2.45" |
