User Manual for Vortex 4-12x40 Diamondback Tactical Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 4-12x40 Diamondback Tactical Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 4-12x40 Diamondback Tactical Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

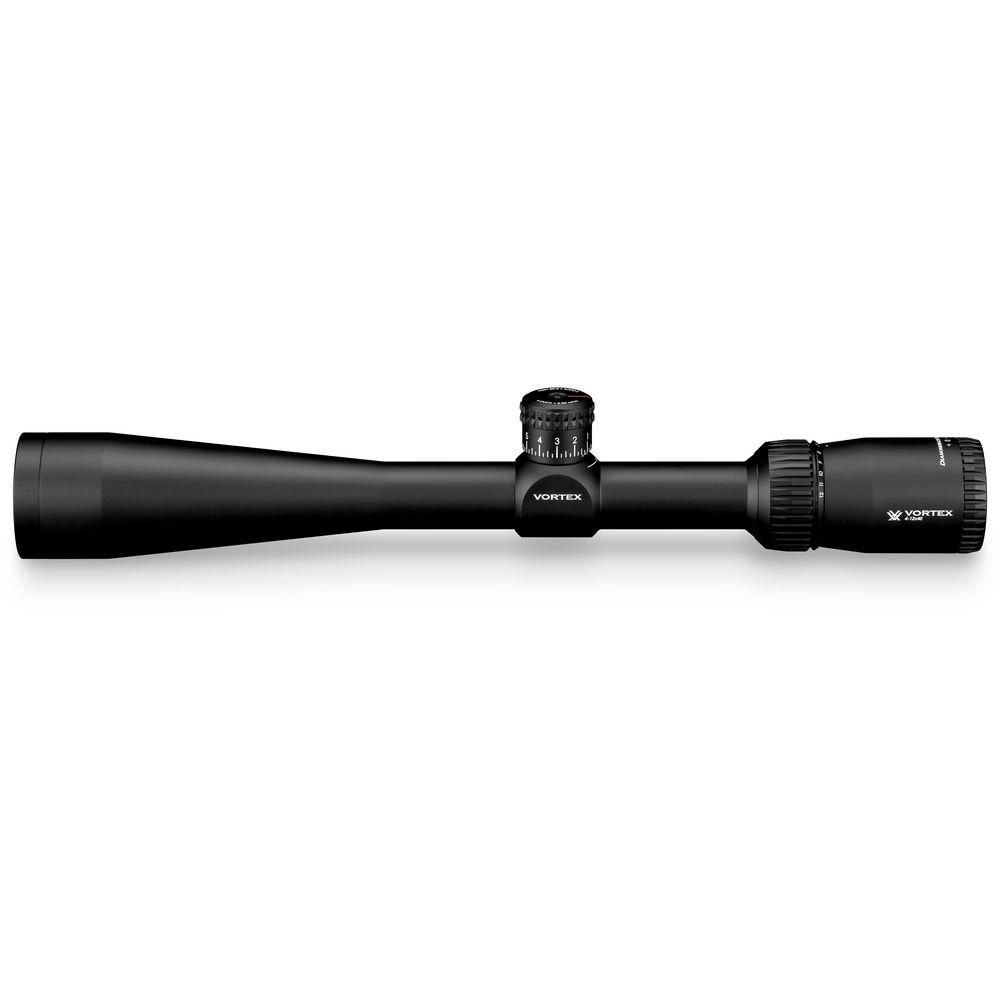

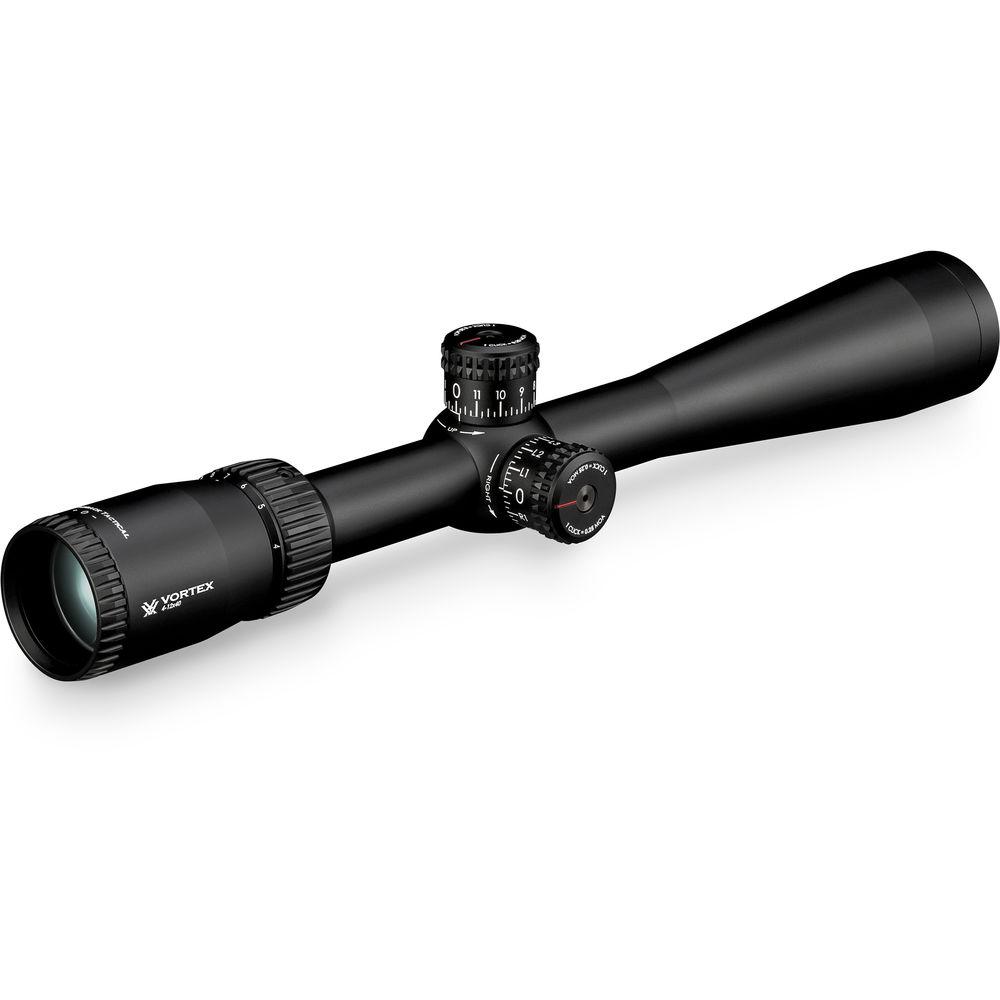

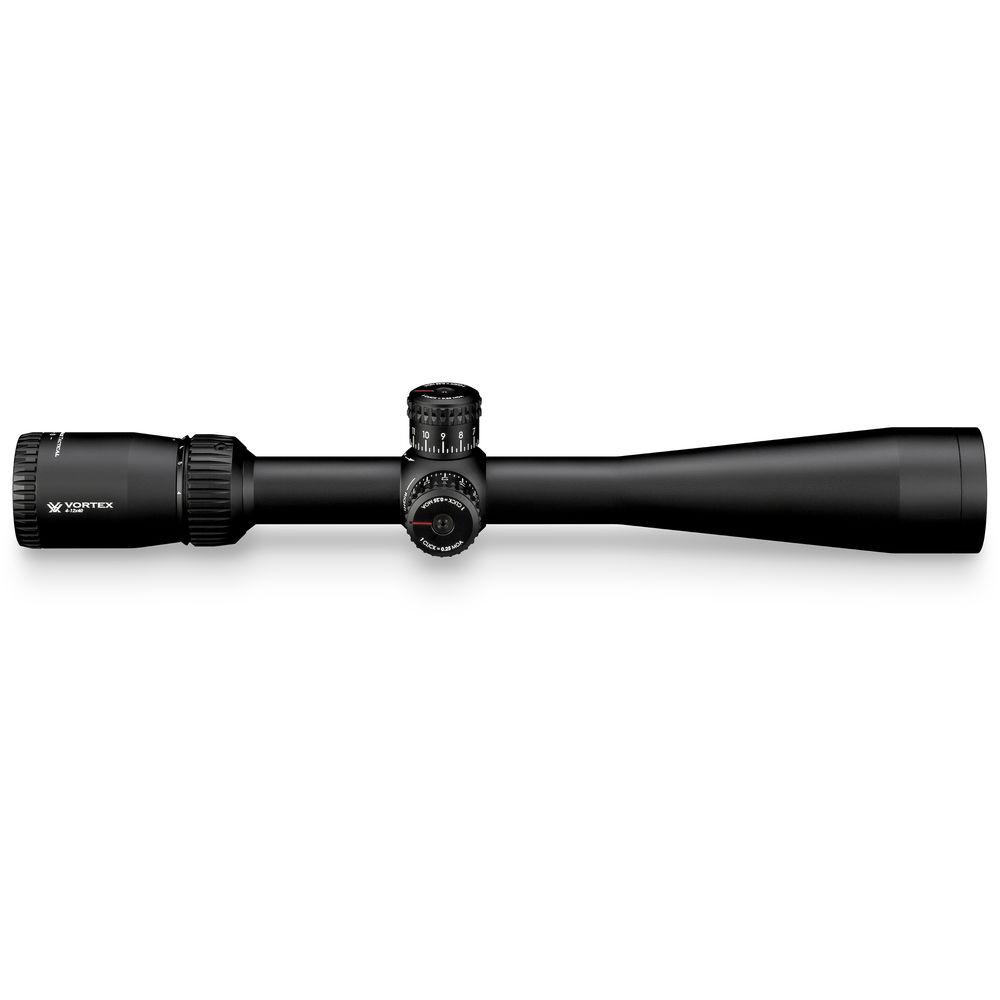

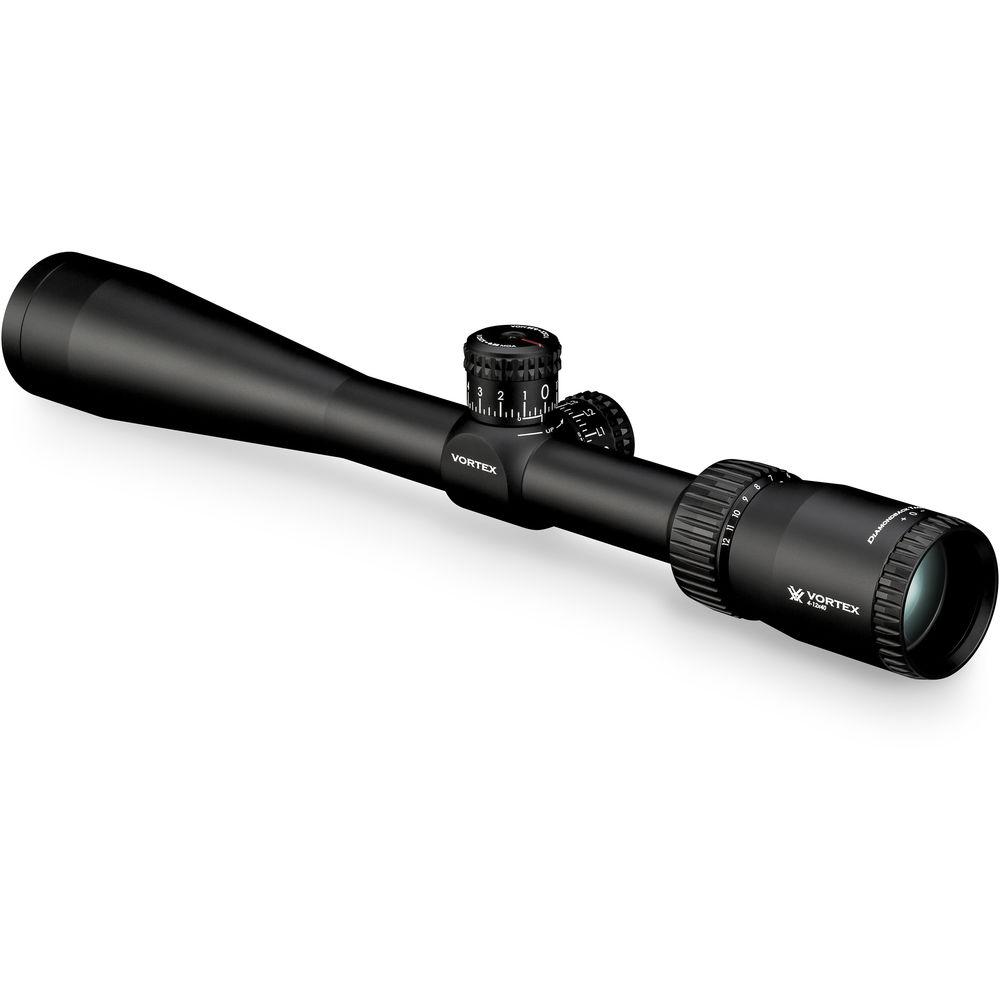

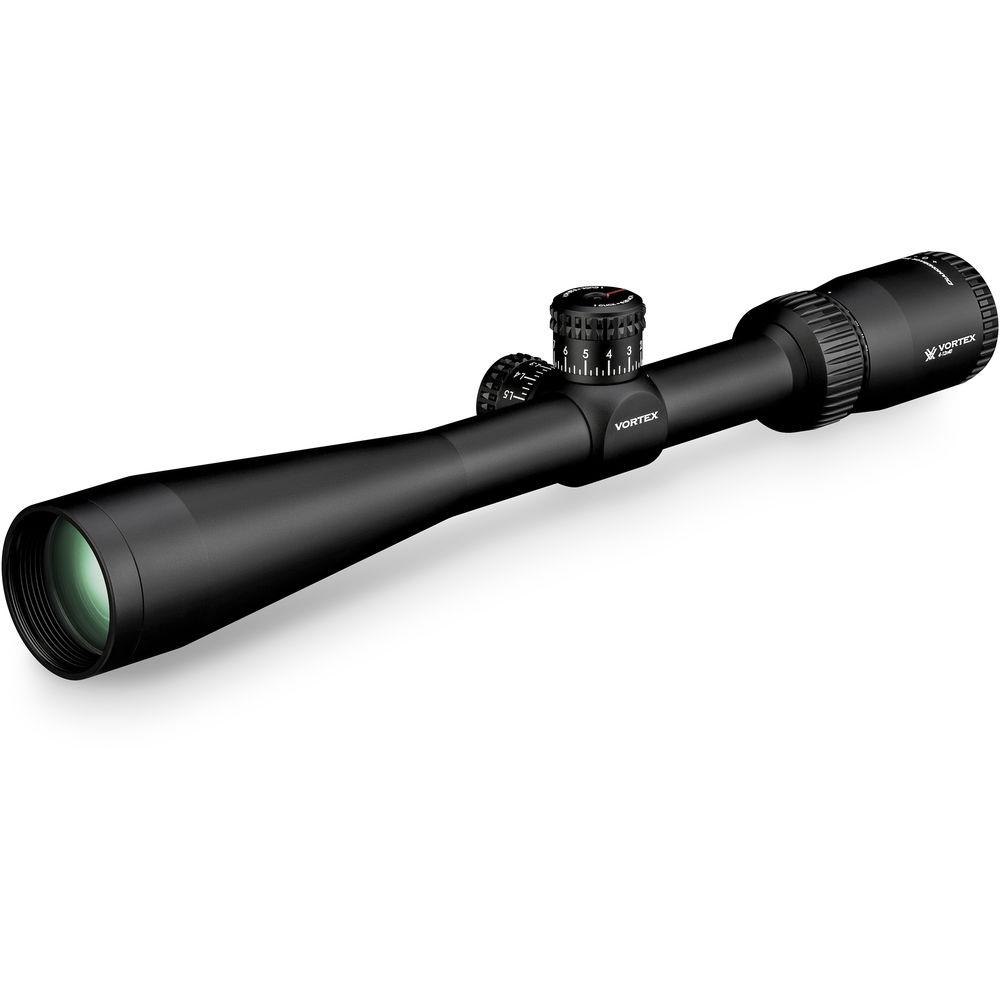

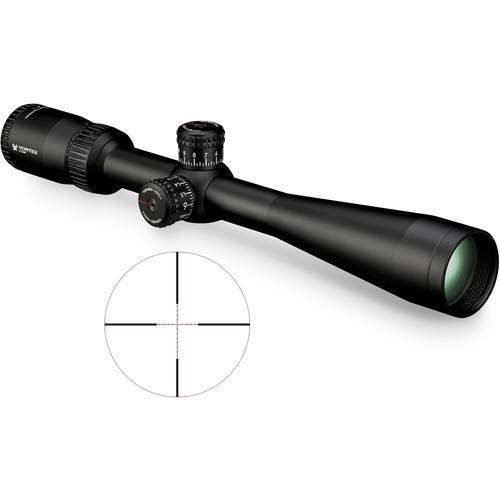

Product description Vortex Optics' 4-12x40 Diamondback Tactical Riflescope is a versatile riflescope featuring durable construction, high-quality optics, a zoom eyepiece, and the Vortex-exclusive VMR-1 reticle. The reticle lies in the 2nd focal plane and offers a modified duplex style. The markings on the horizontal and lower-vertical axes aid in ranging and ballistic and wind compensation. The optical system produces crisp and clear images with accurate color representation by utilizing Extra-Low Dispersion (XD) glass and Vortex's proprietary XR optical coatings. While the XD glass corrects color and image distortions on the periphery of the field of view, the anti-reflective XR coatings increase transmission of light and reduce glare.

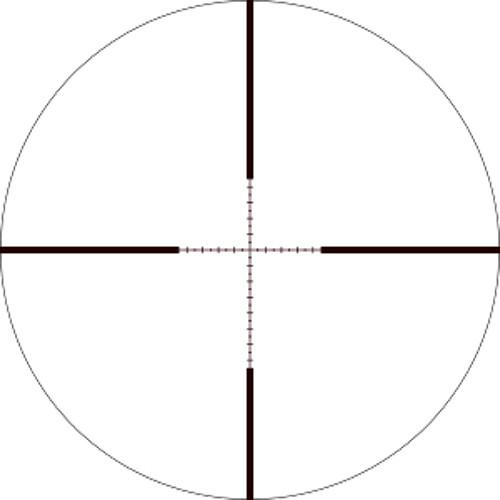

The high-quality aluminum housing is built around a durable single-piece 1" maintube. One of the defining highlights of the Diamondback tactical scope is its Precision-glide erectir system that ensures that zooming action remains smooth under the most challenging conditions. The scope's windage and elevation provide exposed graduated turrets with red fiber optic position markers on the knobs. The entire construction is robust, nitrogen-filled fogproof, and O-ring sealed waterproof to ensure reliable performance for years of service. - VMR-1 Reticle
-
- 2nd focal plane
- Modified duplex style
- Four medium posts
- Crosshair with major and minor compensation bars
- At 12x magnification:
- Crosshair line subtends 0.25 MOA
- Posts subtend 1.7 MOA
- Major bars are 1.5 MOA long
- Minor bars are 0.7 MOA long
- Bars are spaced at 2 MOA intervals
- Gate between horizontal posts is 36 MOA
- Crosshair line extends down from center 30 MOA
- Parallax-free at 100 yd
- Optical Performance
-
- 4-12x magnification
- 40 mm objective lens
- XD: Extra-Low Dispersion glass elements reduce color distortions and improve true color
- XR: Anti-reflective fully multi-coated to increase brightness and resolution
- Use and Handling
-
- 1/4 MOA per click impact point correction
- Windage and Elevation adjustment range of 70 MOA
- Construction Details
-
- High-quality aluminum housing
- Single-piece 1" maintube
- Exposed finger-operated turrets
- Fiber optic illumination radius bar on each turret
- Fast focus eyepiece with a low-profile zoom lever
- Corrosion-resistant low-glare hard anodized finish
- Nitrogen-filled and O-ring sealed for water and fogproof performance
- Precision-glide erector system enables smooth zoom in all weather conditions
UPC: 875874008694 In the Box Vortex 4-12x40 Diamondback Tactical Riflescope (VMR-1 Reticle, Matte Black) - 2 x Lens Caps
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 4-12x40 Diamondback Tactical Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex DBK-10025 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 23.6' @ 100 yd / 7.9 m @ 100 m
12x: 7.9' @ 100 yd / 2.6 m @ 100 m | | Exit Pupil Diameter | 4x: 10 mm
12x: 3.3 mm | | Eye Relief | 3.8" / 96.5 mm | | | | Reticle Type | VMR-1 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 70 MOA | | Elevation Adjustment | 70 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14.2" / 36.1 cm | | Weight | 16.2 oz / 459.3 g | | | | Package Weight | 2.015 lb | | Box Dimensions (LxWxH) | 15.95 x 4.5 x 4.3" |
