User Manual for Vortex 4-16x42 Diamondback HP Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 4-16x42 Diamondback HP Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 4-16x42 Diamondback HP Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The 4-16x42 Diamondback HP Riflescope from Vortex Optics is a versatile 1" main-tube scope featuring a built-in zoom eyepiece and the Vortex-exclusive Dead-Hold BDC reticle. This is a modified duplex with hashmarks on the hoizontal and lower-vertical axes to aid in ranging, hold-over, and ballistic drop compensation set on the Second Focal Plane (SFP). The scope produces crisp and clear images with accurate color representation by using Extra-low Dispersion (ED) glass and Vortex's proprietary XR optical coatings. ED glass corrects for chromatic aberration to eliminate color and image distortion on the edges of the field of view, while the anti-reflective XR coatings ensure as much light as possible is transferred through the optical tube for a bright and clear view. Internally, the Diamondback has the Precision-glide prism system that ensures that the zoom function remains smooth and easy in all weather and temperature conditions.Windage and elevation turrets allow for 1/4 MOA per click shot correction to get you on-target, and they are re-settable to zero after your initial sighting. An easily accessible side focus wheel gives you parallax correction. The exterior optical surfaces have ArmorTek coatings that bead and repel water and oils, while offering protection against scratches and abrasions. Its aluminum housing has a scratch and corrosion-resistant anodized finish, and is argon-filled for water and fogproof performance. - Performance
-
- 4-16x magnification
- 42 mm objective lens
- Second Focal Plane (SFP) reticle placement

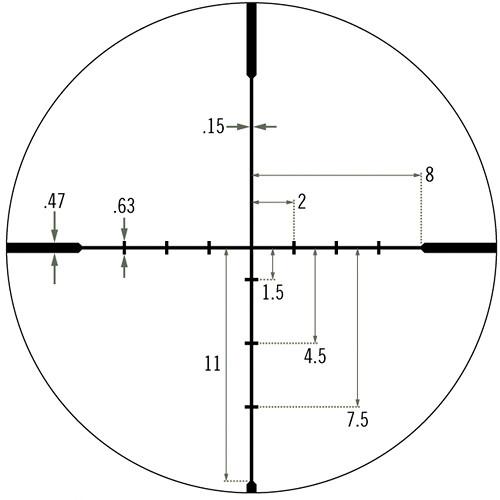

- Vortex-exclusive Dead-Hold BDC reticle is a modified duplex with hashmarks to aid in ranging, hold-over, and ballistic drop
- Extra-low dispersion glass elements reduce chromatic aberration for true color transmission across the entire field of view
- Fully multicoated with XR anti-reflective coatings increase light transmission for clear images with true colors representation
- Use and Handling
-
- Precise 1/4 MOA per click impact-point correction
- Windage and Elevation adjustment range of 80 MOA
- Resettable capped turrets let you bring them back to zero after initial sighting
- Side focus wheel for parallax correction
- Fast-focus eyepiece with 4" (10.2 cm) eye relief
- Construction Details
-
- Aluminum housing with single-piece 1" main-tube
- Scratch and corrosion-resistant matte-black anodized finish
- Argon-filled and o-ring sealed for water and fogproof performance
- Precision-glide prism system enables smooth zoom in all weather conditions
- ArmorTek optical coatings repel water and oil, while offering scratch and abrasion resistance
In the Box Vortex 4-16x42 Diamondback HP Riflescope (Dead-Hold BDC Reticle) 2 x Lens Caps Lens Cloth 4" Sunshade Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 4-16x42 Diamondback HP Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex DBK-10019 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 42 mm | | Field of View | 4x: 23.8' @ 100 yd / 8 m @ 100 m
16x: 6.1' @ 100 yd / 2 m @ 100 m | | Exit Pupil Diameter | 4x: 10.5 mm
16x: 2.6 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | Dead-Hold BDC Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.5" / 31.8 cm | | Weight | 18 oz / 510 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 17.1 x 5.0 x 4.1" |
