User Manual for Vortex 4-16x50 Crossfire II AO Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 4-16x50 Crossfire II AO Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 4-16x50 Crossfire II AO Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

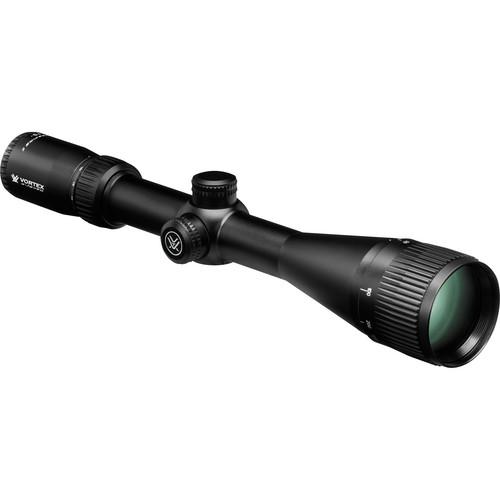

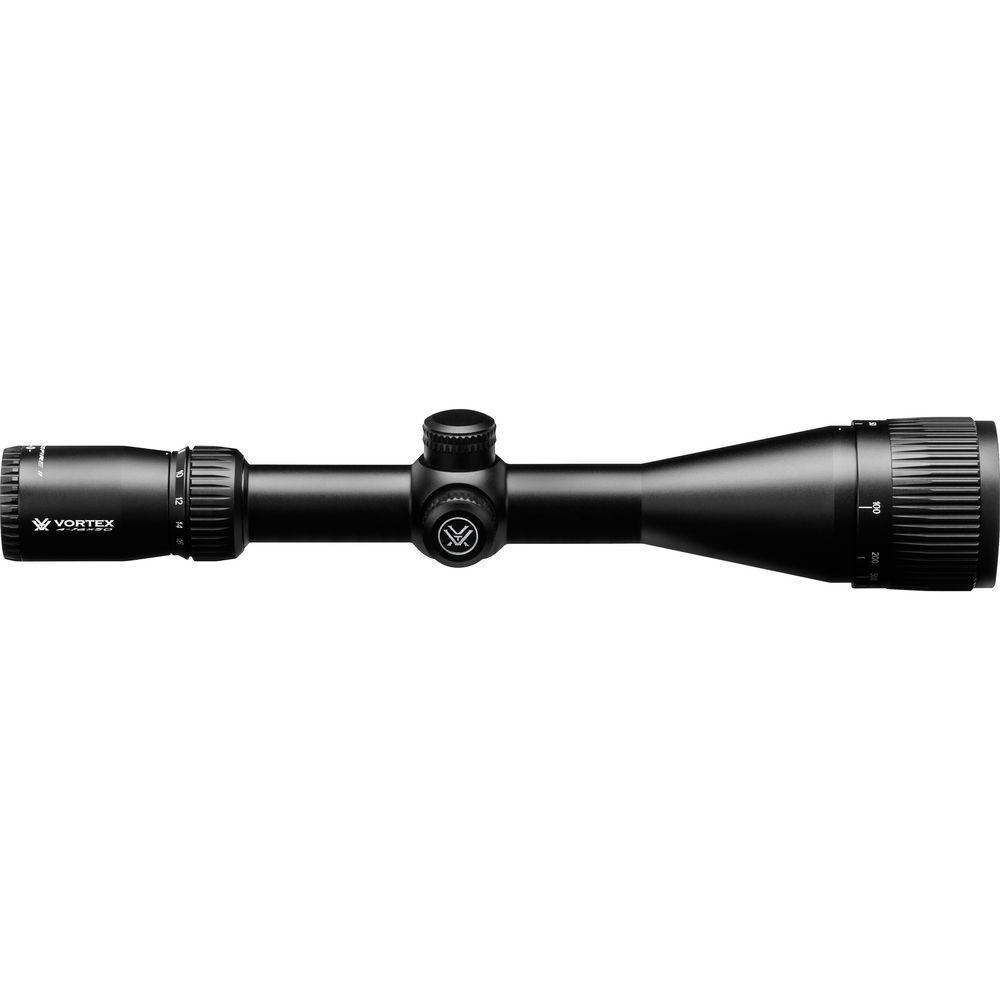

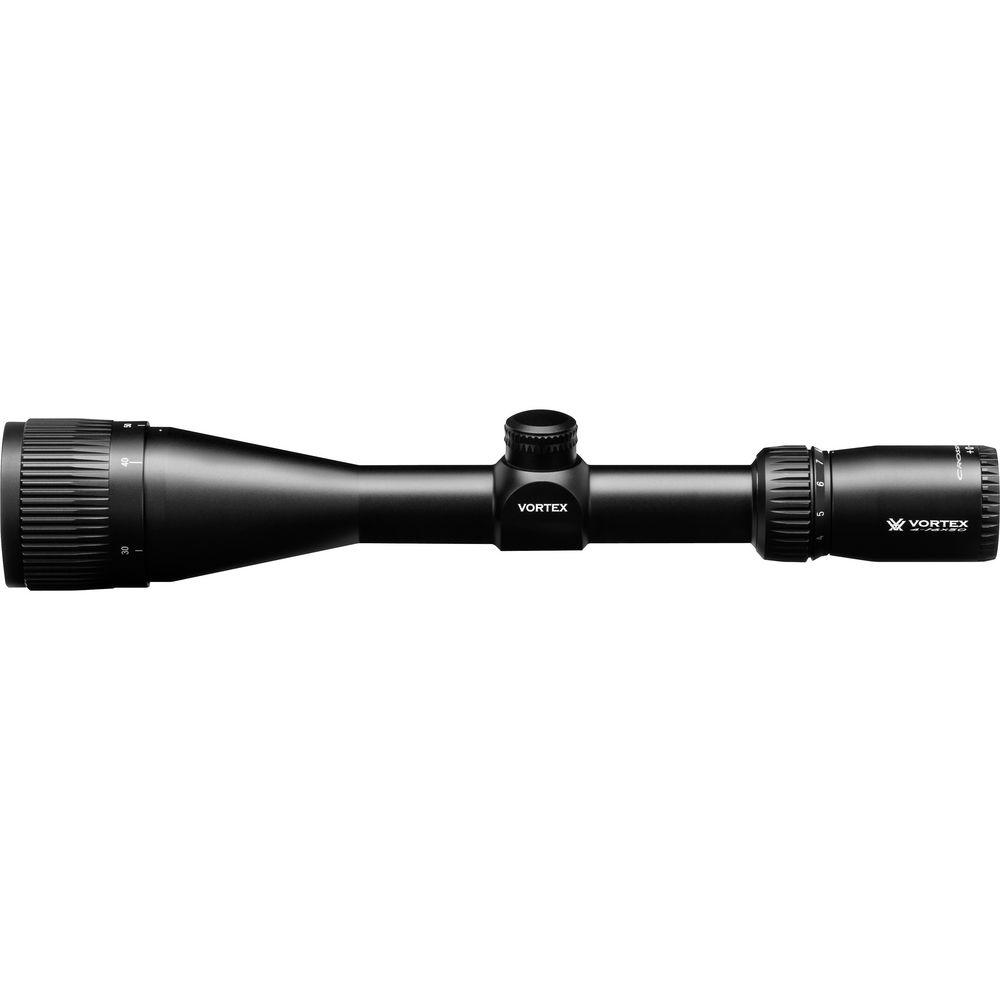

Product description The 4-16x50 Crossfire II AO Riflescope from Vortex Optics features a large objective lens with fully multicoated optics for low-light performance such as at dawn and dusk. Featuring the versatile Dead-Hold BDC duplex reticle on the Second Focal Plane (SFP), this utilitarian reticle is easy to see and use in all lighting conditions at all magnifications. With the reticle on the SFP, the subtensions are accurate at 16x. Performance is enhanced further with 1/4 MOA per click shot correction and 15 MOA of travel for precise impact-point, and windage and elevation adjustments. A fast-focus eyepiece with a 3.7" eye relief lets you quickly re-focus after changing magnifications or targets. Designed for the rigors of outdoor use, the housing has a matte-black scratch and corrosion-resistant anodized finish and is nitrogen-filled for water and fogproof performance. - Optical Performance
-
- Magnification: 4-16x
- Objective lens: 50mm
- Main-tube diameter: 30mm

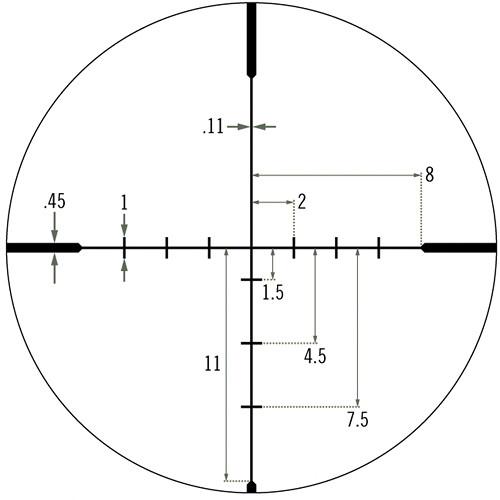

- Dead-Hold Ballistic Drop Compensation (BDC) duplex reticle on the Second Focal Plane (SFP)
- Use and Handling
-
- Reticle subtensions are accurate at 16x
- Capped low-profile windage and elevation turrets with knurled grips
- Turrets can be re-indexed to zero after initial sighting
- 1/4 MOA per click impact point correction, with 15 MOA travel per rotation

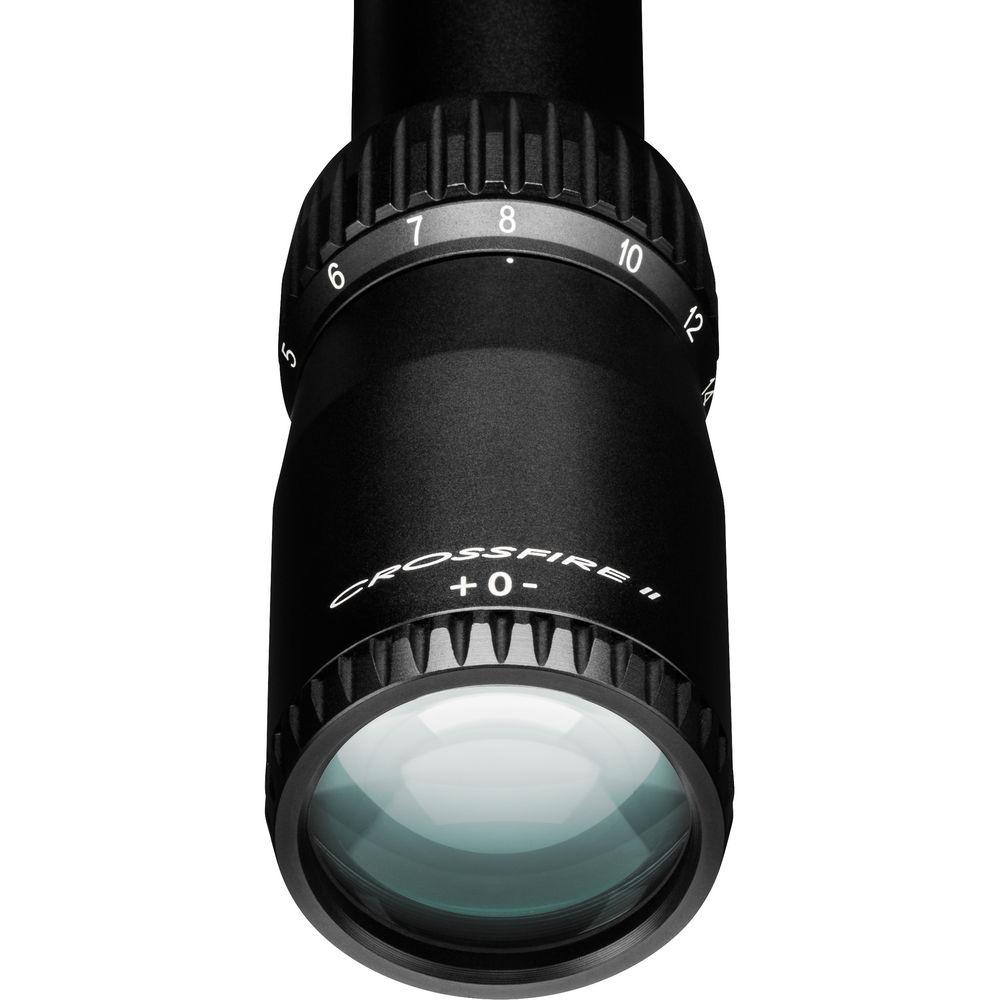

- Fast focus eyepiece with 3.7" eye relief
- Construction Details
-
- One piece aluminum main-tube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled for water and fogproof performance
UPC: 875874005563 In the Box Vortex 4-16x50 Crossfire II AO Riflescope (BDC Reticle) Lens Cloth 2 x Lens Covers 4" Sunshade Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 4-16x50 Crossfire II AO Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex CF2-31039 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 25.3' @ 100 yd / 8.4 m @ 100 m
16x: 7' @ 100 yd / 2.3 m @ 100 m | | Exit Pupil Diameter | 4x: 12.5 mm
16x: 3.1 mm | | Eye Relief | 3.7" / 94 mm | | | | Reticle Type | Dead-Hold BDC Duplex Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | Parallax Correction | Yes, 25 yd / 22.9 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 14.2" / 36.1 cm | | Weight | 23.6 oz / 669 g | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 18.0 x 4.7 x 3.5" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
