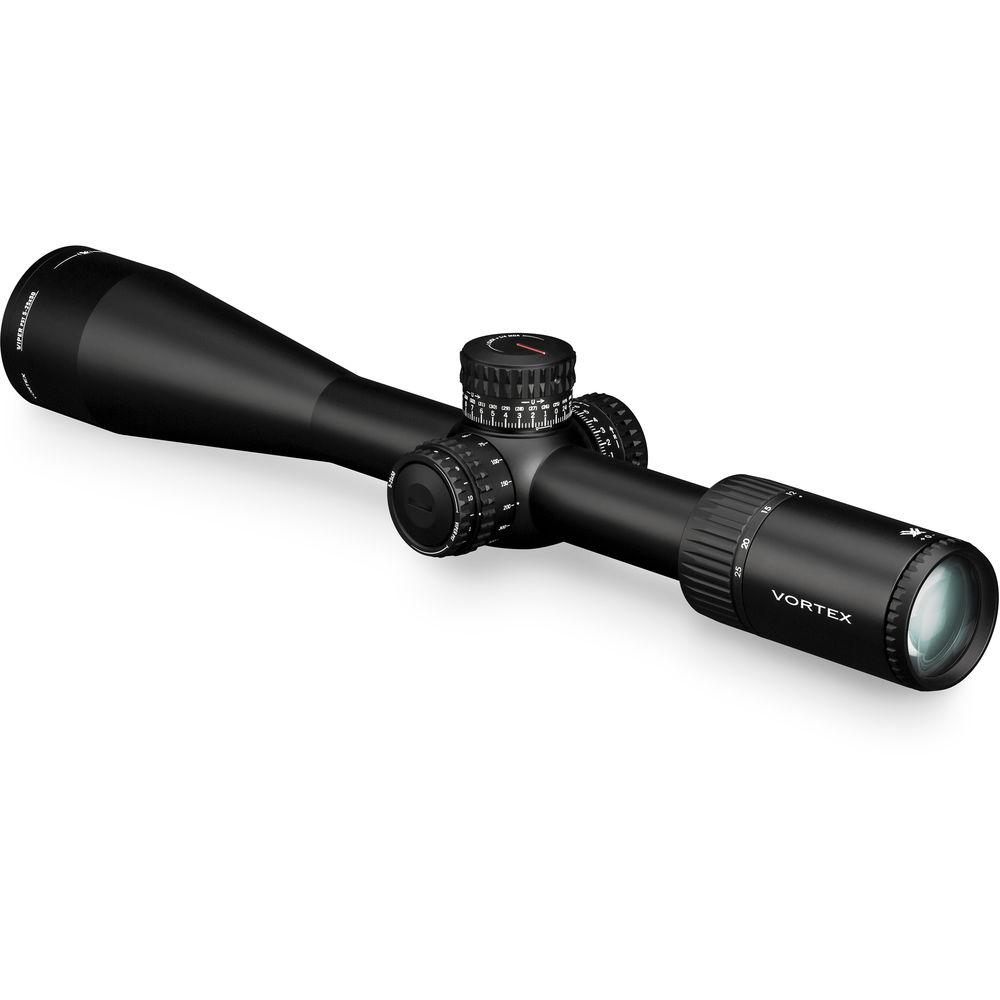

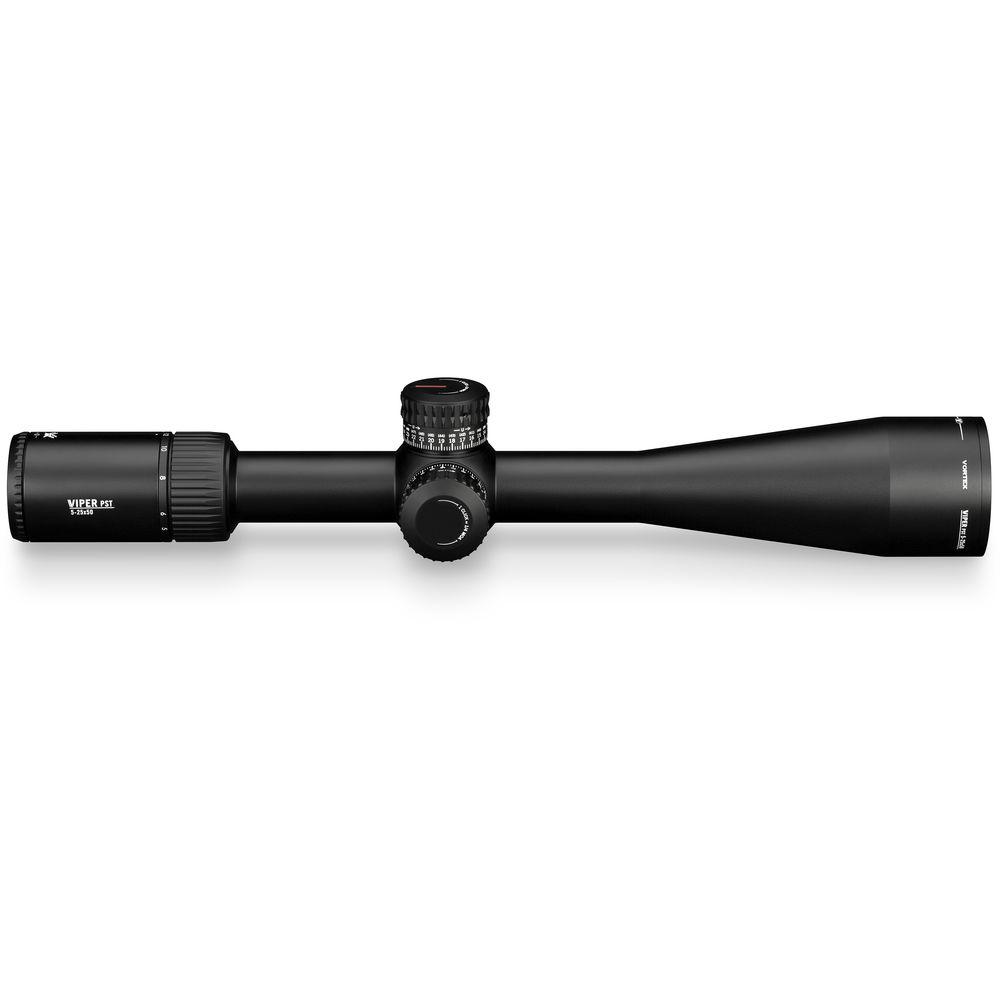

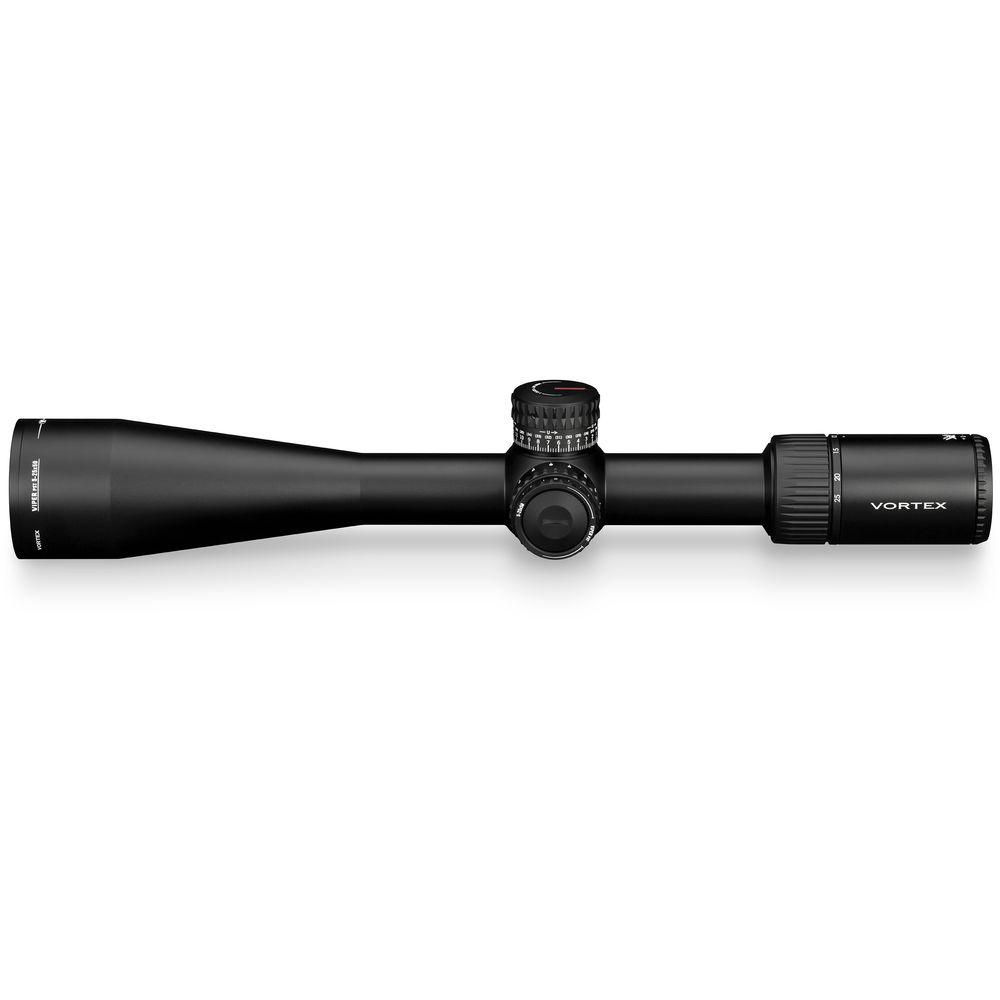

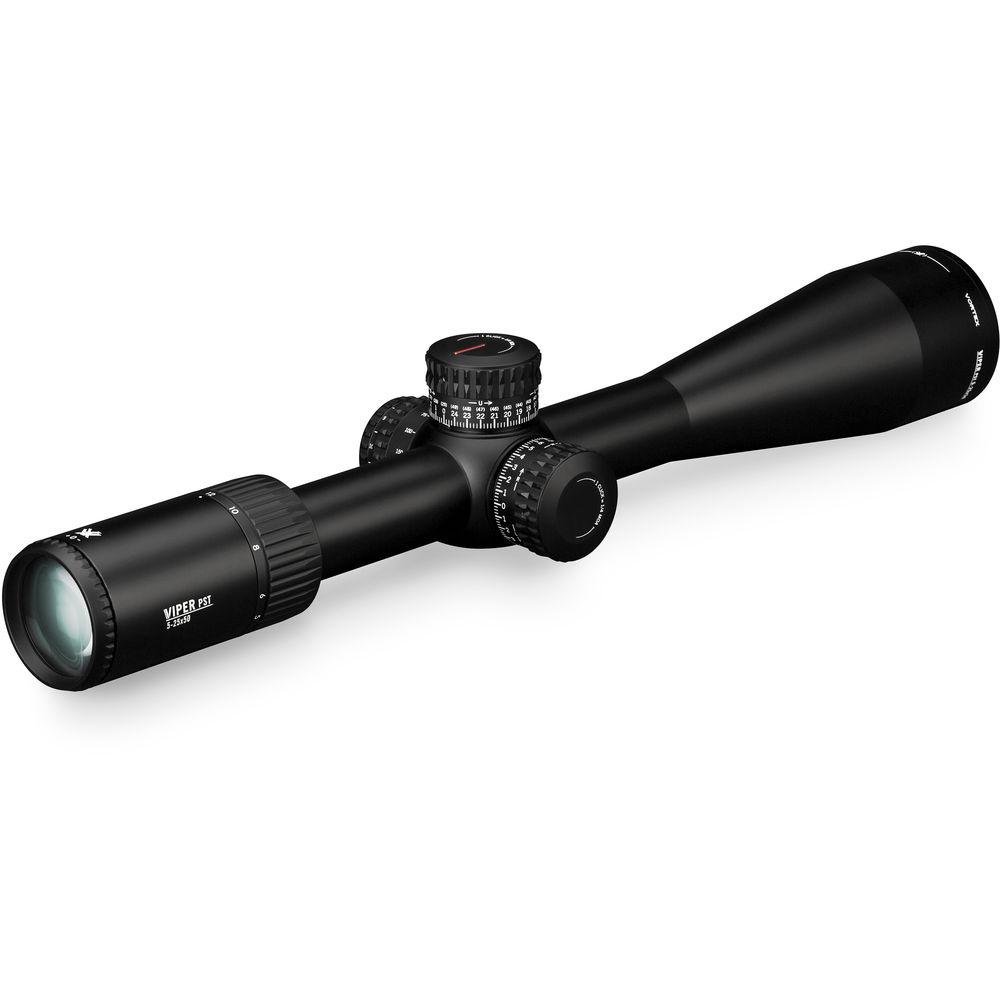

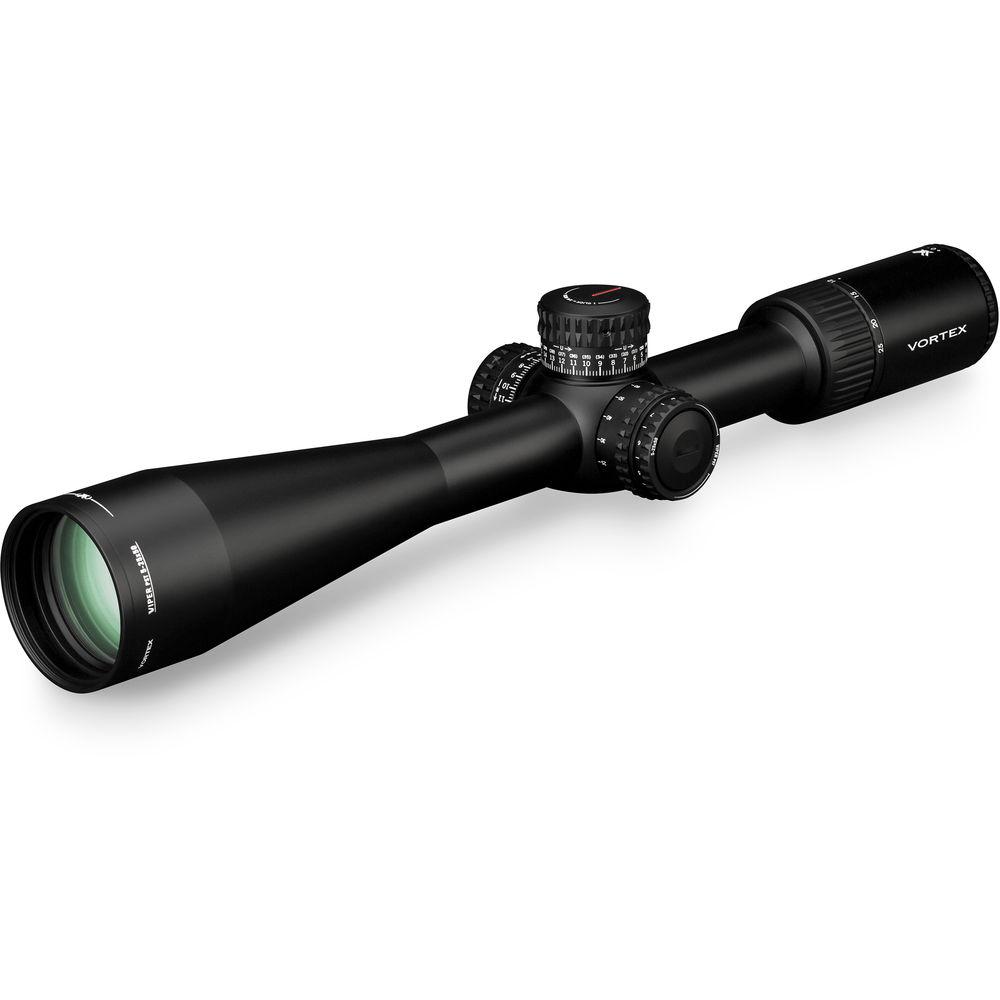

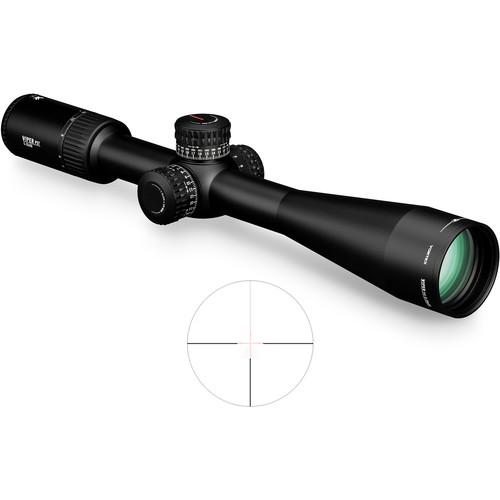

User Manual for Vortex 5-25x50 Viper PST Gen II Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 5-25x50 Viper PST Gen II
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 5-25x50 Viper PST Gen II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description Vortex Optics' 5-25x50 Viper PST Gen II Riflescope is a rock-solid scope, ideally suited to provide you an upper hand in close quarters combat. Its superior quality optical system matches the precision and strength of the mechanics to deliver the accuracy and reliability required in demanding situations. With the Extra-Low Dispersion (XD) optical elements, treated with the high-transmission XR full multi-coatings and ArmorTek protective coatings, you will obtain bright, clear, glare-free, and true color images along with protection of exterior lens surfaces from scratches, dirt, and oil stains. With the wide 50mm objective lens, you scope will gather most light in the most challenging lighting conditions and perform well in twilight. To enable with the laser-sharp shot placements, the scope features the illumined 1st focal plane EBR-2C MOA reticle. The reticle features a modified German 4 style with three medium posts and an illuminated crosshair containing a system of MOA ranging and compensation markings. The illumination rheostat is located on the windage and elevation box and offers a graduated control knob with 10 brightness levels. The parallax-free can be adjusted 25 yards to infinity.

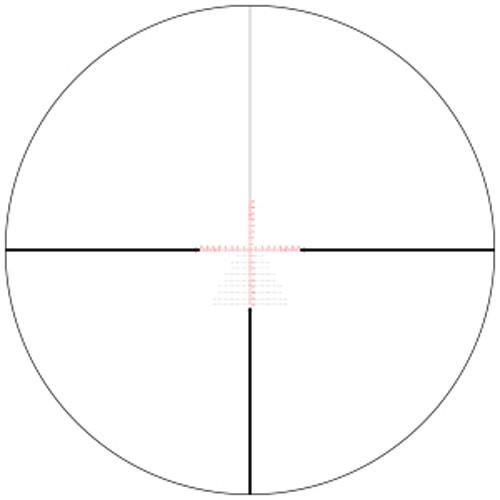

The high-quality aluminum housing is built around a durable single-piece 30mm maintube. One of the highlights of the mechanics is the Precision-Glide Erector System that ensures that zooming action remains smooth under the most challenging conditions. For consistent repeatability and ease of adjustment, Vortex outfitted this optic with a Precision-Force Spring System. The scope's windage and elevation provide exposed graduated turrets with red fiber optic position markers on the knobs. The entire construction is robust, argon-filled fogproof, and O-ring sealed waterproof to ensure reliable performance for years of service. - EBR-2C MOA Illuminated Reticle
-
- 1st focal plane
- Modified German 4 style
- Three medium posts
- Illuminated crosshair
- Crosshair contains an extensive system of major and minor MOA compensation bars
- Reticle measurements are provided at max magnification
- Posts subtend 2 MOA
- Gate between horizontal posts is 66 MOA
- Crosshair line extends down from center 38 MOA
- Parallax-free from 25 yd to infinity
- 10 illumination brightness levels
- Optical Performance
-
- 5-25x magnification
- 50mm objective lens
- Extra-Low Dispersion (XD) glass elements reduce color distortions and improve true color
- XR anti-reflective fully multi-coated to increase brightness and resolution
- ArmorTek scratch-resistant coating protects external lenses from damage, oil, and dirt
- Use and Handling
-
- 1/4 MOA per click impact-point correction
- 35 MOA windage and 70 MOA elevation adjustment ranges
- Construction Details
-
- High-quality aluminum housing
- Single-piece 30mm maintube
- Fast focus eyepiece
- Capped windage and elevation turrets
- Proprietary RZR precision zero stop mechanism
- Dedicated illumination control knob on the windage/elevation box
- Corrosion-resistant low-glare hard anodized finish
- Argon-filled and O-ring sealed for water and fogproof performance
- Precision-Glide Erector System enables smooth zoom in all weather conditions
- Precision-Force Spring System within the erector systems ensures repeatability and easy of adjustment
- Impact-resistant
UPC: 875874006676 In the Box Vortex 5-25x50 Viper PST Gen II Riflescope (EBR-2C MOA Illuminated Reticle, Matte Black) - CR-2032 Battery
- 3" Sunshade
- 2mm Hex Wrench
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 5-25x50 Viper PST Gen II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex PST-5255 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 50 mm | | Field of View | 5x: 24.1' @ 100 yd / 8 m @ 100 m
25x: 4.8' @ 100 yd / 1.6 m @ 100 m | | Eye Relief | 3.4" / 86.4 mm | | | | Reticle Type | EBR-2C MOA Reticle (First Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 35 MOA | | Elevation Adjustment | 70 MOA | | Parallax Correction | Yes, 25 yd / 22.9 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16" / 406 mm | | Weight | 31.2 oz / 884.5 g | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 19.5 x 4.2 x 4.1" |
