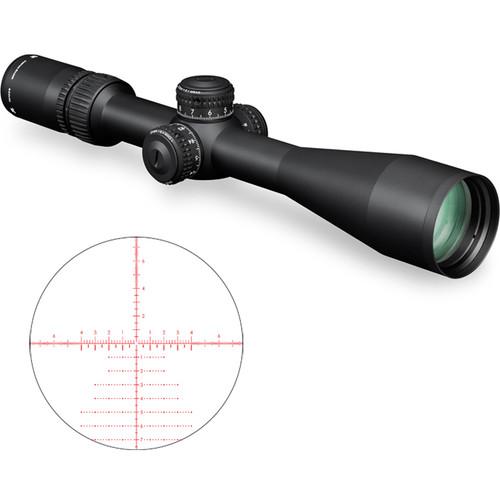

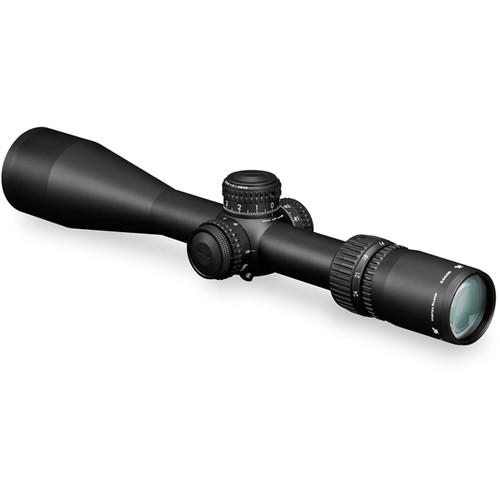

Product description Designed for long-range and precision shooting Vortex's 6-24x50 Razor HD AMG Riflescope also boasts extreme durability, high mechanical precision, and superior high-definition and Extra-Low dispersion optics. To offer exceptional image quality and transmission of balanced color spectrum, low dispersion of passing light, and to deliver high definition true-color images, the lenses are crafted from a high-definition (HD) Extra-Low dispersion optical glass. The 50mm objective is ideal for low-light conditions and features a special apochromatic design (APO) to deliver images with a natural color balance. The lenses are fully multi-coated with proprietary XRPlus anti-reflection coatings for maximum transmission and minimum glare. With the additional ArmorTek scratch-resistant coating, the objective lens is protected from scratches, debris, dirt, oil, and fingerprint stains.

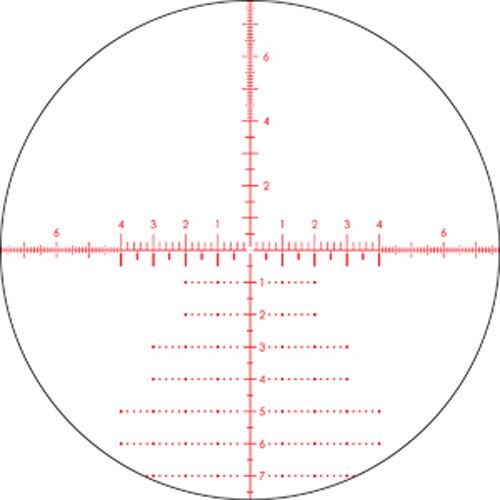

Located in the first focal plane is the EBR-7B Illuminated Enhanced Battle Reticle. It is a hash-marked ranging reticle that uses MRAD-based markings and an extensive grid of fine dots below the center for bullet drop and wind compensation. Its fully-illuminated crosshair (with ultra-fine hash marks) extends side-to-side 20 MRAD laterally and 11 MRAD down from the center. The overall reticle pattern provides a clear and unobtrusive view of your targets and offers adjustable illumination.

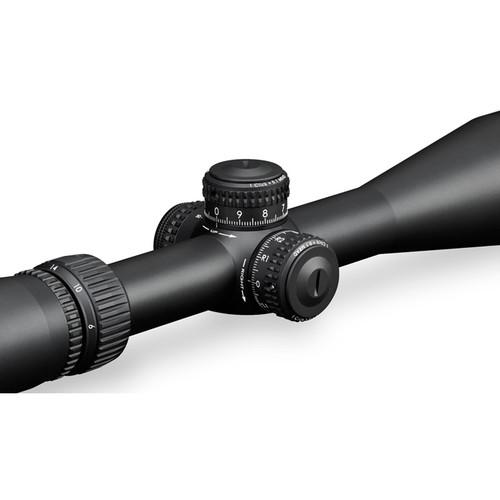

To match exceptional optical performance, this riflescope also offers extremely durable construction and precision adjustments. Its 30mm maintube is machined from a single-piece of high quality aluminum and coated with a hard, Type III abrasive-resistant anodized finish. The scope is filled with argon gas and sealed with O-rings for a complete fogproof and waterproof performance. The Erector Tube System is enhanced with anti-galling properties and a stainless steel offset coil spring biasing system to withstand high stress from recoil and impact. It allows much more internal elevation and windage travel with better freedom of movement for ultimate in turret precision. The proprietary L-Tec Turrets feature an integrated locking mechanism to prevent accidental adjustments and offer fast, accurate, and easily-read elevation and windage adjustments. Their performance is enhanced with silicon-brass alloy screws with dry film lubricant for low-friction and wear-resistant adjustments. The overall external design emphasizes strength, performance, and convenience. All of the adjustment rings on the eyepiece and the turrets have knurling for a slip-free and solid grip. The adjusters also have locking designs to prevent slippage past their set positions, including the illumination dial. For visual reference, the windage and elevation turrets display white numerical scales. - Optical Performance
-
- 6-24x magnification
- 50mm wide objective offers brighter images
- APO System: apochromatic objective lens system corrects for color across aberrations across the spectrum
- High-Definition, (HD) Extra-Low Dispersion glass delivers true color and high contrast
- XRPlus fully multi-coated optics improve image brightness, clarity, and detail
- Plasma Tech application process offers unparalleled durability of coatings
- ALO Alignment: automated laser-guided lenses alignment process for superior optical performance
- Optically Indexed Lenses: computer-controlled lens alignment process results in superior edge-to-edge reticle precision
- ArmorTek ultra-hard scratch-resistant coatings protect from scratches, debris, dirt, and oil
- Linear field of view: 20.4-5.1' at 100 yd
- Parallax correction: 25 yd to infinity
- Illuminated EBR-7B MRAD Reticle
-
- 1st focal plane
- Enhanced Battle Reticle
- Clear and unobtrusive views
- MRAD-based ultra-fine hash marks
- Subtensions are optimized for 24x
- Fully-illuminated crosshair
- 20 MRAD horizontal hair
- 11 MRAD range down from the center
- Extensive grid of fine illuminated dots for bullet drop and wind compensation
- Use and Handling
-
- 19 MRAD total windage
- 27.5 MRAD elevation range
- 1/10 MRAD impact point correction
- 10 MRAD travel per rotation
- Locking diopter correction
- Lockable illumination dial
- Side focus parallax
- Eye relief: 3.6"
- Exit pupil: 8.3-2.1mm
- Opto-mechanical Design Features
-
- L-Tec Zero Stop: steel components to prevent elevation turret from dialing below sight
- Micro-Adjust Zero Setting: zero can be set anywhere between clicks for optimal accuracy
- Friction Reduction System: heat-treated, hardened-steel floating pad prevents galling and ensures durability and repeatability
- Erector Tube System: silicon-brass alloy turret screws & dry-film lubricant for low-friction and wear-resistant performance
- Erector Tube System: precision-machined, anti-galling enhancement
- Stainless steel offset coil spring biasing resists higher stress and allows more windage/elevation travel precision
- Construction Details
-
- 30mm single-piece maintube
- Aluminum construction
- Type III hard-coat anodized finish
- Capped resettable turrets
- Fast-focus eyepiece provides quick visual reference
- Recoil and impact-resistant
- Fogproof, argon-filled
- Waterproof, sealed with O-rings
UPC: 875874009387 In the Box Vortex 6-24x50 Razor HD AMG Riflescope (Illuminated EBR-7B MRAD Reticle) - 3" Sunshade
- Defender Flip Cap Eyepiece
- Defender Flip Cap Objective 50
- CR-2032 Battery
- LTEC-Tool
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 6-24x50 Razor HD AMG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex RZR-AMG-5 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 6x: 20.4' @ 100 yd / 6.8 m @ 100 m
24x: 5.1' @ 100 yd / 1.7 m @ 100 m | | Exit Pupil Diameter | 6x: 8.3 mm
24x: 2.1 mm | | Eye Relief | 3.6" / 91.4 mm | | | | Reticle Type | EBR-7B MRAD Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 19 MRAD | | Elevation Adjustment | 27.5 MRAD | | Parallax Correction | Yes, 25 yd / 22.9 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.2" / 386.1 mm | | Weight | 28.8 oz / 816.5 g | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 17.8 x 7.5 x 4.3" |
