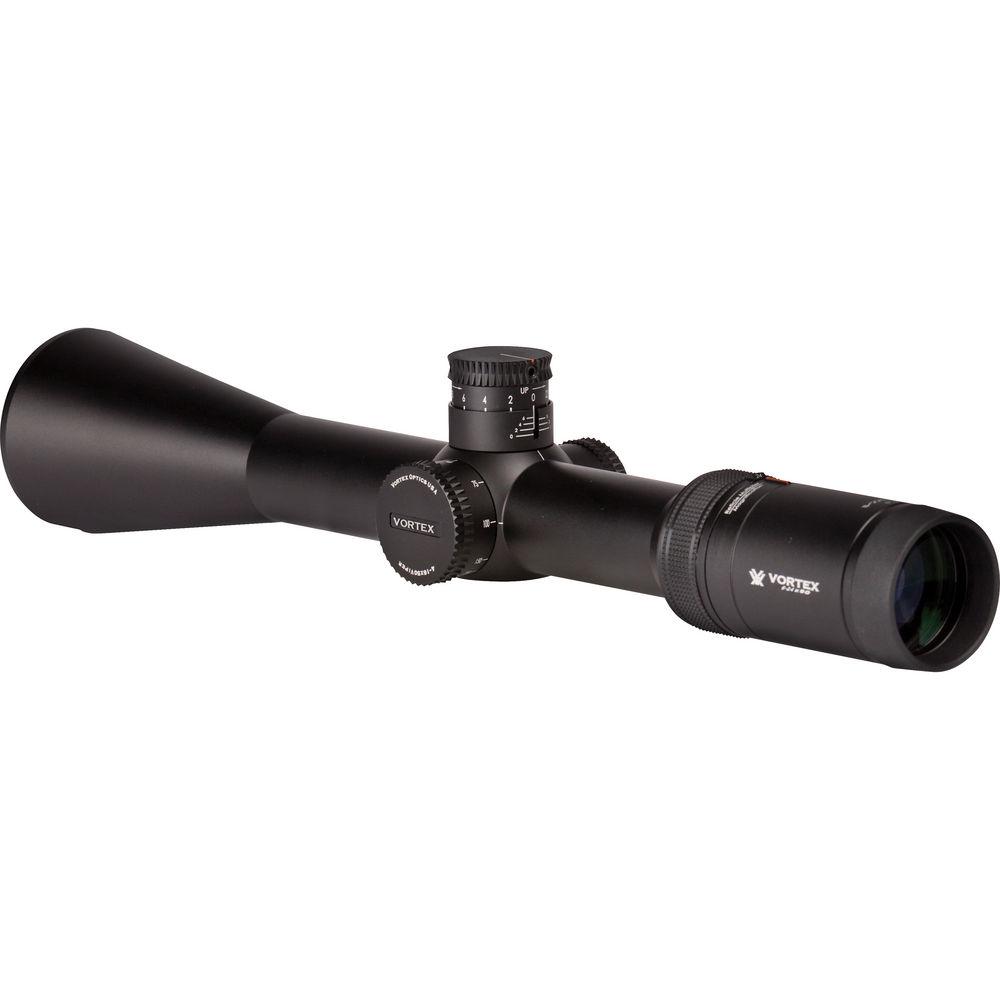

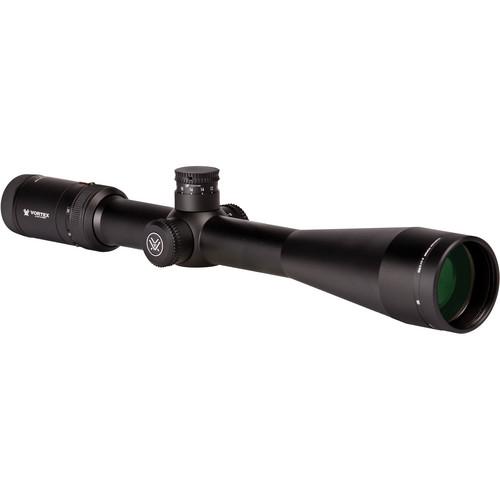

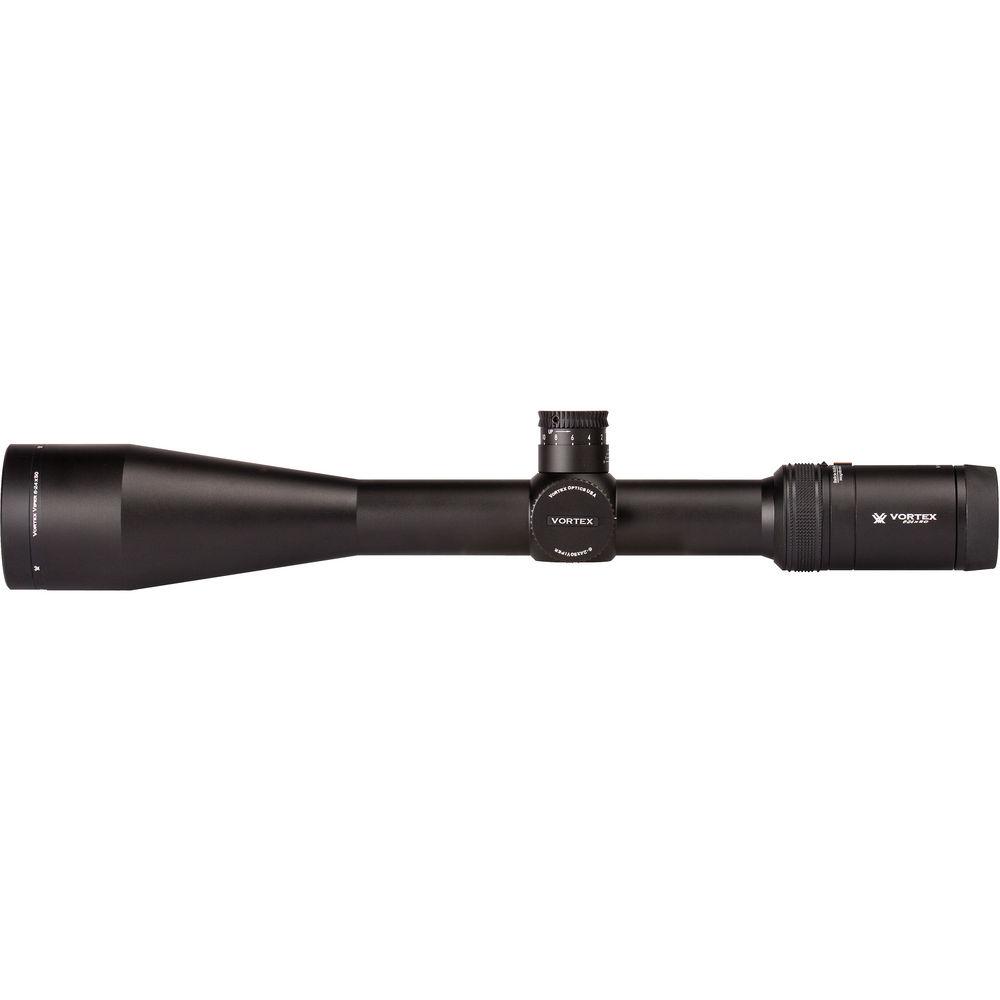

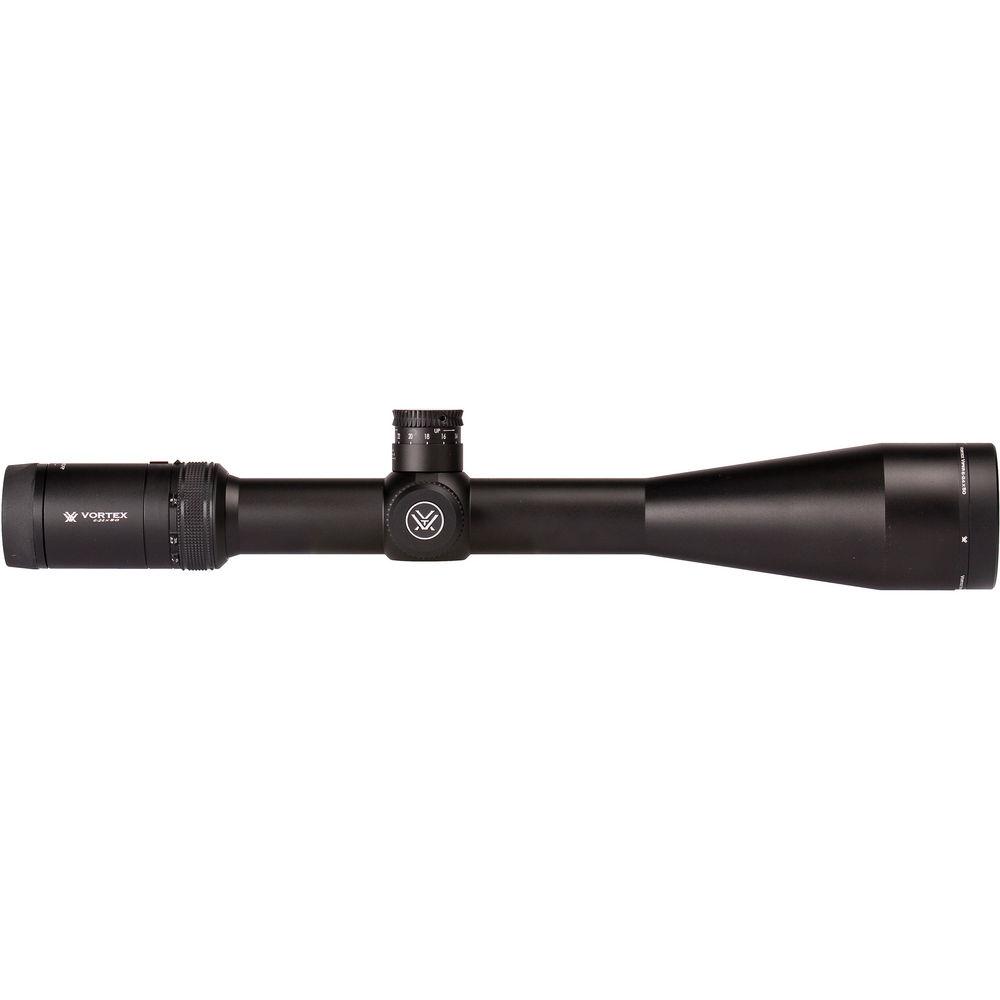

User Manual for Vortex 6-24x50 Viper HS Long Range Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 6-24x50 Viper HS Long Range
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 6-24x50 Viper HS Long Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The 6-24x50 Viper HS Long Range Riflescope with XLR MOA reticle from Vortex is specifically designed for intermediate to long-range hunting. The single-piece tube is machined from a solid block of aerospace aluminum then anodized, argon filled, and o-ring sealed for weatherproof and shockproof performance. Vortex's XD (extra-low dispersion) lens elements are engineered to provide improved color fidelity and image resolution; the elements are fully multicoated with a proprietary XR layer that enhances image brightness. To protect the lens surfaces from scratches and contamination, ArmorTek coatings are applied to the objective and ocular. This configuration of the Viper HS features a side focus parallax adjustment, in-view fiber optic magnification indicator, and an XLR MOA reticle with wind reference subtensions that assist wind drift calculations. - Optical Performance
-
- 6-24x magnification
- 30mm tube diameter
- 50mm objective diameter
- XD extra-low dispersion glass
- XR fully multicoated optics
- First focal plane reticle
- 17.8 - 5.1 ft (5.4 - 1.5 m) at 100 yd
- XLR MOA reticle with 1 MOA wind reference subtensions
- Parallax adjustable from 50 yd to infinity
- Use and Handling
-
- Customizable CRS Zero Stop prevents dialing more than one rotation below elevation zero
- Exposed elevation turret enables rapid holdover adjustments
- 12 MOA windage, 24 MOA elevation adjustment per rotation
- Mag-View fiber optic magnification indicator
- Fast focus eyepiece
- Construction Details
-
- One-piece main tube
- Aerospace aluminum main tube
- Low-glare hard-coat anodized tube
- ArmorTek scratch-resistant coated lens surfaces
- Argon filled and o-ring sealed for weatherproof performance
UPC: 875874004160 In the Box Vortex 6-24x50 Viper HS Long Range Riflescope (XLR FFP) 4" Sunshade 2 x Protective Lens Caps Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 6-24x50 Viper HS Long Range Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex VHS-4315-LR Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 6x: 17.8' @ 100 yd / 5.4 m @ 100 m
24x: 5.1' @ 100 yd / 1.5 m @ 100 m | | Eye Relief | 4" / 101.6 mm | | | | Reticle Type | XLR MOA Reticle (First Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click (Windage)
1/2 MOA per Click (Elevation) | | Windage Adjustment | 12 MOA | | Elevation Adjustment | 24 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 15.5" / 39 cm | | Weight | 23 oz / 652 g | | | | Package Weight | 2.705 lb | | Box Dimensions (LxWxH) | 19.85 x 4.5 x 4.4" |
