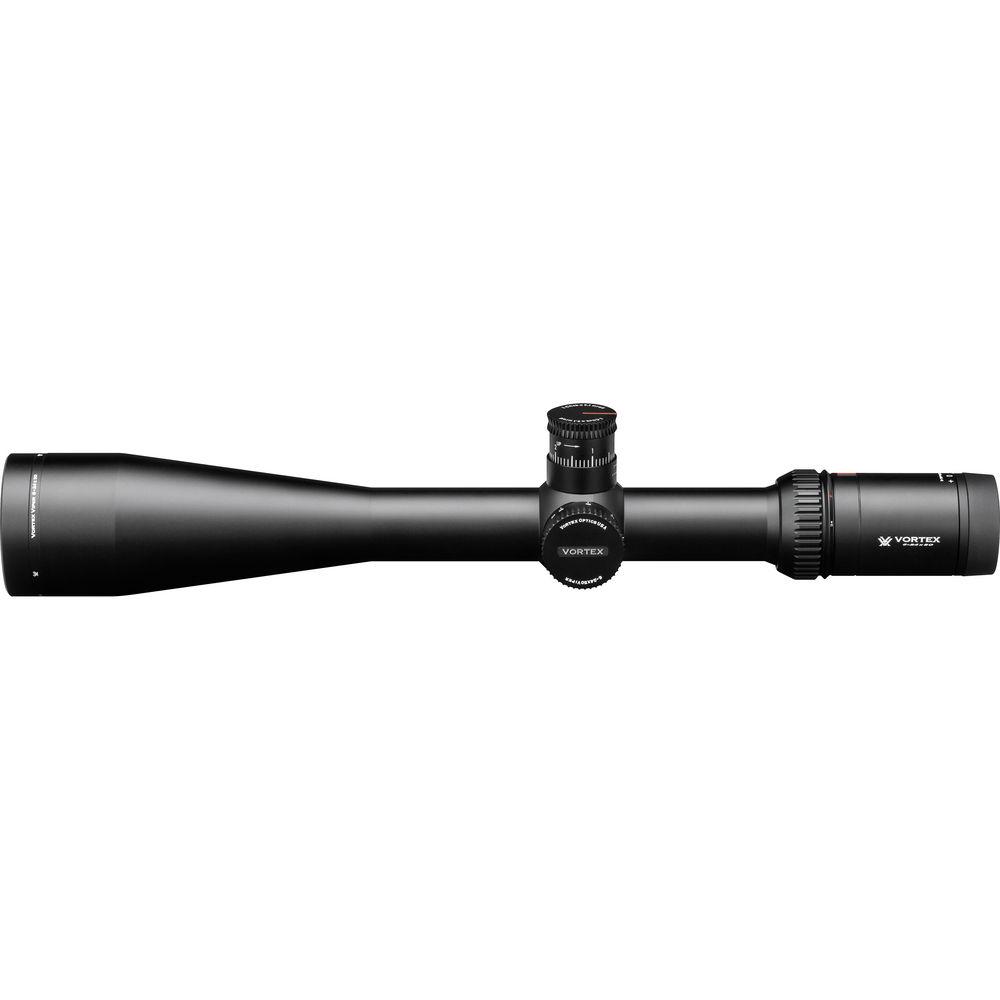

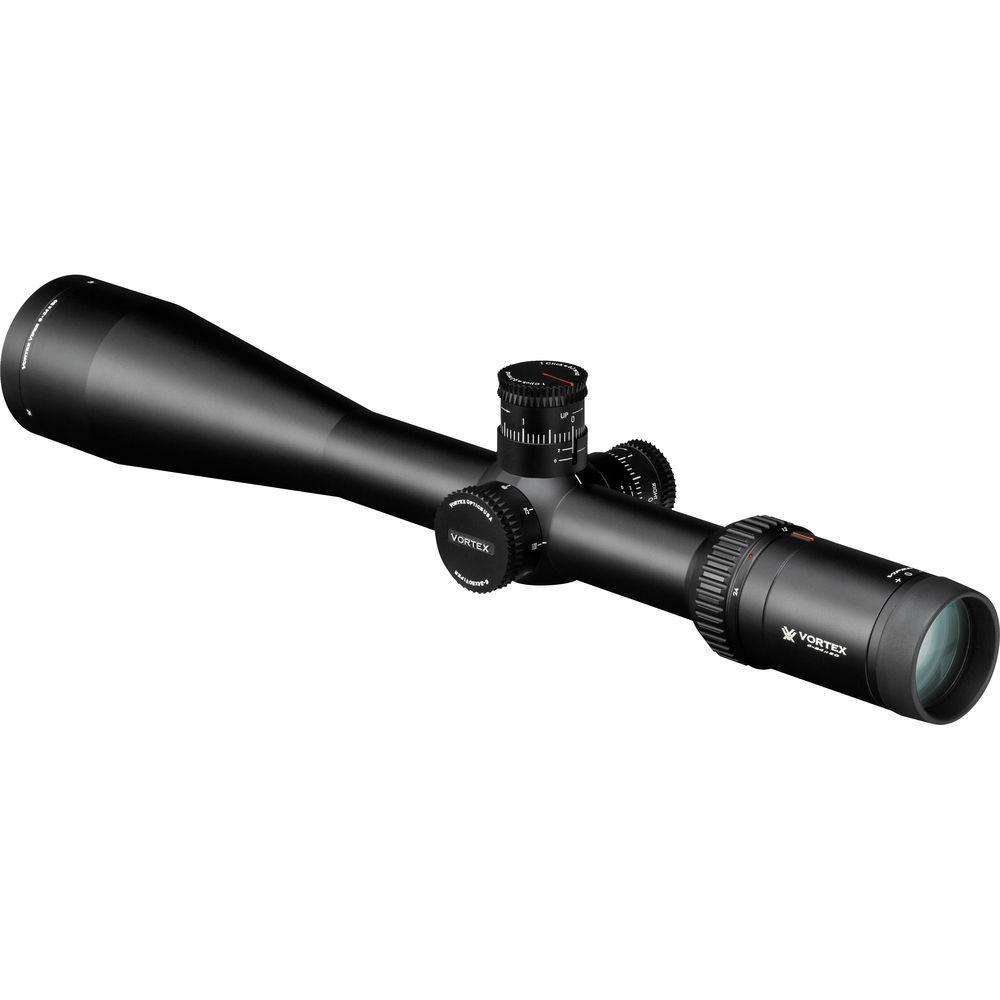

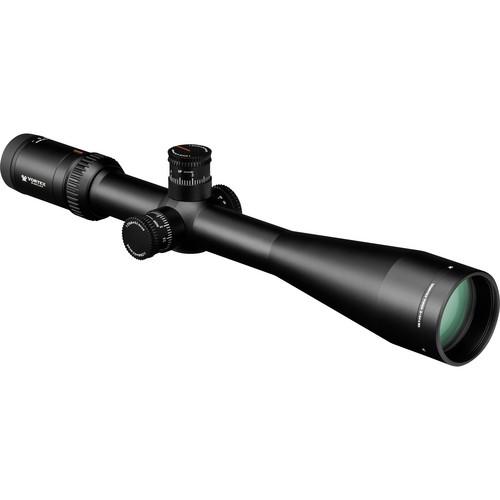

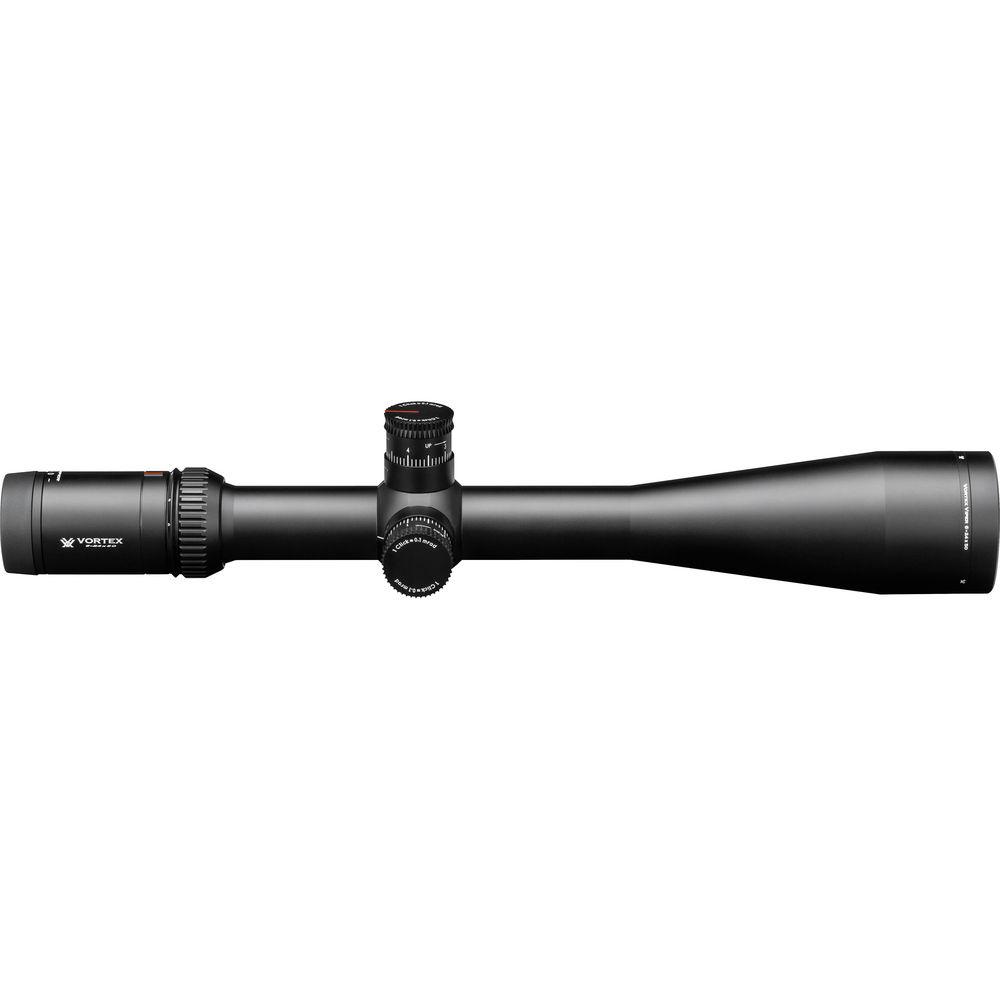

User Manual for Vortex 6-24x50 Viper HS-T Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 6-24x50 Viper HS-T Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 6-24x50 Viper HS-T Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The 6-24x50 Viper HS-T Riflescope from Vortex Optics is designed to be a versatile scope for use in the field, on the range, and for tactical operations with medium to long-range targets. All of the scope's glass is made with XD extra-low dispersion glass and are XR antireflective fully multicoated to produce images that are bright and clear, with true color representation without distortion, across the entire field of view. Its large objective lens is ideal for use in low-light conditions such as at dawn and dusk when many game animals are most active. The 30mm main-tube is made from a single piece of aluminum. A matte-black hard anodized finish reduces reflection off the scope body, and resists scratching and corrosion. It's argon-filled for water and fogproof performance in all weather conditions.Adding to the HS-T's versatility is the modified duplex VMR-1 MRAD reticle situated on the second focal plane. This utilitarian reticle has thick outer posts, and thin center hairs with MRAD hash-marks on both axes for ranging, hold-over, and shot correction. The lower vertical post is shorter to provide a longer elevation range. - Optical Performance
-
- 6-24x zoom
- 50mm objective lens
- XR anti-reflective fully multicoated optics increase light transmission
- XD extra-low dispersion glass increases resolution and color fidelity, resulting in crisp and sharp images
- Precision-Glide Erector System: Zoom lens mechanism ensures smooth magnification changes under extreme conditions
- Etched-glass reticle placed on the Second Focal Plane (SFP)
- Use and Handling
-

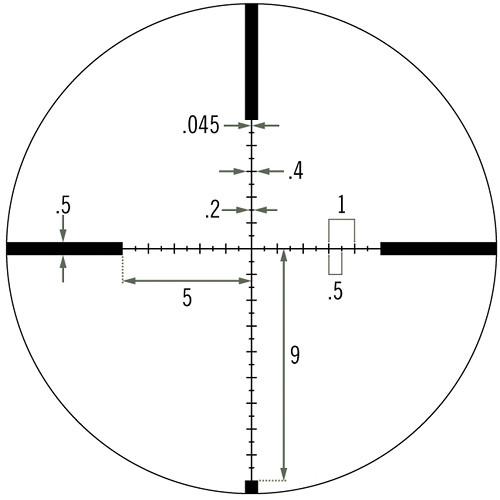

- VMR-1 MRAD duplex crosshair reticle
- Large outer posts and thin center hairs with MRAD hash-marks to aid in hold-over, corrections, and ranging
- Lower post is shorter, with longer hairs and more hash-marks for a grater elevation range
- 0.1 MRAD per click impact point correction
- 19 MRAD windage/elevation adjustment range, with 5 MRAD travel per rotation
- Tactical exposed turrets provide fast and accurate adjustments and correctiosn
- Customizable Rotational Stop (CRS) Zero-Stop aids in return to zero after dialing temporary elevation correction
- Side-focus parallax knob: corrects parallax error from 50 yd to infinity
- Fast Focus Eyepiece with 4" long eye relief
- Construction Details
-
- Argon-filled, water and fogproof
- 30mm aluminum single-piece main-tube
- Scratch and corrosion-resistant matte-black anodized finish
- MAG-View bar: Fiber optic indicator provides a reference point for the magnification setting
- Radius bar: Fiber optic turret rotation indicator provides a point of reference for turret rotations
- ArmorTek ultra-hard scratch-resistant lens coating protects against scratches, oil and dirt
UPC: 875874005600 In the Box Vortex 6-24x50 Viper HS-T Riflescope (VMR-1 MRAD Reticle) Lens Cloth 2 x Lens Caps 4" Sunshade Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 6-24x50 Viper HS-T Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex VHS-4310 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 50 mm | | Field of View | 6x: 7.8' @ 100 yd / 2.6 m @ 100 m
24x: 5.1' @ 100 yd / 1.7 m @ 100 m | | Exit Pupil Diameter | 6x: 8.3 mm
24x: 2.1 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | VMR-1 MRAD Reticle (Second Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment | 19 MRAD | | Elevation Adjustment | 19 MRAD | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 15.5" / 39.4 cm | | Weight | 22.6 oz / 641 g | | | | Package Weight | 2.77 lb | | Box Dimensions (LxWxH) | 19.7 x 4.65 x 4.5" |
