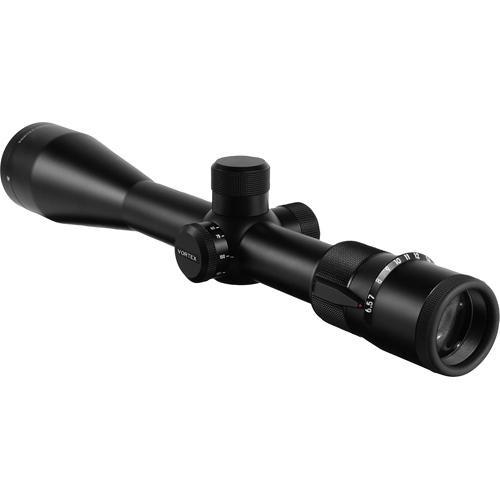

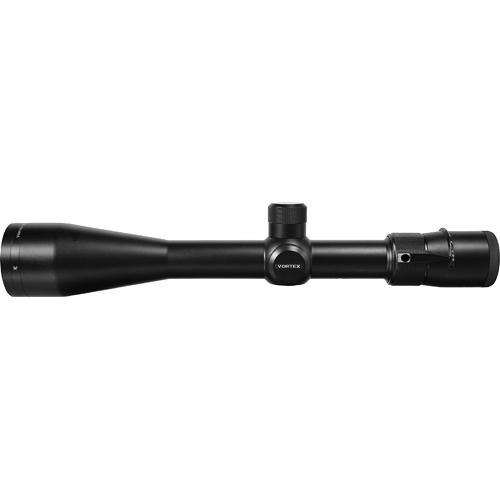

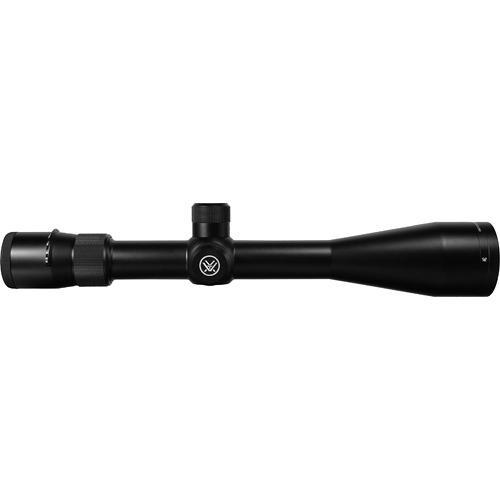

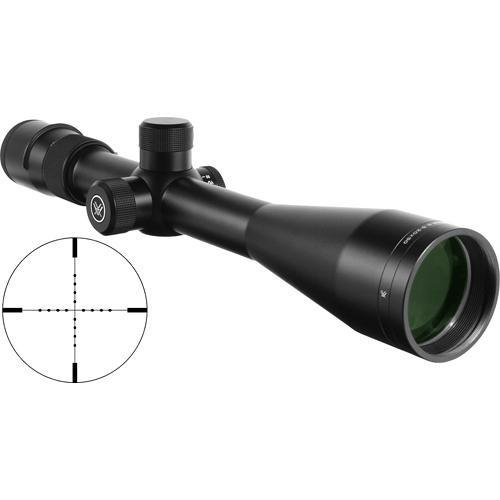

User Manual for Vortex 6.5-20x50 Viper PA Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex 6.5-20x50 Viper PA Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex 6.5-20x50 Viper PA Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description Vortex is dedicated to the development and production of unique optics with features that allow you to see the world more clearly. Viper riflescopes offer a cornucopia of high-end features to enhance your next great outdoor adventure. These scopes are fitted with XD-glass objective lenses with XR multicoatings for a refined sight picture with brilliant contrast and edge-to-edge clarity. Repeatable accuracy is ensured by the Precision-Glide Erector System and the Precision-Force Spring System - your zero will be easy to attain, and it'll stay put under recoil. The importance of refinements such as the MAG-View Lever, pop-up turrets, and argon purging becomes readily apparent when you catch that first glimpse of a trophy buck way up high on a distant ridge. Your sight picture will be crystal clear, and rich with previously unseen details. Adjusting windage and elevation will seem effortless - you'll be on target at any distance in a flash. This Viper PA 6.5-20x50 offers high-magnification for long-range target acquisition, and a large 50mm objective for a brighter sight picture. It's configured with a 30mm main-tube, tall turrets with 1/4 MOA clicks and 68 MOA of travel, a Mil-Dot reticle, and a matte black finish. A mounting base and rings are used to attach a riflescope to a firearm. A comfortable sight picture is contingent upon the height of the rings. A comfortable cheek-weld is the result of properly positioning the scope over the receiver. Mounting the scope close to the receiver is preferable, yet scopes with larger objectives need higher rings so the front bell can clear the barrel. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - 30mm One-piece aluminum main tube
- Fast focus eyepiece for rapid target acquisition
- Argon purging for water and fogproof performance
- Side focus knob corrects parallax error from 50 yd to infinity
- Tall target-style turrets with 1/4 MOA clicks and 68 MOA of travel
- XD glass with XR multi-layer coatings deliver edge-to-edge clarity
- MAG-View Adjustment Lever - visible numbers facilitates rapid magnification adjustment
- Precision-Force Spring System reduces fatigue and wear on the erector support system
- Precision-Glide Erector System provides resistance to stress, thermal, and friction-induced wear

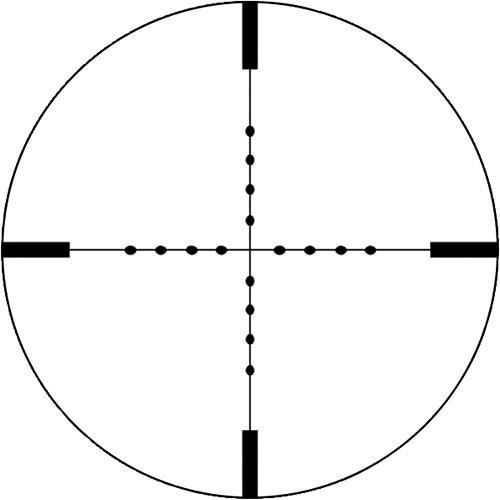

- Mil-Dot Reticle in the Second Focal Plane
- The Mil-Dot reticle features four posts and fine cross hairs with dots. The dots can be used to gage distance to a target of a known size by employing the Mil-Dot distance-ranging system.
Second focal plane placement of the reticle maintains its size throughout the magnification range. UPC: 875874001848 In the Box Vortex 6.5-20x50 Viper PA Riflescope (Matte Black) Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 6.5-20x50 Viper PA Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex VPR-M-06MD Specs | | | Magnification | 6.5 to 20x | | Objective Lens Diameter | 50 mm | | Field of View | 6.5x: 17.4' @ 100 yd / 58 m @ 100 m
20x: 6.2' @ 100 yd / 21 m @ 100 m | | Exit Pupil Diameter | 6.5x: 7.7 mm
20x: 2.5 mm | | Eye Relief | 3.1 to 3.3" / 78.7 to 83.8 mm | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 68 MOA | | Elevation Adjustment | 68 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 14.4" / 36.5 cm | | Weight | 21.6 oz / 612 g | | | | Package Weight | 2.26 lb | | Box Dimensions (LxWxH) | 16.3 x 4.45 x 4.35" |
