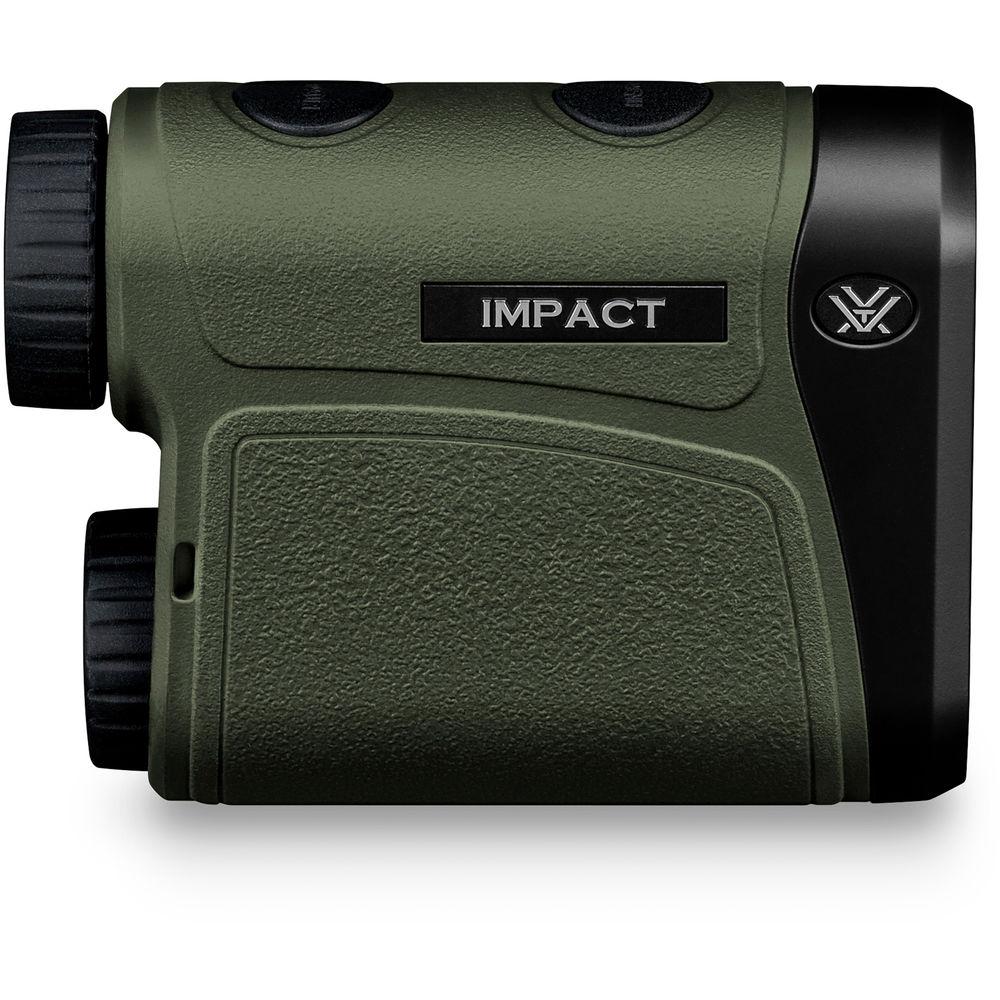

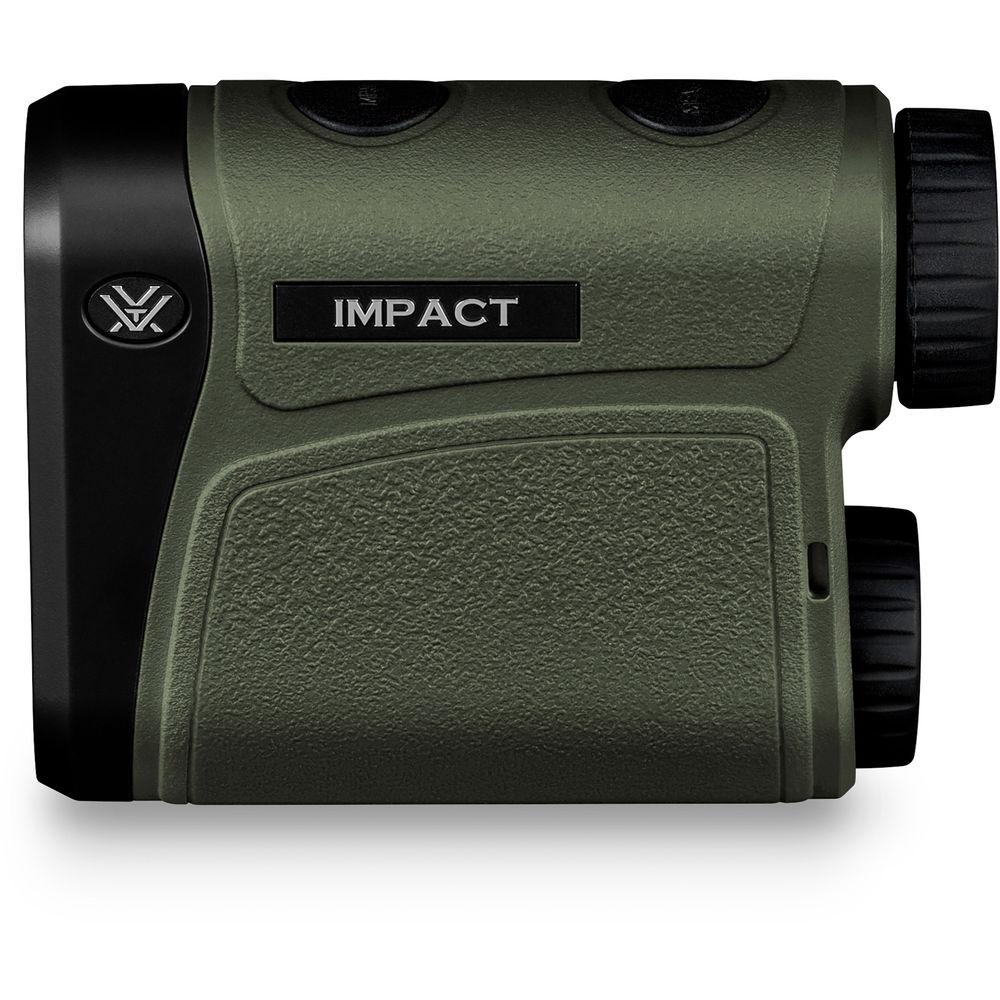

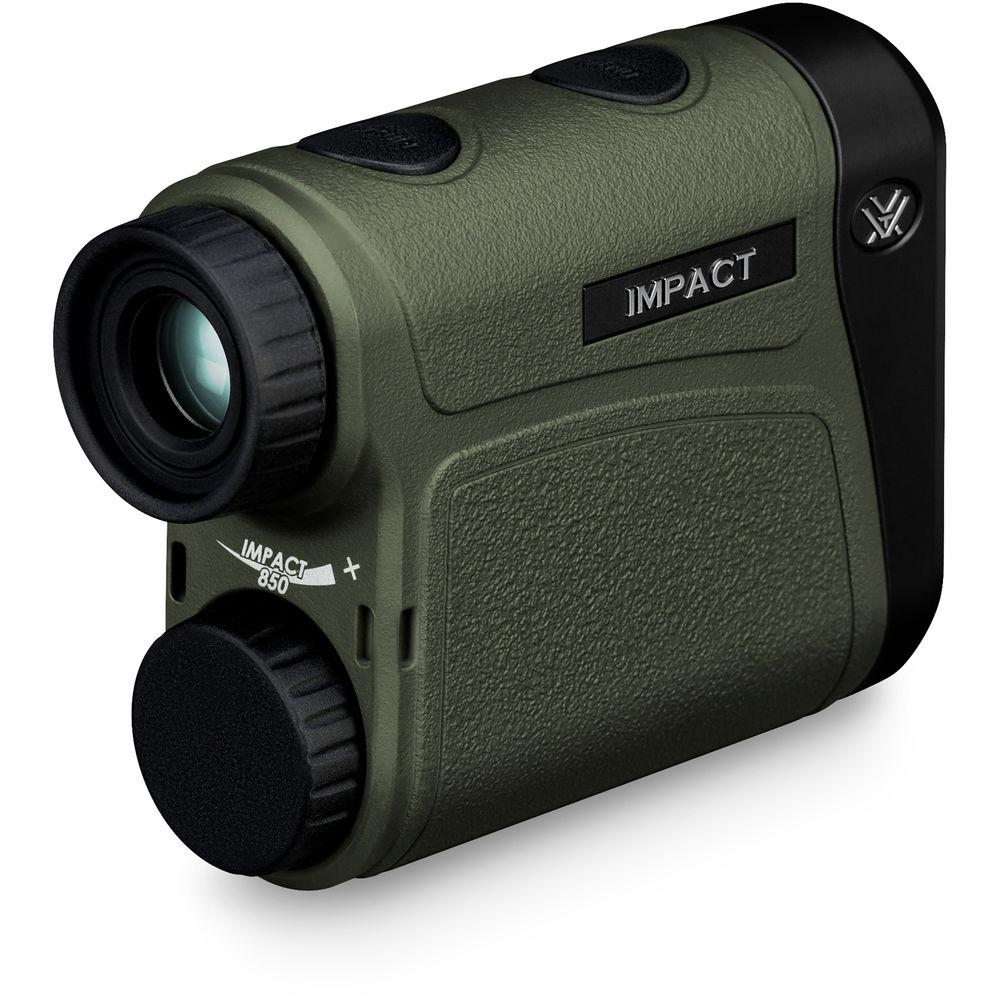

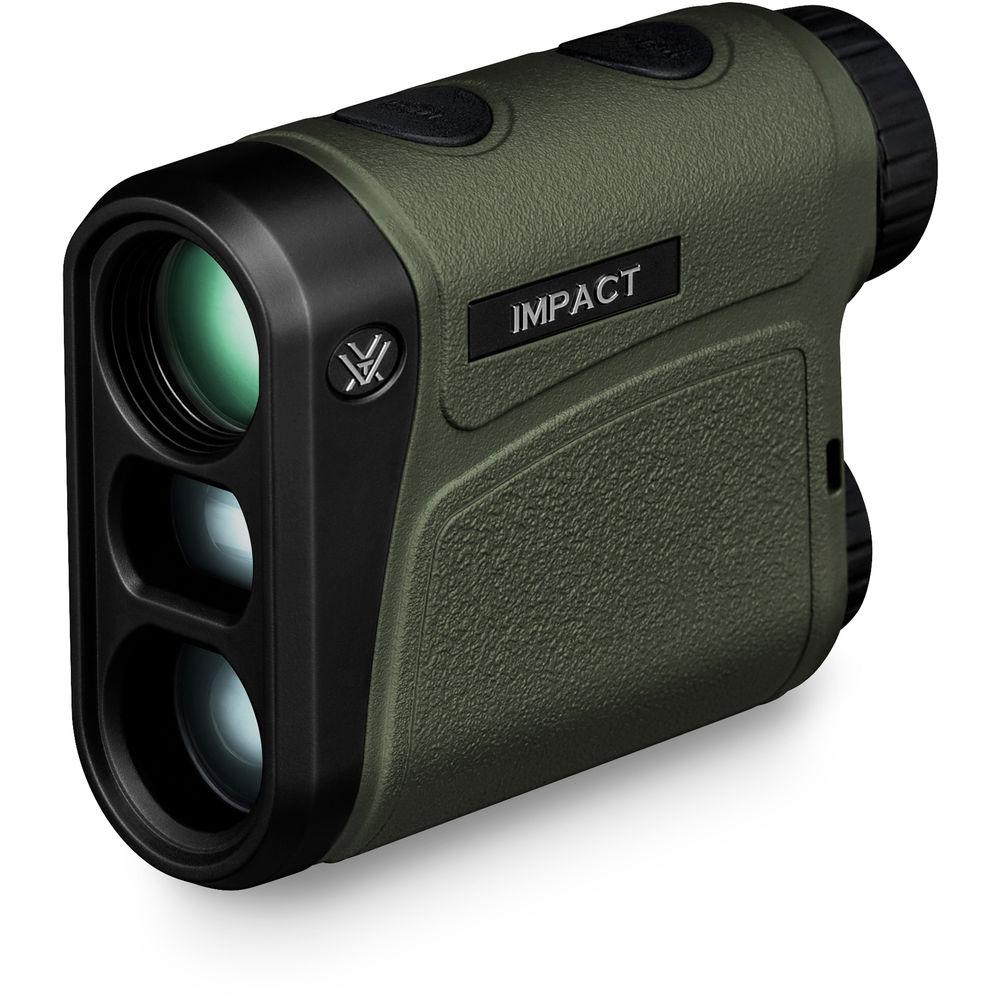

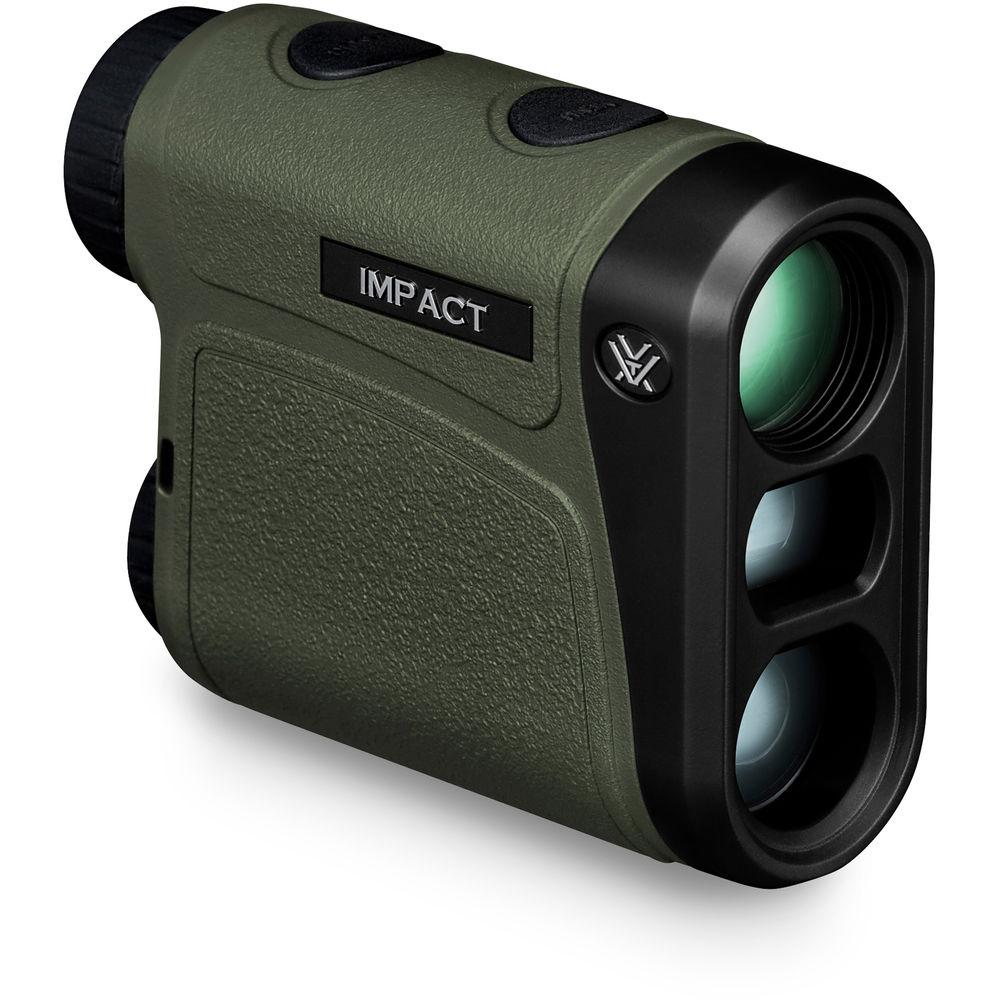

User Manual for Vortex 6x20 Impact 850 Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Vortex 6x20 Impact 850 Laser Rangefinder
- Product category: Laser Rangefinders Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Laser Rangefinders
 |
User manual for the Vortex 6x20 Impact 850 Laser Rangefinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The Vortex Optics 6x20 Impact 850 Laser Rangefinder gives you the critical edge and confidence to take that long-range shot.The powerful eye safe IR laser can range out to 850 yards to reflective targets, or deer-sized targets up to 400 yards away. Integrated into the ranging system is an inclinometer that measures the relative angle between you and your target and displays an adjusted range distance for you to more accurately calculate your ballistic drop compensation (BDC) and improve your first-shot accuracy. For purists, a traditional line of sight option is available that provides the actual linear distance without compensating for the angle. With a ranging time of less than a second, your choice of spot or scan modes, the option of showing readings in yards or meters, an auto-off function, the Impact 850 rangefinder is fast and easy to use.The uncluttered non-illuminated display is easy to read without interfering with the view while a simple 2-button menu-driven interface makes navigating the system functions and options quick. A collar around the eyepiece brings the view into sharp focus, with a comfortable eye relief that won't cause eye strain. The compact form factor is ergonomically designed to be used one-handed, and with a weight of just 5.5 ounces it can be packed and carried all day without fatigue or excessive bulk. - Optical Performance
-
- Moderate 6x power magnifies subjects without sacrificing field of view
- 20mm objective lens ensures a slim form factor for easier one-hand use
- Anti-reflection fully multi-coated optics maximize light transmission, ensure accurate color fidelity, and improve contrast and clarity
- 341' field of view at 1000 yards
- Rangefinder
-
- Class 3R eye safe IR laser
- 850nm peak wavelength, 5mW max output
- Range displayed in yards or meters
- Less than one second ranging time
- 10 yard minimum range
- 850 yard maximum range to reflective target, 400 yards to deer-sized target
- ±1 yard metering accuracy at 100 yards
- Integrated inclinometer measures relative upward or downward angle to the target, maximum angle ±60°
- Line of Sight (LOS) metering displays linear distance to subject, regardless of angle
- Horizontal Component Distance (HCD) displays adjusted distance based on LOS and angle for improved BDC calculation and first-shot accuracy
- Scan feature allows for constant range readings when metering to multiple targets or tracking moving ones
- Two-button interface with menu-driven system for easier use
- Constant in-view battery status display
- Auto-off after 10 seconds of inactivity to preserve battery life
- Runs on one included CR2 battery
- Use and Handling
-
- ±3 dioptric correction brings view into sharp focus
- Non-illuminated black reticle and display
- Simple, uncluttered display with center aiming cross won't interfere with view
- Comfortable 15mm eye relief reduces eye strain for easier use
- 3.3mm exit pupil
- Construction Details
-
- O-ring sealed to be waterproof
- Protective rubber armor with textured palm pads for a slip-resistant grip
- Compact 3.8x3" design is easy to hold and use one-handed
- Lightweight: 5.5 ounces
UPC: 875874008656 In the Box Vortex 6x20 Impact 850 Laser Rangefinder CR2 Battery Soft Carry Case Strap Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 6x20 Impact 850 Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex Impact 850 Specs | | | Laser Type | Class 3R Eye Safe | | Metering Range | Reflective: 10 to 850 yd / 10 to 777 m
Deer: 10 to 400 yd / 10 to 366 m | | Accuracy | 10 to 400 yd / 10 to 366 m:
