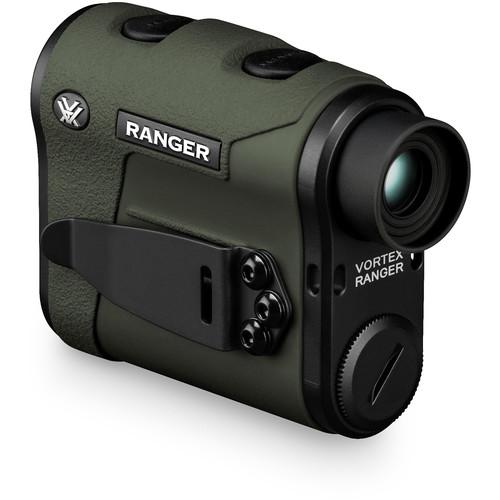

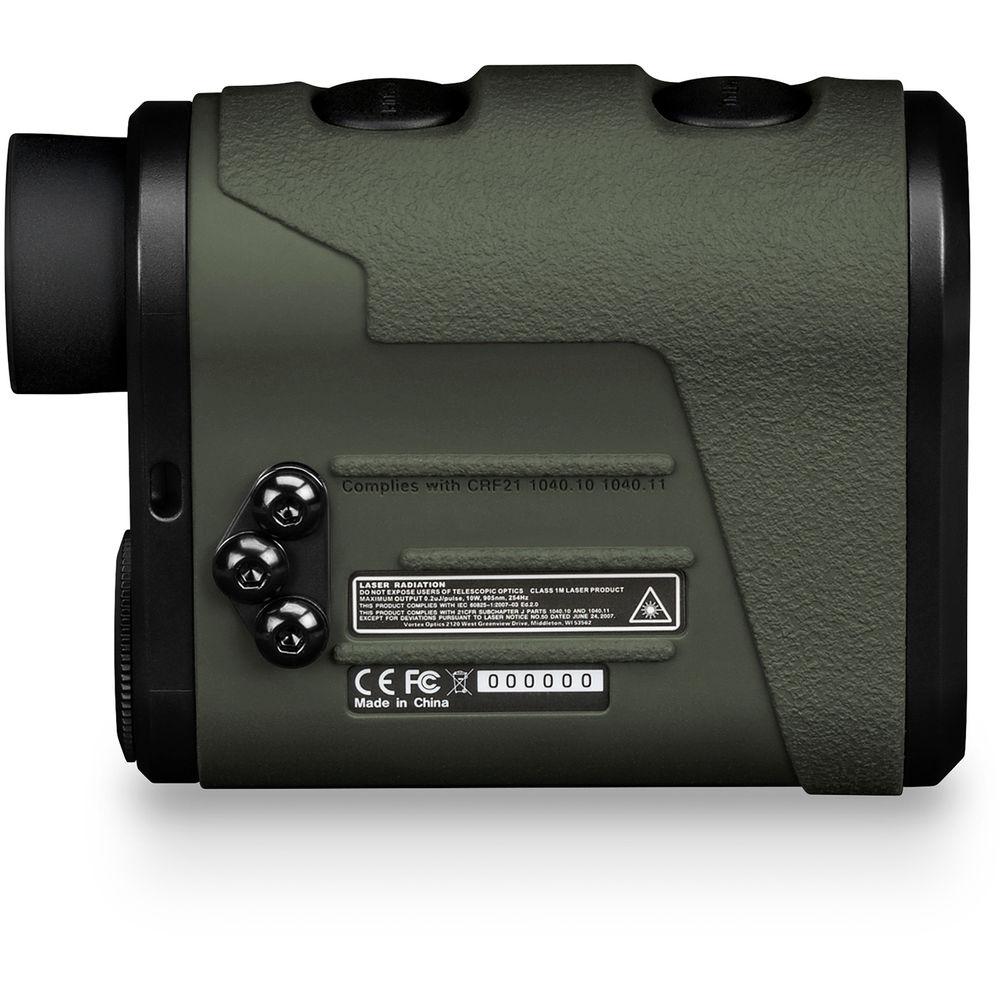

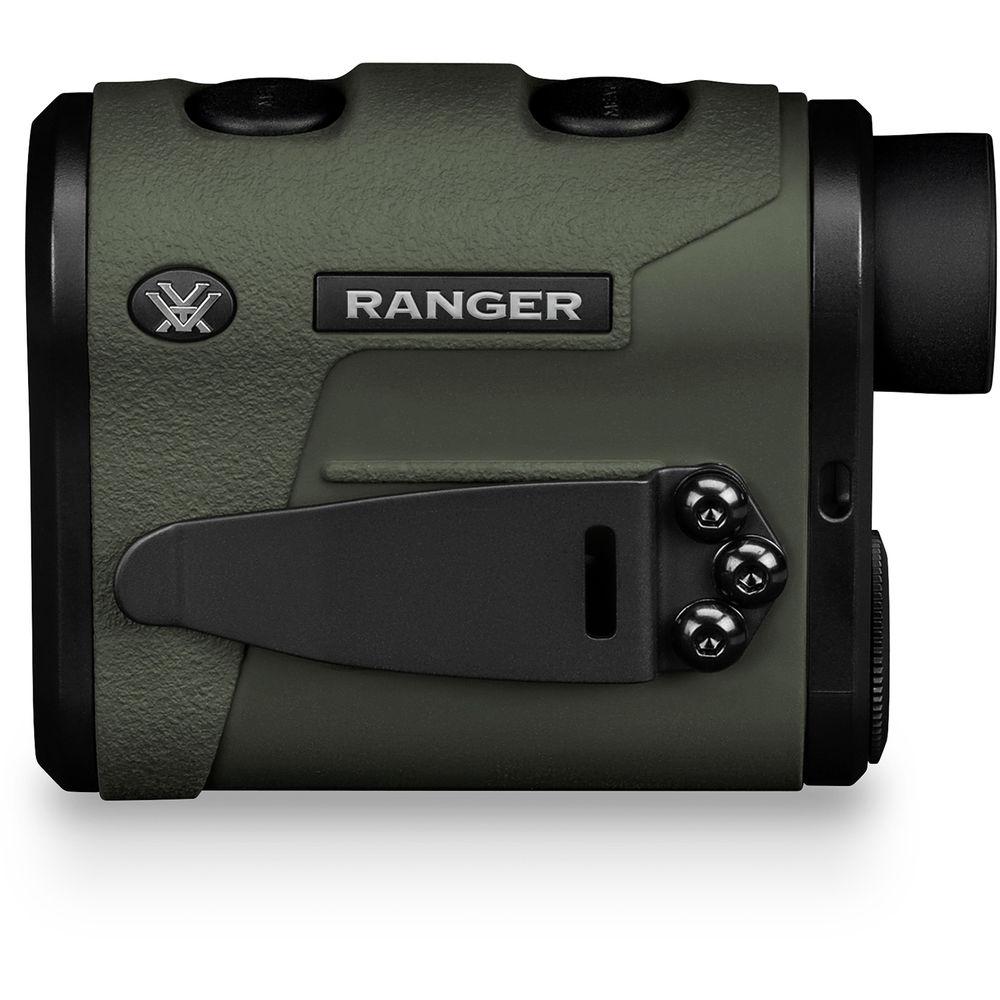

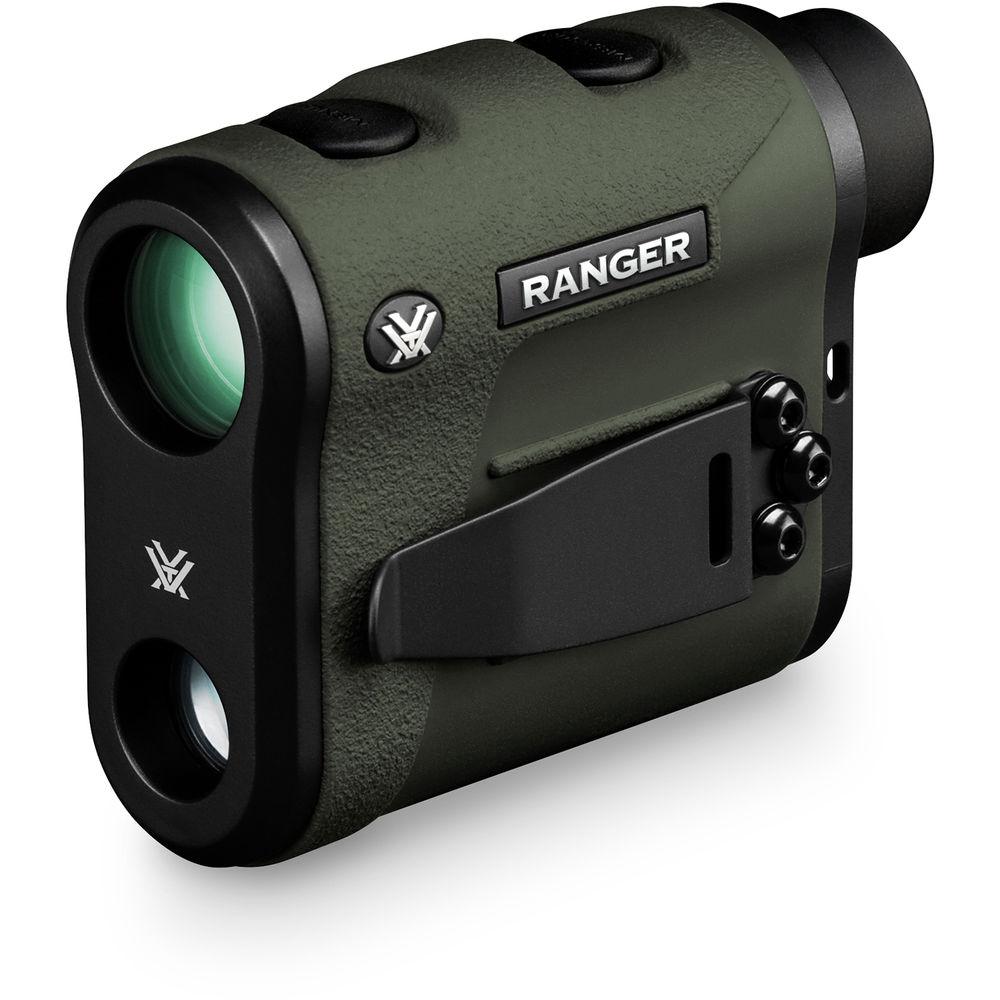

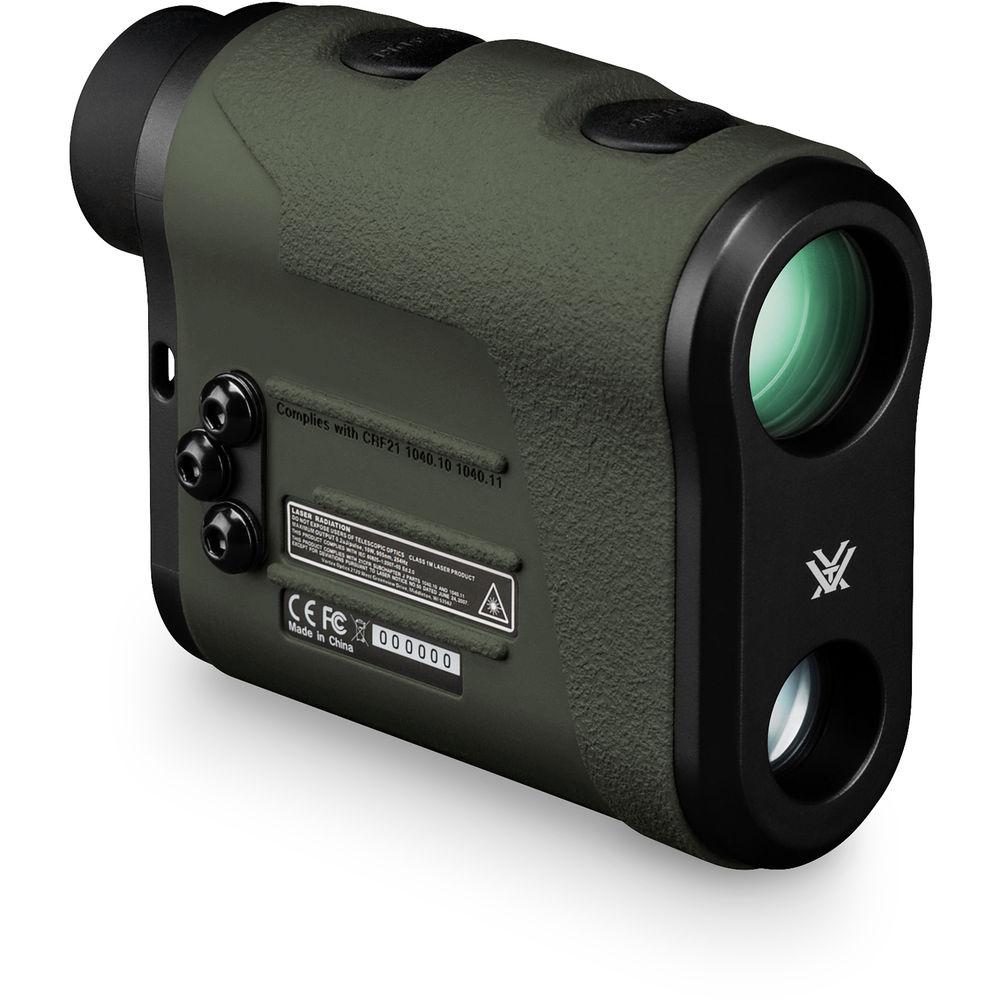

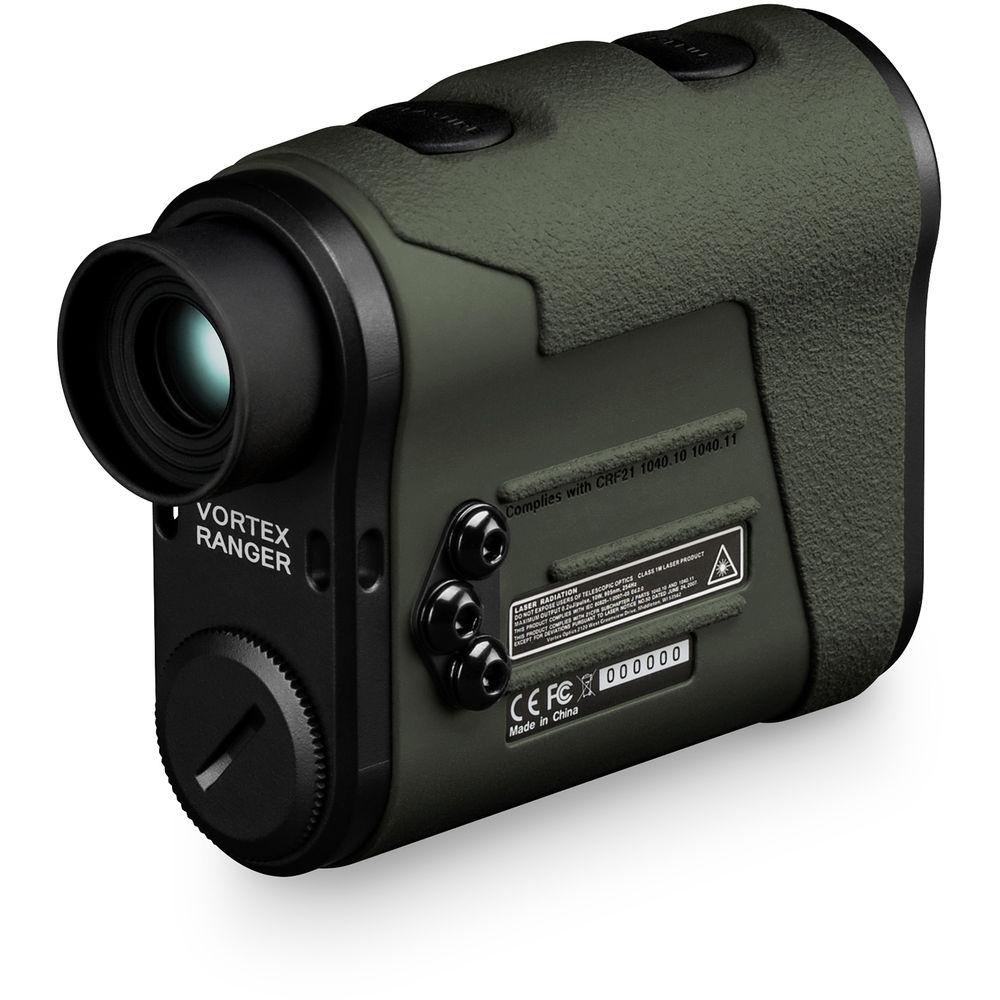

User Manual for Vortex 6x22 Ranger 1800 Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Vortex 6x22 Ranger 1800 Laser Rangefinder
- Product category: Laser Rangefinders Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Laser Rangefinders
 |
User manual for the Vortex 6x22 Ranger 1800 Laser Rangefinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The Vortex Optics 6x22 Ranger 1800 Laser Rangefinder gives you the critical edge to take that long-range shot with confidence that your first shot will hit where you want it to.The powerful eye safe IR laser can range out to 1800 yards to reflective targets, or deer-sized targets up to 900 yards away. Integrated into the ranging system is an inclinometer that measures the relative angle between you and your target and displays an adjusted range distance for you to more accurately calculate your ballistic drop compensation (BDC) and improve your shot accuracy. For purists, a traditional line of sight option is available that provides the actual linear distance without compensating for the angle. With a ranging time of less than a second, your choice of spot or scan modes, the option of showing readings in yards or meters, and an auto-off function, the Ranger 1800 rangefinder is fast and easy to use.The uncluttered illuminated display is easy to read in all light conditions without interfering with the view while a simple 2-button menu-driven interface makes navigating the system functions and options quick. A collar around the eyepiece brings the view into sharp focus, with a long eye relief that won't cause eye strain. Designed to withstand extreme conditions, the housing is nitrogen-filled and O-ring sealed to be waterproof and fogproof, with a broad operating temperature range and a slip-resistant armor covering. If you're moving quickly, the Ranger comes with a neck strap and convenient belt clip for fast deployment, or if you're up a stand or in a blind all day, the 1/4"-20 socket on the bottom allows it to be mounted on a support system like a tripod. The compact form factor is ergonomically designed to be used one-handed, and with a weight of under half a pound it can be packed and carried all day without fatigue or excessive bulk. - Optical Performance
-
- Moderate 6x power magnifies subjects without sacrificing field of view or exit pupil
- 22mm objective lens ensures a slim form factor for easier one-hand use
- Anti-reflection fully multi-coated optics maximize light transmission, ensures accurate color fidelity, and improves contrast and clarity
- 315' field of view at 1000 yards
- Rangefinder
-
- Class 1 eye safe IR laser, 0.3x1.5 MRAD beam divergence
- Range displayed in yards or meters
- Less than one second ranging time
- 10 yard minimum range
- 1800 yard maximum range to reflective target, 900 yards to deer-sized target
- ±3 yard metering accuracy at 1000 yards
- Integrated inclinometer measures relative upward or downward angle to the target, maximum angle ±60°
- Line of Sight (LOS) metering displays linear distance to subject, regardless of angle
- Horizontal Component Distance (HCD) displays adjusted distance based on LOS and angle for improved BDC calculation and first-shot accuracy
- Scan feature allows for constant range readings when metering to multiple targets or tracking moving ones
- Two-button interface with menu-driven system for easier use
- Constant in-view battery status display
- Auto-off after 10 seconds of inactivity to preserve battery life
- Runs on one included CR2 battery
- Use and Handling
-
- ±3 dioptric correction brings view into sharp focus
- Illuminated red display with three brightness settings to make it easy to see in all light conditions
- Simple, uncluttered display with center aiming cross won't interfere with view
- Fold-down rubber eyecup for comfortable use with or without eyewear
- 1/4"-20 socket for support systems like window mounts and tripods
- Long 17mm eye relief reduces eye strain
- 3.7mm exit pupil
- Construction Details
-
- Nitrogen-filled and O-ring sealed to be waterproof, and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Protective rubber armor with textured palm pads for a slip-resistant grip
- Removable utility clip can be installed on either side to wear on a belt or pack strap for easy access and fast use
- Broad 14 to 131°F (-10 to 55°C) operating temperature range
- Compact 3.9x3" design is easy to hold and use one-handed
- Lightweight: 7.7 ounces
UPC: 875874009059 In the Box Vortex 6x22 Ranger 1800 Laser Rangefinder CR2 Battery Soft Carry Case Neck Strap Belt Clip Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 6x22 Ranger 1800 Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex Ranger 1800 Specs | | | Laser Type | Class 1 Eye Safe | | Metering Range | Reflective: 9 to 1800 yd / 8 to 1645 m
Deer: 9 to 900 yd / 8 to 822 m | | Accuracy | 9 to 900 yd / 8 to 822 m:
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
