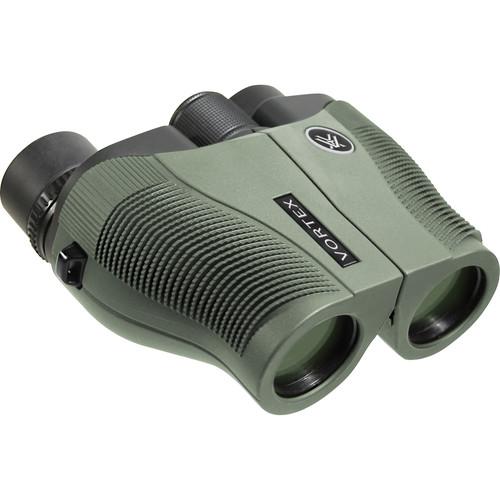

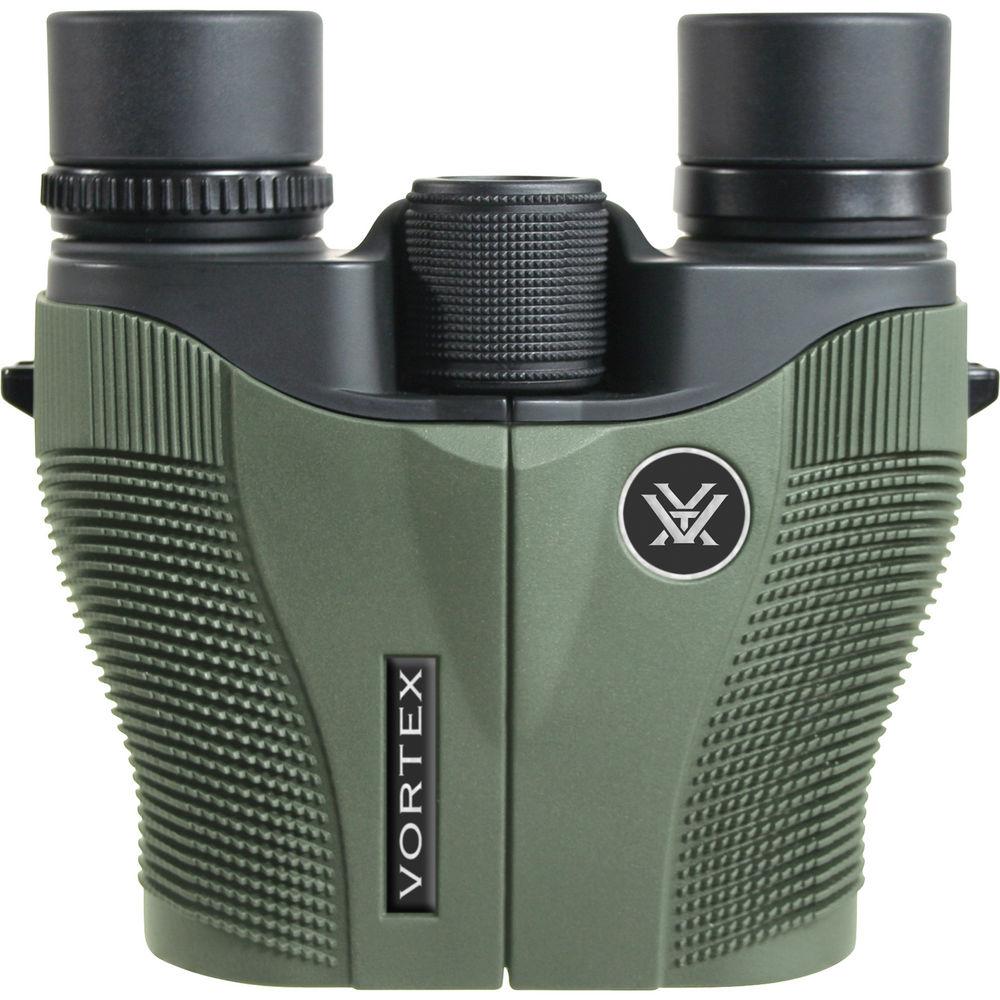

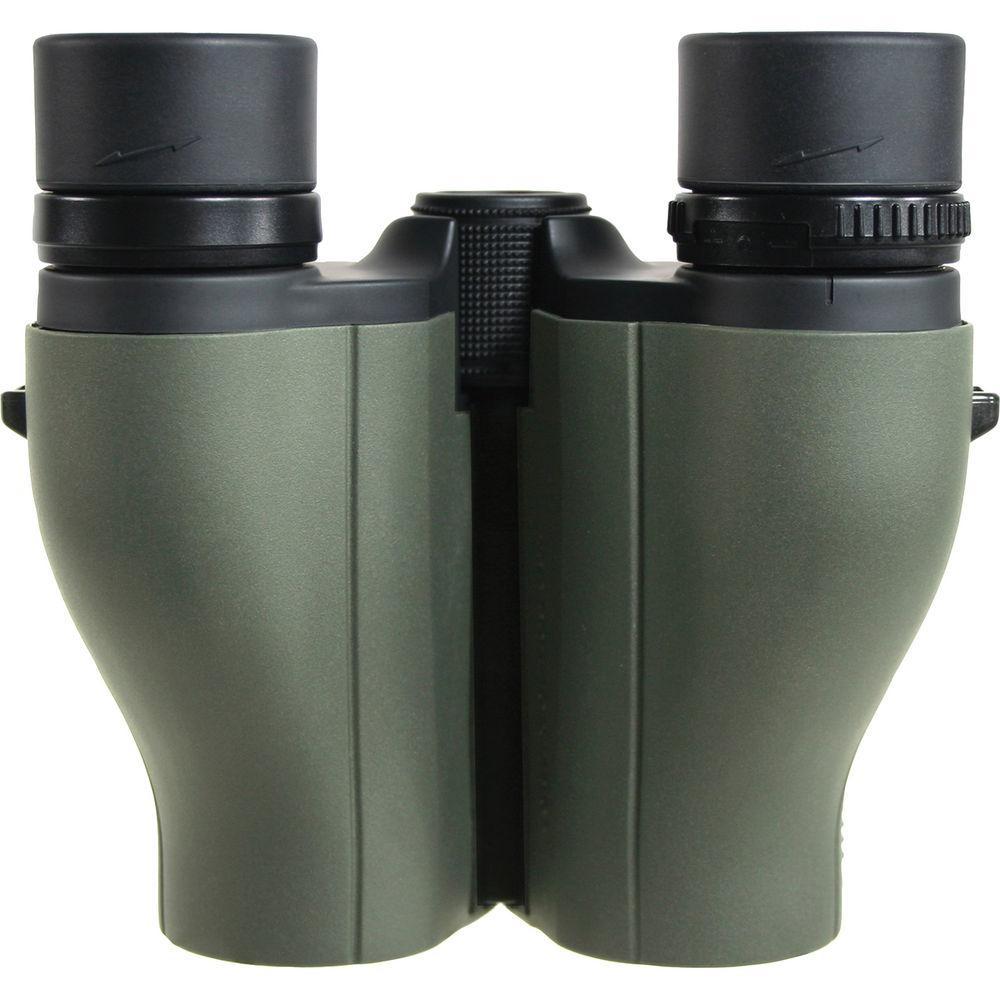

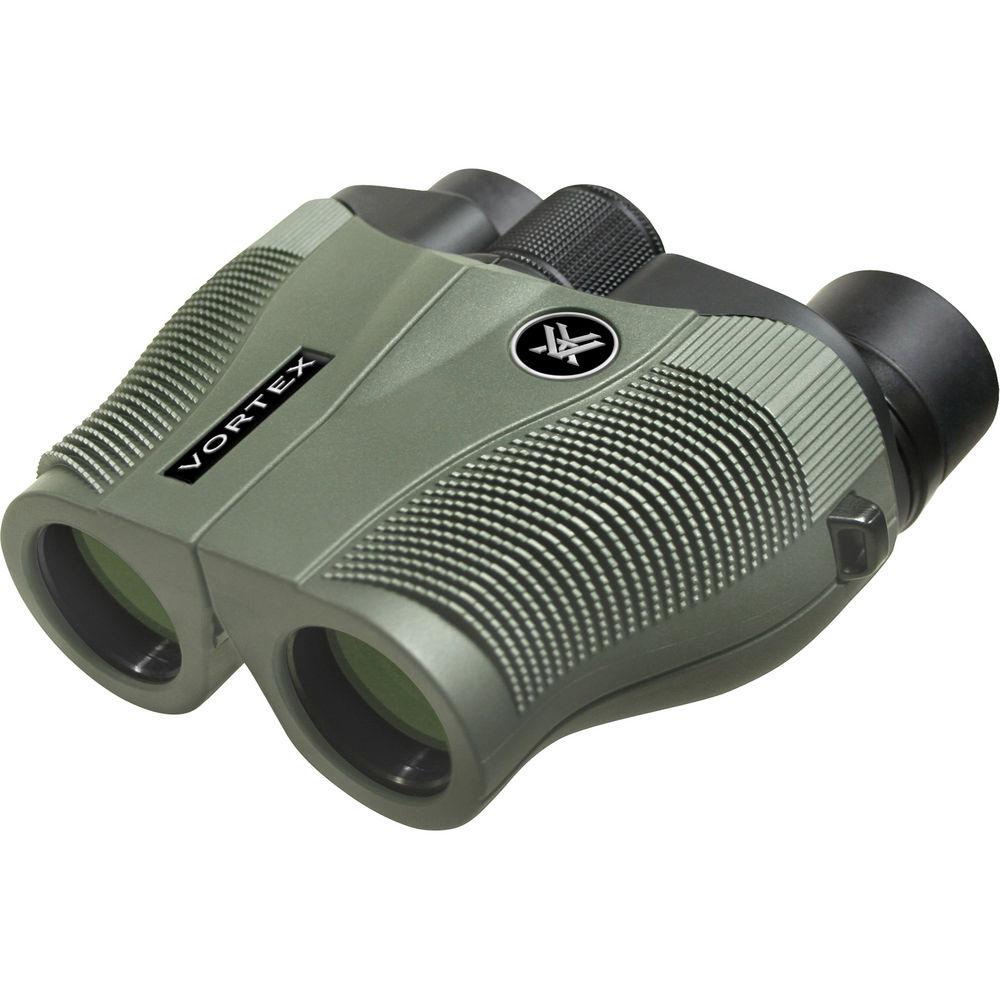

User Manual for Vortex 8x26 Vanquish Binocular Click to enlarge the picture
Contents of the user manual for the Vortex 8x26 Vanquish Binocular
- Product category: Binoculars Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Binoculars
 |
User manual for the Vortex 8x26 Vanquish Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More With a reverse Porro prism design and fully multi-coated lenses for a bright, sharp image, the 8x26 Vanquish Binocular from Vortex is a compact and versatile optic suited to general use. The Vanquish can focus on objects as close as 7.6 feet for viewing butterflies or wildflowers, while its 8x magnification can bring distant details into view. It has twist-up eyecups to accommodate eyeglasses and a knurled, easy-to-operate center-focus wheel. A diopter adjustment is provided on the right eyepiece to resolve differences in the user's eyes. O-ring sealed and nitrogen purged, this binocular is water, dust, and fogproof, and its rubber armoring protects the housing and provides a pleasant and secure grip. - Optical Performance
-
- 8x magnification
- 26mm objective lenses
- Reverse Porro prism optical path
- Fully multi-coated lenses for a bright, sharp image
- Field of view: 352 feet at 1000 yards
- Eye relief: 15mm
- Exit pupil: 3.3mm
- Construction Details
-
- Twist-up eyecups
- O-ring sealed and nitrogen purged for water, dust, and fogproof performance
- Rubber armoring protects housing and provides a good grip
- Use and Handling
-
- Closed-bridge configuration
- Large knurled center-focus wheel
- Right eye dioptric adjustment collar
UPC: 875874000636 In the Box Vortex 8x26 Vanquish Binocular Comfort Neck Strap Soft Carry Case Rainguard Eyepiece Cover Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 8x26 Vanquish Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex VNQ-0826 Specs | Prism Type | Porro | | Magnification | 8 x | | Objective Lens Diameter | 26 mm | | Angle of View | 6.7° (Actual) | | Field of View | 351.7' @ 1000 yd / 117.2 m @ 1000 m | | Minimum Focus Distance | 7.6' / 2.3 m | | Exit Pupil Diameter | 3.3 mm | | Eye Relief | 15 mm | | Interpupillary Adjustment | 57 to 71 mm / 2.2 to 2.8" | | Focus Type | Center | | Dimensions | 4.7 x 4.4" / 11.9 x 11.2 cm | | Weight | 12.7 oz / 360 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 5.7 x 5.5 x 3.1" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
