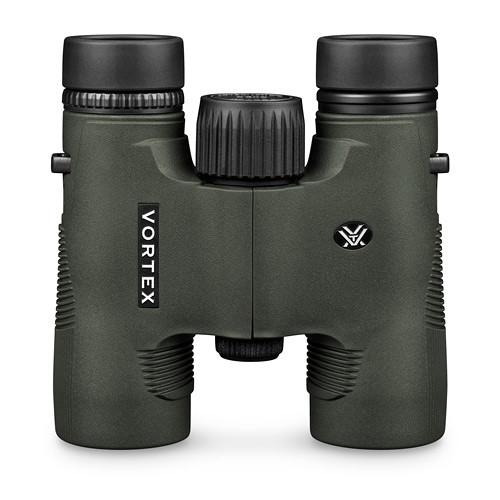

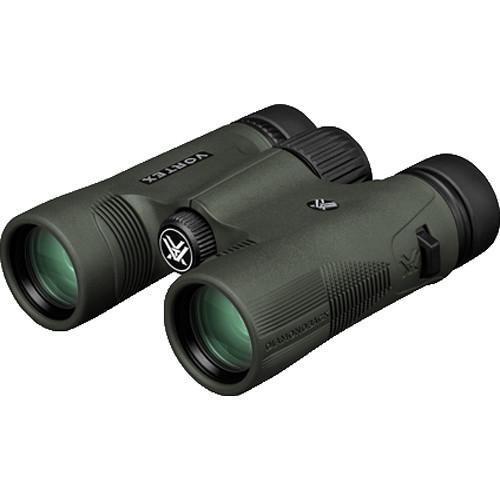

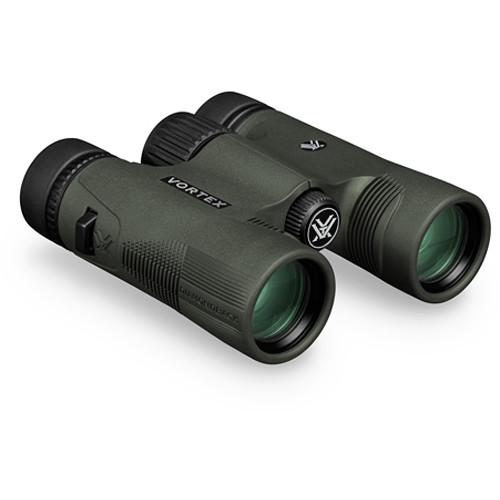

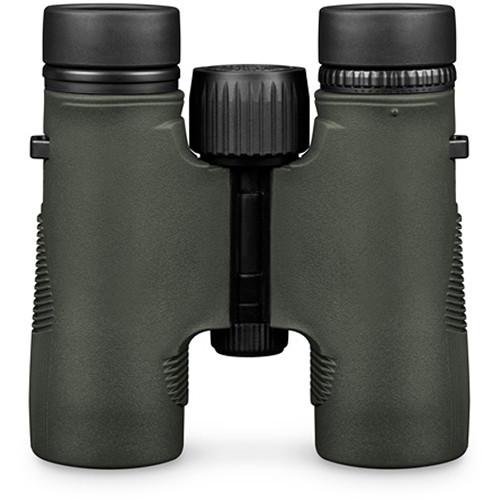

User Manual for Vortex 8x28 Diamondback Binocular Click to enlarge the picture
Contents of the user manual for the Vortex 8x28 Diamondback Binocular
- Product category: Binoculars Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Binoculars
 |
User manual for the Vortex 8x28 Diamondback Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Combining excellent optical performance with ruggedness, portability, and comfort, the 8x28 Diamondback Binocular from Vortex Optics is ideal to take along on your hiking trips, when camping or traveling, or just in case. The specially designed optics feature improved transmission, contrast, and true color using fully multi-coated lenses and phase-corrected roof prisms. With the improved close focus of 6.5', you will get plenty of focusing range and a sharp focus on faraway scenery as well as close-ups of nearby street signs, monuments' details, or wildlife. The combination of 8x magnification, optimal for jitter-free viewing, and the 28mm objectives offers you a generous 6.2° angle of view that gives you complete images of your targets.
The lightweight aluminum housing is purged with argon gas and sealed with O-rings to offer enhanced fog and waterproof performance. The short-hinge bridge is reduced in size, compared to previous generations of Diamondbacks, to cut overall weight and to expose more of tubes' surface for easy holding. To ensure that you have a non-slip grip and tuning, the body, oversized focusing ring, diopter ring, and twist-up soft tapered eyecups have rubberized coverings. The focusing knob and the diopter ring also have knurling for easy use even with gloves on. Also included with the binocular are a carry case, neck strap, rainguard, and tethered objective caps. - Optical Performance
-
- 8x magnification
- 28mm objective lenses
- Roof prism design
- Fully multi-coated lenses increase transmission, clarity, and brightness
- Phase-corrected prisms improve true color, contrast, and transmission
- 332' linear field of view at 1000 yd
- 6.5' close-focus distance
- Construction Details
-
- Lightweight and durable aluminum body
- Short-hinge bridge cuts weight and exposes more surface for handling
- Adjustable interpupillary distance: 60-74mm
- Slip-resistant rubber armor exterior
- Oversized knurled center focusing wheel
- Textured diopter ring on right eyepiece
- Twist-up soft tapered rubber eyecups
- Water and fogproof: O-ring sealed and argon purged
UPC: 875874006386 In the Box Vortex 8x28 Diamondback Binocular (Green/Black) Comfort Neck Strap Deluxe Carry Case Rainguard Tethered Objective Lens Covers Vortex VIP Unlimited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 btqzfysucsyfcfsvsrfwcftv A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 221.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex 8x28 Diamondback Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex DB-200 Specs | Prism Type | Roof | | Magnification | 8.0 x | | Objective Lens Diameter | 28 mm | | Angle of View | 6.2° (Actual) | | Field of View | 325.5' @ 1000 yd / 108.5 m @ 1000 m | | Minimum Focus Distance | 6.5' / 2 m | | Exit Pupil Diameter | 3.5 mm | | Eye Relief | 18 mm | | Interpupillary Adjustment | 55.9 to 73.7 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 4.6 x 4.4" / 11.7 x 11.2 cm | | Weight | 14.00 oz / 397 g | | | | Package Weight | 1.585 lb | | Box Dimensions (LxWxH) | 6.6 x 6.0 x 3.45" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
