User Manual for Vortex Crossfire II 2-7x32 Riflescope Click to enlarge the picture
Contents of the user manual for the Vortex Crossfire II 2-7x32 Riflescope
- Product category: Riflescopes Vortex
- Brand: Vortex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vortex Riflescopes
 |
User manual for the Vortex Crossfire II 2-7x32 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vortex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!
|

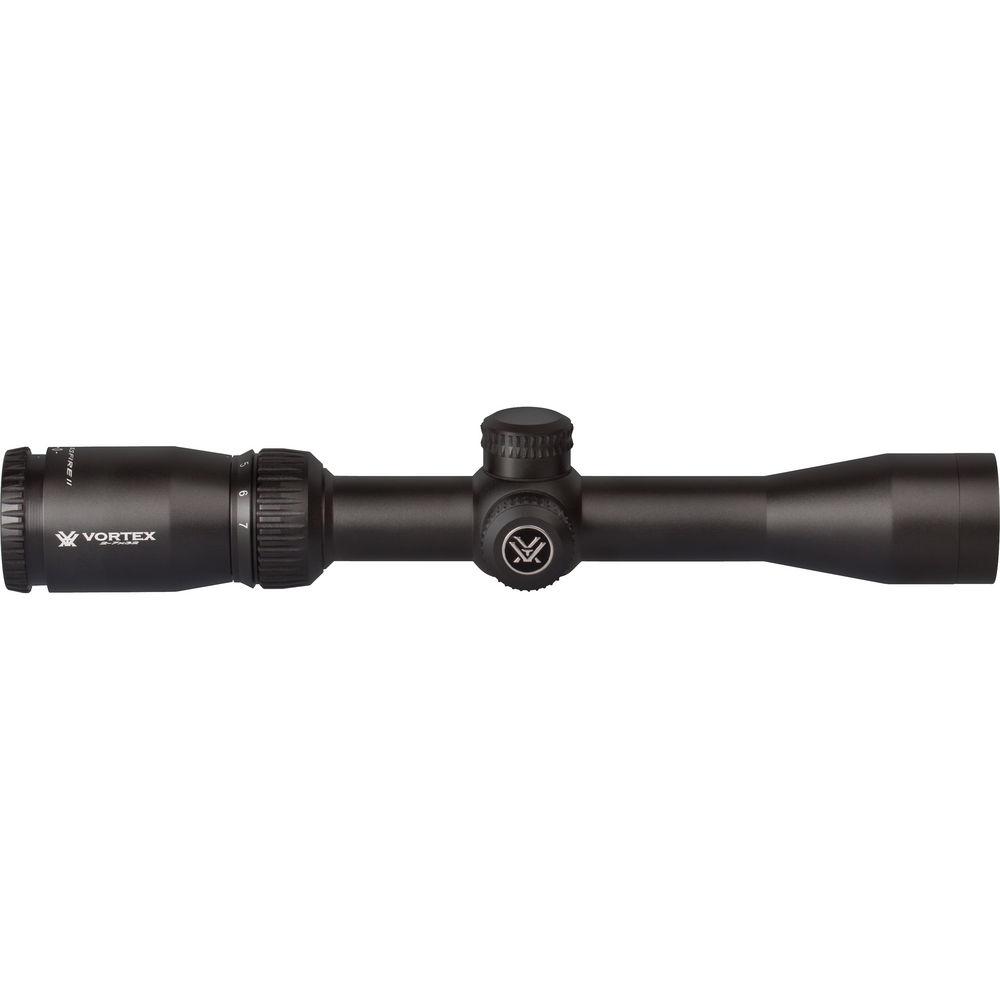

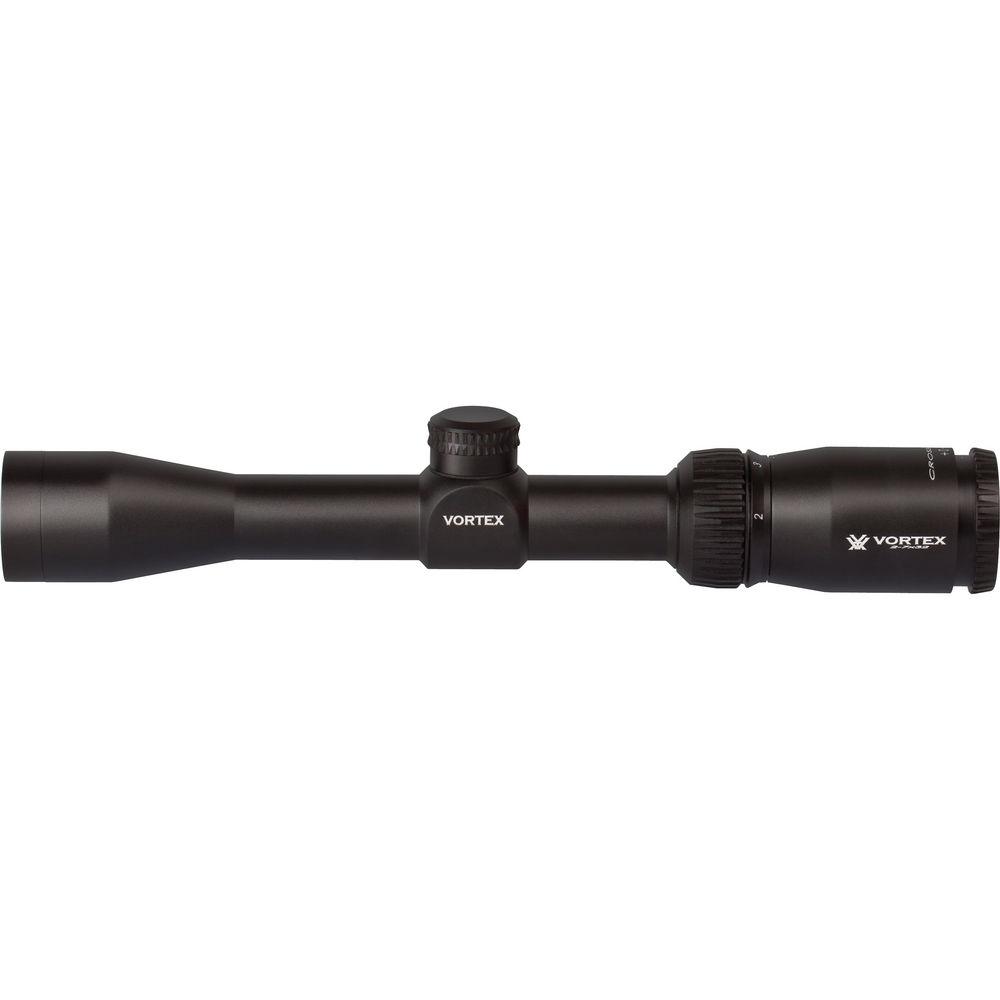

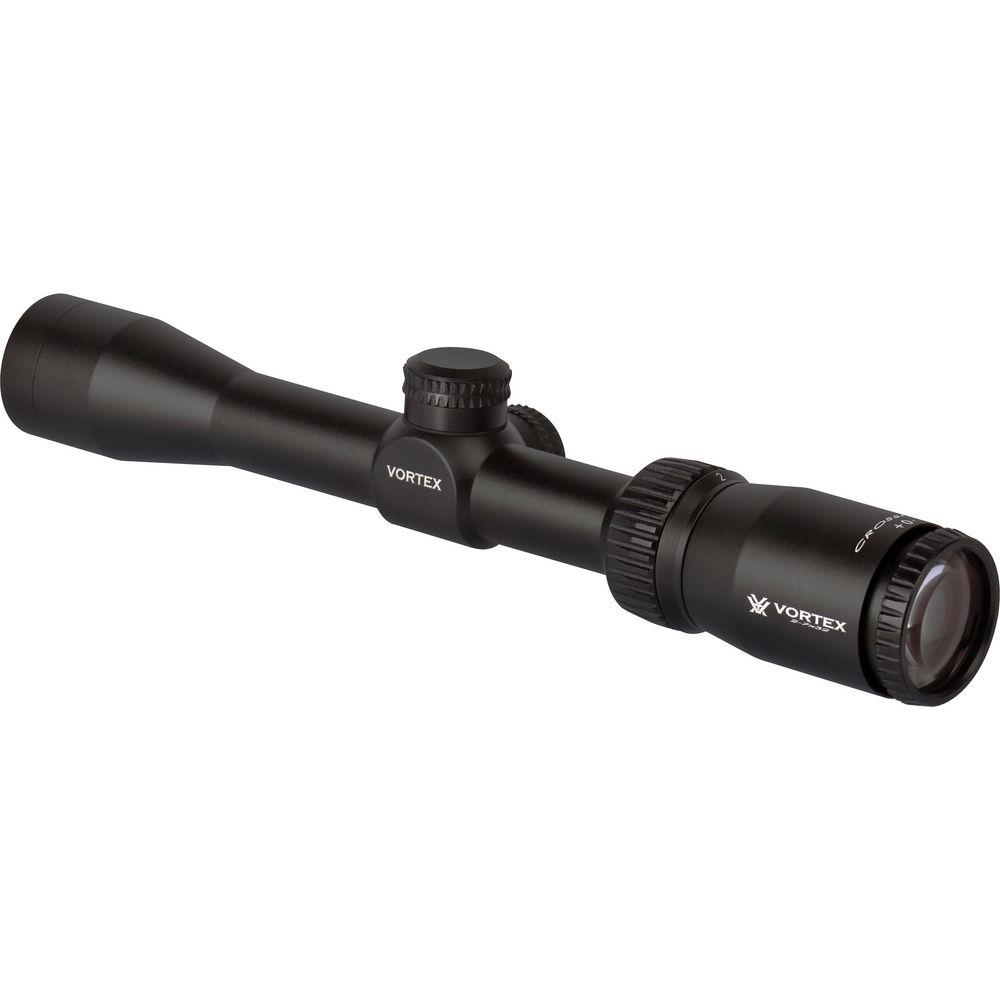

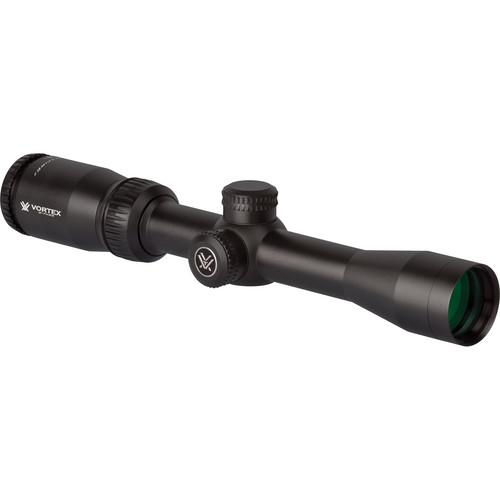

Product description The Crossfire II 2-7x32 Riflescope (Matte Black) from Vortex Optics offers all the desirable features of a riflescope at a popular price. This Crossfire comes with a Dead-Hold BDC reticle and a fixed parallax setting of 100 yards. The Dead-Hold BDC reticle has four long posts creating a narrow gate where fine cross hairs establish the exact point of aim. Hash marks on the horizontal stadia give the shooter the ability to judge proper hold over for accurate long range shot placement. Also at the ocular end, a fast focus eyepiece allows immediate target acquisition while the magnification ring dispenses immediate zoom in or zoom out ability for a closer more detailed view or a more expansive bigger picture view. Fully multicoated optics deliver a brighter, higher-contrast image. The Crossfire II is built tough. A one inch, one-piece, hard-coated, anodized, aluminum body creates a shockproof construction. The tube is filled with nitrogen gas to inhibit internal fogging and is o-ring sealed waterproof to prevent moisture, dust, and debris from getting inside. Machined locking rings lock the lenses in place, keeping them in perfect alignment despite recoil and impact. The windage and elevation turrets are capped making them less susceptible to accidental damage or setting changes. The turret housing can be re-indexed to zero after sighting. This is a practical riflescope at practical price.To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and the rings attach your scope to the base. Proper spacing of the rings, as well as the ring height should be considered to ensure that a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Apparent Field of View of 16-16.8°
- Fast focus eyepiece supplies quick and easy reticle focusing
- Capped Turrets for less susceptibility to accidental impact damage
- O-ring sealed, nitrogen filled provides waterproof and fogproof protection
- One-piece 1" main-tube for greater strength and wider adjustment latitude
- Reset Turrets allow re-indexing of the turret housing to zero after sighting in the riflescope
- Aluminum construction from aircraft-grade aluminum delivers increased strength and rigidity
- Lenses are locked in place with machined locking rings to remain in perfect alignment and withstand recoil and impact
- Hard-coat anodized finish is durable and the low-glare matte helps camouflage the shooter's position
- Fully multicoated optics provide multiple layers on all air to glass surfaces for a brighter, higher-contrast image with less eyestrain
- Dead-Hold BDC reticle has four long posts creating a narrow gate where fine cross hairs establish the exact point of aim. Hash marks on the horizontal stadia give the shooter the ability to judge proper hold over for accurate long range shot placement
UPC: 875874004276 In the Box Vortex Crossfire II 2-7x32 Riflescope (Matte Black) Dust Cloth Removable Lens Covers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex Crossfire II 2-7x32 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex CF2-31003 Specs | | | Magnification | 2 to 7x | | Objective Lens Diameter | 32 mm | | Field of View | 2x: 42' @ 100 yd / 13.9 m @ 100 m
7x: 12.6' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 2x: 16 mm
7x: 4.6 mm | | Eye Relief | 3.9 to 4.7" / 99 to 119 mm | | | | Reticle Type | Dead-Hold BDC Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 11.3" / 28.7 cm
Objective Diameter: 1.7" / 4.3 cm
Eyepiece Diameter: 1.5" / 3.9 cm | | Weight | 14.3 oz / 405.4 g | | | | Package Weight | 1.505 lb | | Box Dimensions (LxWxH) | 14.5 x 3.5 x 3.3" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
