Vortex Crossfire Red Dot Sight

Search your instruction manual in PDF to download

User Manual for Vortex Crossfire Red Dot Sight

Click to enlarge the picture
Vortex Crossfire Red Dot Sight Contents of the user manual for the Vortex Crossfire Red Dot Sight
  • Product category: Red Dot/Holographic Sights Vortex
  • Brand: Vortex
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Vortex Red Dot/Holographic Sights

Vortex Crossfire Red Dot Sight Vortex Crossfire Red Dot Sight Vortex Crossfire Red Dot Sight Vortex Crossfire Red Dot Sight Vortex Crossfire Red Dot Sight Vortex Crossfire Red Dot Sight Vortex Crossfire Red Dot Sight Vortex Crossfire Red Dot Sight Vortex Crossfire Red Dot Sight
User manual for the Vortex Crossfire Red Dot Sight contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Vortex product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Vortex user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Vortex product will considerably shorten its lifespan!



Product description

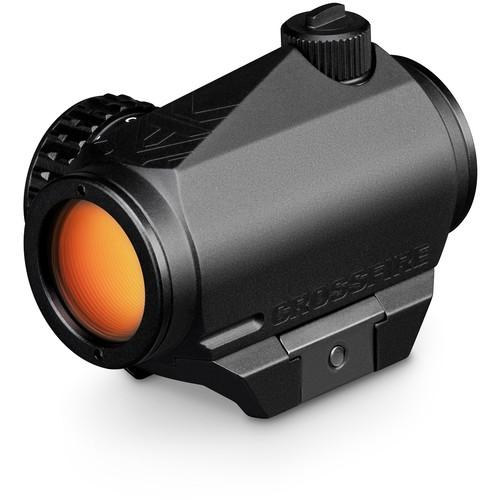

You'll acquire your target quickly with the Crossfire Red Dot Sight from Vortex, an unmagnified aiming device for close-range shooting engagements. Compact and lightweight, the Crossfire features a 2 MOA, daylight-bright red dot that promotes rapid engagement of nearby targets, yet is fine enough to precisely engage targets at a distance. Eleven brightness settings let you customize your sight view to suit the conditions. The Crossfire Red Dot can be mounted low or as a lower 1/3 co-witness, lending its functionality to AR-15s, shotguns, and pistols. Windage and elevation is adjusted at 1 MOA per click, with an adjustment range of 100 MOA for both. The sight's lenses feature multiple anti-reflective coatings. Eye relief is unlimited. The hard-anodized aluminum housing is O-ring sealed to exclude dust and moisture. The Crossfire Red Dot is 2.5" long and weighs 5.2 ounces.
    Optical Performance
    • 1.0x magnification
    • Parallax-free optics
    • Unlimited eye relief
    • 2 MOA red dot reticle
    • Fully multi-coated lenses
    Use and Handling
    • Manually adjustable reticle brightness with 11 settings
    • 100 MOA windage/elevation adjustment range in 1 MOA clicks

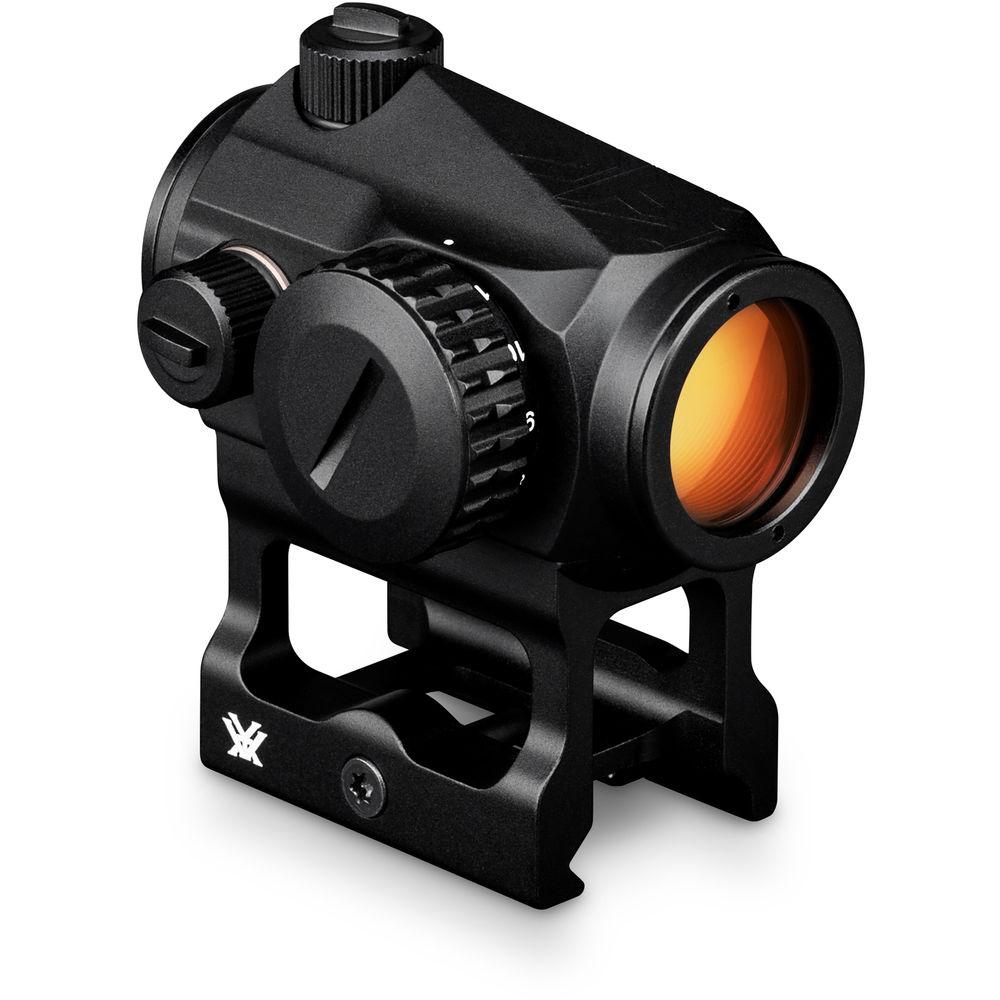

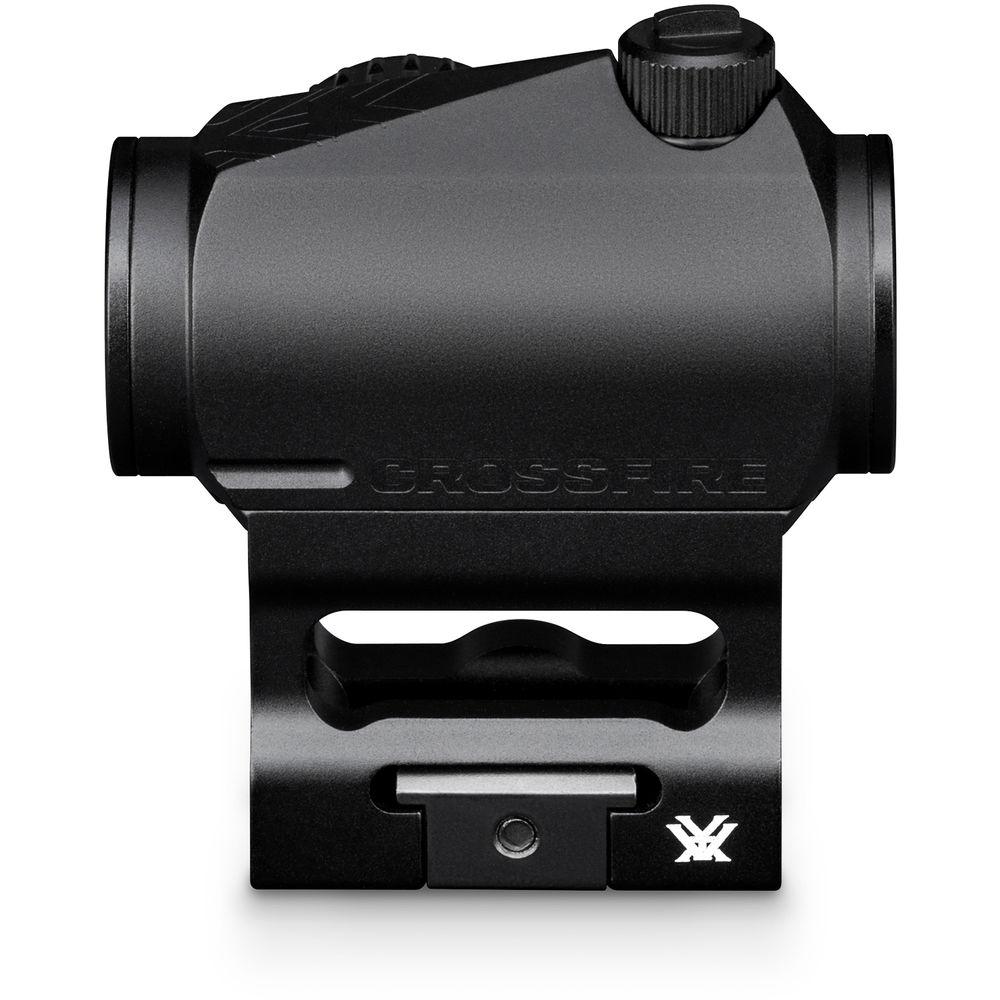

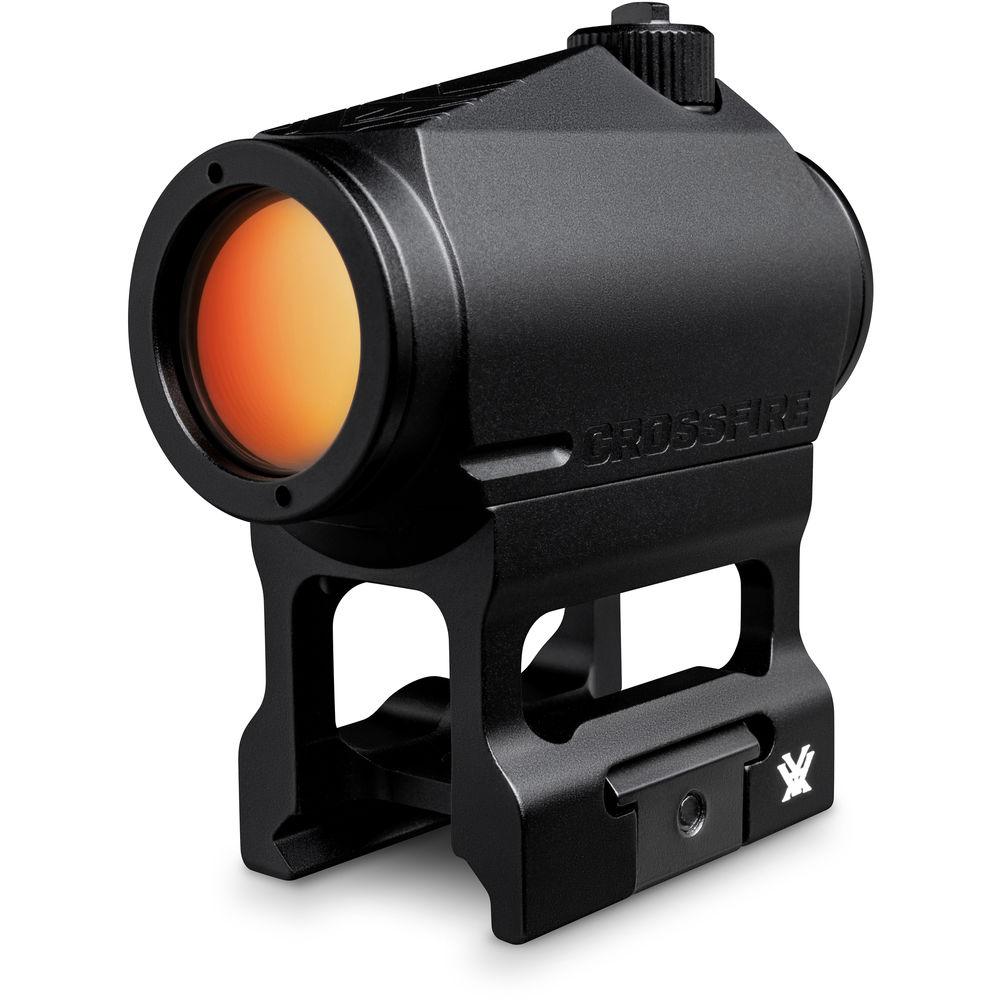

    • Included skeletonized mount for mounting low or as a lower 1/3 co-witness
    Construction Details
    • Non-reflective anodized aluminum construction
    • O-ring sealed waterproof housing

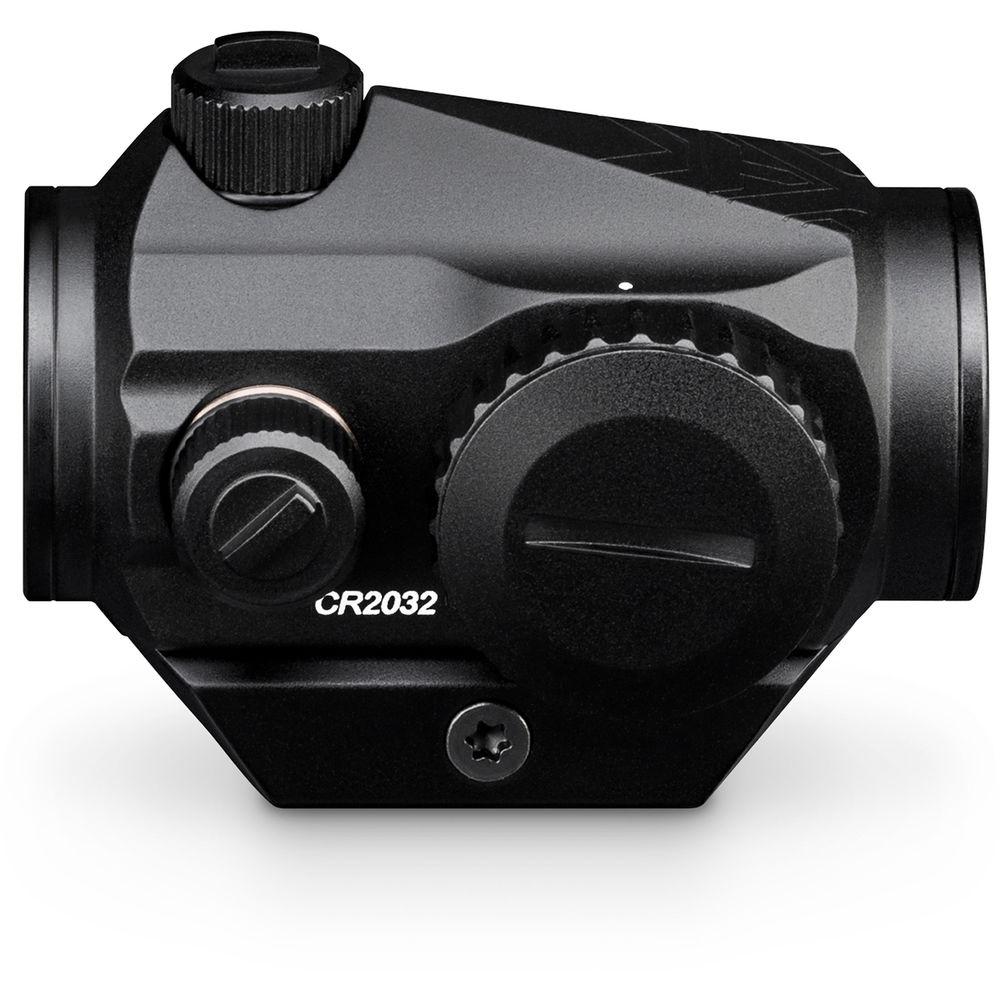

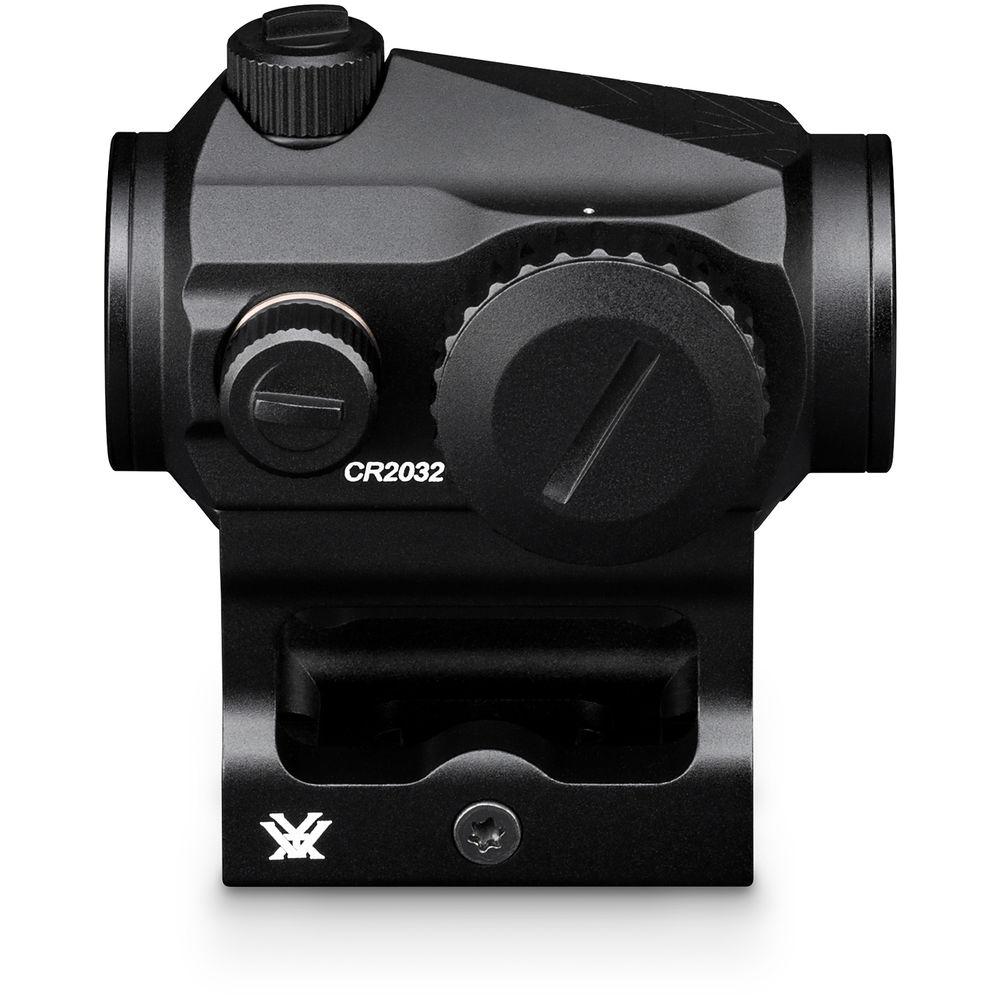

    • Runs up to 7000 hours at medium brightness on one CR2032 battery
UPC: 875874008977 In the Box Vortex Crossfire Red Dot Sight (2 MOA Red Dot)
  • Skeletonized Mount
  • T10 Torx Wrench
  • CR2032 Battery
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Vortex Crossfire Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Vortex Crossfire Red Dot Sight can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Vortex Crossfire Red Dot Sight can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Vortex Crossfire Red Dot Sight can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Vortex Crossfire Red Dot SightDownload PDF User Manual - https://www.search-manual.com/ upload/ vortex-crossfire-red-dot-sight-327312-user-manual.pdf
    (PDF file, 0.21 MB)


    Technical parameters

    Vortex CROSSFIRE Specs

    Magnification 1.0x
    Objective Lens Diameter 1.0" / 2.5 cm
    Field of View Not specified by manufacturer
    Eye Relief Unlimited
    Reticle 2 MOA red dot
    Impact Point Correction 1 MOA
    Maximum Windage/Elevation Adjustment 100 MOA range
    Weatherproofing O-ring sealed
    Battery / Runtime 1 x CR2032 / 7000 h at medium brightness
    Length 2.5" / 6.4 cm
    Weight 5.2 oz / 147 g
    Package Weight 0.655 lb
    Box Dimensions (LxWxH) 5.65 x 4.6 x 2.55"

    Rating

    96% users recommend this product to others. And what about you?
    Rating: 4.8 of 5

    This product has already been rated by 12 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Vortex Crossfire Red Dot Sight

    Subject: VORTEX Crossfire Red Dot Sight 100-030-011
    Date: 31.10.2022 20:18:28Name: Roger Domer
    Greetings ...... I bought a rifle today with this scope mounted. It didn't work when I received it, and my friend who I bought it from said it worked. I replaced the battery with a new one and the red dot does not appear. The battery is placed correctly too. So, what do you suggest be done? Thanks for your help.

    Roger Domer
