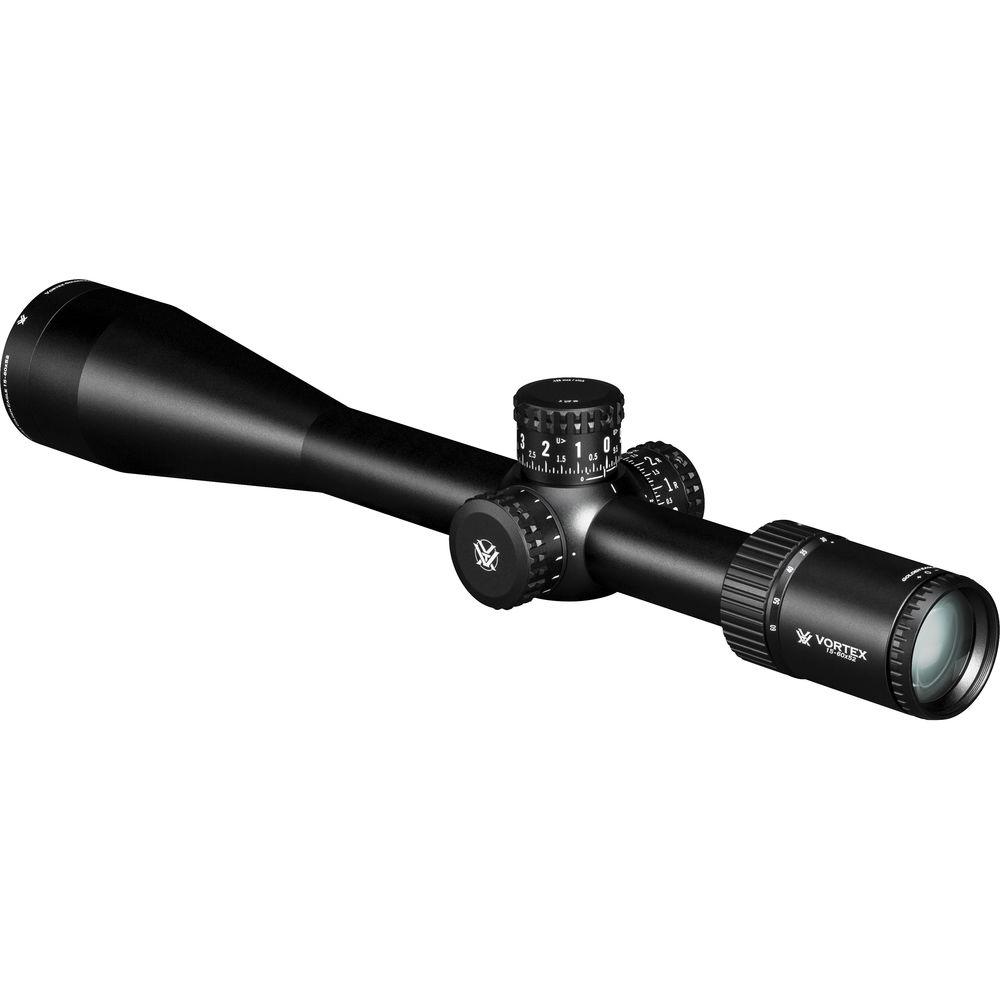

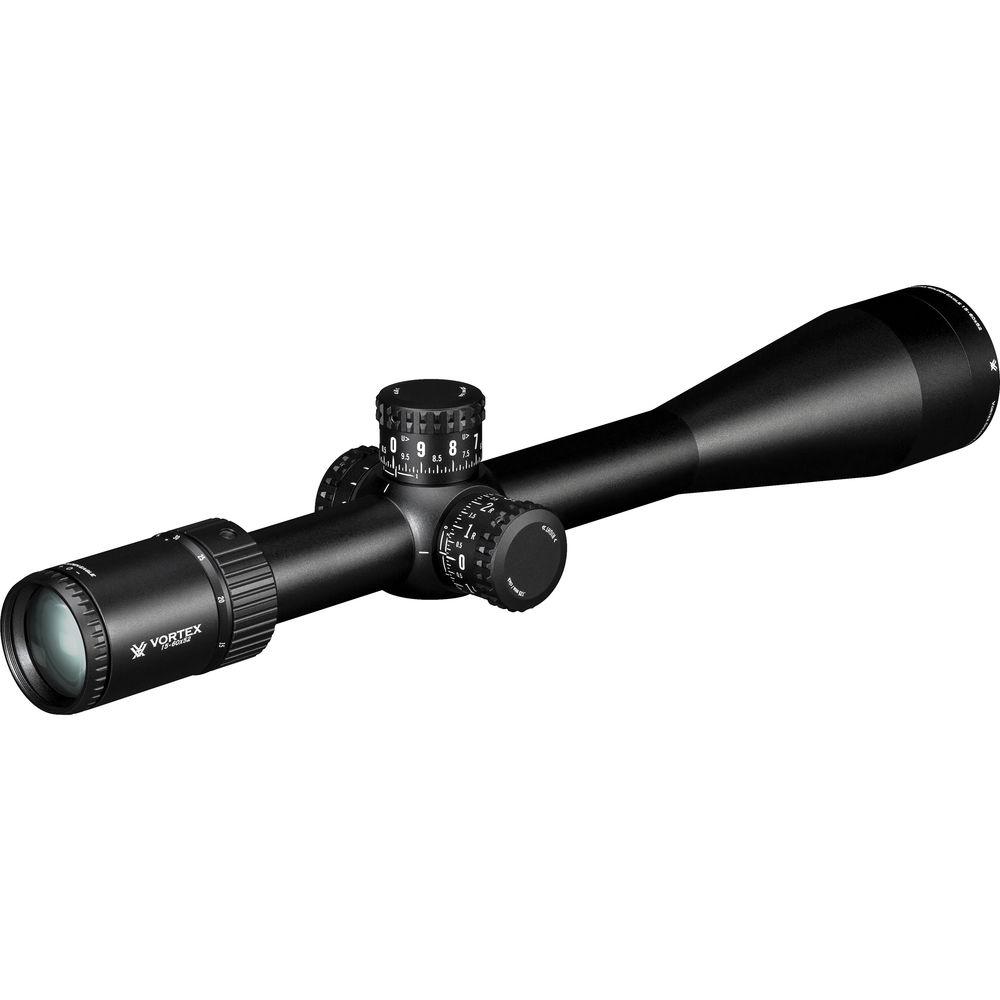

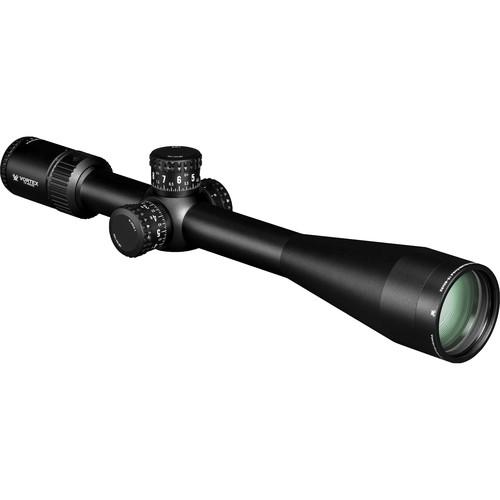

Product description The Golden Eagle HD 15-60x52 Riflescope from Vortex Optics is designed for the competitive shooter who requires high accuracy and a tack-sharp image. It features the ECR-1 MOA reticle with hashmarked subtension lines in the second focal plane. A wide 52mm objective gathers enough light to provide bright images, and the lenses are fully multi-coated with proprietary index-matched XRPlus anti-reflection coatings for maximum transmission and minimum glare. Plasma Tech technology enhances their durability. To offer balanced spectral color transmission, low dispersion of passing light, and to deliver high definition true-color images, the riflescope features an apochromatic optical system and lenses that are crafted from high definition High Density (HD) Extra-low dispersion optical glass. ArmorTek ultra-hard scratch-resistant coatings protect the optics from scratches, debris, dirt, and oil. The 30mm tube is lightweight but strong, and its single-piece machined aluminum construction maximizes alignment for improved accuracy and optimum visual performance. It is O-ring sealed waterproof, argon-filled, fogproof, and impact-resistant. A 1/8 MOA-per-click impact point adjustment allows competitive shooters to fine-tune their shots. An aperture stop ring broadens the depth of focus, allowing the shooter to more easily observe down-range mirage and other wind indicators while keeping the target in focus. The Golden Eagle HD comes with screw-on aluminum eyepiece and objective lens covers. - Optical Performance
-
- 15-60x magnification
- 52mm objective lens
- ECR-1 MOA reticle with hashmarked subtension lines
- Index-matched fully multi-coated optics with proprietary XRPlus coatings
- Apochromatic objective lens system provides correct color balance
- High density (HD) Extra-low Dispersion glass delivers true color and high resolution images
- Plasma Tech technology enhances coatings' durability
- Linear field of view: 6.3-1.7' at 100 yards
- Parallax correction: 15' to infinity
- Eye relief: 3.9"
- ECR-1 MOA Reticle
-
- ECR-1 MOA reticle with hashmarked subtension lines
- Subtensions set at 40x
- Modified German #4 reticle with three tapered posts
- Center dot is .095 MOA
- From inside edge of tapered post to center dot is 6 MOA
- Minor holdover markings are .25 MOA
- Major holdover markigns are .75 MOA
- Use and Handling
-
- 1/8 MOA impact point correction
- 55 MOA total elevation range
- 45 MOA total windage range
- Total travel per rotation: 10 MOA
- Construction Details
-
- Aluminum construction
- ArmorTek ultra-hard scratch-resistant coatings protect from scratches, debris, dirt, and oil
- Argon-filled, water and fogproof
- Impact-resistant, shockproof
- Side focus adjustment on left side of housing
UPC: 875874006126 In the Box Vortex Golden Eagle HD 15-60x52 Riflescope (ECR-1 MOA Reticle) Lens Cloth 2mm Hex Wrench 35mm Aperture Stop Ring Extra Windage Turret with Alternative Laser Markings Aluminum Objective and Eyepiece Lens Covers 3" Sunshade Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vortex Golden Eagle HD 15-60x52 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVortex TCS-1503 Specs | | | Magnification | 15 to 60x | | Objective Lens Diameter | 52 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | ECR-1 MOA Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/8 MOA per Click | | Windage Adjustment | 45 MOA | | Elevation Adjustment | 55 MOA | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16.1" / 410 mm | | Weight | 29.7 oz / 842 g | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 24.0 x 6.1 x 4.9" |
